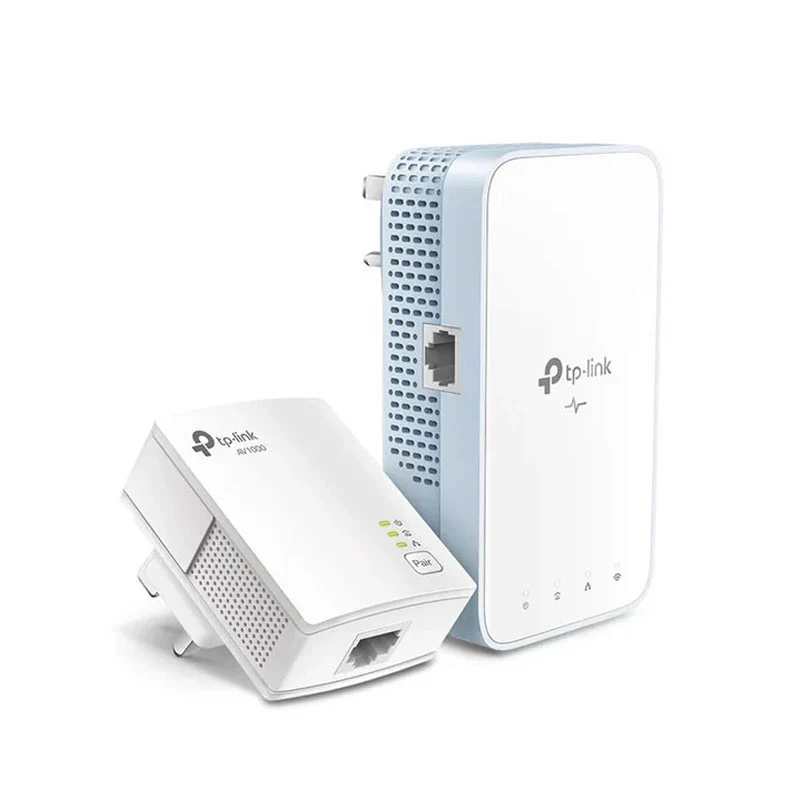

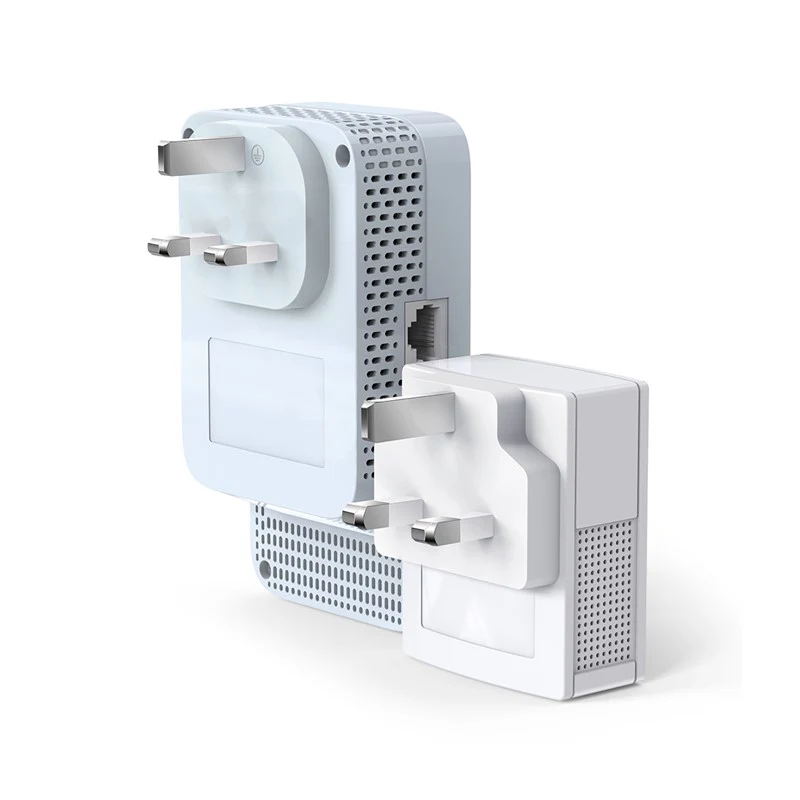

TP-Link TL-WPA7517 KIT AV1000 Gigabit Powerline Ac Wi-Fi Kit
|
Extend Wired and Wireless Network Using Electrical System
TL-WPA7517 KIT transforms your home’s existing electrical circuit into a Gigabit network, and brings wired and wireless network to anywhere there is a power outlet.
AV1000 Speeds and 300 Meters Range
Using advanced HomePlug AV2 technology, TL-WPA7517 KIT ensures stable and high-speed Wi-Fi and wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters.
Stream in HD, game online and download large files without interruption thanks to reliable powerline links.
AC1200 Wi-Fi for an Advanced Online Experience
With the 802.11ac Wi-Fi technology, the TL-WPA7517 operates a dual band Wi-Fi network (simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz) with more bandwidth and less interference, maximizing the performance of your powerline network.
One-Touch Wi-Fi Configuration
Instantly copies your network name and password from your router for easy setup
Wi-Fi Auto-Sync
Automatically applies any setting changes across the network. Your existing Wi-Fi settings will synchronize to the new extender instantly.

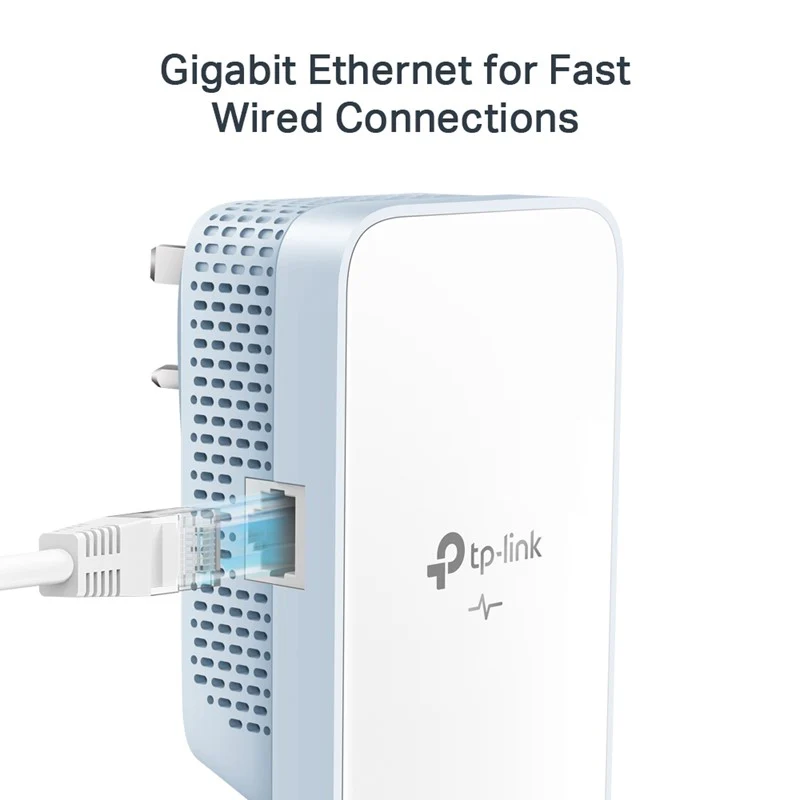

Gigabit Ethernet for Fast Wired Connections
One Gigabit Ethernet port provides reliable high-speed wired connection for a bandwidth intensive device, such as game consoles, smart TVs, STB and more, or connects multiple devices by adding a switch. Two Ethernet cables are included in the box
|
|
Specification:
|
Plug Type
|
EU
|
|
Standards and Protocols
|
HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u,
IEEE 802.3ab, IEEE 802.11b/g/n (2.4GHz), IEEE 802.11a/n/ac (5GHz)
|
|
Interface
|
TL-WPA7517: 1 Ethernet Port
TL-PA7017: 1 Ethernet Port
|
|
Button
|
Pair, Reset, Wi-Fi Clone, LED On/Off
|
|
Power Consumption
|
TL-WPA7517: Maximum: 11W, Typical: 6.5W
TL-PA7017: Maximum: 2.9W, Typical: 2.6W
|
|
LED Indicator
|
Power, Powerline, Ethernet, Wi-Fi (2.4GHz), Wi-Fi (5GHz)
|
|
Dimensions ( W x D x H )
|
TL-WPA7517: 2.7 × 1.4 × 4.9 in. (69.5 × 35 × 124.1 mm)
TL-PA7017: 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm)
|
|
Range
|
Up to 300 meters/1000 feet over existing electrical wiring
|
|
Compatibility
|
Compatible with all HomePlug AV & AV2 standard powerline adapters
|
|
Transmission Speeds
|
Powerline: Up to 1000 Mbps
Ethernet: 10/100/1000 Mbps
|
|
Wireless Features
|
|
Wireless Security
|
WPA-PSK / WPA2-PSK, WEP Encrptions
|
|
Software Features
|
|
Management
|
tpPLC: Scan the QR code to download TP-Link tpPLC App.
Or download new tpPLC Utility on PCs: www.tp-link.com.
|
|
Modulation Technology
|
OFDM (PLC)
|
|
Encryption
|
Powerline: 128-bit AES Encryption
Wireless: WPA-PSK / WPA2-PSK, WEP Encrptions
|
|
