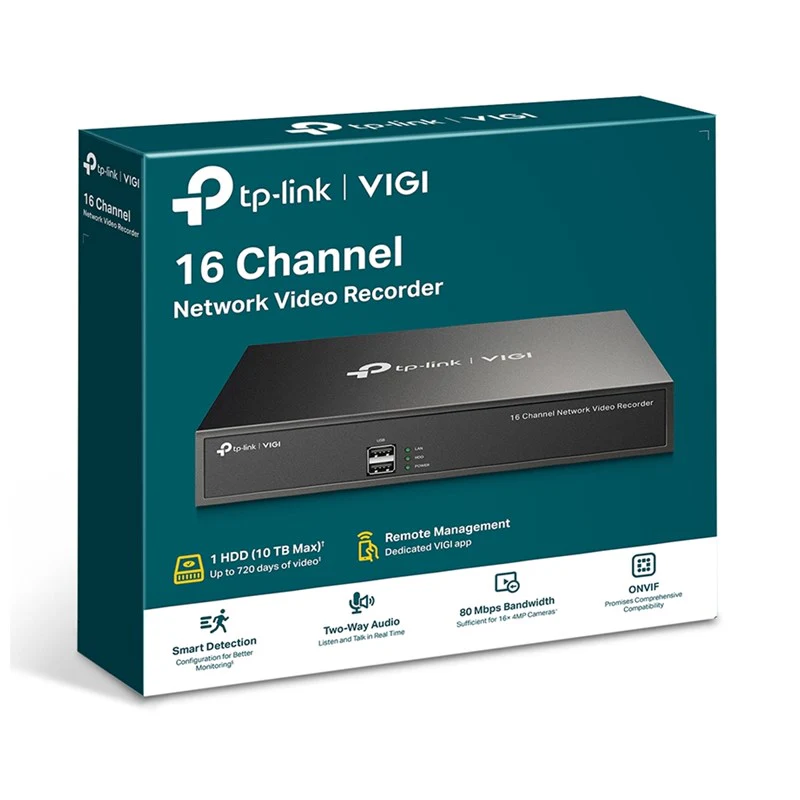

TP-Link VIGI 16 Channel Network Video Recorder

TP-Link VIGI 16 Channel Network Video Recorder

VIGI NVR Introduction

The VIGI network video recorder coordinates with camera systems to help you view, store, and playback videos

24/7 Continuous Recording

Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.

16-Channel Real-Time Live View

Sharp image definition up to 8MP and a 16-channel display ensures you capture every detail, from every angle

Quick Lookup&Playback

Find the target footage easily by date, event types, and tags. Replay with variable playback speeds to quickly review footage

More Compression. More Savings. More Quality.

Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

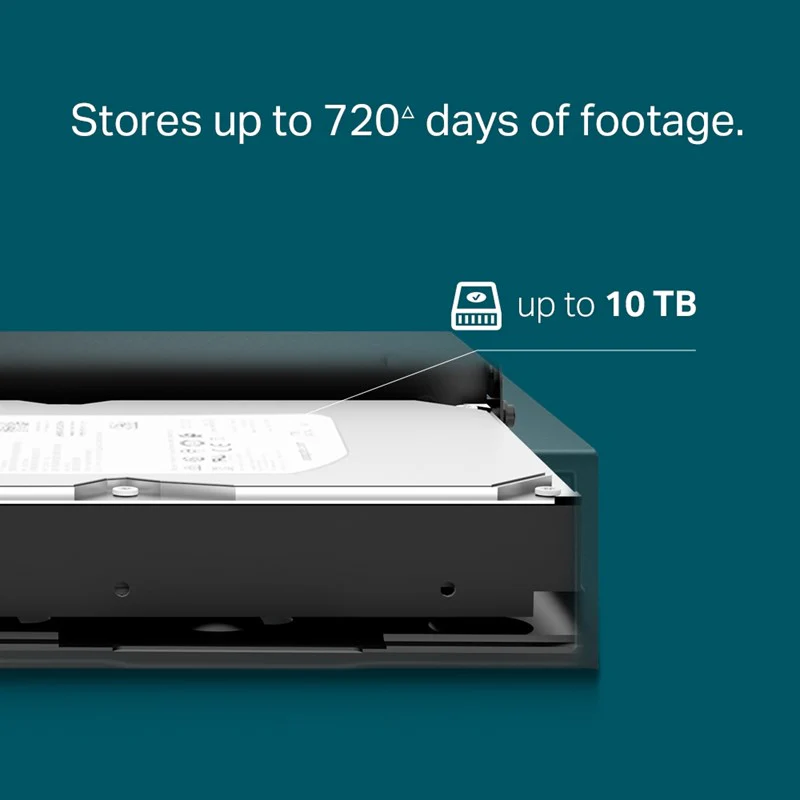

1 HDD (up to 10 TB)

Stores up to 10 TB ( 720 days of video) on a SATA hard drive, keeping your data storage secured locally

Two-Way Audio

With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management

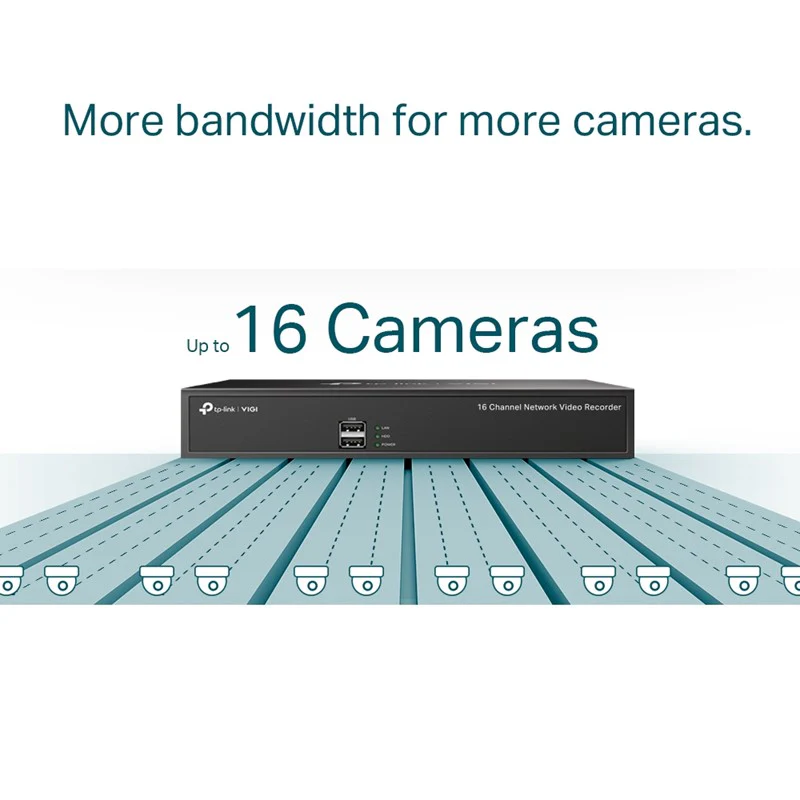

80 Mbps Video Access Bandwidth

High video access bandwidth ensures your NVR manages more cameras with high resolutions. Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to 16 HD cameras.

Run your business with peace of mind.

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build—whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

IP Video Input

16-Channel

Incoming Bandwidth

80 Mbps

Outgoing Bandwidth

60 Mbps

HDMI Output Resolution

1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output Resolution

1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output Mode

HDMI/VGA Simultaneous Output

Multi-View Display

1/4/6/8/9/16

Decoding

Audio Compression

G.711A/G.711U/G.726

Decoding Format

H.265+/H.265/ H.264+/H.264

Video Compression

H.265+/H.265/ H.264+/H.264

Record Resolution

8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Live View/Playback Resolution

8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA/
720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback

16-Channel

Capability

2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

Record Management

Record Mode

• Manual Recording
• Scheduling Recording
• Motion Detection Recording

Playback Mode

• Instant Playback
• Regular Playback
• Tag Playback
• Event Playback

Backup Mode

• Regular Backup
• Video Clip Backup

Playback Function

• Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off

Network

Protocol

TCP/IP, DHCP, DNS, NTP, UPnP

Mobile Phone Access

Android, iOS

Incoming Bandwith

80 Mbps

Outgoing Bandwidth

60 Mbps

Web Browser

Chrome (57+), Firefox (52+), Edge (91+)

Interoperability

ONVIF, CGI

External Interfaces

Network Interface

1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

USB Interface

2× USB 2.0

Audio Interface

1, Audio In; 1, Audio Out

Alarm In/Out

N/A

Serial Interface

N/A

Power

1× DC Jack

Reset Button

1

Speaker

N/A

eSATA

N/A

HDMI

1

VGA

1

Hard Disk

SATA

1 SATA Interface

Capacity

Up to 10 TB

Alarm

General Alarm

• Motion Detection
• Video Tampering
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Smart Frame

Anomaly Alarm

• Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception

Alarm Linkage

• Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm

Interfaces

Network Interface

1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

USB Interface

2× USB 2.0

General

Operating Temperature

-10–55 °C

Storage Temperature

-40–70 °C

Storage Humidity

10%~90% RH Non-Condensing

Weight

578.5 g

Package Contents

VIGI Network Video Recorder
Power Adapter
HDD Screws
Mouse
Quick Installation Guide

Working Temperature

• NVR: -10–55 °C
• Power Adapter: 0–40 °C

Working Humidity

10%~90% RH Non-Condensing

Dimensions( W X D X H )

246.2 × 148.2 × 45 mm

External Power Supply

DC 12V/1.5A

Net Weight

0.61 Kg

Gross Weight

1.12 Kg

Power Consumption

4.25 W (without disk)

Certifications

CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, IC, HDMI, FCC

Video/Image

Synchronous Playback

16-Channel

Video Input

16-Channel IP Video Input, up to 8 MP Resolution

Recording Resolution

8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

HDMI Output Resolution

1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz,
1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz,
1280x720/60Hz

VGA Output Resolution

1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz,
1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
