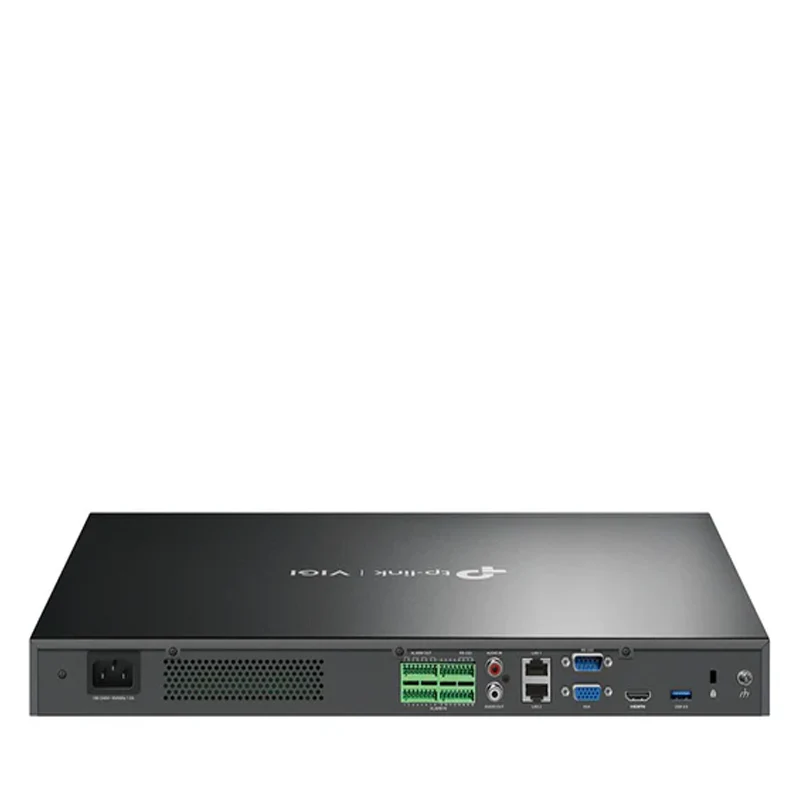

TP-Link VIGI 32 Channel Network Video Recorder

TP-Link VIGI 32 Channel Network Video Recorder

4K HDMI Video Output & 32 MP Decoding Capacity

Sharp image definition up to 8 MP ensures you capture every detail. 16-ch@2 MP/ 8-ch@4MP decoding capacity allows you to enjoy more-channels live view and playback at the same time

Rich Ports for Diversified Functions.

Equipped with a variety of ports, VIGI NVR4032H integrates 16× alarm in, 4× alarm out, two-way audio, video input, independent video output, and more, suitable for SMB surveillance scenarios.

320 Mbps Video Access Bandwidth

High video access bandwidth ensures your NVR manages more cameras with high resolutions.Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to 32 HD cameras

More Compression. More Savings. More Quality.

Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

4 SATA (1 up to 10TB)

Automatically and continuously stores up to 40 TB of footage from connected cameras to secure your data for quick, convenient access.

Rack Mounting

Just simply plug your NVR into the rack and connect it to the appropriate power and communication cables. Then, it is ready to go. This will give more convenience for many industrial and commercial applications.

Run your business with peace of mind.

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound

IP Video Input

32-Channel

Incoming Bandwidth

320 Mbps

Outgoing Bandwidth

320 Mbps

HDMI Output Resolution

1 Channel, Resolution: 3840x2160/30 Hz,1920x1080/60 Hz, 1680x1050/60 Hz, 1440x900/60 Hz, 1280x1024/60 Hz, 1280x720/60 Hz, 1024x768/60 Hz

VGA Output Resolution

1 Channel, Resolution: 1920x1080/60 Hz,1680x1050/60 Hz, 1440x900/60 Hz, 1280x1024/60 Hz, 1280x720/60 Hz, 1024x768/60 Hz

Video Output Mode

HDMI/VGA Independent Output

Multi-View Display

1/4/6/8/9/16/25/32/36

DECODING

Audio Compression

G.711A/G.711U/G.726

Decoding Format

H.265+/H.265/ H.264+/H.264

Video Compression

H.265+/H.265/ H.264+/H.264

Record Resolution

8 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Live View/Playback Resolution

8 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/
2CIF/CIF/QCIF

Synchronous Playback

16-Channel

Capability

16-ch @ 1080p (30 fps), 8-ch @ 4 MP (30 fps), 4-ch @ 8 MP
(30 fps)

RECORD MANAGEMENT

Record Mode

• Manual Recording
• Scheduling Recording
• Motion Detection Recording

Playback Mode

• Instant Playback
• Regular Playback
• Tag Playback
• Event Playback

Backup Mode

• Regular Backup
• Video Clip Backup

Playback Function

• Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off

NETWORK

Protocol

UPnP (Plug and Play), NTP (Network Timing)

Mobile Phone Access

Android, iOS

Incoming Bandwith

320 Mbps

Outgoing Bandwidth

320 Mbps

Web Browser

Chrome (57+), Firefox (52+), Edge (91+)

Interoperability

ONVIF, CGI

EXTERNAL INTERFACE

Network Interface

2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet
Interface

USB Interface

USB Interface

Audio Interface

1, Audio In; 1, Audio Out

Alarm In/Out

16/4

Serial Interface

1, RS232

Power

1× AC Jack

Reset Button

1

Speaker

N/A

eSATA

N/A

HDMI

1

VGA

1

Hard Disk

SATA

4 SATA Interfaces

Capacity

Up to 10 TB Capacity for Each HDD

Alarm

General Alarm

Motion Detection, Video Tampering, Intrusion Detection,
Line-Crossing Detection

Anomaly Alarm

Video Loss, Offline and IP Conflict,Disk Exception, Login
Exception, Fan Exception

Alarm Linkage

Recording, White Ligh Alarm, Buzzer, Log, Audible Alarm

Network Management

Network Protocols

UPnP (Plug and Play), NTP (Network Timing)

Interoperability

ONVIF, CGI

Mobile Phone Access

Android, iOS

Browser

Chrome (57+), Firefox (52+), Edge (91+)
