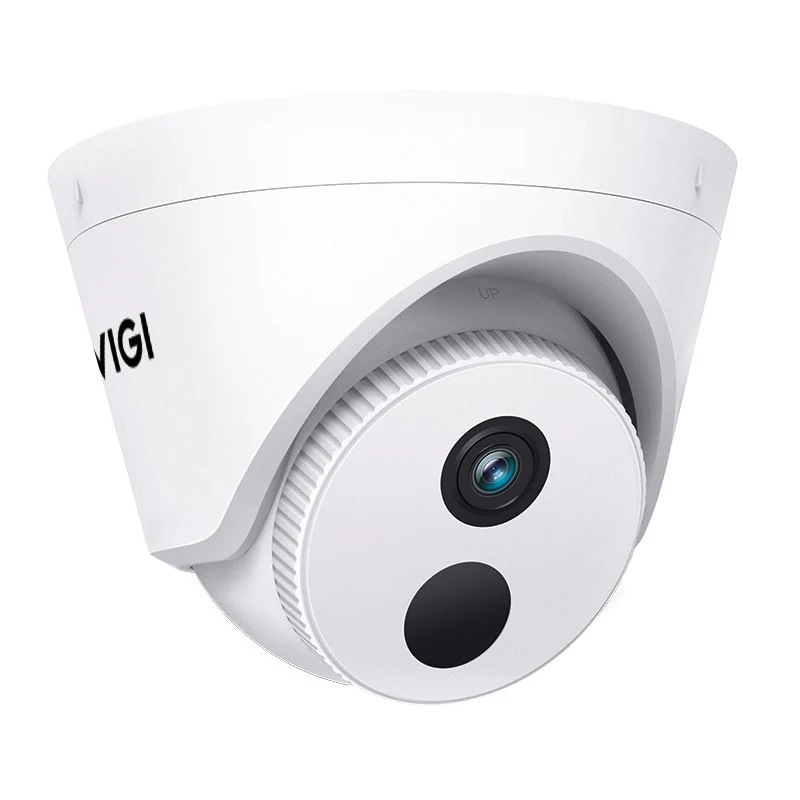

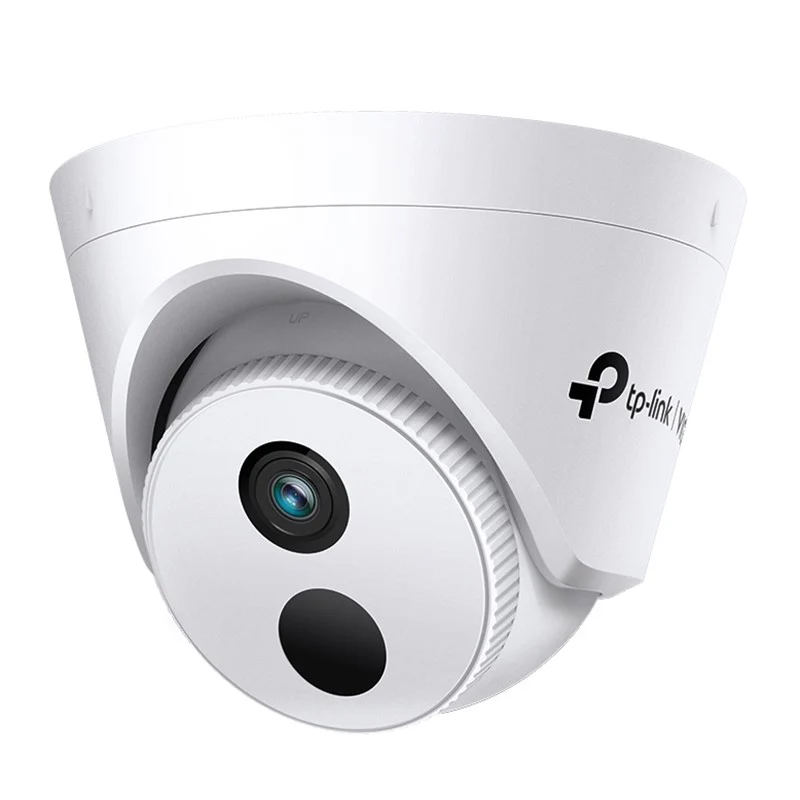

TP-Link VIGI 3MP Turret Network Camera

TP-Link VIGI 3MP Turret Network Camera

2.8/4 mm Lens

Whether you need a wide angle lens to cover enclosed spaces like elevators or a higher millimeter lens for longer distances in open spaces like parking lots, C400 comes with two different lens versions to better suit your security needs

Wide Dynamic Range

Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.

Night Vision

A robust night vision system ensures your camera performs well in low light conditions and records what’s happening for future inspection

More Compression. More Savings. More Quality.

Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality

Flexible Installation Gives You More Convenience.

Easily route your camera's cable into a dropped ceiling or avoid drilling by slotting it through the camera's side outlet.

VIGI Security Manager

When you are at home, control your security system from the convenience of your desktop, or laptop. Simply keep a tab on your web browser for easy, quick access to your video feeds.

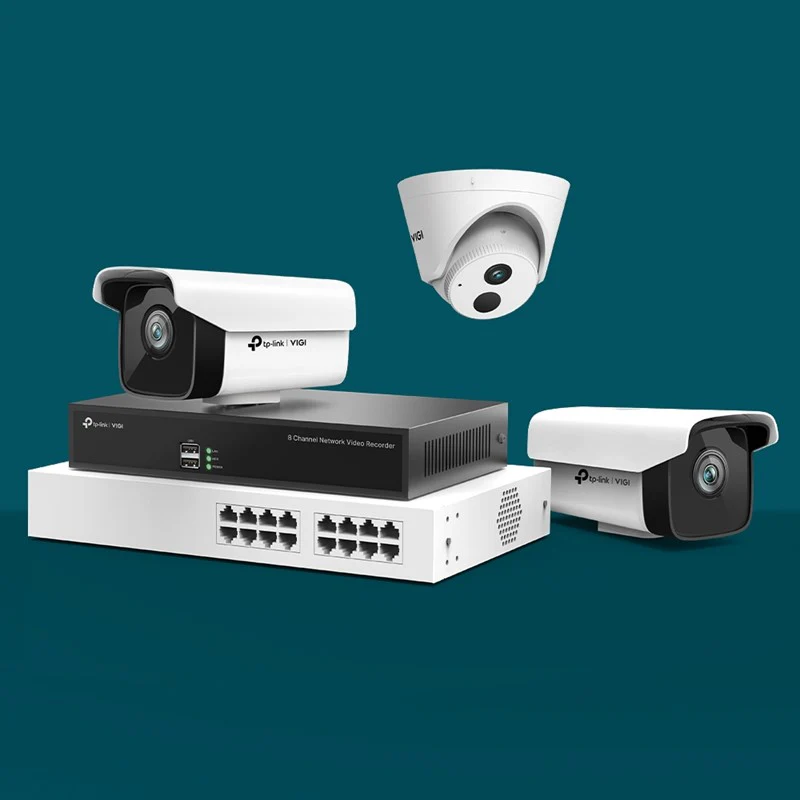

The VIGI Solution

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build—whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound

Image Sensor

1/2.7” Progressive Scan CMOS

Lens

4 mm / 2.8 mm

Digital Noise Reduction

3D DNR

WDR

DWDR

Aperture

4 mm: F2.4
2.8 mm: F2.0

Lens Mount

M12

IR Working Distance

30m

Viewing Angle

4 mm, horizontal FOV: 92°, vertical FOV: 48°, diagonal FOV: 114°
2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 125°

Pan/Tilt Range

Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°

Minimum Illumination

Color: 0.1 [email protected]; 0 Lux with IR

Day/Night Mechanism

IR Cut Filter

Network

Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

API

ONVIF

Simultaneous Live View

4 Main Streams & 3 Sub-Streams,
or 3 Main Streams & 5 Sub-Streams

Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Interfaces

Network Interface

1 RJ45 10/100M Self-Adaptive Ethernet Port

Button

-

Video Output

-

General

Weight

195 g

Package Contents

VIGI Network Camera
Quick Start Guide
Screws and Anchors
Mounting Template

Dimensions( H X W X D )

123 × 123 × 83 mm

Material

Plastic

General Features

Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening

Power Requirements

12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)

Power Supply

12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)

Power Consumption

12V DC: Max 2.4W
PoE: Max 3W

Certifications

CE, FCC, RCM, BSMI, VCCI, RoHS
