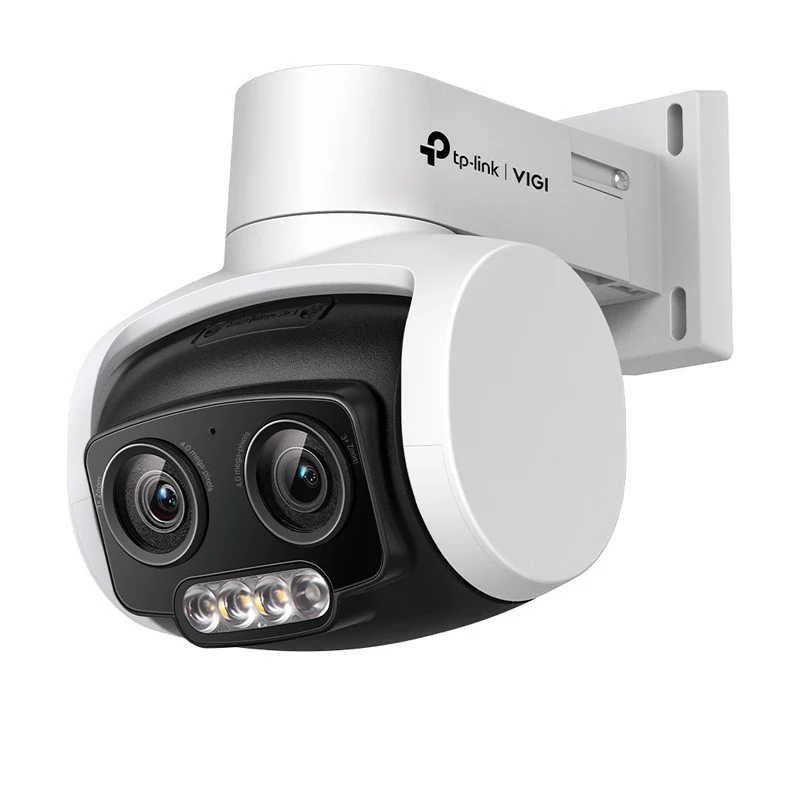

TP-Link VIGI 4 MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera

TP-Link Security Camera

4 MP Super-High Definition

4 MP offers more than enough pixels to pick up some of the more discreet details.

24h Full-Color

Captures 24 hours of full-color details, even in pitch-black conditions, thanks to large-aperture lens, a high-sensitivity sensor, and 4× attached supplemental lights.

3× Zoom

Allows for closer viewing of objects in expansive areas.

Instant Zoom

Zooming is instant without suffering from delays and image dragging.

Human & Vehicle Classification

Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.

Smart Detection

Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, removes/abandons objects, or enters/exits certain region.

Powerful Pan Tilt

Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.

Active Defense

Warn potential intruders instantly with sound and light when abnormal events.

Two-Way Audio

With voice intercom support, carry two-way conversations while watching your feed from anywhere.

H.265+

Compresses the video size without sacrificing video quality, easing the network load and saving disk space.

IP66 Waterproof

Reliable IP66 for stable outdoor performance.

Flexible Management and Storage

Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 512 GB).

What are the benefits of TP-Link Security Camera ?

• 4 MP resolution captures clear images with detailed visuals

• 24-hour full-color recording ensures visibility even in very low light

• 3× zoom allows closer viewing of objects in large areas

• Human and vehicle detection provides more accurate security alerts

• Smart detection notifies you of boundary crossing or unusual activity

• Pan and tilt with auto tracking helps monitor wider areas efficiently

• Sound and light alarm helps deter potential intruders

• Two-way audio enables remote communication through the camera

• H.265+ compression saves storage space while maintaining video quality

• IP66 waterproof design ensures reliable outdoor operation

CAMERA

Image Sensor

1/3" Progressive Scan CMOS

Shutter Speed

1/3 to 1/10000 s

Slow Shutter

Yes

Minimum Illumination

0.005 Lux; 0 Lux with IR/white light

Day/Night Mechanism

IR Cut Filter

Day/Night Switch

Unified/ Scheduled/ Auto

Zoom

3x Mixed Zoom

LENS

Focal Length

4-12mm (Mixed Zoom)

Aperture

F1.6

FOV

Diagonal FOV: 100°, Horizontal FOV: 84°, Vertical FOV: 46°

Lens Mount

M12*P 0.5

PTZ

Pan/tilt Range

Pan: 0° to 332°, Tilt: 0° to 120°

Pan/tilt Speed

Pan Speed:

Configurable from 8° to 44°/s; Preset Speed: 44°/s

Tilt Speed:

Configurable from 8° to 44°/s, Preset Speed 44°/s

Manual Control Speed

Configurable from 8° to 35°/s

Presets

300

Patrol Scan

8 patrols, up to 8 presets for each patrol

Power-off Memory

Yes;

Auto restore to previous PTZ and lens status after power failure

Park Action

Yes;

Preset; Patrol Scan

3D Positioning

Yes

Angle Adjustment (Manual)

Range

Pan: 0° to 332°, Tilt: 0° to 120°

VIDEO

Max. Resolution

2560 X 1440

Main Stream

Frame Rate：

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:

2560x1440, 2304x1296, 2048x1280, 1920x1080,1280x720

Sub-Stream

Frame Rate：

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:

640x480, 352x288, 320x240

Bit Rate Control

CBR, VBR

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264

Sub-Stream: H.265/H.264

H.264 Type

High Profile

H.264+

Main Stream Supported

H.265 Type

Main Profile

H.265+

Main Stream Supported

Video Bit Rate

Main Stream: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps


Image Settings

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software

Image Enhancement

BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range

DWDR

SNR

≥ 52 dB

Image Parameters Switch

Yes

Privacy Mask

Up to 4 Masks

ROI

1 Region

OSD Setting

Yes

AUDIO

Audio Communication

Two-Way Audio

Audio Input

Yes

Audio Output

Yes

Audio Compression

Yes

Audio Sampling Rate

8KHz

Environment Noise Filtering

Yes

Audio Bit Rate

64 Kbps(G.711 alaw)
