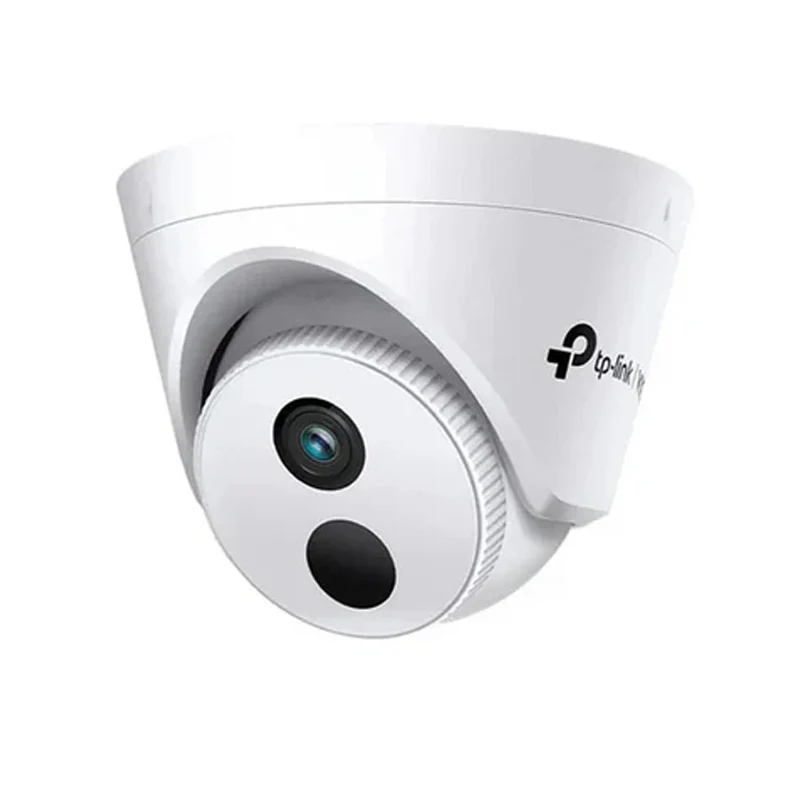

TP-Link VIGI 4MP IR Turret Network Camera (Corridor Mode)

TP-Link VIGI 4MP IR Turret Network Camera (Corridor Mode)

4MP Super-High Definition

The VIGI C440I camera comes with 4MP—more than enough pixels to pick up some of the more discrete details.

Human & Vehicle Classification

Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications

Smart Detection

Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

SmartVid-Smart Video Enhancement

VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision

More compression. More savings. Same quality.

Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Corridor Mode

Rotate the live image and lens 90° clockwise simultaneously. This way, your image aspect ratio changes from 16:9 to 9:16, helping you monitor long and narrow areas and providing a more natural viewing experience

2.8/4 mm Lens

Whether you need a wide angle lens to cover enclosed spaces like elevators or a higher millimeter lens for longer distances in open spaces like parking lots, C440I comes with two different lens versions to better suit your security needs

Run your business with peace of mind.

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Image Sensor

1/3” Progressive Scan CMOS

Lens

2.8 mm/ 4 mm

Day/Night Switch

Unified/ Scheduled/ Auto

Digital Noise Reduction

3D DNR

WDR

DWDR

IR Working Distance

30m

Shutter Speed

1/3 to 1/10000 s

Aperture

2.8 mm: F2.2
4 mm: F2.2

Lens Mount

M12

Viewing Angle

2.8mm: 88.8°/48.9°/106.5°(H/V/D)
4mm: 75.1°/41.5°/88.7°(H/V/D)

Slow Shutter

Yes

Minimum Illumination

Color: 0.1 Lux; 0 Lux with IR

Day/Night Mechanism

IR Cut Filter

Network

Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS

API

ONVIF

Simultaneous Live View

3 Main Streams & 3 Sub-Streams

Client

VIGI App, VIGI Security Manager, VIGI NVR, Web

Web Browser

Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above

Cloud

Yes

Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Network Storage

Yes

General

Operating Temperature

-30–60 °C

Storage Temperature

-40–60 °C

Operating Humidity

95% or Less (Non-Condensing)

Storage Humidity

95% or Less (Non-Condensing)

Package Contents

VIGI Network Camera
Quick Start Guide
Mounting Accessories

Dimensions( H X W X D )

123 × 123 × 83 mm

Material

Plastic

General Features

Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening

Net Weight

0.19 Kg

Gross Weight

0.34 Kg

Power Consumption

12V DC: Max 5W
PoE: Class 0

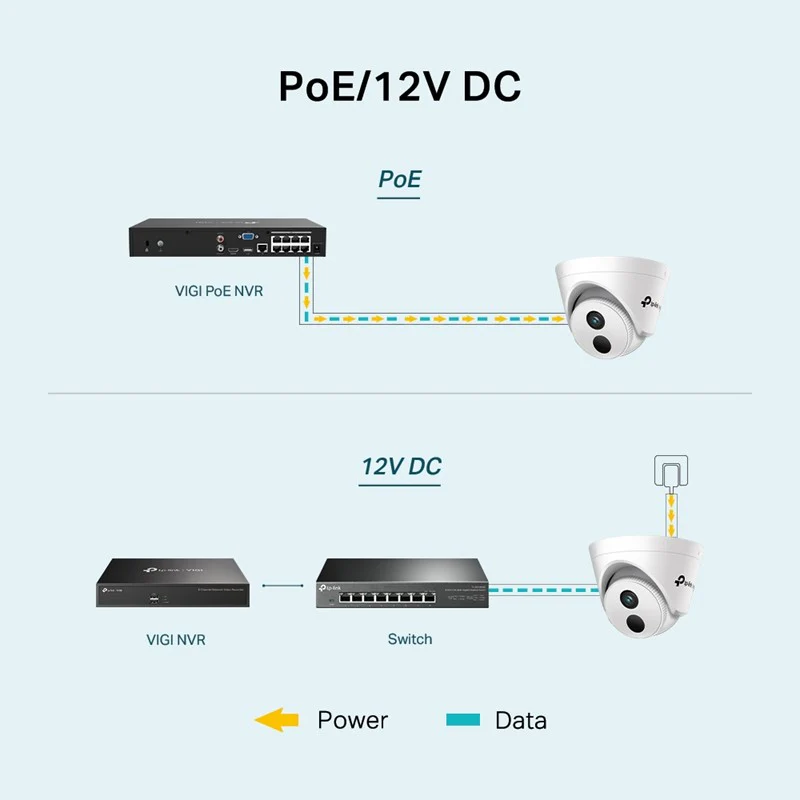

Power Supply

12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)

Protection

N/A

Product Dimensions (L x W x H)

123× 83× 123 mm

Certifications

CE/BSMI/VCCI/ONVIF

Interfaces

Network Interface

1 RJ45 10/100M Self-Adaptive Ethernet Port

Alarm

N/A

Reset Button

N/A

Power

DC Power Port

Button

-

Video Output

-

On-board Storage

N/A

Built-in Microphone

N/A

Built-in Speaker

N/A

Audio

N/A

Alarm and Event Management

Smart Event

Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection

Basic Event

Motion Detection, Video Tampering Detection, Exception ( Illegal Login)

Alarm Linkage

Message Push

Linkage Method

N/A

Output Notification

Message Push

Video/Image

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264

Frame Rate & Resolutions

Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480,352x288, 320x240

Max. Resolution

4MP (2560 × 1440)

Video Streaming

Main Stream
Sub-Stream

Image Settings

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)

Image Enhancement

BLC/3D DNR/HLC/SmartIR

Video Bit Rate

64 Kbps to 4 Mbps

Day/Night Switch

Day/Night/Auto/Schedule

Smart Feature

Smart Event

Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection

Basic Event

Motion Detection, Camera Tampering Detection, Exception (Illegal Login)

Linkage Method

Trigger Notification: ONVIF, HTTPS
