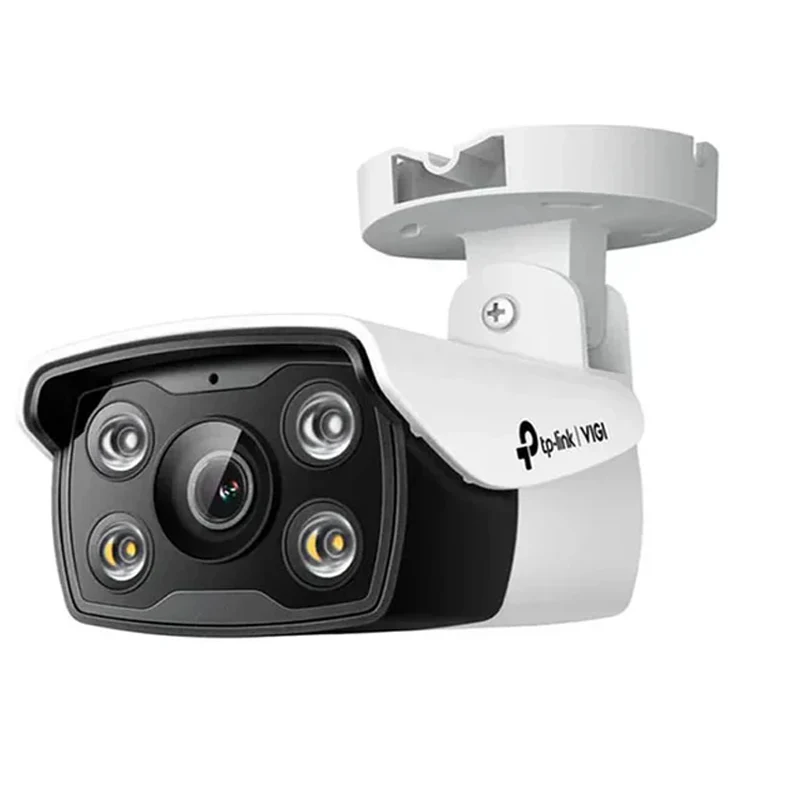

TP-Link VIGI 4MP Outdoor Full-Color Bullet Network Camera

TP-Link VIGI 4MP Outdoor Full-Color Bullet Network Camera

Clarity and Colors, All in One

Monitor 24-hour clear and colorful details even in pitch dark night. VIGI’s Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights

Human & Vehicle Classification

Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications

Smart Detection

Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

Every Event is Under Your Control.

VIGI camera intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio

SmartVid-Smart Video Enhancement

VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision

More compression. More savings. Same quality.

Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

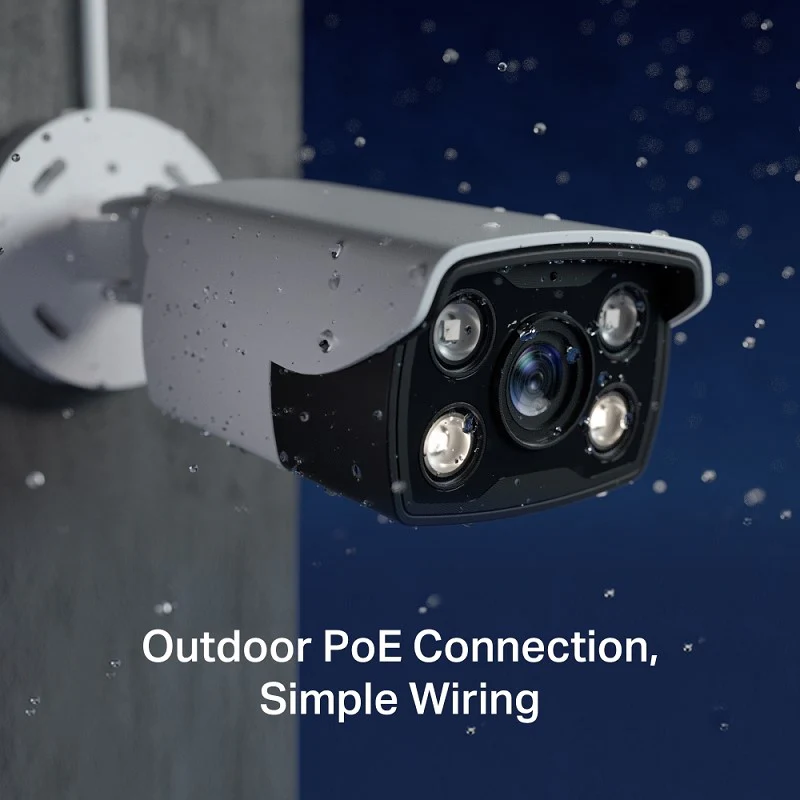

Outdoor PoE Connection, Simple Wiring

Just connect your camera via an RJ45 cable, then power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.

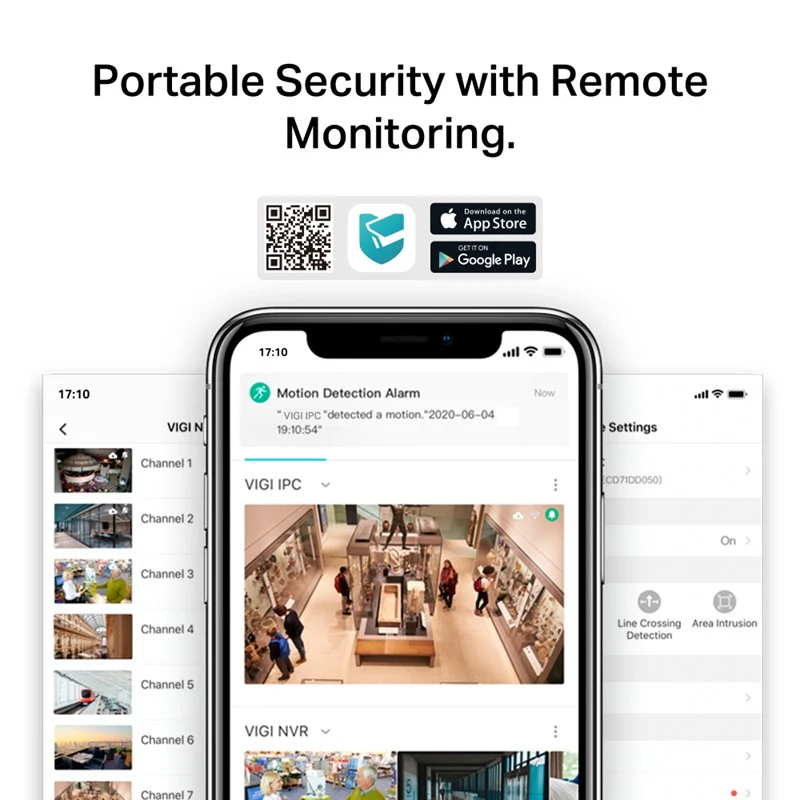

Flexible Management and Storage

Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each methods, as well as onboard storage with SD card slot  (up to 256 GB).

Image Sensor

1/3” Progressive Scan CMOS

Lens

Fixed focal lens (2.8 mm / 4 mm / 6 mm)

Day/Night Switch

Unified/ Scheduled/ Auto

Digital Noise Reduction

3D DNR

WDR

DWDR

Weatherproof Rating

IP66

IR Working Distance

30m

Shutter Speed

1/3 to 1/10000 s

Aperture

2.8 mm: F1.6
4 mm: F1.6
6 mm: F1.6

Lens Mount

M12

Illumination Distance

30 m

Viewing Angle

(2.8mm) Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 122°
(4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
(6mm) Horizontal FOV: 50°, vertical FOV: 27°, Diagonal FOV: 59°

Slow Shutter

Yes

Minimum Illumination

0 lux with IR/white Light

Day/Night Mechanism

IR Cut Filter

Network

Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

ONVIF

Yes

API

ONVIF

Simultaneous Live View

3 Main Streams & 3 Sub-Streams

Client

VIGI App, VIGI Security Manager, Web UI

Web Browser

Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above

Cloud

Yes

Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

General

Operating Temperature

-30–60 °C

Storage Temperature

-40–60 °C

Operating Humidity

95% or Less (Non-Condensing)

Storage Humidity

95% or Less (Non-Condensing)

Weight

195g

Package Contents

VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories (Screws, Drywall Anchors, Hex Key)

Dimensions( H X W X D )

78 × 70 × 174 mm

Material

Plastic

General Features

Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening

Power Requirements

12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)

Net Weight

0.28 Kg

Gross Weight

0.42 Kg

Power Consumption

12V DC: Max 7.5W
PoE: Class 0

Power Supply

12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)

Protection

IP67

Product Dimensions (L x W x H)

78× 174 × 70 mm

Certifications

CE, RCM, BSMI, VCCI, RoHS, NTRA, KC

INTERFACES

Network Interface

1 RJ45 10/100M Self-Adaptive Ethernet Port

Audio Input

Built-in Microphone

Audio Output

Built-in Speaker

Alarm

N/A

Reset Button

Yes

Power

DC Power Port

Button

Reset Button

Slot

Micro SD card

On-board Storage

Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB

Built-in Microphone

Yes; Records Anything Going on within a 15-ft Radius of the Camera

Built-in Speaker

Yes

Audio

N/A

Alarm and Event Management

Smart Event

Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection

Basic Event

Motion Detection, Video Tampering Detection, Exception ( Illegal Login)

Alarm Linkage

Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing

Linkage Method

N/A

Output Notification

Message Push

VIDEO/IMAGE

Video Compression

Main stream: H.265+/H.265/H.264+//H.264
Sub-Stream: H.265/H.264

Frame Rate & Resolutions

Main Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080

Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240

Video Streaming

Main Stream
Sub-Stream

Image Settings

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software

Image Enhancement

BLC/3D DNR/Prevent Overexposure to Infrared Light

Video Bit Rate

Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps

Smart Feature Set

Smart Event

Area Intrusion Detection, Line-Crossing Detection, Human Detection

Basic Event

Motion Detection, Camera Tampering Detection, Exception ( illegal login)

Linkage Method

Trigger Notification: ONVIF, HTTPS

Region of Interest

1 Region

Audio

Audio Communication

Two-Way Audio

Audio Input

Yes

Audio Output

Yes

Audio Compression

Yes

Audio Sampling Rate

8KHz

Environment Noise Filtering

Yes

Audio Bit Rate

64 Kbps(G.711 alaw)

ILLUMINATOR

IR LED

Quantity: 2
Range: 30m
Wavelength: 850nm

White LED

Quantity: 2
Range: 30m

Illuminator On/Off Control

Auto/Scheduled/Always on/Always off

Lens

Type

Fixed Focal Lens

Focal Length

2.8 mm/4 mm/6 mm

Aperture

2.8 mm: F1.6
4 mm: F1.6
6 mm: F1.6

FOV

2.8mm:
Horizontal FOV: 96.1°, Vertical FOV: 52°, Diagonal FOV: 113.6°

4mm:
Horizontal FOV: 80°, Vertical FOV: 43.2°, Diagonal FOV: 94.2°

6mm:
Horizontal FOV: 49.3°, Vertical FOV: 26.8°, Diagonal FOV: 57.4°

Lens Mount

M12

DORI Distance

2.8 mm
Detect: 64 m (209 ft)
Observe: 27 m (87 ft)
Recognize: 13 m (42 ft)
Identify: 6 m (21 ft)

4 mm
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)

6 mm
Detect: 128 m (420 ft)
Observe: 53 m (175 ft)
Recognize: 26 m (84 ft)
Identify: 13 m (42 ft)

ANGLE ADJUSTMENT (MANUAL)

Range

Pan: -90° to 90°,
Tilt: -90° to 90°

Video

Max. Resolution

2560 X 1440

Main Stream

Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream

Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Bit Rate Control

CBR, VBR

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264

H.264 Type

Main Profile/High Profile

H.264+

Main Stream Supported

H.265 Type

Main Profile

H.265+

Main Stream Supported

Video Bit Rate

Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps


Image Settings

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)

Image Enhancement

BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range

DWDR

SNR

≥ 52 dB

Image Parameters Switch

Yes

Privacy Mask

Up to 4 Masks

ROI

1 Region

OSD Setting

Yes
