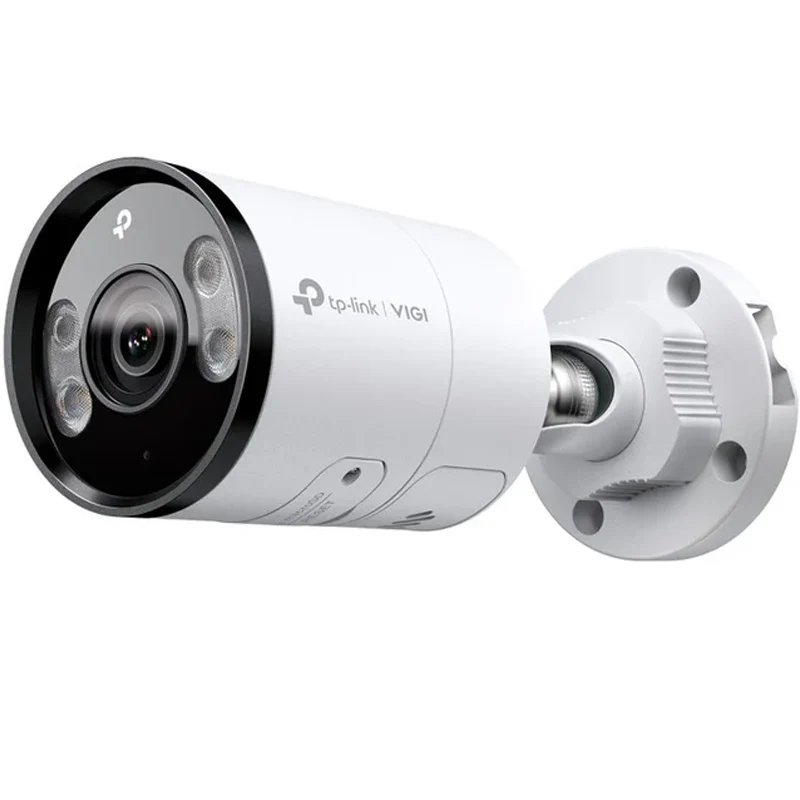

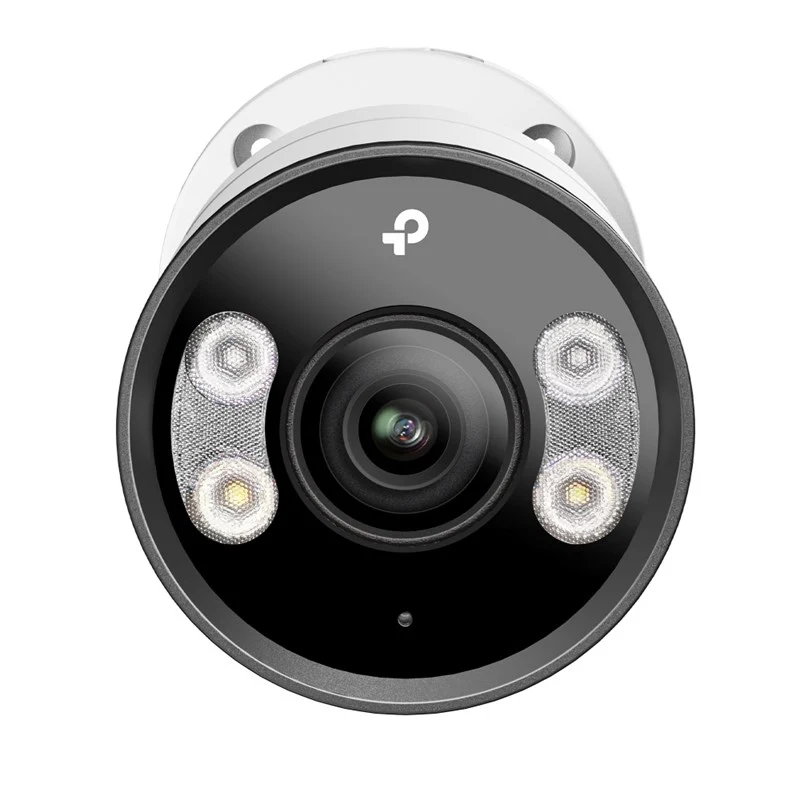

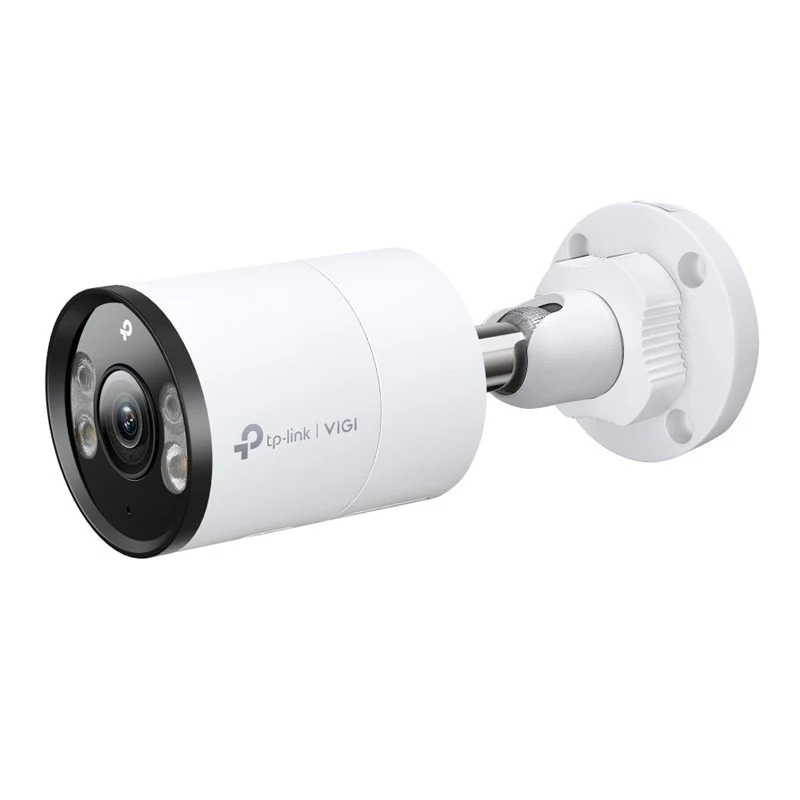

TP-Link VIGI 4MP Outdoor Full-Color Bullet Network Camera (2.8mm)

TP-Link VIGI 4MP Outdoor Full-Color Bullet Network Camera

People & Vehicle Analytics

Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

Human & Vehicle Classification

Distinguish humans and vehicles from other objects and receive more accurate event notifications.True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.

Smart IR

Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.

3D DNR

3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.

White Balance

White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

CAMERA

Image Sensor

1/2.7” Progressive Scan CMOS

Shutter Speed

1/3 to 1/10000 s

Slow Shutter

Yes

Minimum Illumination

0.005 Lux; 0 Lux with IR/White light

Day/Night Mechanism

IR Cut Filter

Day/Night Switch

Unified/ Scheduled/ Auto

LENS

Type

Fixed Focal Lens

Focal Length

2.8/4/6mm

Aperture

F1.6

FOV

2.8mm:

Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118°

4mm:

Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7°

6mm:

Horizontal FOV: 52.7°, Vertical FOV: 29°, Diagonal FOV: 60.8°

Lens Mount

M12*P 0.5

DORI Distance

2.8mm

Detect: 64 m (210 ft)

Observe: 27 m (89 ft)

Recognize: 13 m (43 ft)

Identify: 6 m (20 ft)

4mm

Detect: 80 m (262 ft)

Observe: 33 m (108 ft)

Recognize: 16 m (52 ft)

Identify: 8 m (26 ft)

6mm

Detect: 120 m (394 ft)

Observe: 50 m (164 ft)

Recognize: 24 m (79 ft)

Identify: 12 m (39 ft)

Angle Adjustment (Manual)

Range

Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

ILLUMINATOR

IR LED

Quantity: 2

Range: 30 M

Wavelength: 850nm

White LED

Quantity: 2

Range: 30 M

Illuminator On/Off Control

Auto/Scheduled/Always on/Always off

VIDEO

Max. Resolution

2688 x 1520

Bit Rate Control

CBR, VBR

H.264 Type

High Profile

H.264+

Main Stream Supported
