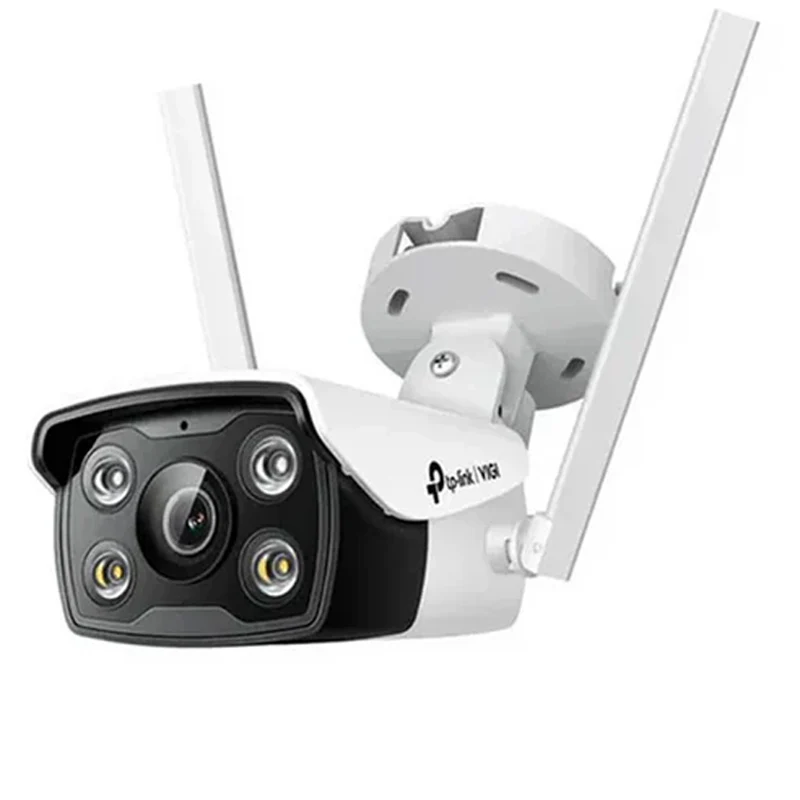

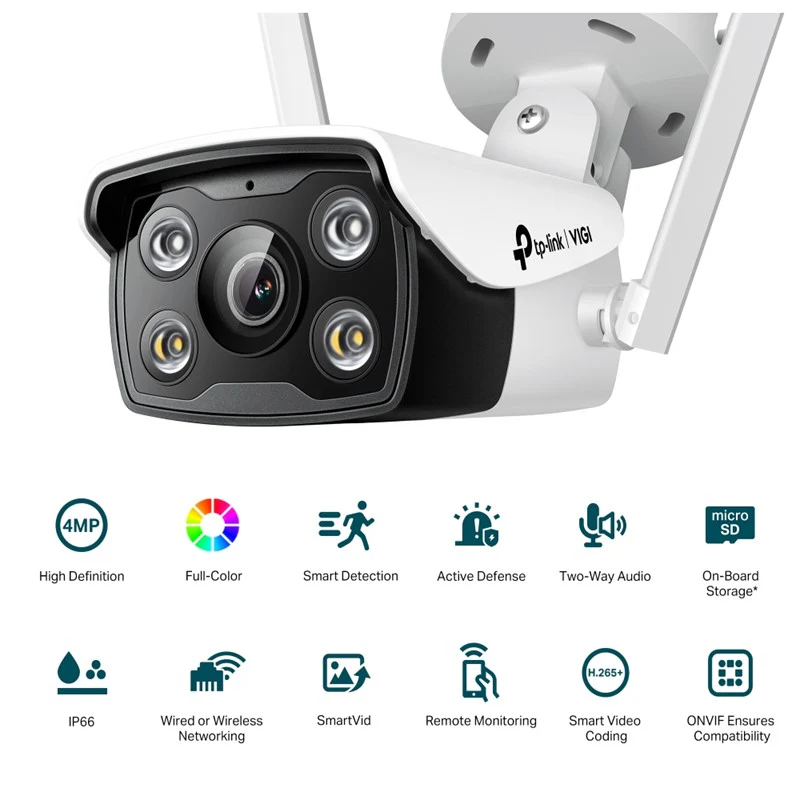

TP-Link VIGI 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera

TP-Link VIGI 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera

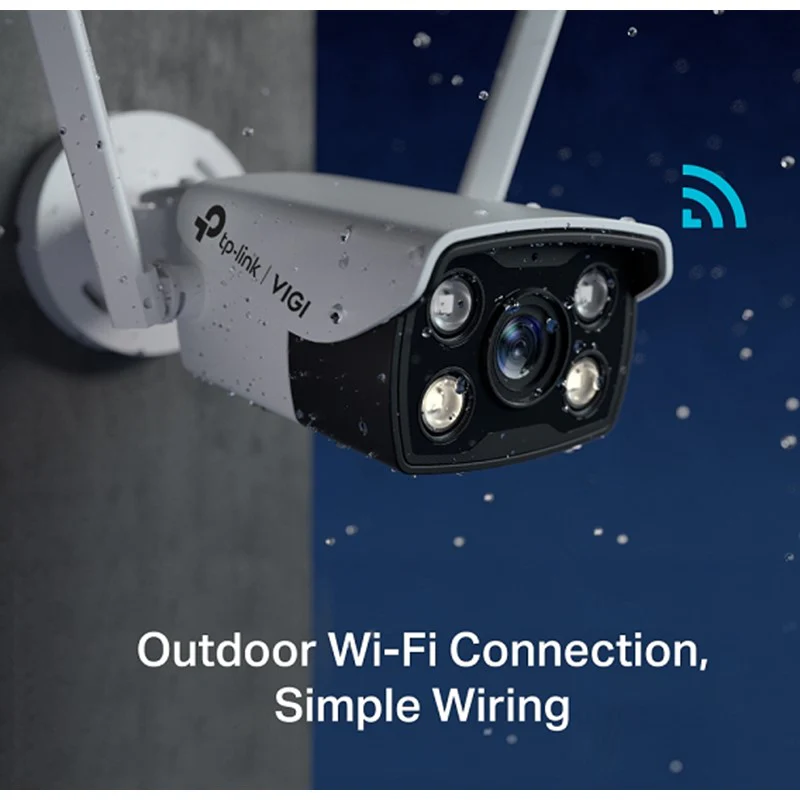

Outdoor Wi-Fi Connection, Simple Wiring

Just power up your camera, then the transmission starts by its 2×2 MIMO antennas. Waterproof hardware protect stable performance in outdoor scenarios

Clarity and Colors, All in One

Monitor 24-hour clear and colorful details even in pitch dark night. VIGI C340-W provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights

Smart Detection

Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.

Every Event is Under Your Control.

VIGI camera intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio

More compression. More savings. Same quality.

Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Flexible Management and Storage

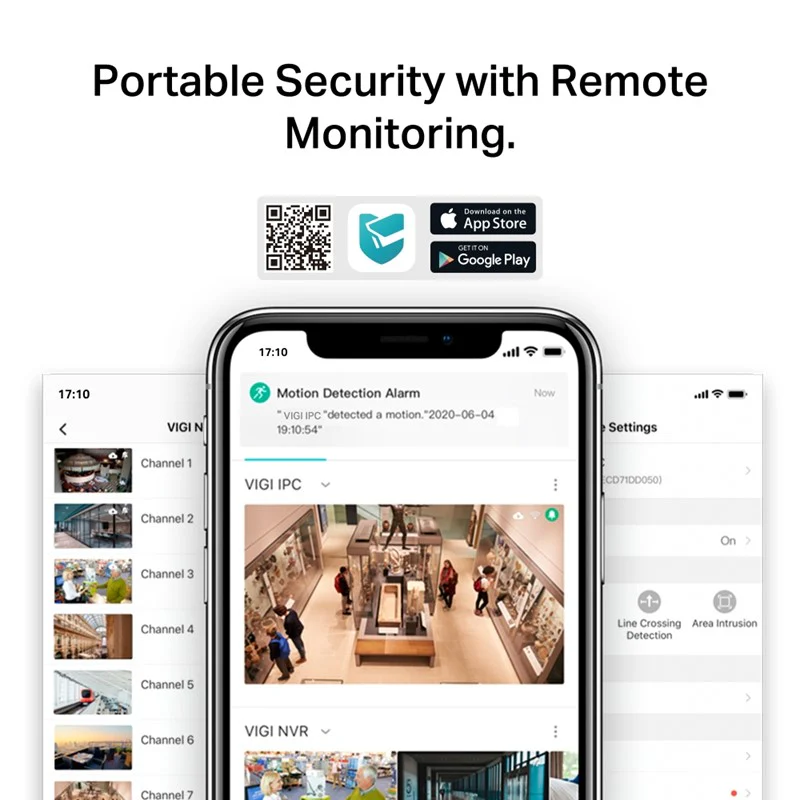

Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as on-board storage with SD card slot

Run your business with peace of mind.

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound

Image Sensor

1/3” Progressive Scan CMOS

Shutter Speed

1/3 to 1/10000 s

Slow Shutter

Yes

Aperture

4 mm: F1.6

Lens

Fixed focal lens (4 mm)

Lens Mount

M12

Minimum Illumination

0 lux with IR/white Light

Day/Night Mechanism

IR Cut Filter

Day/Night Switch

Day/Night/Auto/Schedule-Switch

Digital Noise Reduction

3D DNR

WDR

DWDR

Weatherproof Rating

IP66

IR Working Distance

30m

Illumination Distance

30 m

Viewing Angle

(4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°

Lens

Type

Fixed Focal Lens

Focal Length

4 mm

Aperture

F1.6

FOV

Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°

Lens Mount

M12

DORI Distance

Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)

ANGLE ADJUSTMENT (MANUAL)

Range

Pan: -90° to 90°,
Tilt: -90° to 90°

Illuminator

IR LED

Quantity: 2
Range: 30m
Wavelength: 850nm

White LED

Quantity: 2
Range: 30m

Illuminator On/Off Control

Auto/Scheduled/Always on/Always off

Video

Max. Resolution

2560 X 1440

Main Stream

Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream

Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Bit Rate Control

CBR, VBR

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264

H.264 Type

Main Profile/High Profile

H.264+

Main Stream Supported

H.265 Type

Main Profile

H.265+

Main Stream Supported

Video Bit Rate

Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps


Image Settings

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)

Image Enhancement

BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range

DWDR

SNR

≥ 52 dB

Image Parameters Switch

Yes

Privacy Mask

Up to 4 Masks

ROI

1 Region

OSD Setting

Yes

Audio

Audio Communication

Two-Way Audio

Audio Input

Yes

Audio Output

Yes

Audio Compression

Yes

Audio Sampling Rate

8KHz

Environment Noise Filtering

Yes

Audio Bit Rate

64 Kbps(G.711 alaw)
