TP-Link VIGI 8 Channel PoE+ Network Video Recorder

TP-Link VIGI 8 Channel PoE+ Network Video Recorder

4K HDMI Video Output & 8× 2MP Decoding Capacity

Shows more details with up to 8MP resolution for one channel and 16MP decoding capacity in total for all channels

8-Channel Simultaneous Playback

Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage

More Compression. More Savings. More Quality.

Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Plug & Play.

Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.

24/7 Continuous Recording

Stores up to 10 TB of footage from managed cameras to secure your data for quick, convenient access.

Run your business with peace of mind.

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever.

Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Protocol

TCP/IP, DHCP, DNS, NTP, UPnP

Incoming Bandwith

80 Mbps

Outgoing Bandwidth

60 Mbps

General

Operating Temperature

-10–55 °C

Package Contents

VIGI Network Video Recorder
Power Adapter
HDD Screws
Mouse
Quick Installation Guide

Dimensions( W X D X H )

294 × 180 × 44 mm

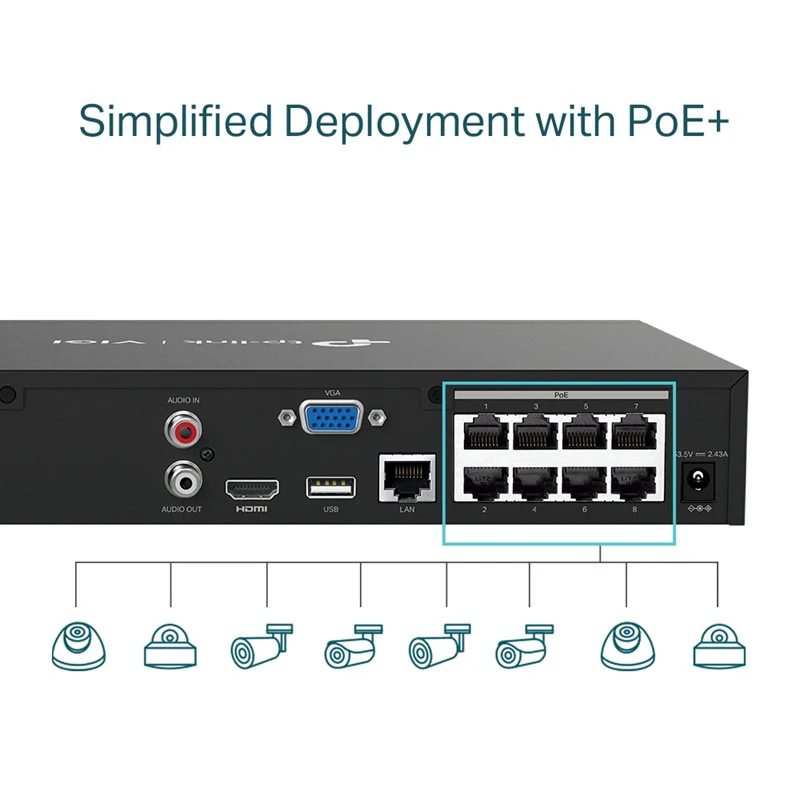

PoE

Standard: 802.3af/at
PoE Ports: Ports 1-8
PoE Budget: 113 W

External Power Supply

53.5V DC/2.43 A

Power Consumption

4.82 W (without disk)

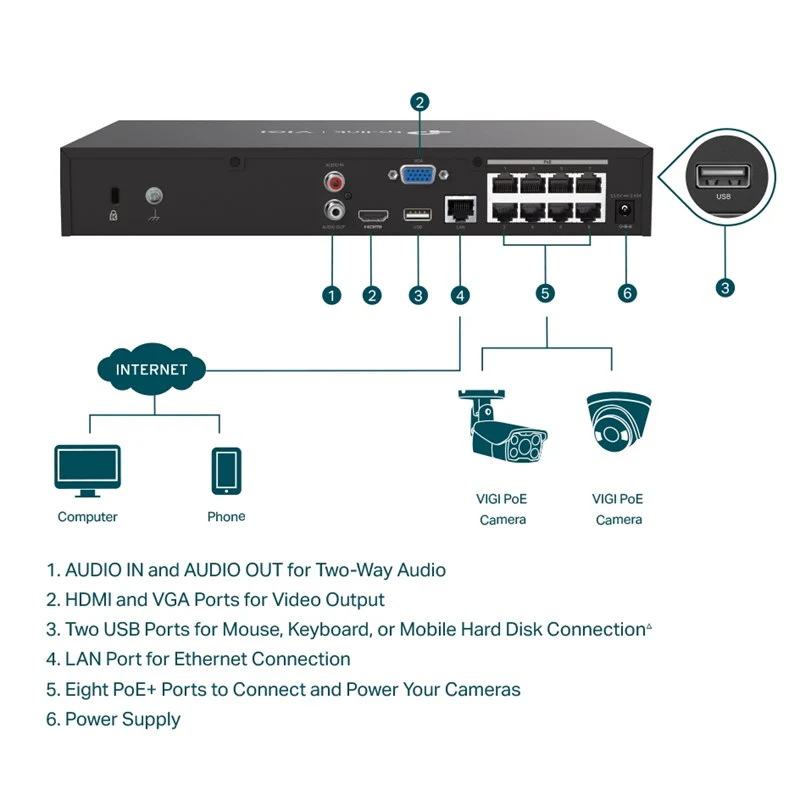

Interfaces

Network Interface

1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

USB Interface

2× USB 2.0

HARD DISK

SATA

1 SATA Interface

Capacity

Up to 10 TB

Video/Image

Video Input

8-Channel IP Video Input, up to 8 MP Resolution

Recording Resolution

8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

HDMI Output Resolution

1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz,
1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz,
1024x768/60Hz, 1280x720/60Hz

VGA Output Resolution

1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz,
1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz,
1024x768/60Hz,

Decoding

Decoding Format

H.265+/H.265/ H.264+/H.264

Live View/Playback Resolution

8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/
DCIF/2CIF/CIF/QCIF

Synchronous Playback

8 Channel

Capability

2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
