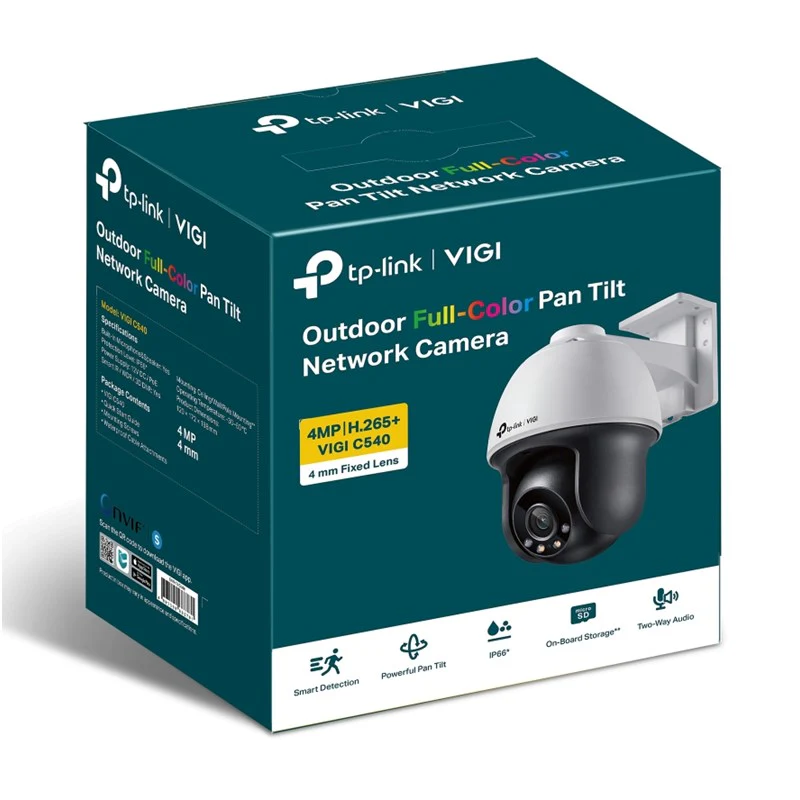

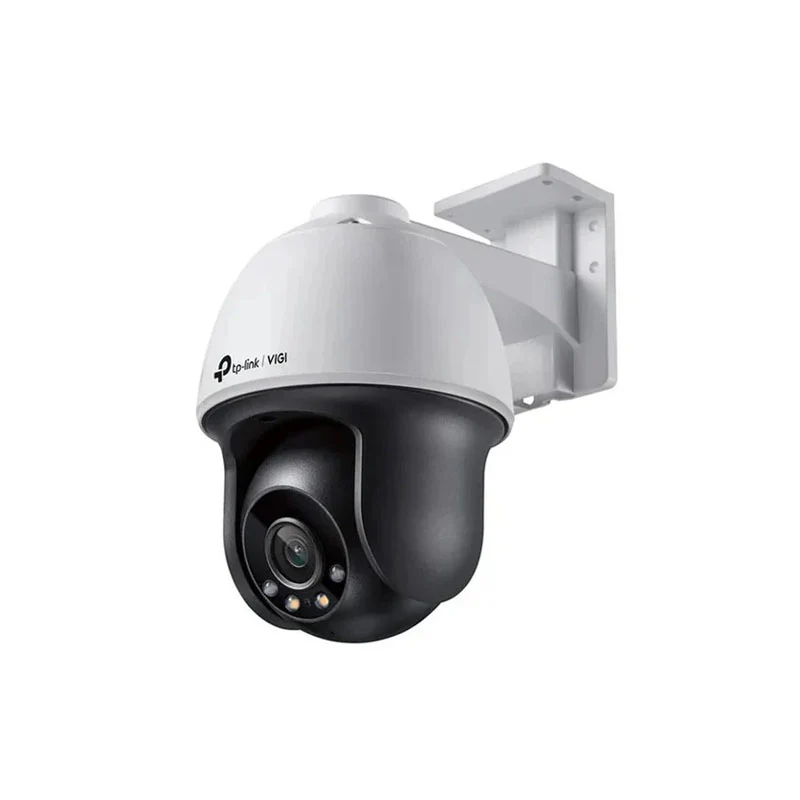

TP-Link VIGI C540 4MP Outdoor Full-Color PTZ Network Camera

TP-Link VIGI C540 4MP Outdoor Full-Color PTZ Network Camera

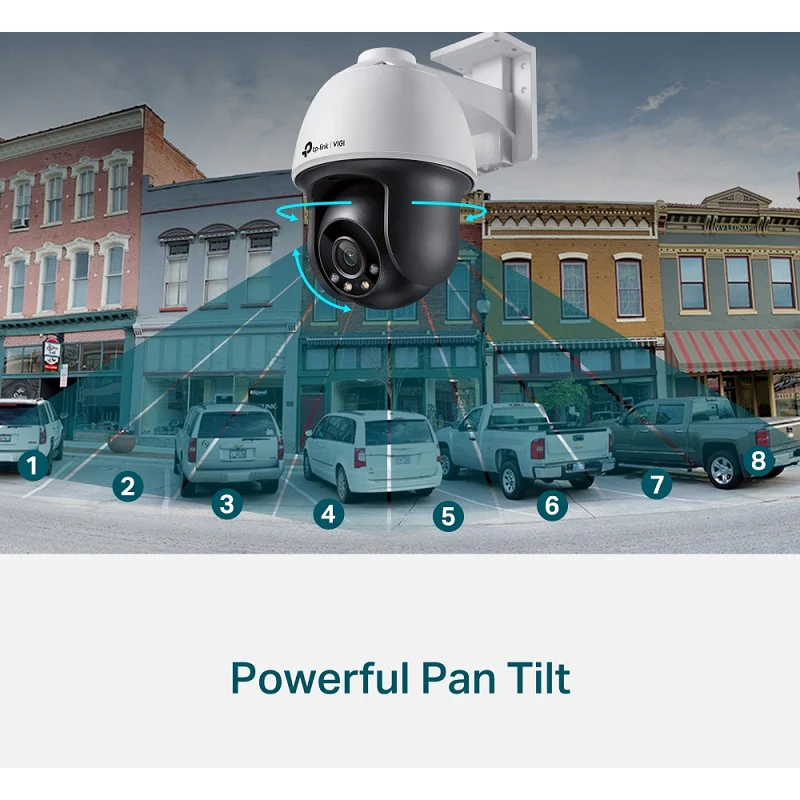

Powerful Pan Tilt

Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property.

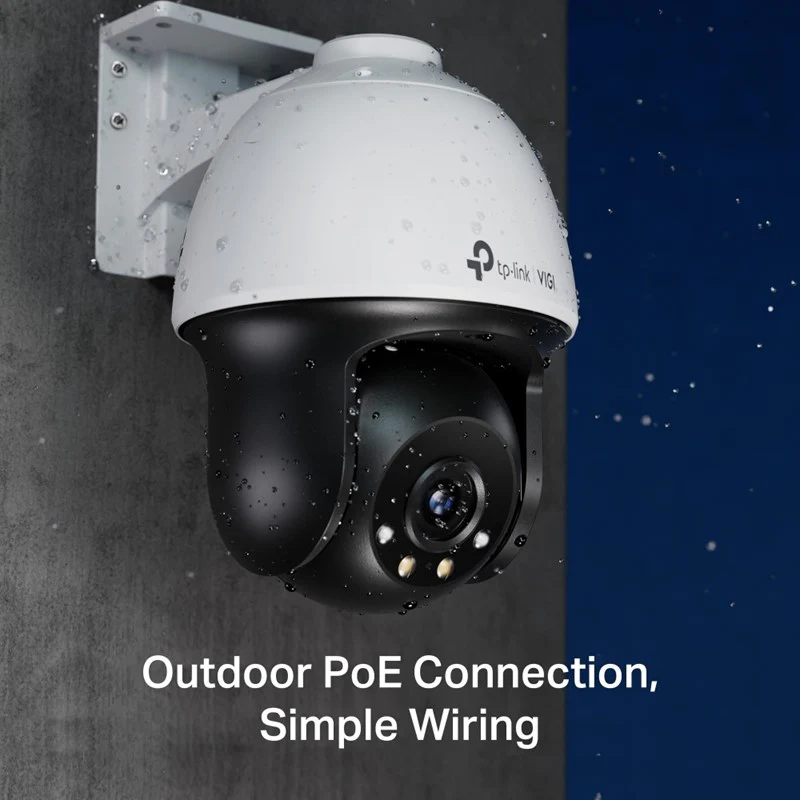

Outdoor PoE Connection, Simple Wiring

Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios

Clarity and Colors, All in One

Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights

Smart Detection

Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.

Active Defense

Warn potential intruders instantly with sound and light when abnormal events are detected.

Flexible Management and Storage

Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as onboard storage with an SD card slot (up to 256 GB)

Run your business with peace of mind.

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Image Sensor

1/3” Progressive Scan CMOS

Shutter Speed

1/3 to 1/10000 s

Slow Shutter

Yes

Aperture

4 mm: F1.6

Lens

Fixed focal lens (2.8 mm / 4 mm / 6 mm)

Lens Mount

M12

Minimum Illumination

0 lux with IR/white Light

Day/Night Mechanism

IR Cut Filter

Day/Night Switch

Unified/ Scheduled/ Auto

Digital Noise Reduction

3D DNR

WDR

DWDR

Weatherproof Rating

IP66

IR Working Distance

30m

Pan/Tilt Range

Pan: 0° to 350°, Tilt: 0° to 120°

Illumination Distance

30 m

Viewing Angle

(4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°

Digital Zoom

Yes

LENS

Type

Fixed Focal Lens

Focal Length

4 mm

Aperture

F1.6

FOV

4mm:
Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°

Lens Mount

M12

DORI Distance

4 mm:
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)

PTZ

Pan/tilt Range

Pan: 0° to 350°, Tilt: 0° to 120°

Pan/tilt Speed

Pan Speed:
Configurable from 1° to 55°/s; Preset Speed: 55°/s

Tilt Speed:
Configurable from 1° to 40°/s, Preset Speed 40°/s

Manual Control Speed

Configurable from 8° to 35°/s

Presets

300

Patrol Scan

8 patrols, up to 8 presets for each patrol

Power-off Memory

Yes;
Auto restore to previous PTZ and lens status after power failure

Park Action

Yes;
Preset; Patrol Scan

3D Positioning

Yes

ANGLE ADJUSTMENT (MANUAL)

Range

Pan: 0° to 348°
Tilt: 0° to 120°

Illuminator

IR LED

Quantity: 2
Range: 30m
Wavelength: 850nm

White LED

Quantity: 2
Range: 30m

Illuminator On/Off Control

Auto/Scheduled/Always on/Always off

Video

Max. Resolution

2560 X 1440

Main Stream

Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080

Sub-Stream

Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
640x480, 352x288, 320x240

Bit Rate Control

CBR, VBR

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264

H.264 Type

Main Profile/High Profile

H.264+

Main Stream Supported

H.265 Type

Main Profile

H.265+

Main Stream Supported

Video Bit Rate

Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps


Image Settings

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software

Image Enhancement

BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range

DWDR

SNR

≥ 52 dB

Image Parameters Switch

Yes

Privacy Mask

Up to 4 Masks

ROI

1 Region

OSD Setting

Yes

Audio

Audio Communication

Two-Way Audio

Audio Input

Yes

Audio Output

Yes

Audio Compression

Yes

Audio Sampling Rate

8KHz

Environment Noise Filtering

Yes

Audio Bit Rate

64 Kbps(G.711 alaw)

Network

Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

ONVIF

Yes

API

ONVIF

Simultaneous Live View

3 Main Streams & 3 Sub-Streams

Web Browser

Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above

Cloud

Yes

Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Alarm and Event Management

Smart Event

Area Intrusion Detection, Line-Crossing Detection, People Detection
