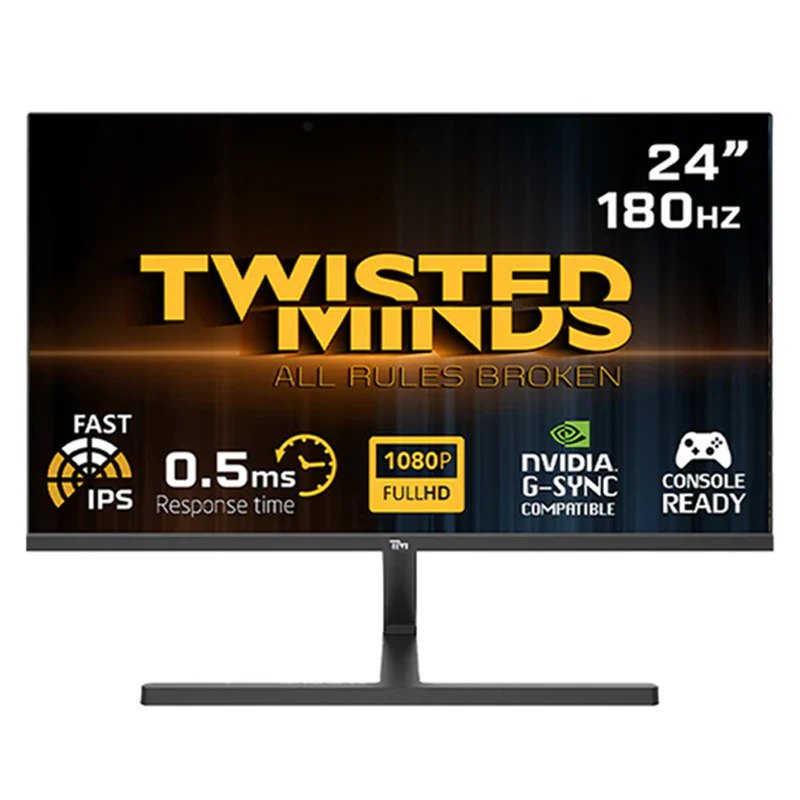

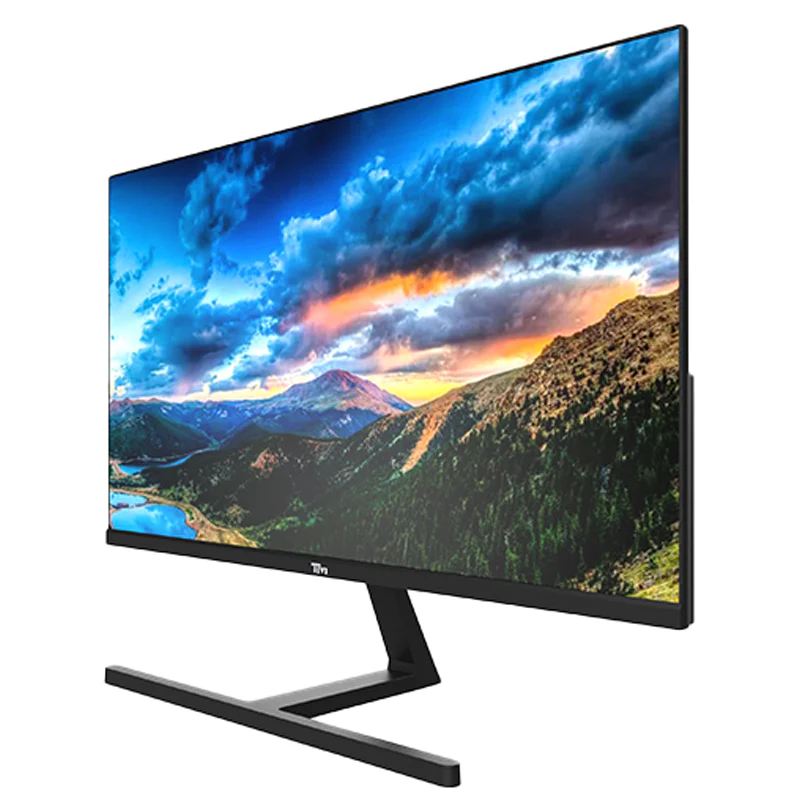

Twisted Minds Blaze Series Flat 24" FHD - 180HZ 0.5 MS Fast IPS HDMI 2.1 Gaming Monitor

Panel Type

FAST IPS

Flat/Curve

Flat

Curved Ratio

N/A

Aspect Ratio

16:9

Screen Size

23.8"

Display Area（H*V）

527.04(H) × 296.46(V)

Panel Resolution

1920*1080

Refresh Rate

OC

165HZ

Overfrequency

180Hz

Backlight type

ELED

Brightness

Defaulted(TYP)

250 (±20）

Max(TYP)

300 (±20）

Default Color Temperature

7500K

Contrast Ratio

Static State

1000:1

Dynamic State

Millions

Pixels

16.7M

Color Gamut
(Coveraged)

sRGB

99%

HDR

HDR10

View Angle（H/V）

178°/178°

Response Time

OC （GTG）

1MS

OD Accelerate Response

N/A

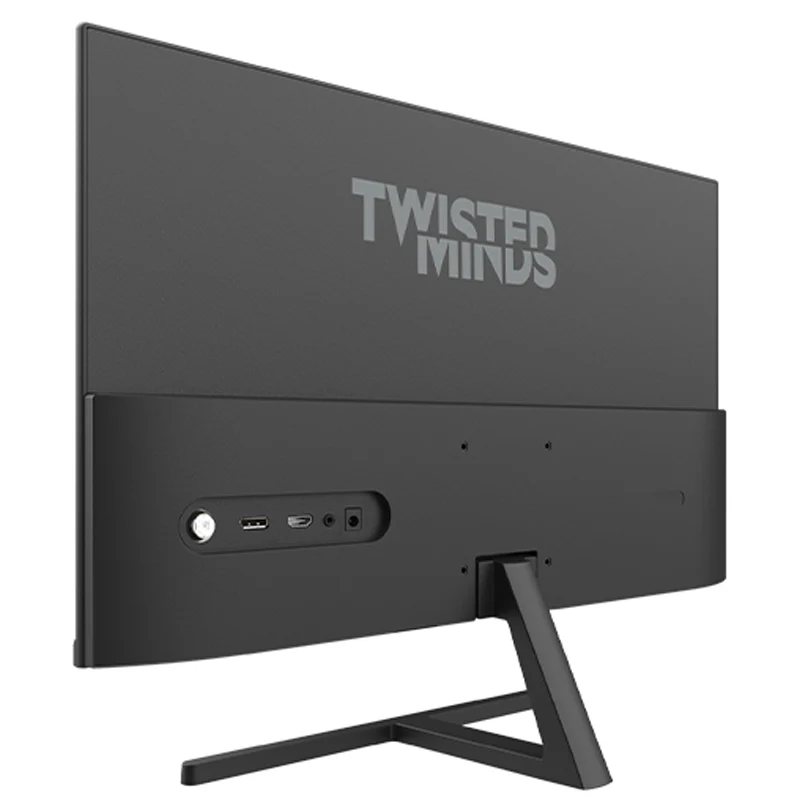

I/O Prts（Standard）

1HDMI+1DP+Audio out

Port1

HDMI2.1

Port2

DP1.2

Port3

Audio out

Port4

DC 12V 3A

MPRT

Yes

Speaker

Yes (Only Supported on PC)

Power Input

DC 12V 3A

Power Supply

External power Adapter

Power Consumption

Input Power

36W

Stand-by Power Consumption（Max）

≦0.30W

Indicator Light Mode

Power on:Blue(LED)

Appearance Color

Black

RGB light / Gaming Light

NO

Unit W/stand

414*163*540mm

Unit W/O stand

322*39*540mm

Packing Size

610*100*395mm

Net Weight

2.9kg

Gross Weight

3.8kg

VESA Size(WxH)

VESA Demension

75*75 mm

Vesa Mount Method

Screw

Stand Functions

Angle                                     （Forerake /Back-Lean）

Forerake ：5°    Lean Back：15°

Up and Down（Vertical）

N/A

Swivel（L/R）

N/A

Pivot

N/A

OSD Key Control Mode

Rocker Button

OSD Manue Style

Blue and White

Language Menu

10 Countries Language(Defaut:English)

Main Functions

Color Temperature（Cold、Warm、User）

Low Blue Light Control

6 Contextual Models

DCR

Multiple-Language Menu

FPS/RTS Game Mode with 1 key-switch

GAME PLUS

FreeSync / Adaptive-Sync

HDR function

MPRT 1ms

Working Temperature

-20ºC~60ºC

Storage Temperature

0ºC~40ºC

Working Humidity

10~85%RH

Storage Humidity

5~90%(No Freezing under 40ºC ）

Altitudes

≤5000m
