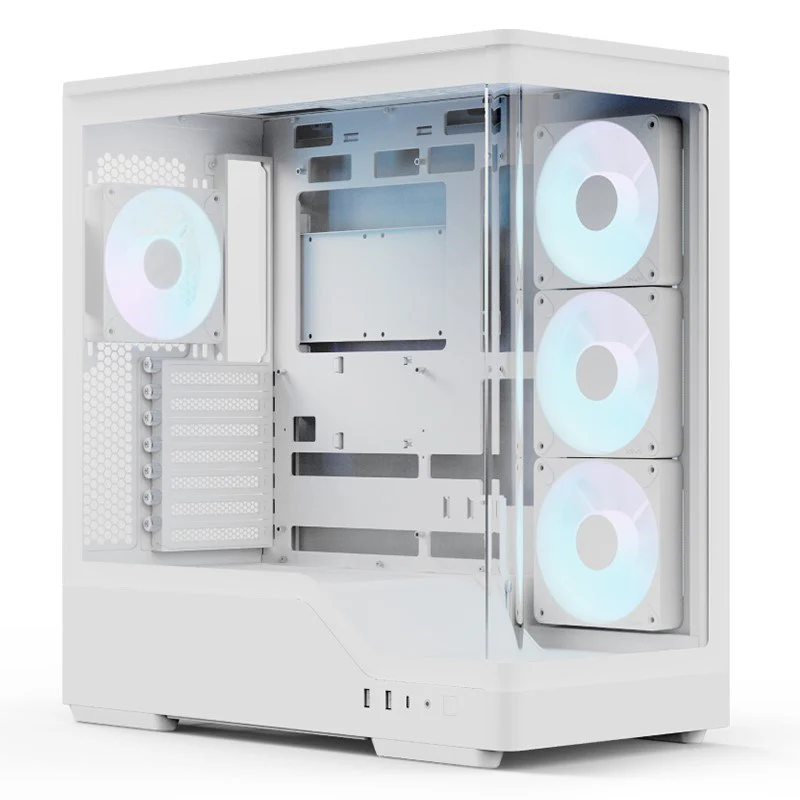

Aerocool P500A v1 ATX Mid Tower Gaming Case

P500A

The AeroCool P500A is a mid-tower case for builders who demand total control, featuring tool-free removable panels on all sides and strategic dust filters to keep airflow pure and maintenance easy.

With support for reverse connector motherboards, an airflow-optimized PSU shroud, reinforced with a GPU support bracket, and up to 9 fan slots, this case is primed for next-level performance and reliability.

Finished with dual curved glass front and side panels, the P500A blends elite cooling with showcase aesthetics.

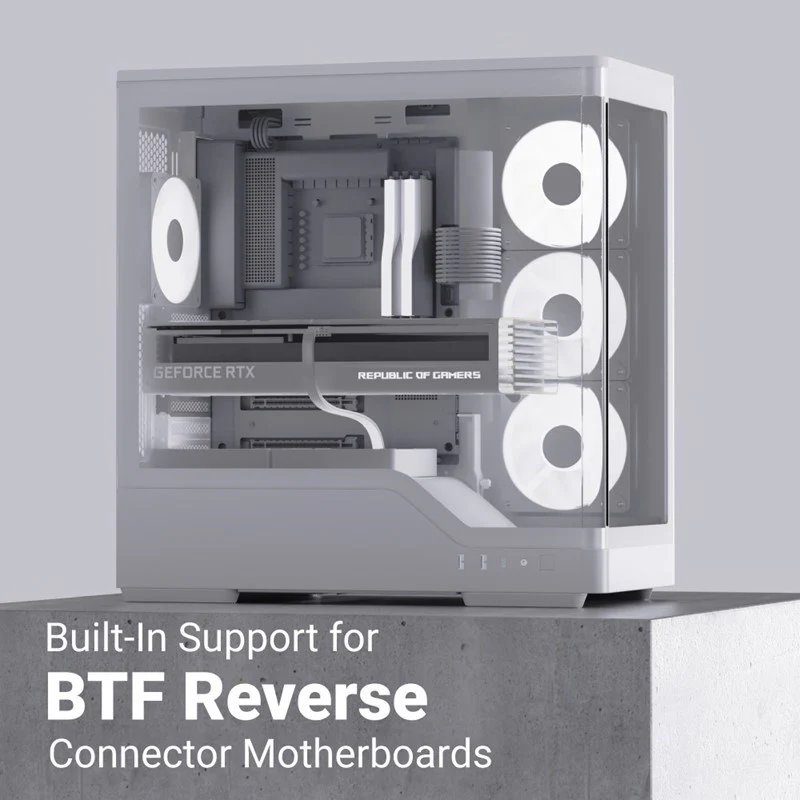

Hidden Cable Magic

Designed for mainstream BTF reverse connector motherboards to route cables behind the motherboard tray. Enjoy a clean, professional look with uninterrupted component visibility and easier airflow.

Massive Cooling Capacity

Supports up to nine total fans to deliver outstanding cooling potential for high-performance systems. Whether you’re gaming, editing, or overclocking, your system stays cool under pressure.

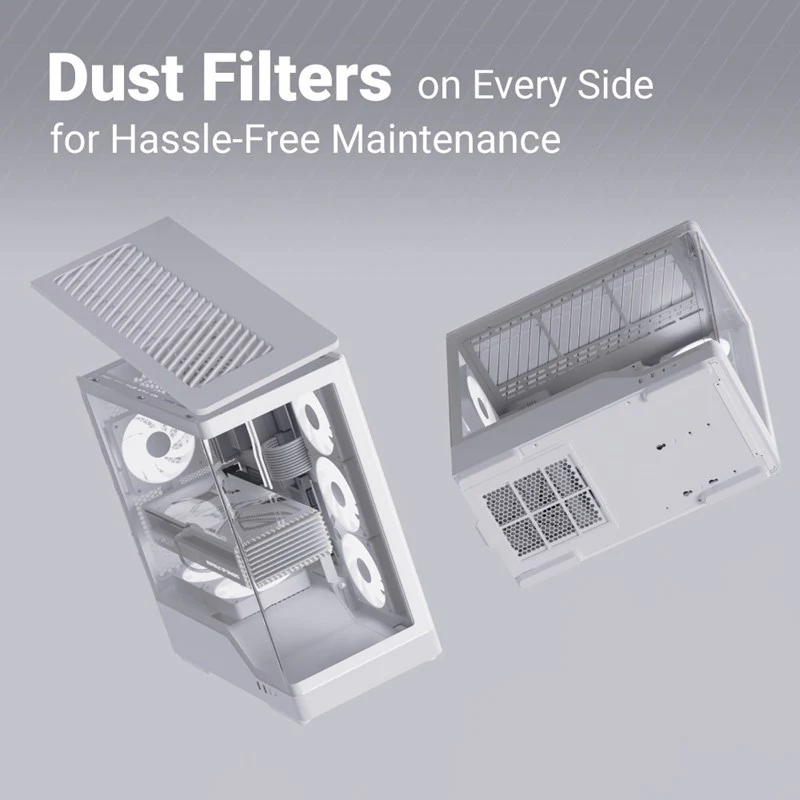

Dust-Free Design

Removable nylon filters on the top and bottom keep out dust while allowing smooth airflow. Maintenance stays simple while your components stay cleaner, longer.

Adjustable GPU Support Bracket

The built-in adjustable GPU support bracket secures heavy graphics cards and prevents long-term sag. Customize the height to fit your setup perfectly and protect your investment with confidence.

What are the benefits of Twisted Minds Mic Arm ?

• Supports mainstream BTF reverse connector motherboards that keep cables out of sight

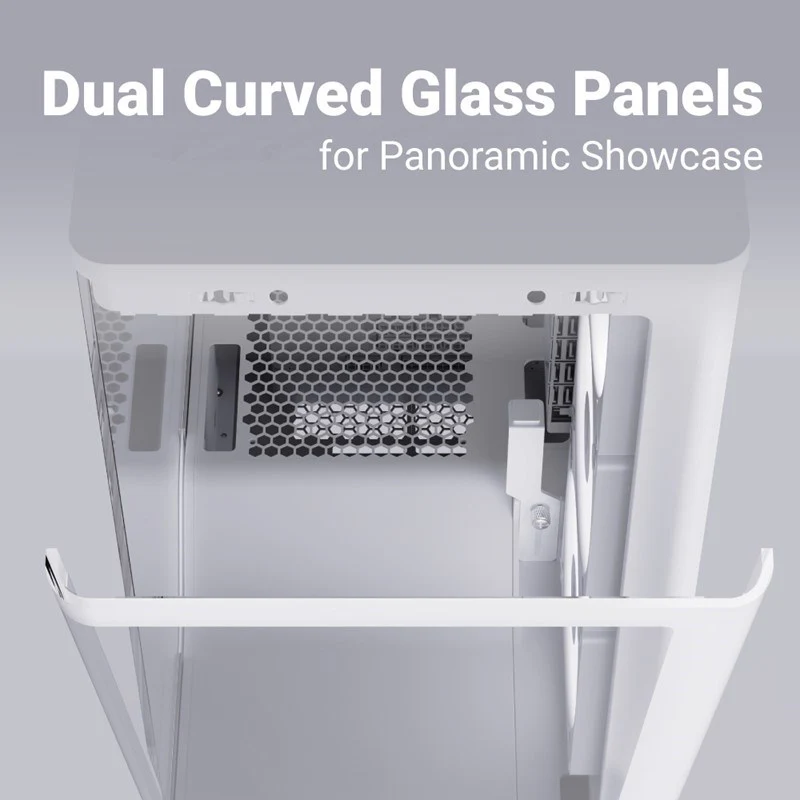

• Dual curved glass front and side panels for 270-degree panoramic view

• A total of 9 fan slots for even greater cooling potential

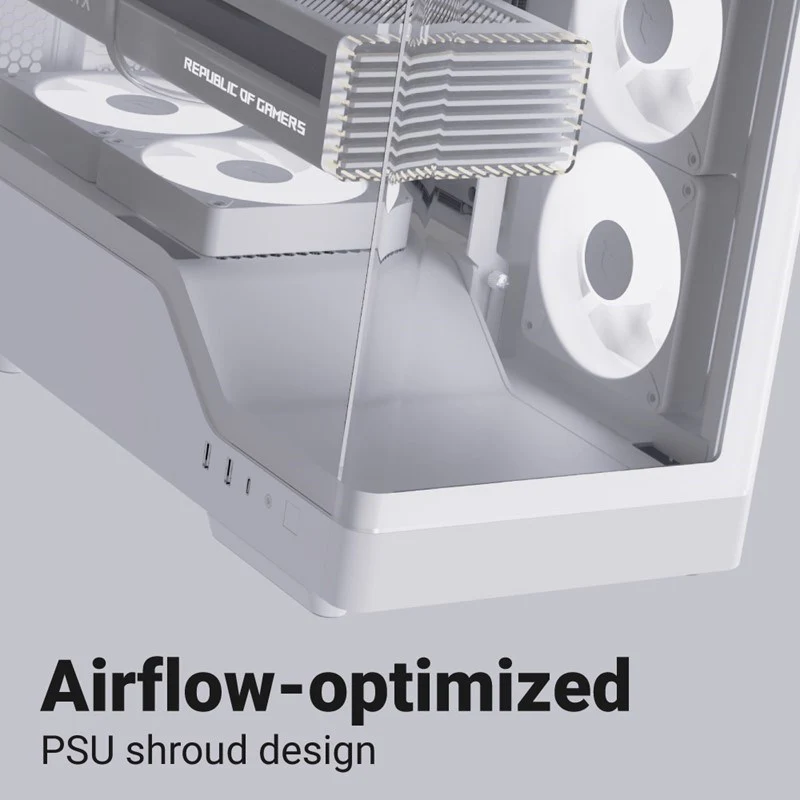

• Airflow-optimized PSU shroud design

• GPU support bracket for heavy graphics cards

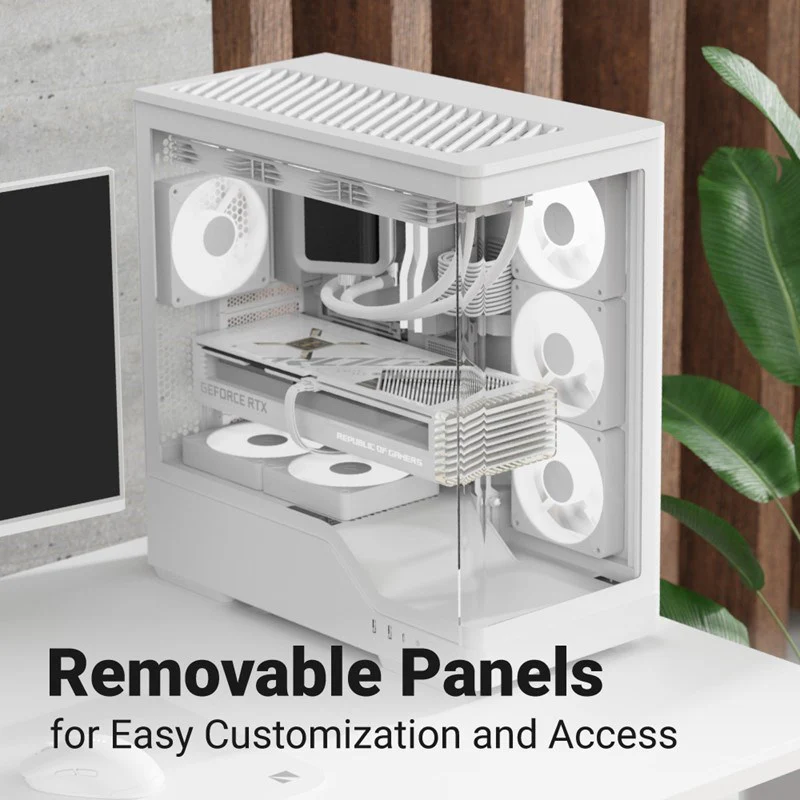

• Removable front, top, and side panels (left & right)

• Removable nylon dust filters on the top and bottom for easy maintenance

Body Material

SPCC

Steel Thickness

0.6~0.8mm

Motherboards

ATX/Micro ATX/Mini-ITX

Case Dimensions (Internal)

285 x 380 x 420 mm (W x H x D)

Case Dimensions (Overall)

460 x 235 x 480mm (D x W x H)

Capacity

49L

5.25" Drive Bays

N/A

3.5" Drive Bays

1 Max. (2 x 3.5”/1 x 2.5″ or 1 x 3.5”/2 x 2.5″)

2.5" Drive Bays

3 Max. (3 x 2.5” or 2 x 3.5”/1 x 2.5″ or 1 x 3.5”/2 x 2.5″)

Expansion Slots

7

GPU Clearance

Supports GPU up to 420mm (W/O radiator in the front-right position)

CPU Cooler Clearance

Supports CPU cooler up to 180mm

Air Cooling

Side: 120mm x 3 (Max.)
(3x 120mm Reversed ARGB PWM Fan included)
Top: 120mm x 3 or 140mm x 2(Max.)
Power Supply Shroud: 120mm x 2 (Max.)
Rear: 120mm x 1 or 140mm x 1
(1x 120mm ARGB PWM Fan included)

Liquid Cooling

Side:N/A
Top: 120/140/240/280/360 Radiator (Optional)

I/O Ports

USB3.2 Gen 2×2 Type-C x 1 | USB3.2 Gen 1 Type -A x 2 | HD Audio & Mic.

Internal Cable Management Depth

30mm

Power Supply

ATX PSU (Including cables, up to 280mm) (Optional)
