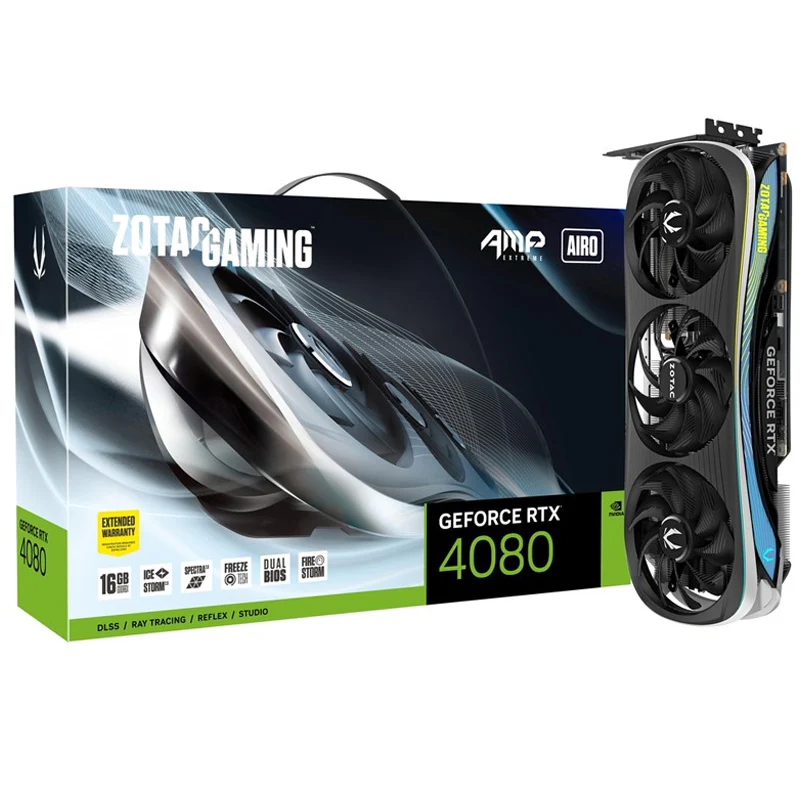

ZOTAC GAMING GeForce RTX 4080 16GB AMP Extreme AIRO GDDR6X Gaming Graphics Card

Advanced Cooling

Refined in every aspect, IceStorm 2.0 is our advanced cooling system that pushes the limit of GPU performance in the most graphically demanding PC games.

Cut Through The Air

Mounted with triple 110mm large fans featuring wide curved blades that have twice the blade size of the previous generation. Each curvature and stripe on the blade is meticulously designed to maximize airflow and air pressure

Optimized Distribution

9 precision-machined copper heatpipes are shifted into a vertical layout for increased surface contact with the GPU, extracting more heat to disperse along the full length of the heatsink.

Calming The Storm

A counter-rotating center fan helps reduce air turbulence, minimizing noise with a smoother airflow.

Further noise refinement comes with the assistance of mounted anti-vibration pads

Less Friction

The new cooling fans feature a dual ball bearing design that reduces rotational friction and further prolongs fan lifespan.

Extra Support

Take advantage of a bundled metal support stand for additional GPU reinforcement.

5-Zone Rgb Lighting

Customize different modes and colors for the 5 lighting zones at the front, sides and rear of the graphics card, or synchronize the whole.

Holographic Frame

The surreal beauty of the large RGB presence on top is enhanced by an iridescent and translucent finish that allows lighting paths underneath to shine through

360° Pass-Through

With ample designed ventilation paths, airflow can maneuver and exhaust from every side to reduce trapped heat.

Noise Refined

ZOTAC GAMING brings new noise-reducing features to the GeForce RTX 40 Series to enhance immersion when gaming

GPU

GeForce RTX 4080 16GB

CUDA cores

9728

Video Memory

16GB GDDR6X

Memory Bus

256-bit

Engine Clock

Boost: 2565 MHz

Memory Clock

22.4 Gbps

PCI Express

4.0 16x

Display Outputs

3 x DisplayPort 1.4a (up to 7680x4320@60Hz)

1 x HDMI Connector*

*Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1a Specification

HDCP Support

2.3

Multi Display Capability

Quad Display

Recommended Power Supply

750W

Power Consumption

320W

Power Input

1 x 12VHPWR

DirectX

12 Ultimate

OpenGL

4.6

Cooling

IceStorm 2.0

Slot Size

3.5 slot

SLI

N/A

Supported OS

Windows 11 / 10 (64-bit, v1809 November 2018 or later)

Card Length

355.5mm x 149.6mm x 72.1mm / 14" x 5.9" x 2.8"

Accessories

GPU Support Stand

3-pin RGB Header Cable

3x 8-pin-to-12VHPWR cable

Manual
