Zotac GeForce RTX 5060 Twin Edge 8 GB GDDR7 Gaming Graphics Card

Zotac GeForce RTX 5060 Twin Edge 8 GB GDDR7 Gaming Graphics Card

ZOTAC GAMING GeForce RTX 5060 Twin Edge

The ZOTAC GAMING GeForce RTX 5060 Twin Edge is a compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 8GB of GDDR7 memory. With a solid cooling solution, the Twin Edge is ready to take on the latest title releases with smooth framerates and performance.

NVIDIA Blackwell Architecture

The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores

Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors

Optimized for neural shaders

Fourth-Gen Ray Tracing Cores

Built for Mega Geometry

RTX. It’s On.

The Ultimate in Ray Tracing and AI

RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.

NVIDIA DLSS 4

Supreme Speed.

Superior Visuals.

Powered by AI.

DLSS is a revolutionary suite of neural rendering technologies that uses AI to boost FPS, reduce latency, and improve image quality. The latest breakthrough, DLSS 4, brings new Multi Frame Generation and enhanced Ray Reconstruction and Super Resolution, powered by GeForce RTX 50 Series GPUs and fifth-generation Tensor Cores. DLSS on GeForce RTX is the best way to play, backed by an NVIDIA AI supercomputer in the cloud constantly improving your PC’s gaming capabilities.

Full Ray Tracing with Neural Rendering

Game-Changing Realism

The NVIDIA Blackwell architecture unlocks the game-changing realism of full ray tracing. Experience cinematic quality visuals at unprecedented speed powered by GeForce RTX 50 Series with fourth-gen RT Cores and breakthrough neural rendering technologies accelerated with fifth-gen Tensor Cores.

STANDARD 8-PIN POWER

A single 8-pin PCIe power connector is all that’s needed to power this GPU. A lower 650W minimum recommended power supply (PSU) means that there are potentially less components needed for an upgrade, making the 5060 Series a more appealing upgrade choice.

GPU

NVIDIA GeForce RTX 5060 GPU

CUDA cores

3840

Video Memory

8 GB GDDR7

Memory Bus

128-bit

Engine Clock

2497 MHz

Memory Clock

28 Gbps

PCI Express

PCI Express 5.0 x8

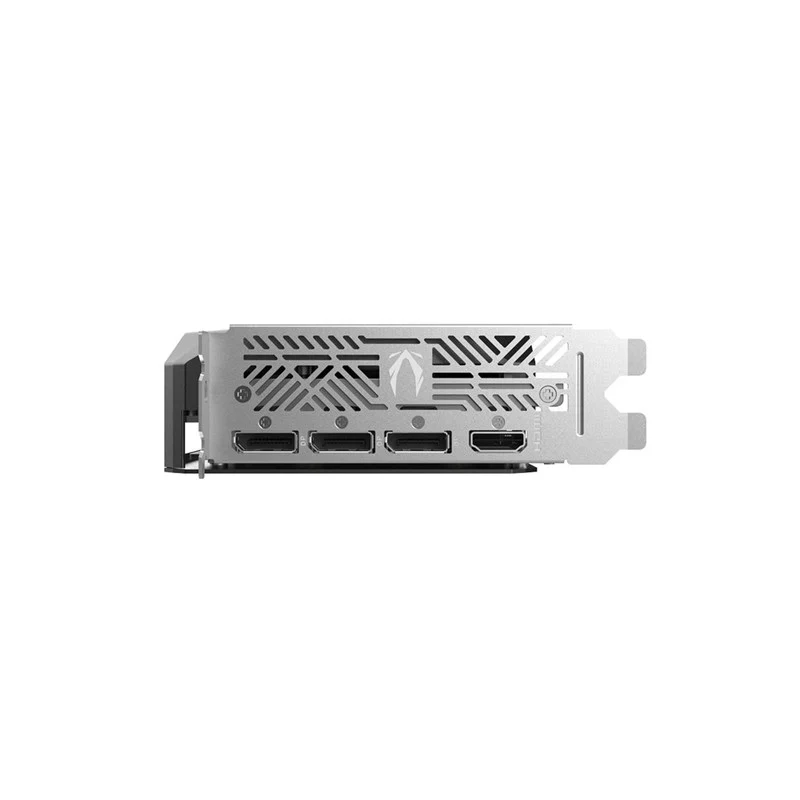

Display Outputs

3 x DisplayPort 2.1b with UHBR20

(up to 4K 480Hz or 8K 165Hz with DSC)

1 x HDMI Connector

(Supports 4K 480 Hz HDR or 8K 120 Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification)

HDCP Support

2.3

Multi Display Capability

Quad Display

Recommended Power Supply

550W

Power Consumption

145W

Power Input

1 x 8-pin power input

DirectX

Microsoft DirectX 12 Ultimate

OpenGL

4.6

Cooling

Air Cooled

Slot Size

2

SLI

No

Supported OS

Windows 11 / Windows 10 64-bit (v1809 November 2018 or later)

Card Length

220.5mm x 120.25mm x 41.6mm / 8.7" x 4.7" x 1.6"
