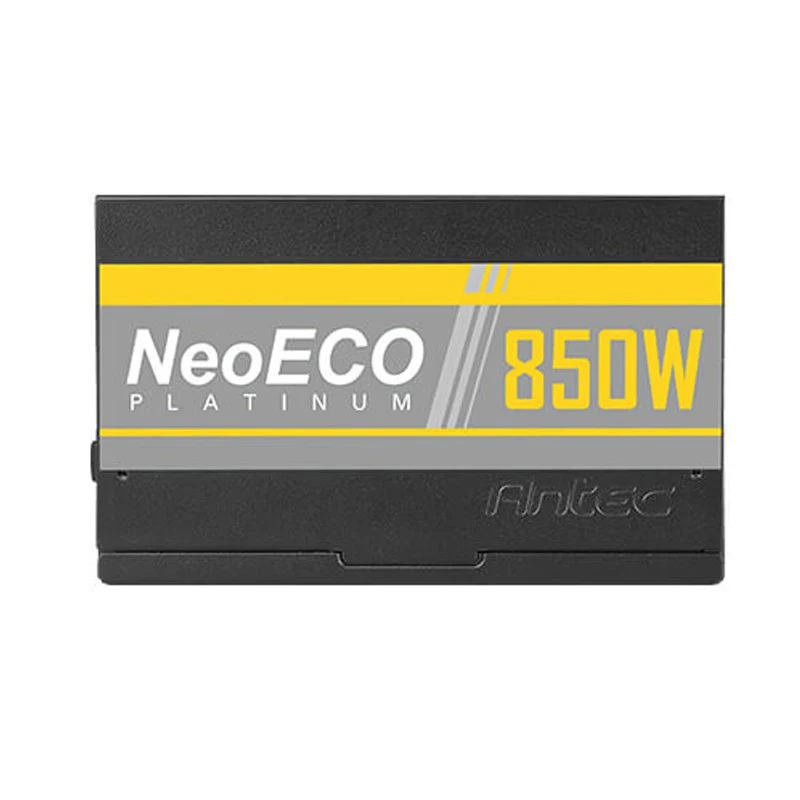

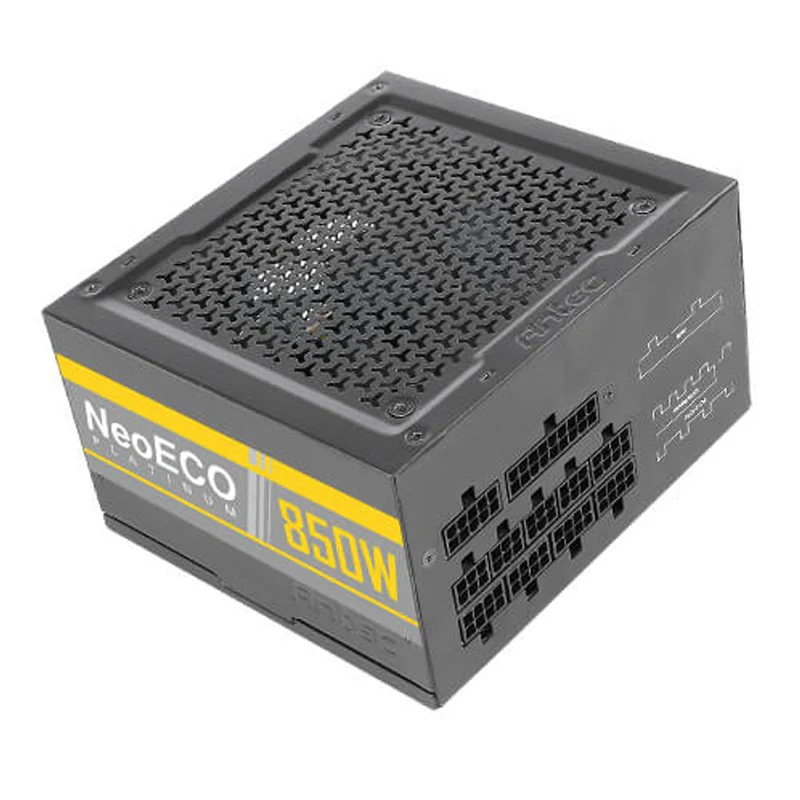

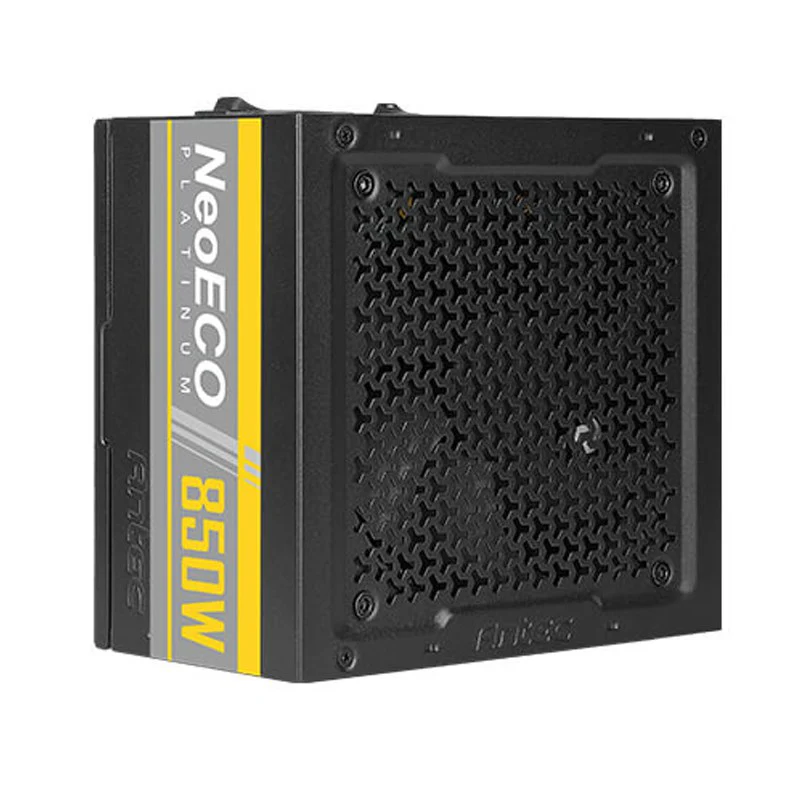

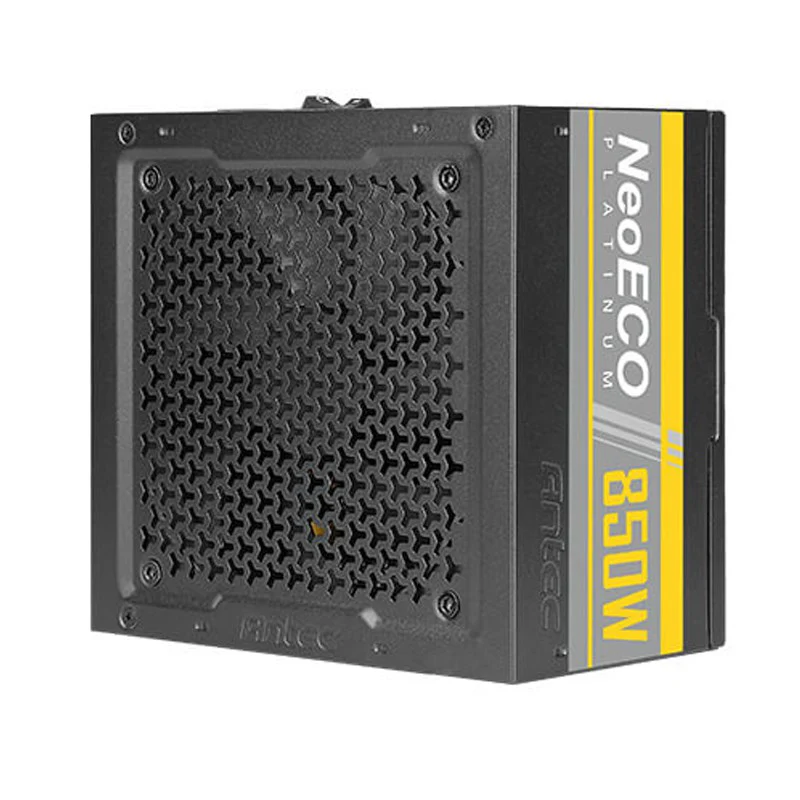

Antec NeoECO Platinum 850 Watts Fully Modular ATX Gaming Power Supply - Black

Antec NeoECO Platinum 850 Watts Fully Modular ATX Gaming Power Supply

NeoECO Platinum

850W Full Modular ATX12V Power Supply

The new NeoECO Platinum series is ready to provide PC gamers the exceptional performance with the features of the latest ATX & EPS standard, outstanding stability, and 80 PLUS Platinum certification. The advanced thermal control with the Zero RPM mode enables to turn the fan off at low loads to provide absolute silence. With the 120mm silent fan, the NeoEco Platinum can optimize the balance between cooling and noise. High-quality Japanese heavy-duty caps can provide your system more stable performance. The CircuitShield design serves your industry-grade protection to make your system safe in any environment.

Japanese Heavy-Duty Caps

Japanese capacitors ensure the tightest DC stability and regulation, for reliability that you and your system can count on.

PhaseWave

LLC + DC to DC Design

A server-class Half-Bridge LLC design with synchronous rectification based on a DC-DC topology to improve performance and stability.

Zero RPM Mode

The Zero RPM fan mode further automatically ensures zero fan speed at low loads to reduce plenty of noise and keep absolute silence.

120mm Silent Fan

Features improvement for airflow and excellent durability.

Full Modular

Enables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow.

Specifications:

Power Supply Type

ATX 12V 2.4

Dimension

140(L) x 150(W) x 86(H)

Input Voltage

100-240 VAC

Input Current

10A max

Input Frequency Range

50 Hz - 60 Hz

PFC

Active PFC

Power Good Signal

100-500ms

Efficiency

94%  Typically

Protection

OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO

Output Capacity

850W

Operation Temperature

0~45°C

Regulatory

UL / TUV / CB / RCM / CE / CCC / FCC / BIS / KC

Fan

120mm Silence Fan

Certifications

80 Plus Platinum

Connector

1 x MB 24(20+4) Pin



2 x 8(4+4) Pin EPS 12V



6 x 8(6+2) Pin PCI-E



12 x SATA



4 x Molex



1 x FDD
