Antec VORTEX 360 ARGB All in One Liquid CPU Cooler - Black

Antec Vortex 360 ARGB AIO CPU Liquid Cooler

Suspended Spiral Pump Head Design

The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles

EPDM High-Density Tubing

The EPDM high-density tubing is very durable, making less loss of liquid

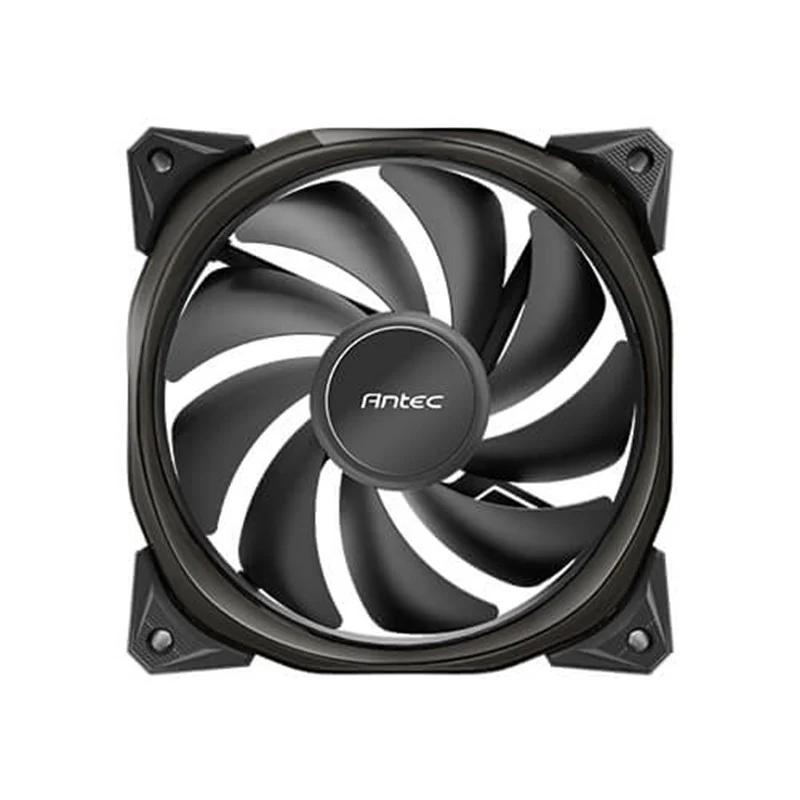

Antec Fusion PWM ARGB Fan

The Vortex 240 ARGB adopted the Antec Fusion PWM ARGB Fan with a unique multilateral-shaped lighting frame with 16 LEDs projecting the most harmonious lighting effects and providing more powerful cooling for the CPU

Radiator Dimensions

397 x 120 x 27 mm

Radiator Material

Aluminum

Pump

Dimensions

￠67 x 48.5 mm

Rating Voltage

DC 12 V

Minimum Startup Voltage

≥ 5.0 V

Fan Speed

2800±10% RPM

Rated Current

0.25±20% A

Consumed Power

3.0 W

Flow rate

≥ 1300 mL / min

Water Pressure

1.4M

Operation Temperature

-10°C ~ +60°C

Noise Level

≤ 28 dB(A)

Lifespan

40,000 hours

Connector

PUMP: 3-pin | LED: 3-pin

Fan

Model Name

Fusion 120 ARGB fan (AH12012FM1)

Fan Type

PWM Fan

Dimensions

120 x 120 x 25 mm

Bearing Type

Hydraulic Bearing

LED Type

Addressable RGB

Fan Speed

600±200 ~ 2000±10% RPM

Airflow

57.93 CFM (max.)

Air Pressure

2.11 mmH₂O (max.)

Fan Noise Level

31.24 dB(A)

Lifespan

40,000 hours

Connector

FAN: 4-pin PWM | LED: 3-pin

Rated Voltage

FAN: DC 12 V | LED: DC 5 V

Operation Voltage

FAN: DC 6.0-13.8 V | LED: DC 4.5-5.5 V

Rated Current

FAN : ≤ 0.21 A | LED : ≤ 0.58 A

Socket Compatibility CPU

Intel : LGA 115X / 1200 / 1700 / 20XX
AMD : AM3/AM4/AM5
