Asus AX3000 Dual Band Wi-Fi 6 (802.11ax) Router, MU-MIMO and OFDMA Technology AiProtection Pro Network

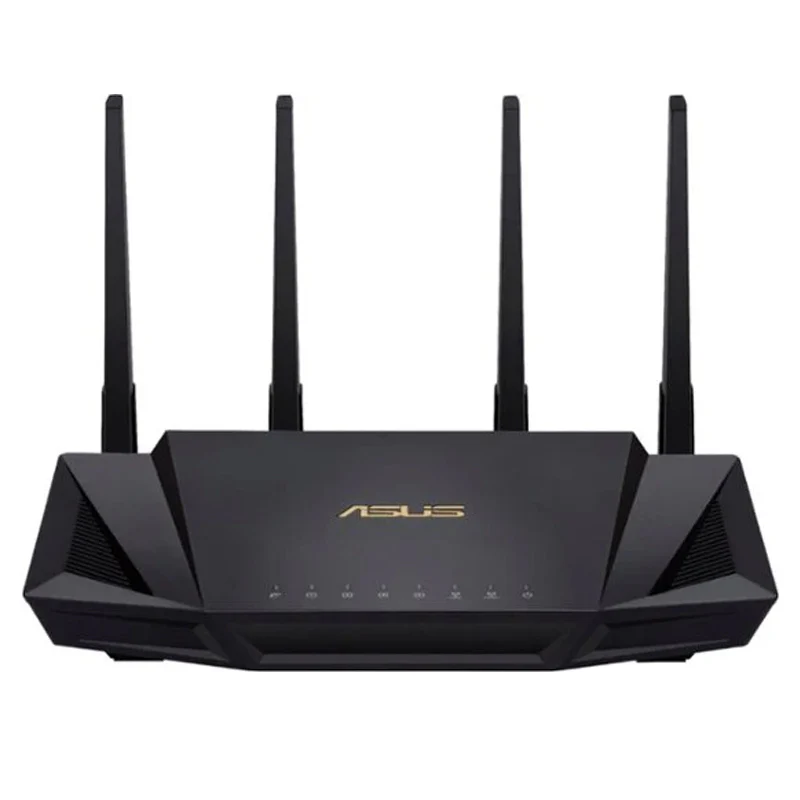

Product image 1
Product image 2

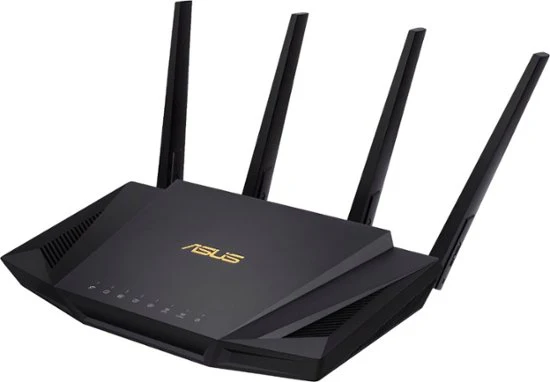

Product image 3

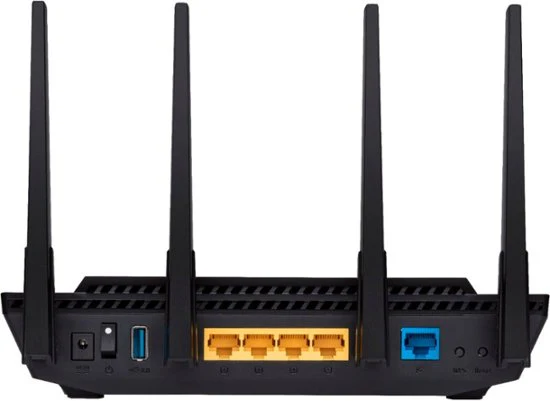

Product image 4

Asus AX3000 Dual Band Wi-Fi 6 (802.11ax) Router, MU-MIMO and OFDMA Technology AiProtection Pro Network

Asus AX3000 Dual Band Wi-Fi 6 (802.11ax) Router, MU-MIMO and OFDMA Technology AiProtection Pro Network

Get Your Home Ready for Wi-Fi 6 (802.11ax)

The growing number of connected personal and IoT devices has led to an overall increase in network density that is pushing the limits of the current Wi-Fi standard. The latest 802.11ax standard provides future-proof technologies, higher network efficiency, faster Wi-Fi speeds, greater coverage and improved battery life for connected devices, providing a significantly better networking experience for users.

Next-Gen Wi-Fi Speed

RT-AX58U is a 2x2 dual-band Wi-Fi router that provides 160MHz bandwidth and 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 3000Mbps — 574Mbps on the 2.4GHz band and 2402Mbps on the 5GHz band — RT-AX58U is 2.5X faster than 802.11ac 2x2 dual-band routers.

Built for Multi-device Households

With a revolutionary combination of OFDMA and MU-MIMO technology, 802.11ax technology provides up to 4X greater network capacity and efficiency in traffic-dense environments. Previous-generation 802.11ac Wi-Fi can only handle one device at a time on each network channel, which is an inefficient use of available bandwidth. OFDMA support in the 802.11ax Wi-Fi standard divides each channel into small sub-channels, allowing signals from multiple devices* to be bundled together and transmitted simultaneously, reducing latency for a smoother, more responsive Wi-Fi experience.

Better Battery Life for Your Devices

Target Wake Time (TWT) allows RT-AX58U to schedule designated intervals for devices to transmit data. This allows them to sleep when there is no need to wait for a router signal, reducing power consumption by up to 7X for significantly improved battery life*.

Wi-Fi that Goes Farther

With the latest 802.11ax WiFi standard featuring OFDMA technology, RT-AX58U provides increased Wi-Fi signal range and better coverage by dividing each channel into smaller sub-channels. These sub-channels have a smaller bandwidth that enables them to travel up to 80% farther1, resulting in a better Wi-Fi connection throughout your home*.

The Latest WPA3 Network Security

The next generation of Wi-Fi security, bringing new capabilities to enhance Wi-Fi protections in personal networks. Building on the widespread adoption of WPA2 over more than a decade, WPA3 adds new features to simplify Wi-Fi security, enable more robust authentication, and deliver increased cryptographic strength for highly sensitive data markets.

BSS Coloring Boosts Connection Efficiency

WiFi 6 includes a new feature called BSS Coloring that improves WiFi connection efficiency even in crowded environments. When two neighboring routers send traffic on the same channel, your router has to wait until the channel is free. With BSS Coloring, your WiFi 6 router identifies its data with a unique channel tag ('color') that's different from neighboring networks. Your WiFi 6 router can then ignore other-colored signals on the channel and send data immediately.* This greatly reduces router waiting times and boosts network efficiency.

Commercial-grade Security for your Home Network

RT-AX58U has lifetime free AiProtection Pro, powered by Trend Micro™ with automatic, regularly updated security signatures to protect your devices and personal data from internet threats. This strong security offers advanced parental controls, including the ability to block specific websites and mobile app types.

AiMesh iconPowerful Whole-home Wi-Fi System.

The Way You Want.

In most cases, your RT-AX58U can deliver smooth, reliable Wi-Fi to every part of your home. But Wi-Fi coverage can be affected by many factors — room layout, construction materials, and even furnishings. ASUS AiMesh is an innovative new router feature that fixes these problems: it creates a whole-home Wi-Fi network using multiple ASUS routers. AiMesh is powerful, flexible and you can use a mix of ASUS router models — protecting your investment! AiMesh gives you time-saving central control, and seamless roaming capability. AiMesh is Wi-Fi you can rely on — for all your devices, all the time!

Specifications:

Model Name

RT-AX58U

Network Standard

IEEE 802.11a



IEEE 802.11b



IEEE 802.11g



WiFi 4 (802.11n)



WiFi 5 (802.11ac)



WiFi 6 (802.11ax)



IPv4



IPv6

Product Segment

AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps

AX technology

Yes

Data Rate

802.11a : up to 54 Mbps



802.11b : up to 11 Mbps



802.11g : up to 54 Mbps



WiFi 4 (802.11n) : up to 300 Mbps



WiFi 5 (802.11ac) (1024QAM) : up to 1733 Mbps



WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps



WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps

Antenna

External antenna x 4

Transmit/Receive

2.4GHz 2x2



5GHz 2x2

Processor

1.5 GHz tri-core processor

Memory

256 MB Flash



512 MB RAM



256 MB Flash



512 MB RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access)



Beamforming: standard-based and universal



1024-QAM high data rate



20/40/80/160 MHz bandwidth



OFDMA (Orthogonal Frequency Division Multiple Access)



Beamforming: standard-based and universal



1024-QAM high data rate



20/40/80/160 MHz bandwidth

Operating Frequency

2.4G Hz / 5 GHz

Ports

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4



USB 3.2 Gen 1 x 1

Button

WPS Button, Reset Button, Power Switch

LED Indicator

Power x 1



2.4G x 1



5G x 1



LAN x 4



WAN x 1



Power x 1



2.4G x 1



5G x 1



LAN x 4



WAN x 1

Power Supply

AC Input : 110V~240V(50~60Hz)



DC Output : 19 V with max. 1.75 A current



DC Output : 12 V with max. 2 A current

Package content

RT-AX58U WiFi router



RJ-45 cable



Power adapter



Quick Start Guide

Product Weight (g)

538 g

AiMesh

AiMesh



Primary AiMesh router



AiMesh node

Router APP



Alexa

Support Alexa skill

AiProtection

AiProtection Pro



AiProtection



Malicious site blocking



Two-Way IPS



Infected Device Prevention and Blocking

Parental Control

Parental Control



Parental Control Customized Internet schedule

Traffic Control

Adaptive QoS



Bandwidth Monitor



Bandwidth limiter



Maximum Bandwidth limiter rule : 32



Traditional QoS



Maximum Traditional QoS rule : 32



Traffic Monitor



Real-time traffic monitor



Wired Traffic Monitor



Wireless Traffic Monitor



Traffic Analyzer



Traffic analysis period : Daily, Weekly, Monthly



Website history

Wireless

IPv6



Wi-Fi Encryption : WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise



UTF-8 SSID



Guest Network



Maximum Guest Network rule : 2.4GHz x3, 5GHz x3



Guest Network Connection time limit



WPS



WiFi MAC address filter



Maximum MAC filters : 64



Wireless scheduler



Airtime fairness



RADIUS Server



Universal beamforming



Explicit beamforming

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP



Dual WAN



3G/4G LTE dongle



Android tethering



Port forwarding



Maximum port forwarding rule : 64



Port triggering



Maximum port triggering rule : 32



DMZ



DDNS



NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

LAN

DHCP Server



IPTV



Manually assign IP address



Maximum manually assign IP address rule : 64

VPN

VPN Client L2TP



VPN Client OVPN



VPN Client PPTP



VPN Server IPSec



VPN Server OVPN



VPN Server PPTP

USB application

File System : HFS+, NTFS, vFAT, ext2, ext3, ext4



3G/4G LTE dongle



HDD hibernation



Safely Remove disk



AiCloud



Download master



AiDisk



Media Server



Time Machine



Samba Server



FTP Server



Shared Folder privileges

Administration

Operating mode : Wireless router mode



Access point mode



Media bridge mode



Repeater mode



AiMesh node mode



Operating system : ASUSWRT



Free OS upgrade



Firewall



Maximum Firewall keyword filter : 64



Maximum Firewall network service filter : 32



Maximum Firewall URL filter : 64



SSH



Wake on LAN (WOL)



Configuration backup and restore



Diagnosis tools



Feedback system



System log
