Specifications:
News & Updates
|
2024/08/12: New BIOS with Intel microcode (0x129) enhancing stability for Intel Core 13th and 14th Gen desktop processors.
|
CPU
|
Intel® Socket LGA1700 for Intel® Core™ 14th, 13th, and 12th Gen Processors, Pentium® Gold, and Celeron® Processors. Supports Intel® Turbo Boost Technology 2.0/3.0
|
Chipset
|
Intel® B760 Chipset
|
Memory
|
4 x DIMM, Max. 192GB, DDR5 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800, Dual Channel Architecture
|
Graphics
|
1 x DisplayPort (4K@60Hz), 1 x VGA port, 1 x HDMI™ port (4K@60Hz)
|
Expansion Slots
|
1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 3.0 x1
|
Storage
|
3 x M.2 slots (PCIe 4.0), 4 x SATA 6Gb/s ports. Supports Intel® Rapid Storage Technology (SATA RAID 0/1/5/10).
|
Ethernet
|
Realtek 2.5Gb Ethernet
|
Wireless & Bluetooth
|
Vertical M.2 slot (Key E, CNVi & PCIe). Wi-Fi module sold separately.
|
USB (Rear Ports)
|
1 x USB 3.2 Gen 2x2 Type-C®, 2 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A
|
USB (Front Ports)
|
1 x USB 3.2 Gen 1 Type-C®, 1 x USB 3.2 Gen 1 header (supports 2 additional ports), 2 x USB 2.0 headers (supports 4 additional ports)
|
Audio
|
Realtek 7.1 Surround Sound High Definition Audio CODEC, Audio Shielding, Premium capacitors, 24-Bit/192 kHz playback
|

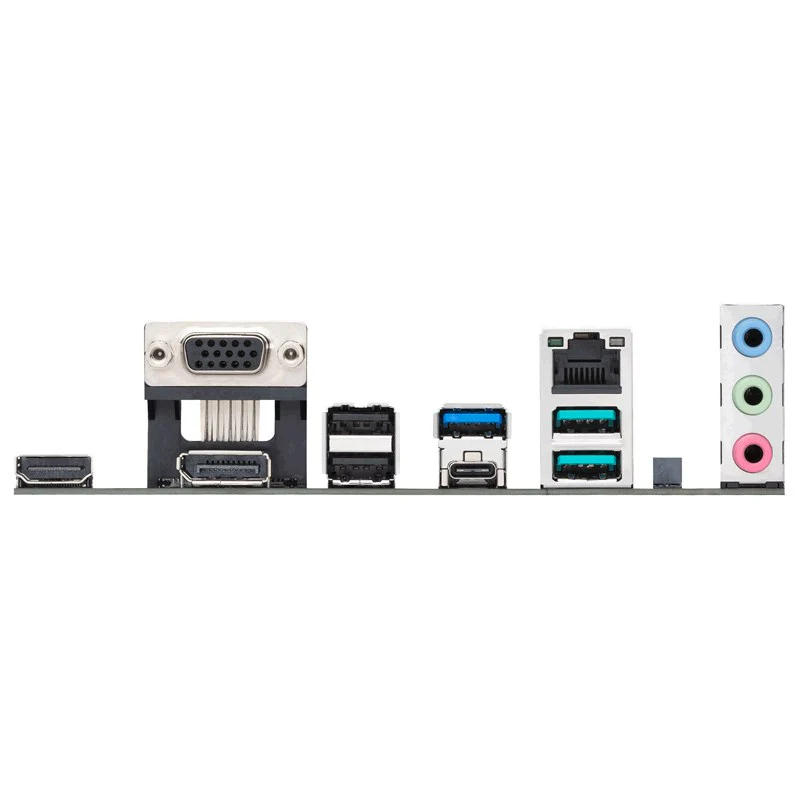

Back Panel I/O
|
USB 3.2 Gen 2x2 Type-C®, USB 3.2 Gen 2 Type-A (x2), USB 3.2 Gen 1 Type-A, USB 2.0 (x2), DisplayPort, VGA, HDMI™, Realtek 2.5Gb Ethernet, Audio Jacks
|
Internal I/O Connectors
|
1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 3 x 4-pin Chassis Fan headers, 3 x M.2 slots, 4 x SATA 6Gb/s ports, Addressable RGB and Gen 2 headers
|
Special Features
|
ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution (M.2 heatsink, VRM heatsink design), Aura Sync RGB
|
Software Features
|
Armoury Crate, Aura Creator, Fan Xpert 2+, AI Suite 3, ASUS EZ Flash 3, Norton 360 Deluxe (60 days), WinRAR
|
BIOS
|
128 Mb Flash ROM, UEFI AMI BIOS (with EZ Mode)
|
Manageability
|
WOL by PME, PXE
|
Form Factor
|
ATX, 12 x 9.6 inches (30.5 cm x 24.4 cm)
|
Accessories
|
2 x SATA 6Gb/s cables, 1 x I/O Shield, M.2 Rubber Package, 2 x Screw Packages for M.2 SSD, User guide
|
Operating System Support
|
Windows® 11, Windows® 10 64-bit
|
|
