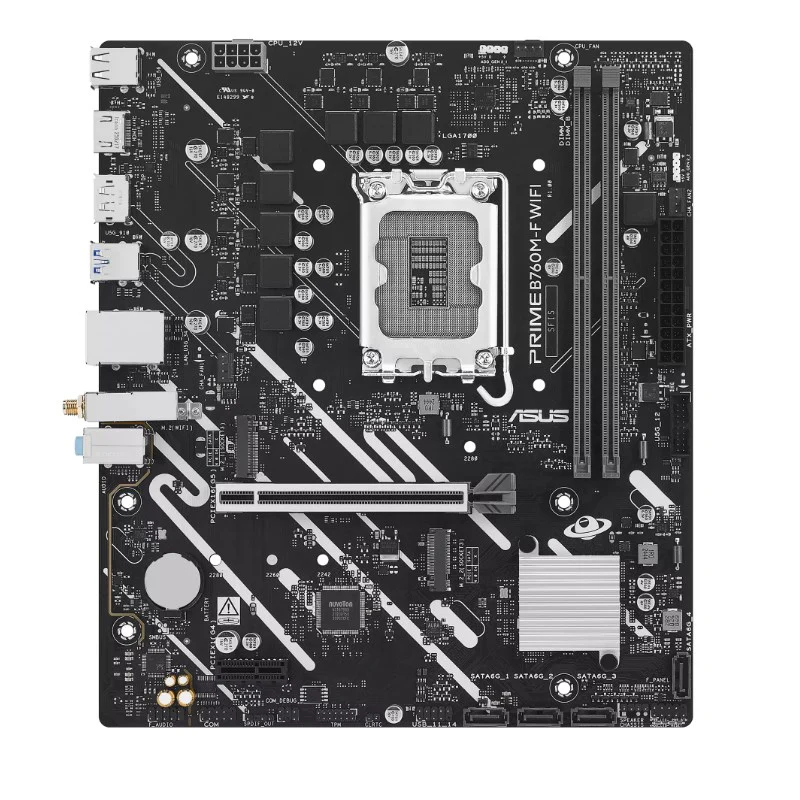

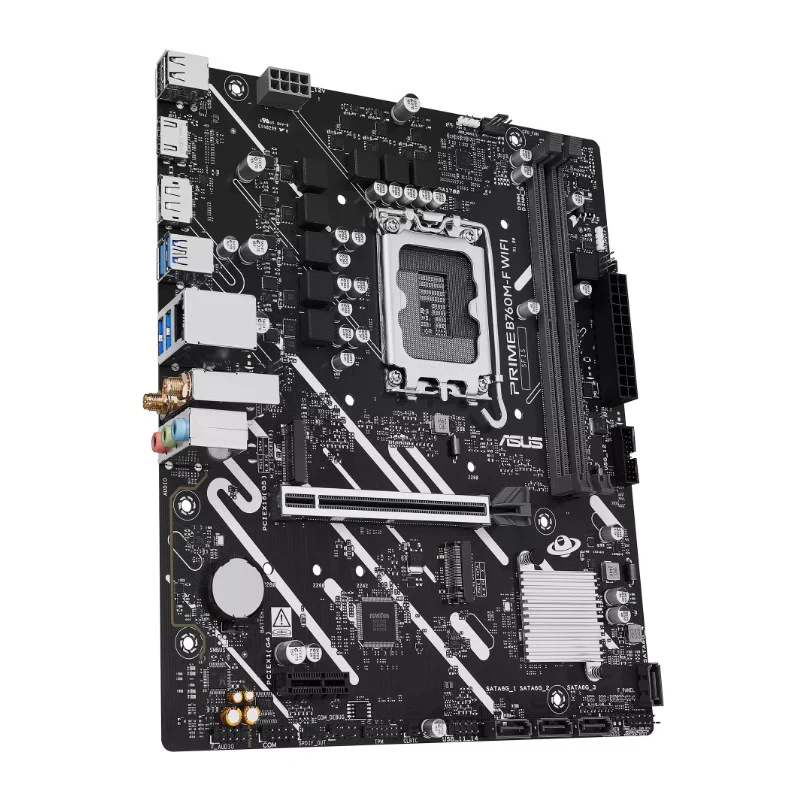

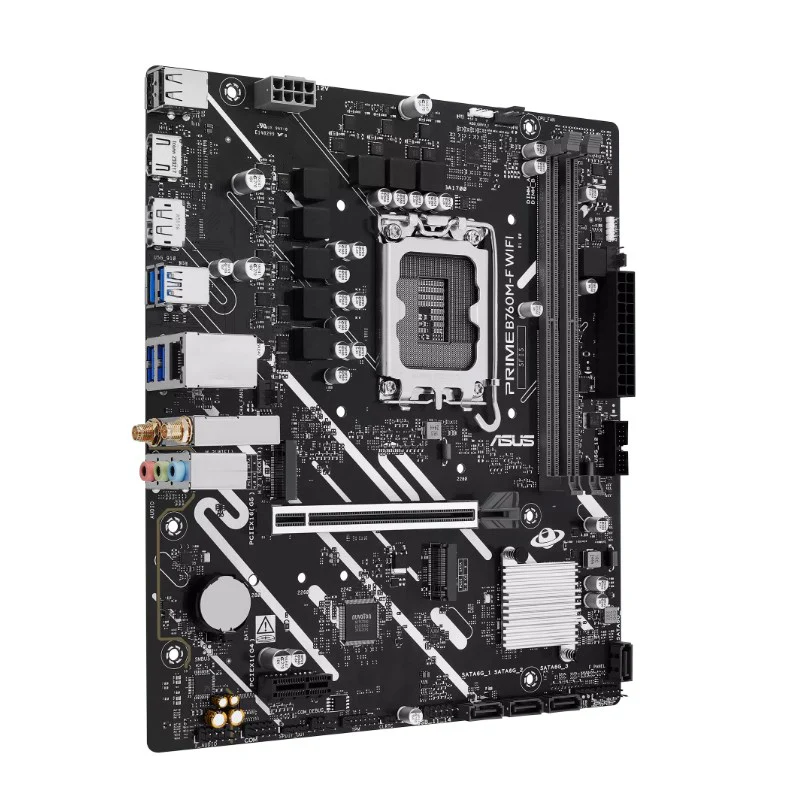

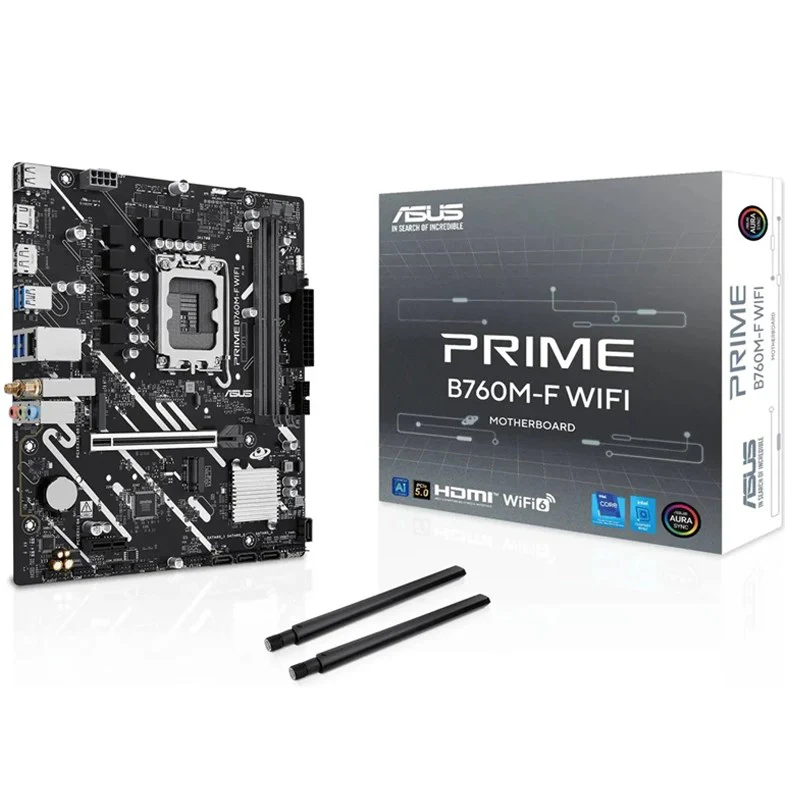

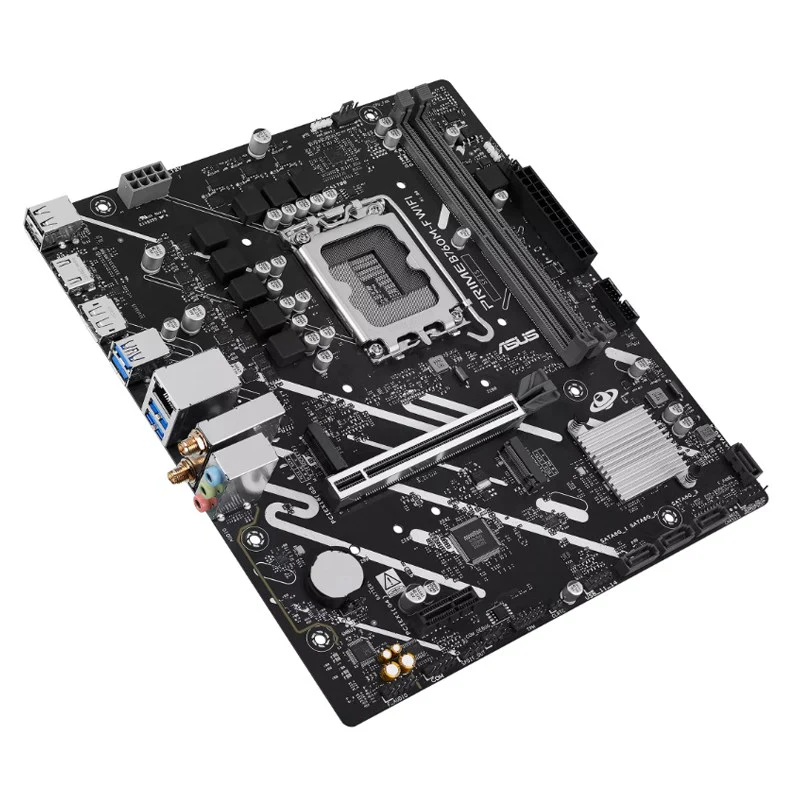

Asus PRIME B760M-F WIFI DDR5 M-ATX Gaming Motherboard - Black

Asus PRIME B760M-F WIFI DDR5 M-ATX Gaming Motherboard

Ready for Advanced AI PC

Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications

Intel LGA 1700 Socket

Ready for 14^th, 13^th and 12^th Gen Intel processors

Ultrafast Connectivity

PCIe 5.0, two PCIe 4.0 M.2 slots, Realtek 1Gb Ethernet and front USB 5Gbps support

Comprehensive Cooling

PCH heatsink, hybrid fan headers and Fan Xpert 2+

Aura Sync RGB Lighting

Onboard Addressable RGB Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardwares

Two-Way AI Noise Cancelation

Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

What are the benefits of Asus PRIME B760M-F Gaming Motherboard ?

• AI-ready design to support modern AI workloads and future computing needs

• Compatible with 12th, 13th, and 14th Gen Intel processors (LGA 1700)

• High-speed connectivity with PCIe 5.0 and dual PCIe 4.0 M.2 slots

• Reliable networking with Realtek 1 Gb Ethernet and USB 5 Gbps support

• Advanced cooling features for stable and efficient performance

• Aura Sync RGB support for customizable lighting setups

• AI noise cancellation for clearer voice and audio during calls and gaming

CPU

Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset

Intel B760 Chipset

Ethernet

1 x Realtek 1Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6

1x1 Wi-Fi 6 (802.11ax)

Supports 2.4/5GHz frequency band

Bluetooth v5.3

USB

Rear USB (Total 6 ports)

4 x USB 5Gbps ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A）

Front USB (Total 4 ports)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

1 x USB 2.0 header supports 2 additional USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

Supports up to 24-Bit/192 kHz playback

Audio Features

Audio Shielding

Premium audio capacitors

Dedicated audio PCB layers

A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

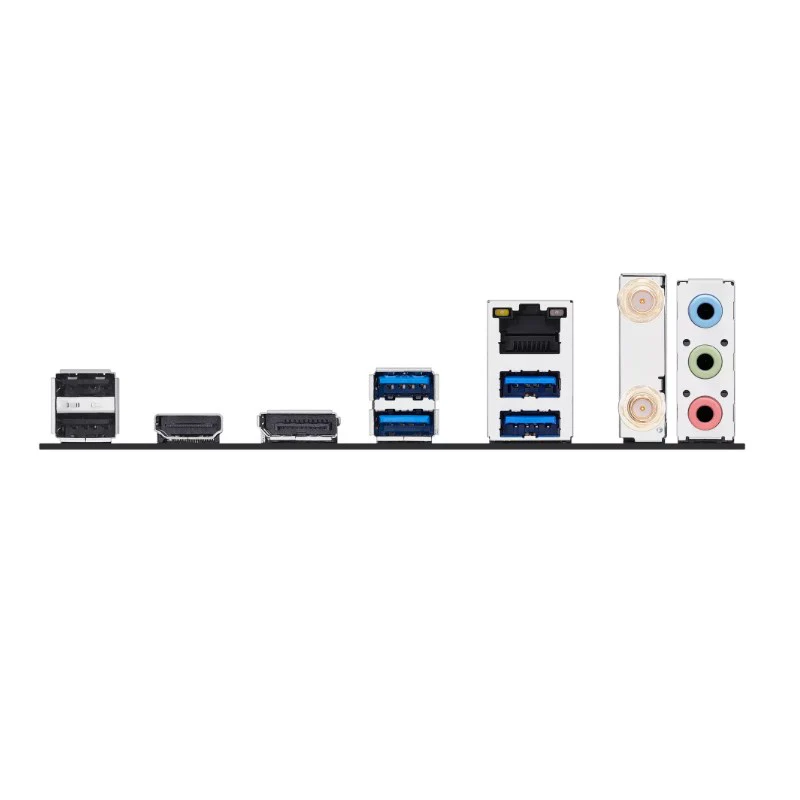

Back Panel I/O Ports

4 x USB 5Gbps ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x HDMI™ port

1 x DisplayPort

1 x Wi-Fi module

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

Internal I/O Connectors

Fan and Cooling Related

1 x 4-pin CPU Fan header

2 x 4-pin Chassis Fan headers

Power Related

1 x 24-pin Main Power connector

1 x 8-pin +12V CPU Power connector

Storage Related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

1 x USB 2.0 header supports 2 additional USB 2.0 ports

Miscellaneous

2 x Addressable RGB Gen 2 headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (F_AUDIO)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin Front Panel System header

BIOS

128 MB Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Operating System

Windows 11, Windows 10 64-bit

Form Factor

micro-ATX Form Factor

9.6"x 8.3" (24.4 cm x 21.1 cm)
