Model
|

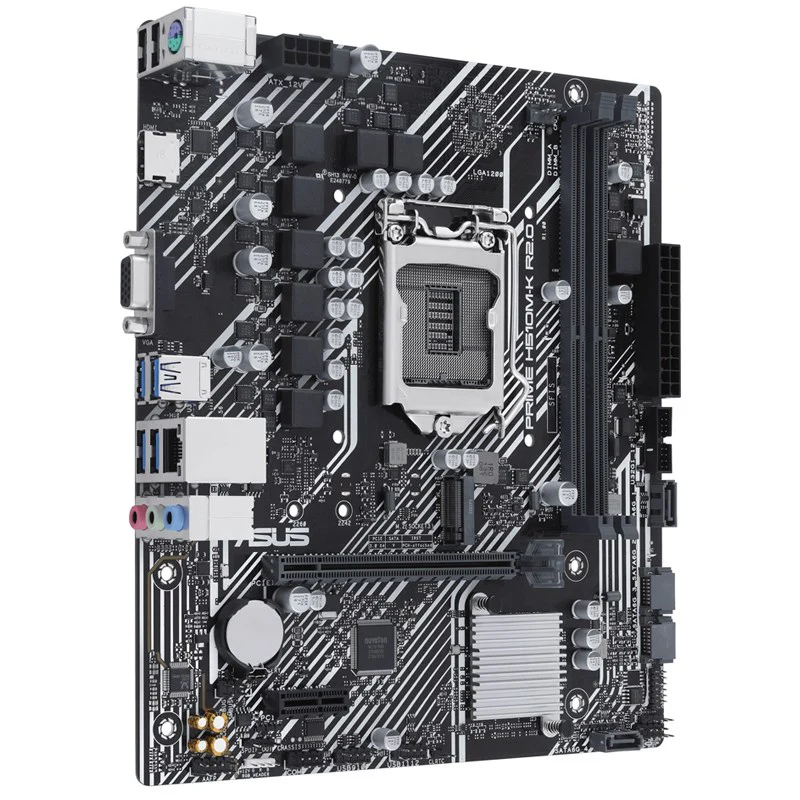

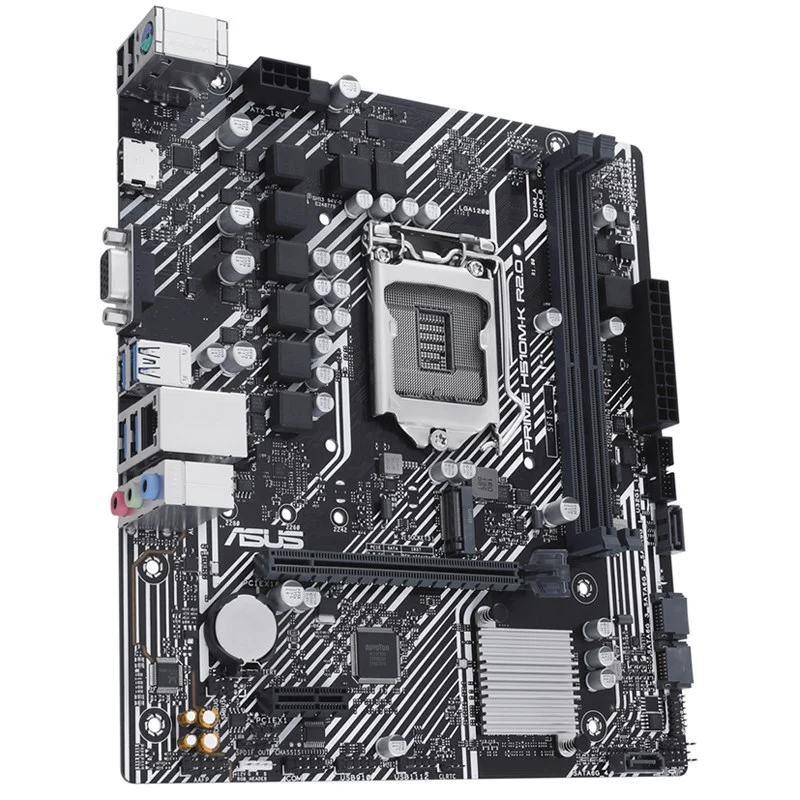

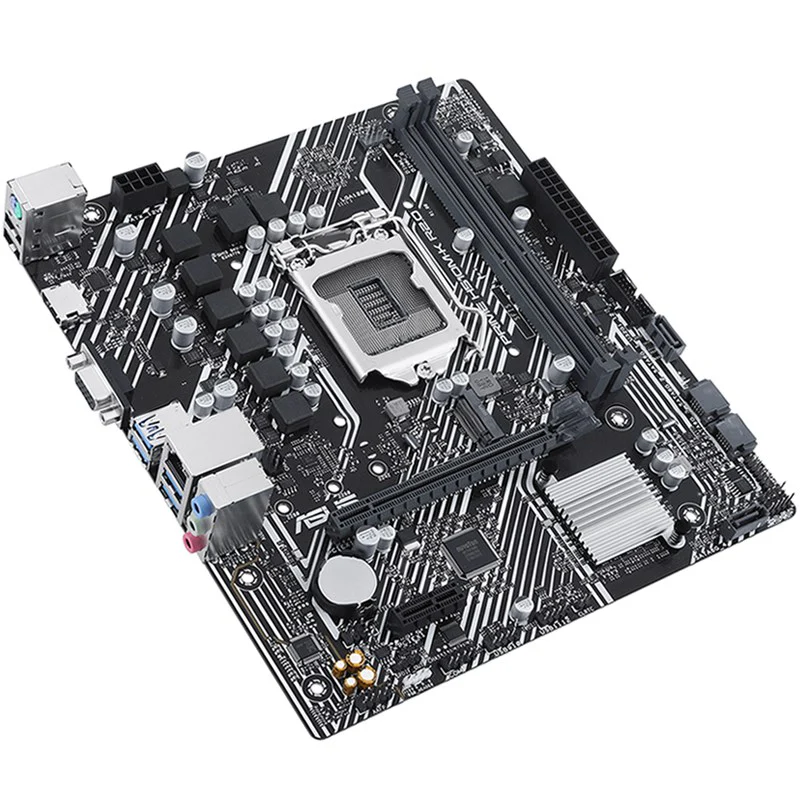

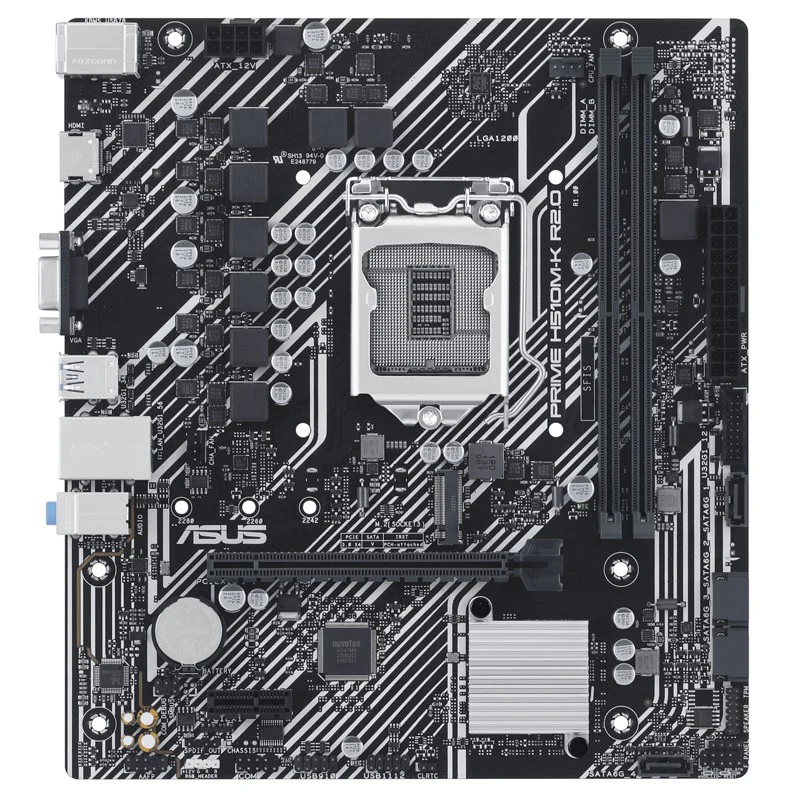

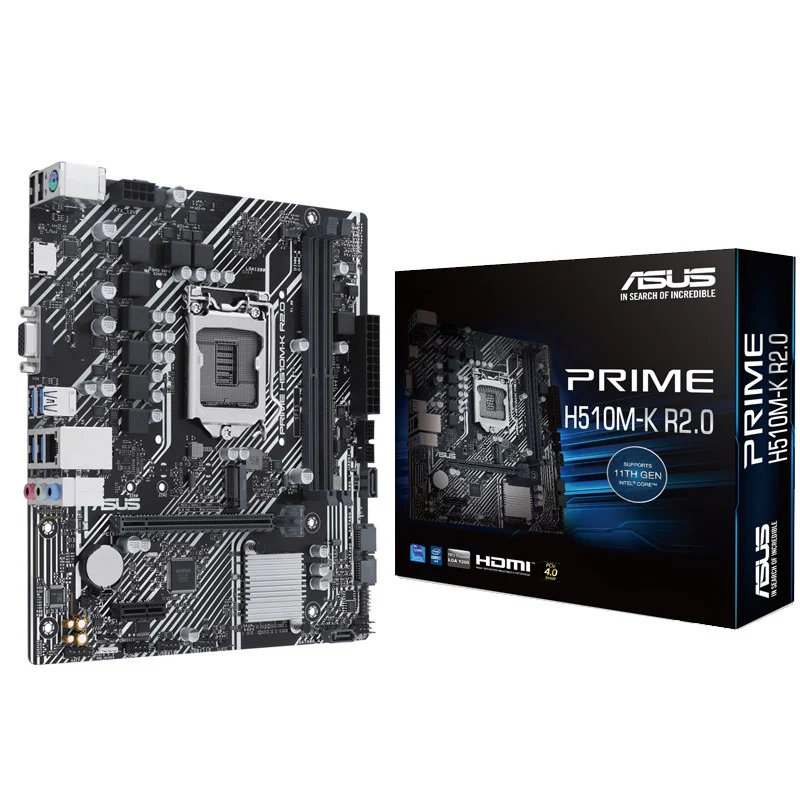

PRIME H510M-K R2.0
|
CPU
|
IntelĀ® Socket LGA1200 for 11th Gen IntelĀ® Coreā¢, 10th Gen IntelĀ® Coreā¢, PentiumĀ® Gold, and CeleronĀ® Processors
|
Ā
|
Supports IntelĀ® Turbo Boost Technology 2.0 and IntelĀ® Turbo Boost Max Technology 3.0
|
Chipset
|
IntelĀ® H470 Chipset
|
Memory
|
2 x DIMM, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
|
Ā
|
Dual Channel Memory Architecture
|
Ā
|
Supports IntelĀ® Extreme Memory Profile (XMP)
|
Graphics
|
1 x VGA port
|
Ā
|
1 x HDMIā¢ port (Only IntelĀ® 11th Gen processors support HDMIā¢ 2.1 with max. resolution of 4K@60Hz; others support HDMIā¢ 1.4 with max. resolution of 4K@30Hz)
|
Expansion Slots
|
1 x PCIe 4.0/3.0 x16 slot (IntelĀ® 11th Gen processors support PCIe 4.0 x16; IntelĀ® 10th Gen processors support PCIe 3.0 x16)
|
Ā
|
1 x PCIe 3.0 x1 slot
|
Storage
|
1 x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
|
Ā
|
4 x SATA 6Gb/s ports
|
Ethernet
|
1 x Realtek 1Gb Ethernet
|
USB Ports
|
Rear USB (Total 6 ports):
|
Ā
|
4 x USB 3.2 Gen 1 ports (4 x Type-A)
|
Ā
|
2 x USB 2.0 ports (2 x Type-A)
|
Ā
|
Front USB (Total 6 ports):
|
Ā
|
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
|
Ā
|
2 x USB 2.0 headers support 4 additional USB 2.0 ports
|
Audio
|
Realtek 7.1 Surround Sound High Definition Audio CODEC (supports Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192 kHz playback)
|
Ā
|
Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers
|

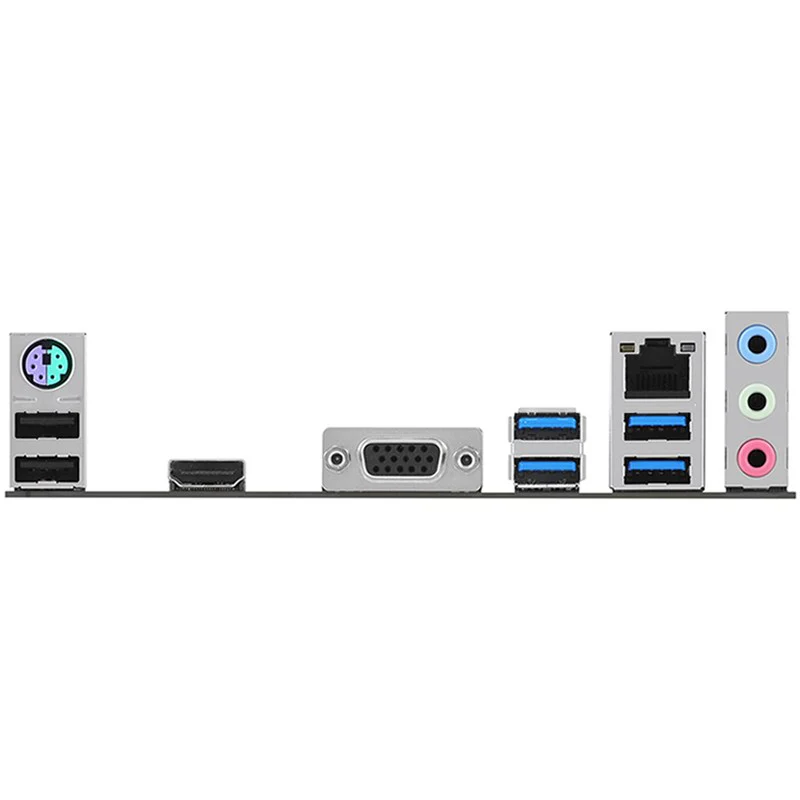

Back Panel I/O Ports
|
4 x USB 3.2 Gen 1 ports (4 x Type-A)
|
Ā
|
2 x USB 2.0 ports (2 x Type-A)
|
Ā
|
1 x VGA port
|
Ā
|
1 x HDMIā¢ port
|
Ā
|
1 x Realtek 1Gb Ethernet port
|
Ā
|
3 x Audio jacks
|
Ā
|
1 x PS/2 Keyboard/Mouse combo port
|
Internal I/O Connectors
|
1 x 4-pin CPU Fan header
|
Ā
|
1 x 4-pin Chassis Fan header
|
Ā
|
1 x 24-pin Main Power connector
|
Ā
|
1 x 8-pin +12V Power connector
|
Ā
|
1 x M.2 slot (Key M)
|
Ā
|
4 x SATA 6Gb/s ports
|
Ā
|
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
|
Ā
|
2 x USB 2.0 headers support 4 additional USB 2.0 ports
|
Ā
|
1 x RGB header
|
Ā
|
1 x Clear CMOS header
|
Ā
|
1 x COM Port header
|
Ā
|
1 x Front Panel Audio header (AAFP)
|
Ā
|
1 x S/PDIF Out header
|
Ā
|
1 x Speaker header
|
Ā
|
1 x SPI TPM header (14-1 pin)
|
Ā
|
1 x 10-1 pin System Panel header
|
Special Features
|
ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O)
|
Ā
|
ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot)
|
Ā
|
ASUS Thermal Solution (Aluminum heatsink design)
|
Ā
|
ASUS Lighting Control (RGB header)
|
Software Features
|
ASUS Exclusive Software (Armoury Crate, AI Suite 3: TurboV EVO, EPU, DIGI+ VRM, Fan Xpert, EZ update)
|
Ā
|
ASUS CPU-Z, Norton 360 Deluxe (60 Days Free Trial), WinRAR
|
Ā
|
UEFI BIOS (ASUS EZ DIY: ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode)
|
BIOS
|
128 Mb Flash ROM, UEFI AMI BIOS
|
Manageability
|
WOL by PME, PXE
|
Accessories
|
Cables: 2 x SATA 6Gb/s cables
|
Ā
|
Miscellaneous: 1 x I/O Shield, 1 x M.2 Anchor
|
Ā
|
Documentation: 1 x User guide
|
Operating System
|
WindowsĀ® 10 64-bit
|
Form Factor
|
micro-ATX Form Factor (8.9 inch x 8.0 inch / 22.6 cm x 20.3 cm)
|
