Model
|

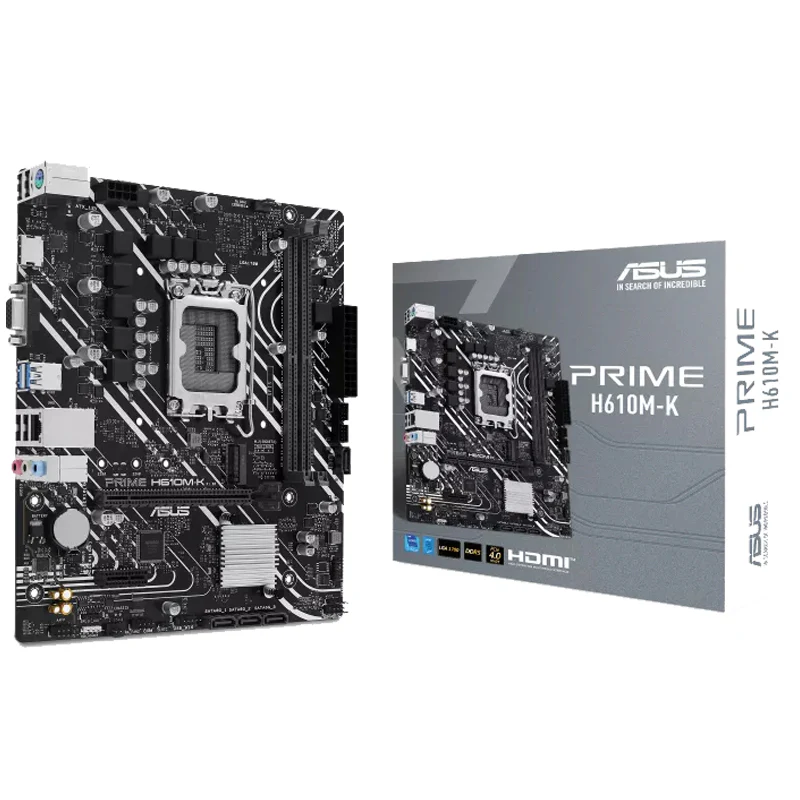

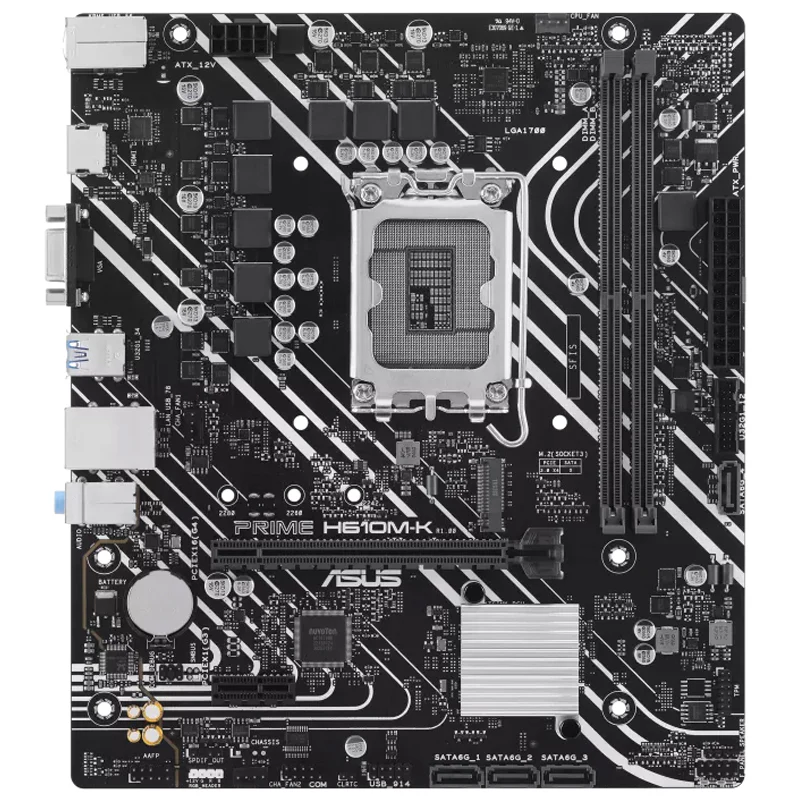

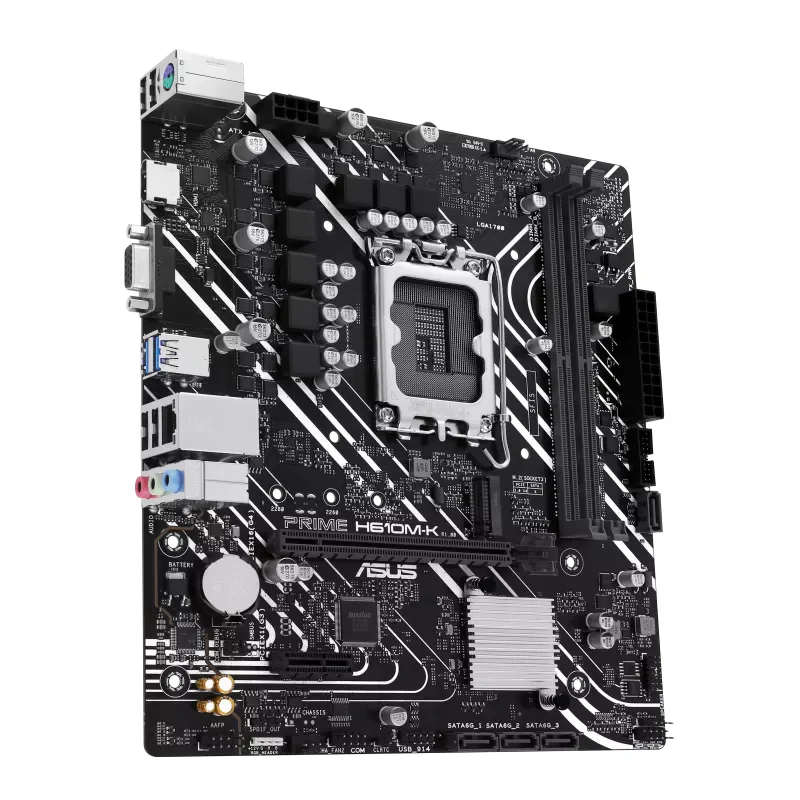

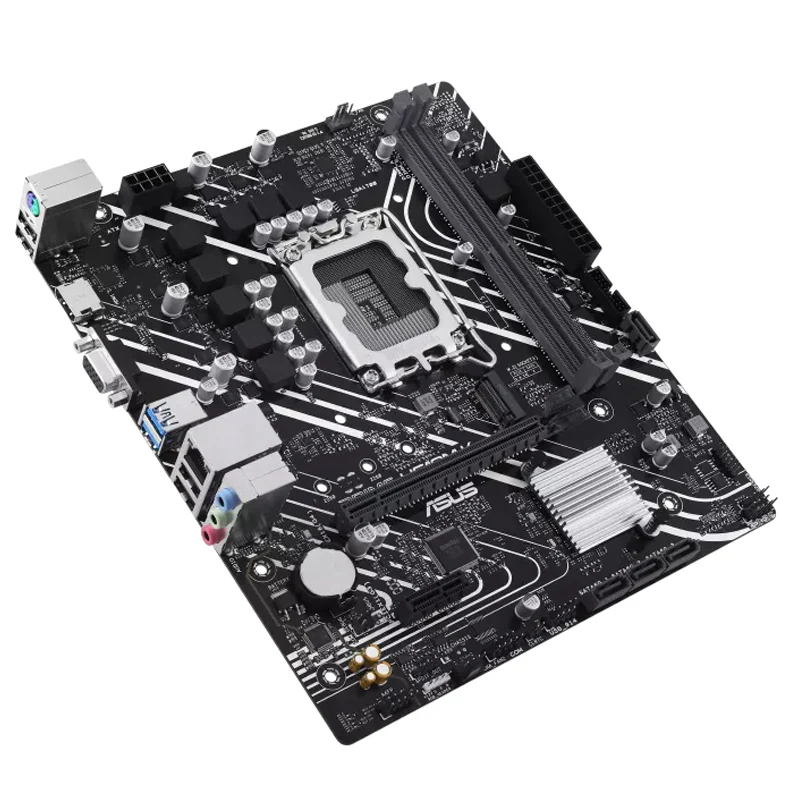

PRIME H610M-K
|
|
CPU
|
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
|
|
|
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
|
|
|
* Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
|
|
Chipset
|
Intel® H610 Chipset
|
|
Memory
|
2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
|
|
|
Dual Channel Memory Architecture
|
|
|
Supports Intel® Extreme Memory Profile (XMP)
|
|
|
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
|
|
|
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
|
|
Graphics
|
1 x VGA port
|
|
|
1 x HDMI™ port**
|
|
|
* Graphics specifications may vary between CPU types.
|
|
|
** Supports 4K@60Hz as specified in HDMI 2.1.
|
|
Expansion Slots
|
Intel® Core™ Processors (14th & 13th & 12th Gen)
|
|
|
1 x PCIe 4.0 x16 slot
|
|
|
Intel® H610 Chipset
|
|
|
1 x PCIe 3.0 x1 slot
|
|
Storage
|
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
|
|
|
Intel® H610 Chipset
|
|
|
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
|
|
|
4 x SATA 6Gb/s ports
|
|
Ethernet
|
1 x Realtek 1Gb Ethernet
|
|
USB
|
|
|
Rear USB (Total 6 ports)
|
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
|
|
|
4 x USB 2.0 ports (4 x Type-A)
|
|
Front USB (Total 4 ports)
|
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
|
|
|
1 x USB 2.0 header supports 2 additional USB 2.0 ports
|
|
Audio
|
Realtek 7.1 Surround Sound High Definition Audio CODEC*
|
|
|
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
|
|
|
- Supports up to 24-Bit/192 kHz playback
|
|
Audio Features
|
- Audio Shielding
|
|
|
- Premium audio capacitors
|
|
|
- Dedicated audio PCB layers
|
|
|
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
|
|
Back Panel I/O Ports
|
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
|
|
|
4 x USB 2.0 ports (4 x Type-A)
|
|
|
1 x VGA port
|
|
|
1 x HDMI™ port
|
|
|
1 x Realtek 1Gb Ethernet port
|
|
|
3 x Audio jacks
|
|
|
1 x PS/2 Keyboard/Mouse combo port
|
|
Internal I/O Connectors
|
Fan and Cooling related
|
|
|
1 x 4-pin CPU Fan header
|
|
|
2 x 4-pin Chassis Fan headers
|
|
|
Power related
|
|
|
1 x 24-pin Main Power connector
|
|
|
1 x 8-pin +12V Power connector
|
|
|
Storage related
|
|
|
1 x M.2 slot (Key M)
|
|
|
4 x SATA 6Gb/s ports
|
|
|
USB
|
|
|
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
|
|
|
1 x USB 2.0 header supports 2 additional USB 2.0 ports
|
|
|
Miscellaneous
|
|
|
1 x RGB header
|
|
|
1 x Clear CMOS header
|
|
|
1 x Front Panel Audio header (AAFP)
|
|
|
1 x COM Port header
|
|
|
1 x S/PDIF Out header
|
|
|
1 x Speaker header
|
|
|
1 x SPI TPM header (14-1pin)
|
|
|
1 x 10-1 pin System Panel header
|
|
Special Features
|
ASUS 5X PROTECTION III
|
|
|
- DIGI+ VRM
|
|
|
- LANGuard
|
|
|
- Overvoltage Protection
|
|
|
- SafeSlot Core
|
|
|
- Stainless-Steel Back I/O
|
|
|
ASUS Q-Design
|
|
|
- Q-DIMM
|
|
|
- Q-LED Core
|
|
|
- Q-Slot
|
|
|
ASUS Thermal Solution
|
|
|
- Aluminum heatsink design
|
|
|
ASUS Lighting Control
|
|
|
- RGB header
|
|
Software Features
|
ASUS Exclusive Software
|
|
|
Armoury Crate
|
|
|
- Fan Xpert 2+
|
|
|
AI Suite 3
|
|
|
- EPU
|
|
|
- DIGI+ VRM
|
|
|
- PC Cleaner
|
|
|
ASUS CPU-Z
|
|
|
Norton 360 Deluxe (60 Days Free Trial)
|
|
|
WinRAR
|
|
|
UEFI BIOS
|
|
|
ASUS EZ DIY
|
|
|
- ASUS CrashFree BIOS 3
|
|
|
- ASUS EZ Flash 3
|
|
|
- ASUS UEFI BIOS EZ Mode
|
|
BIOS
|
128 Mb Flash ROM, UEFI AMI BIOS
|
|
Manageability
|
WOL by PME, PXE
|
|

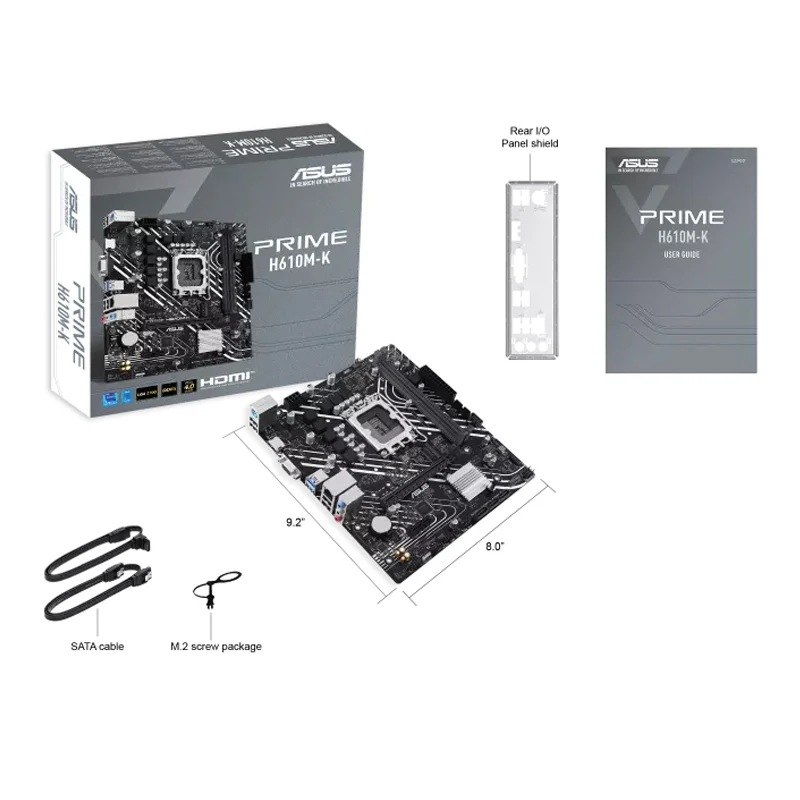

Accessories
|
Cables
|
|
|
2 x SATA 6Gb/s cables
|
|
|
Miscellaneous
|
|
|
1 x I/O Shield
|
|
|
1 x M.2 Anchor
|
|
|
Documentation
|
|
|
1 x User guide
|
|
Operating System
|
Windows® 11, Windows® 10 64-bit
|
|
Form Factor
|
micro-ATX Form Factor
|
|
|
9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
|
