CPU
|
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
|
|
|
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
|
|
Chipset
|
Intel® Z790 Chipset
|
|
Memory
|
4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800, Un-buffered Memory*
|
|
|
Dual Channel Memory Architecture
|
|
|
Supports Intel® Extreme Memory Profile (XMP)
|
|
|
OptiMem II
|
|
|
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration
|
|
|
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
|
|
Graphics
|
1 x DisplayPort**
|
|
|
1 x HDMI® port***
|
|
|
* Graphics specifications may vary between CPU types.
|
|
|
**Supports max. 8K@60Hz as specified in DisplayPort 1.4.
|
|
|
***Supports 4K@60Hz as specified in HDMI 2.1.
|
|
|
**** VGA resolution support depends on processors' or graphic cards' resolution.
|
|
Expansion Slots
|
|
|
Intel® Core™ Processors (14th & 13th & 12th Gen)*
|
1 x PCIe 5.0 x16 slot
|
|
Intel® Z790 Chipset
|
1 x PCIe 4.0 x16 slot (supports x4 mode)
|
|
|
1 x PCIe 4.0 x4 slot
|
|
|
2 x PCIe 3.0 x1 slots
|
|
|
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
|
|
Storage
|
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
|
|
|
Intel® Core™ Processors (14th & 13th & 12th Gen)*
|
|
|
M.2_1 slot (Key M), type 2242/2260/2280/22110 (support PCIe 4.0 x4 mode)
|
|
|
Intel® Z790 Chipset
|
|
|
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
|
|
|
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)
|
|
|
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
|
|
|
4 x SATA 6Gb/s ports
|
|
|
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
|
|
|
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
|
|
|
Intel® Core™ Processors (14th & 13th & 12th Gen)*
|
|
|
M.2_1 slot (Key M), type 2242/2260/2280/22110 (support PCIe 4.0 x4 mode)
|
|
|
Intel® Z790 Chipset
|
|
|
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
|
|
|
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)
|
|
|
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
|
|
|
4 x SATA 6Gb/s ports
|
|
|
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
|
|
Ethernet
|
1 x Intel® 2.5Gb Ethernet
|
|
|
ASUS LANGuard
|
|
Wireless & Bluetooth
|
Wi-Fi 6E
|
|
|
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
|
|
|
Supports 2.4/5/6GHz frequency band*
|
|
|
Bluetooth® v5.3**
|
|
|
* WiFi 6E 6GHz regulatory may vary between countries.
|
|
|
** The Bluetooth version may vary
|
|
USB
|
Rear USB (Total 8 ports)
|
|
|
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
|
|
|
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®)
|
|
|
4 x USB 3.2 Gen 1 ports (4 x Type-A)
|
|
|
Front USB (Total 7 ports)
|
|
|
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
|
|
|
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
|
|
|
2 x USB 2.0 headers support additional 4 USB 2.0 ports
|
|
Audio
|
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
|
|
|
- Impedance sense for front and rear headphone outputs
|
|
|
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
|
|
|
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
|
|
|
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
|
|
|
- Supports up to 32-Bit/192 kHz playback*
|
|
|
Audio Features
|
|
|
- Audio Shielding
|
|
|
- Power pre-regulator reduces power input noise to ensure consistent performance
|
|
|
- Premium audio capacitors
|
|
|
- Dedicated audio PCB layers
|
|
|
- Audio cover
|
|
|
- Unique de-pop circuit
|
|
|
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
|
|

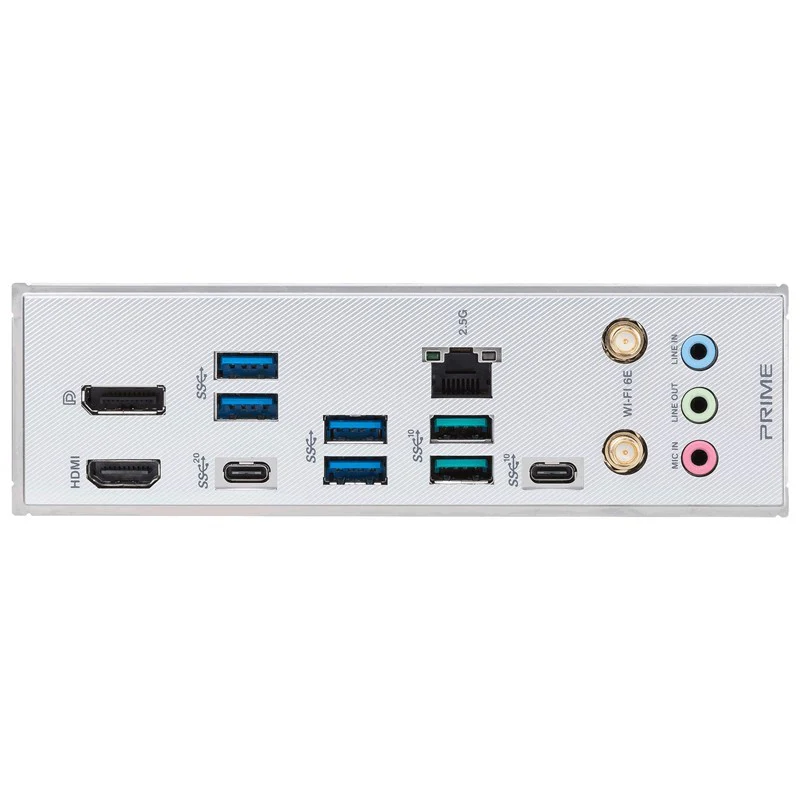

Back Panel I/O Ports
|
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
|
|
|
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x Type-C®)
|
|
|
4 x USB 3.2 Gen 1 ports (4 x Type-A)
|
|
|
1 x DisplayPort
|
|
|
1 x HDMI® port
|
|
|
1 x Wi-Fi Module
|
|
|
1 x Intel® 2.5Gb Ethernet port
|
|
|
3 x Audio jacks
|
|
Internal I/O Connectors
|
Fan and Cooling related
|
|
|
1 x 4-pin CPU Fan header
|
|
|
1 x 4-pin CPU OPT Fan header
|
|
|
1 x 4-pin AIO Pump header
|
|
|
4 x 4-pin Chassis Fan headers
|
|
|
Power related
|
|
|
1 x 24-pin Main Power connector
|
|
|
2 x 8-pin +12V Power connectors
|
|
|
Storage related
|
|
|
4 x M.2 slots (Key M)
|
|
|
4 x SATA 6Gb/s ports
|
|
|
USB
|
|
|
1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
|
|
|
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
|
|
|
2 x USB 2.0 headers support 4 additional USB 2.0 ports
|
|
|
Miscellaneous
|
|
|
3 x Addressable Gen 2 headers
|
|
|
1 x Aura RGB header
|
|
|
1 x Clear CMOS header
|
|
|
1 x COM Port header
|
|
|
1 x CPU Over Voltage jumper
|
|
|
1 x Front Panel Audio header (AAFP)
|
|
|
1 x Power button
|
|
|
1 x SPI TPM header (14-1pin)
|
|
|
1 x 20-3 pin System Panel header with Chassis intrude function
|
|
|
1 x Thunderbolt™ header
|
|
Special Features
|
ASUS 5X PROTECTION III
|
|
|
- DIGI+ VRM (- Digital power design with DrMOS)
|
|
|
- ESD Guards
|
|
|
- LANGuard
|
|
|
- Overvoltage Protection
|
|
|
- Safeslot
|
|
|
- Stainless-Steel Back I/O
|
|
|
ASUS Q-Design
|
|
|
- M.2 Q-Latch
|
|
|
- PCIe Slot Q-Release
|
|
|
- Q-Connector
|
|
|
- Q-DIMM
|
|
|
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
|
|
|
- Q-Slot
|
|
|
ASUS Thermal Solution
|
|
|
- M.2 heatsink
|
|
|
- VRM heatsink design
|
|
|
ASUS EZ DIY
|
|
|
- Box Headers
|
|
|
- Clear CMOS button
|
|
|
- CPU Socket lever protector
|
|
|
- ProCool
|
|
|
- Pre-mounted I/O shield
|
|
|
- SafeDIMM
|
|
|
Aura Sync
|
|
|
- Aura RGB header
|
|
|
- Addressable Gen 2 headers
|
|
Software Features
|
ASUS Exclusive Software
|
|
|
Armoury Crate
|
|
|
- Aura Creator
|
|
|
- Aura Sync
|
|
|
- Fan Xpert 4 (with AI Cooling II)
|
|
|
- Power Saving
|
|
|
- Two-Way AI Noise Cancellation
|
|
|
AI Suite 3
|
|
|
- TurboV EVO
|
|
|
- DIGI+ VRM
|
|
|
- PC Cleaner
|
|
|
ASUS CPU-Z
|
|
|
DTS:X® Ultra
|
|
|
MyASUS
|
|
|
Norton 360 Deluxe (60 Days Free Trial)
|
|
|
WinRAR
|
|
|
UEFI BIOS
|
|
|
ASUS EZ DIY
|
|
|
- ASUS CrashFree BIOS 3
|
|
|
- ASUS EZ Flash 3
|
|
|
- ASUS UEFI BIOS EZ Mode
|
|
|
MemTest86
|
|
BIOS
|
256 Mb Flash ROM, UEFI AMI BIOS
|
|
Manageability
|
WOL by PME, PXE
|
|
Accessories
|
|
|
Cables
|
2 x SATA 6Gb/s cables
|
|
Miscellaneous
|
1 x ASUS Wi-Fi moving antenna
|
|
|
1 x Q-connector
|
|
|
2 x M.2 Rubber Packages
|
|
|
1 x Screw package for M.2 SSD
|
|
Documentation
|
1 x User guide
|
|
Operating System
|
Windows® 11, Windows® 10 64-bit
|
|
Form Factor
|
ATX Form Factor
|
|
|
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|
