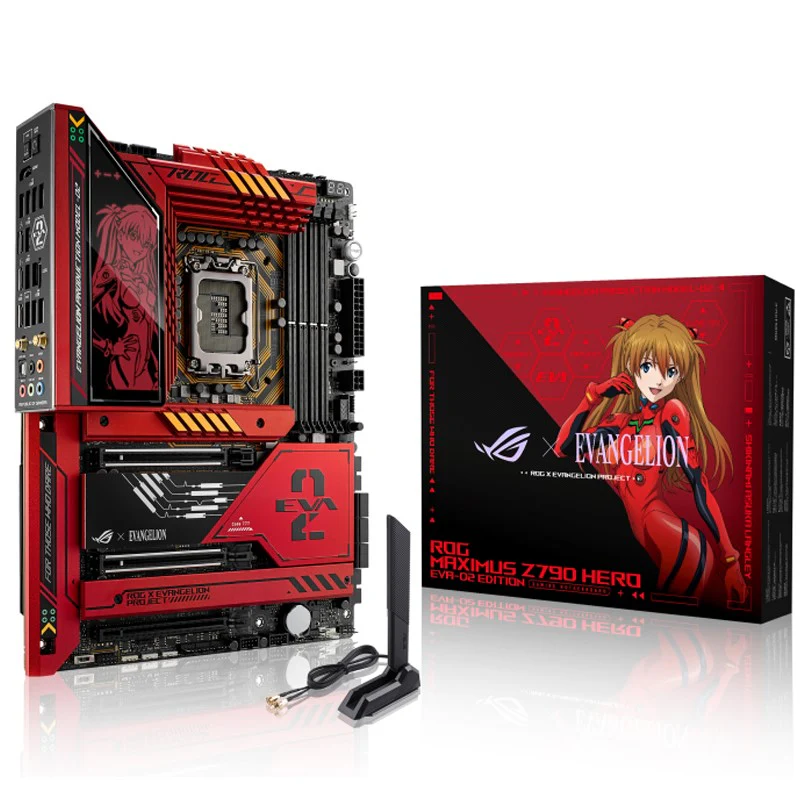

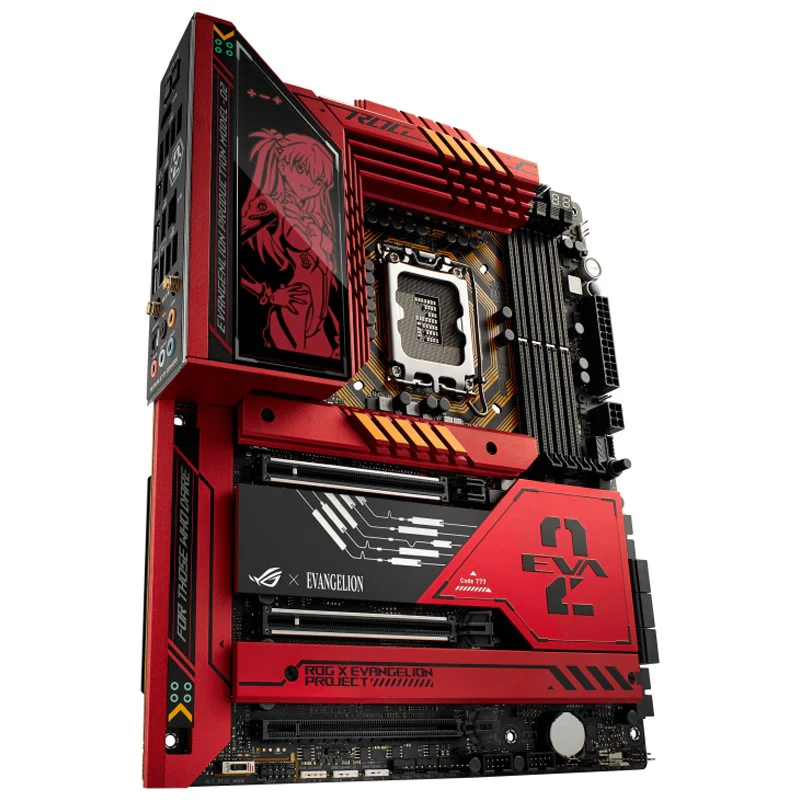

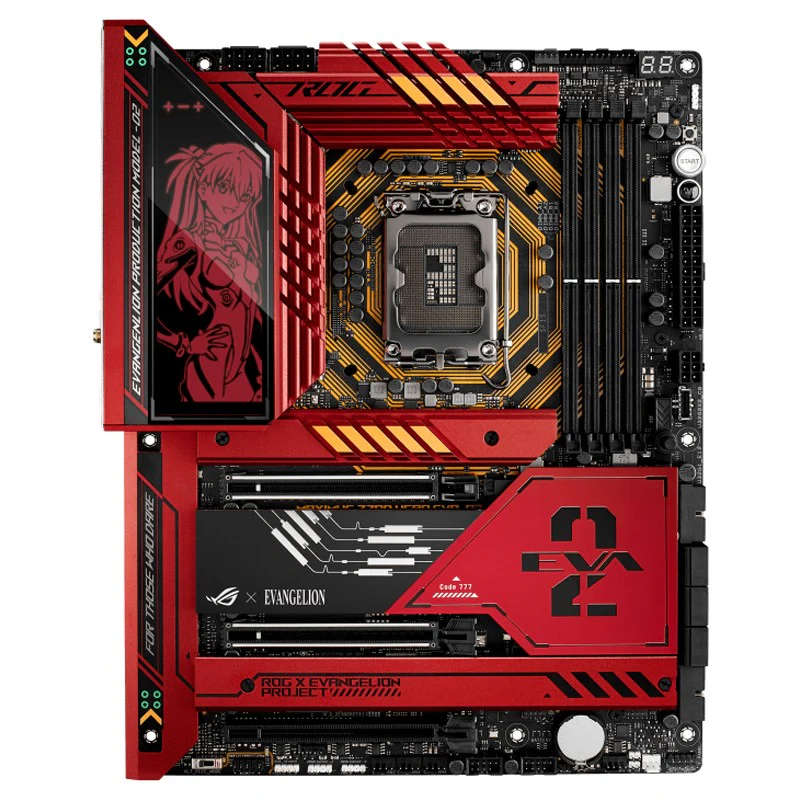

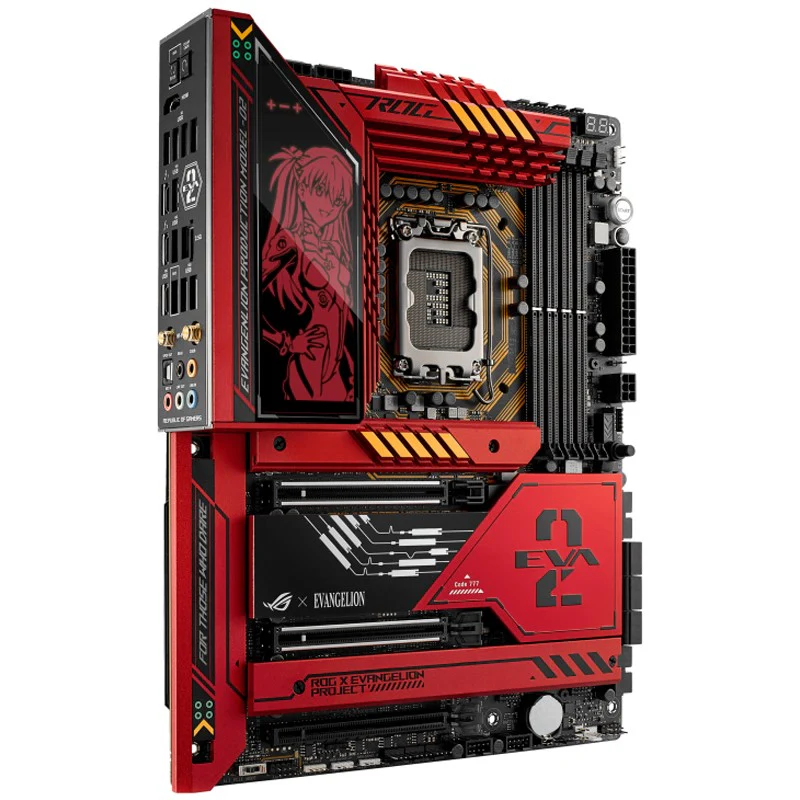

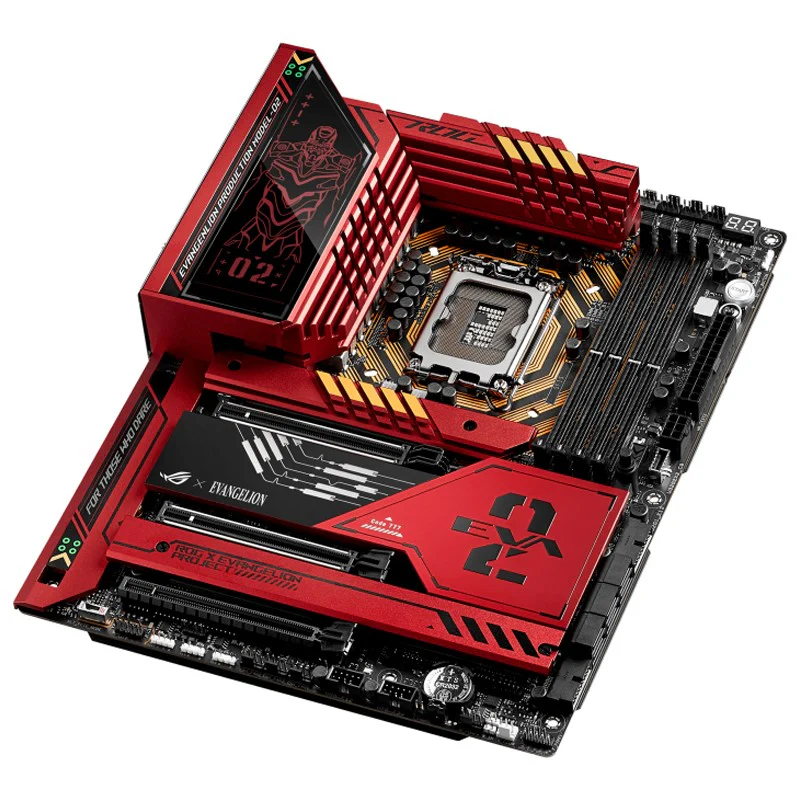

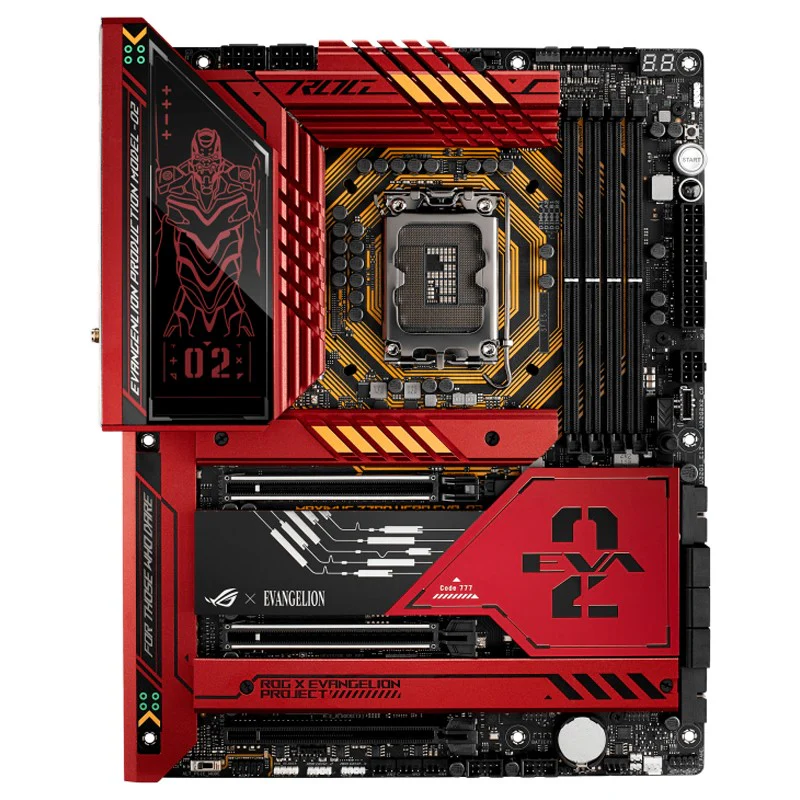

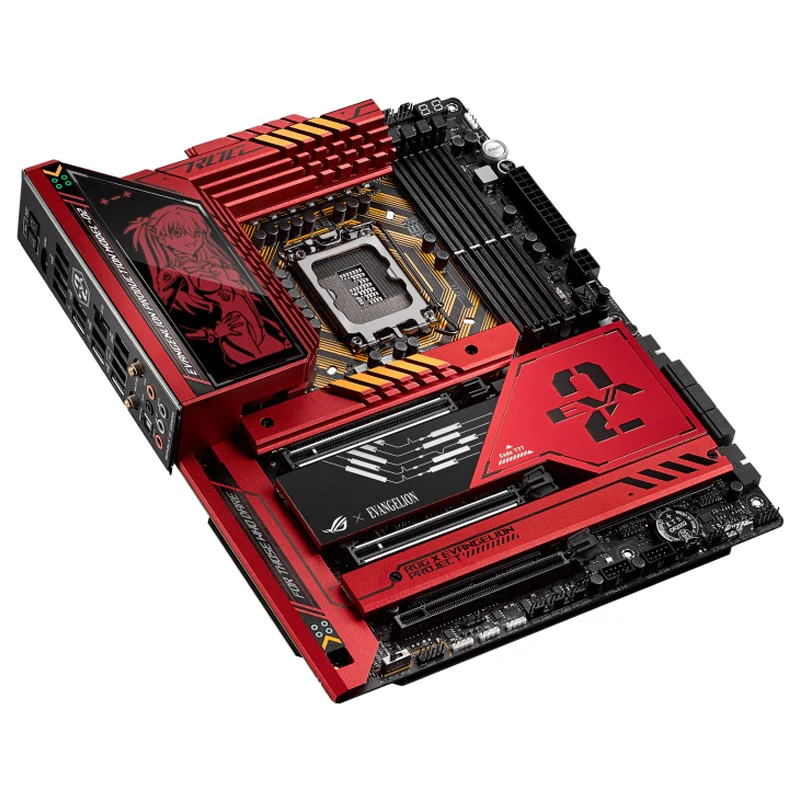

Asus ROG MAXIMUS Z790 HERO EVA-02 EDITION ATX Gaming Motherboard

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10
Product image 11
Product image 12

Asus ROG MAXIMUS Z790 HERO EVA-02 EDITION ATX Gaming Motherboard

Asus ROG MAXIMUS Z790 HERO EVA-02 EDITION ATX Gaming Motherboard

ROG MAXIMUS Z790 HERO EVA-02 EDITION

Intel® Z790 LGA 1700 ATX motherboard with 20 + 1 power stages, DDR5, five M.2 slots, PCIe® 5.0 NVMe® SSD slot on Hyper M.2 Card, PCIe 5.0 x16 SafeSlots with Q-Release, Wi-Fi 6E, two Thunderbolt™ 4 ports, USB 20Gbps Type-C® front-panel connector with Quick Charge 4+ up to 60W, AI Overclocking, AI Cooling II, and Aura Sync RGB lighting

Code The Beast

The ROG Maximus Z790 Hero EVA-02 Edition is the result of a new collaboration centered around EVA-02 and Asuka of the long-celebrated Evangelion anime series. After catching your eye with EVA-02’s signature red-and-orange theme and traces of green, the artistic flourishes keep coming: an AT Field design surrounds the CPU socket, and Polymo lighting on the I/O cover switches between Asuka and regular EVA-02. The backplate design showcases EVA-02 “The Beast” mode and Evangelion patterns, adding to the motherboard's visual appeal. And as an ROG Maximus motherboard, it offers all the power, cooling, and flexible features necessary to elevate performance to the next level.

Intelligent Motherboard

Intelligent software solutions help ensure that your system performs at its best. The latest ASUS AI-powered enhancements span four pillars of performance, including overclocking, cooling, networking and onboard audio, making advanced tweaks and optimization accessible to new recruits and savvy PC DIY veterans alike.

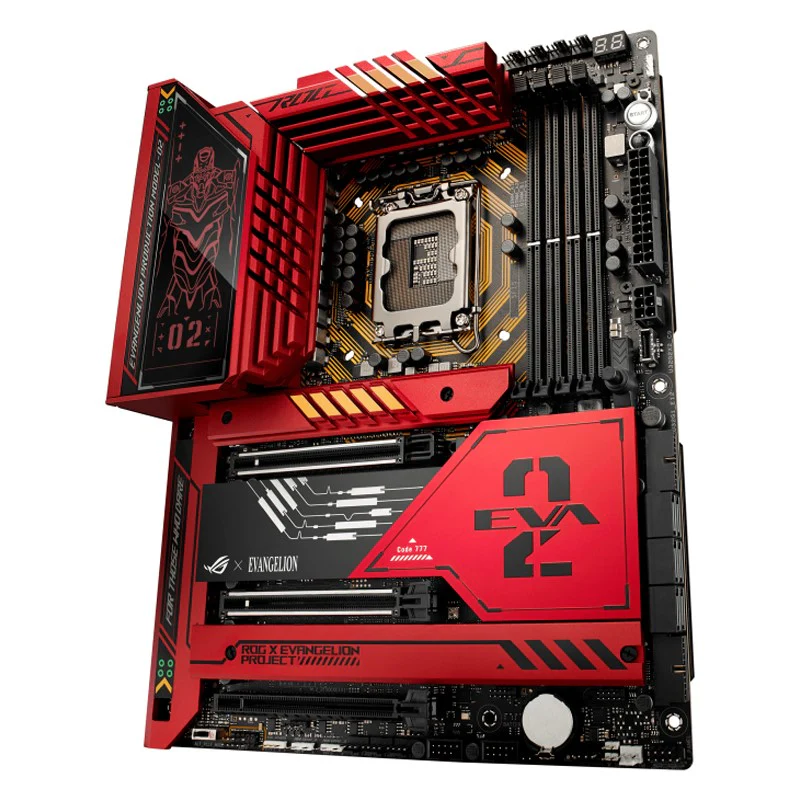

VRM And Aluminum I/O Heatsink

A VRM heatsink on the MOSFETs and chokes is connected to the aluminum I/O cover via an embedded heatpipe to increase mass and surface area for dissipation.

M.2 Heatsinks and Backplates

Large aluminum heatsinks provide extensive surface area to cool mounted M.2 drives, and each of the three onboard slots has a dedicated backplate for additional heat dissipation.

Chipset Heatsink

A dedicated heatsink draws heat away from the chipset to maintain optimum operating temperature.

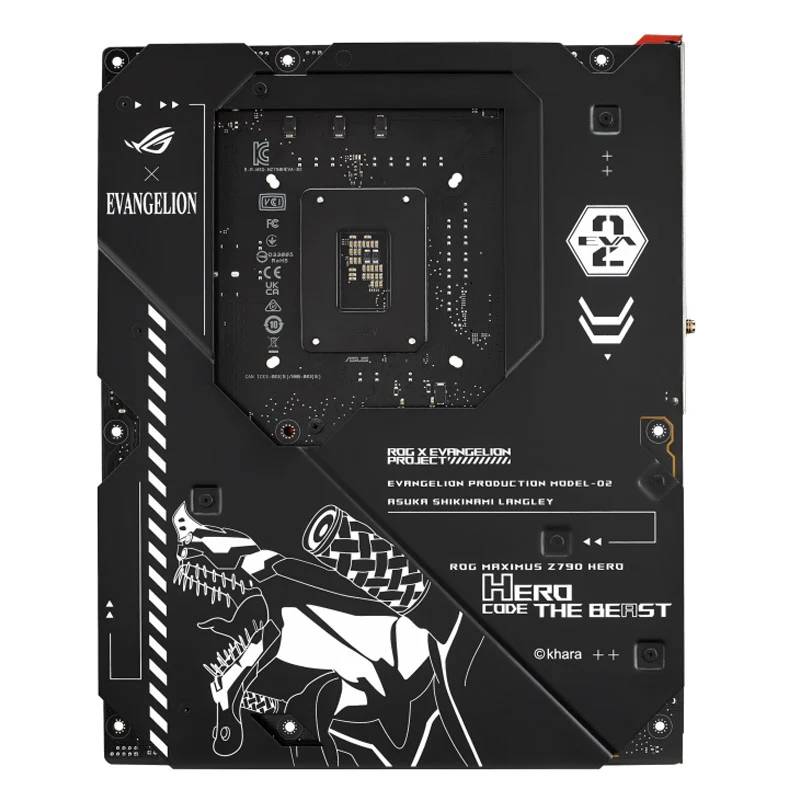

Metal Backplate

A metal plate spans the underside of the ROG Maximus Z790 Hero EVA-02 Edition, establishing a reinforced platform for smoother DIY PC building.

Personalization

Illuminating the I/O shroud of the ROG Maximus Z790 Hero EVA-02 Edition is a colorful microstructural array called Polymo Lighting. Two stylish patterns are available for builders to tinker with in Armoury Crate and sync up with the rest of their system for a brilliant display of individuality.

Specifications:

CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold, and Celeron® Processors. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0.

Chipset

Intel® Z790 Chipset

Memory

4 x DIMM, Max. 192GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory. - Dual Channel Memory Architecture. - Supports Intel® Extreme Memory Profile (XMP). *Supported memory types, data rate (Speed), and number of DRAM modules vary depending on the CPU and memory configuration.

Graphics

1 x HDMITM port. - 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs. *Graphics specifications may vary between CPU types. Refer to www.intel.com for any updates. Support 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

Intel® CoreTM Processors (14th & 13th & 12th Gen): 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes). - Intel® Z790 Chipset: 1 x PCIe 4.0 x16 slot (supports x4, x4/x4 modes). *Please check the PCIe bifurcation table on the support site (Asus Support FAQ). When ROG Hyper M.2 card is installed on PCIEX16(G5)_1, PCIEX16(G5)_2 will run x8 only. If ROG Hyper M.2 card is installed on PCIEX16(G5)_2, PCIEX16(G5)_1 will run x8 only.

Storage

Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports. - Intel® 13th & 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode). Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode). - Intel® Z790 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode). M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes). Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode). Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode). 6 x SATA 6Gb/s ports. RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports.

Ethernet

1 x Intel® 2.5Gb Ethernet. - ASUS LANGuard.

Wireless & Bluetooth

Wi-Fi 6E, 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax). - Supports 2.4/5/6GHz frequency band. *WiFi 6E 6GHz regulatory may vary between countries. The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 12 ports): 2 x Thunderbolt™ 4 ports (2 x USB Type-C®), 6 x USB 10G ports (5 x Type-A + 1 x USB Type-C®), 4 x USB 5G ports (4 x Type-A). - Front USB (Total 9 ports): 1 x USB 20G connector (supports USB Type-C® with up to 60W PD/QC4+), 2 x USB 5G headers support additional 4 USB 5G ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports.

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082. - Impedance sense for front and rear headphone outputs. - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking. - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input. - Support up to 32-Bit/384 kHz playback on the front panel. Audio Features: - SupremeFX Shielding Technology. - ESS® ES9218 QUAD DAC. - Gold-plated audio jacks. - Rear optical S/PDIF out port. - Premium audio capacitors. - Audio cover.

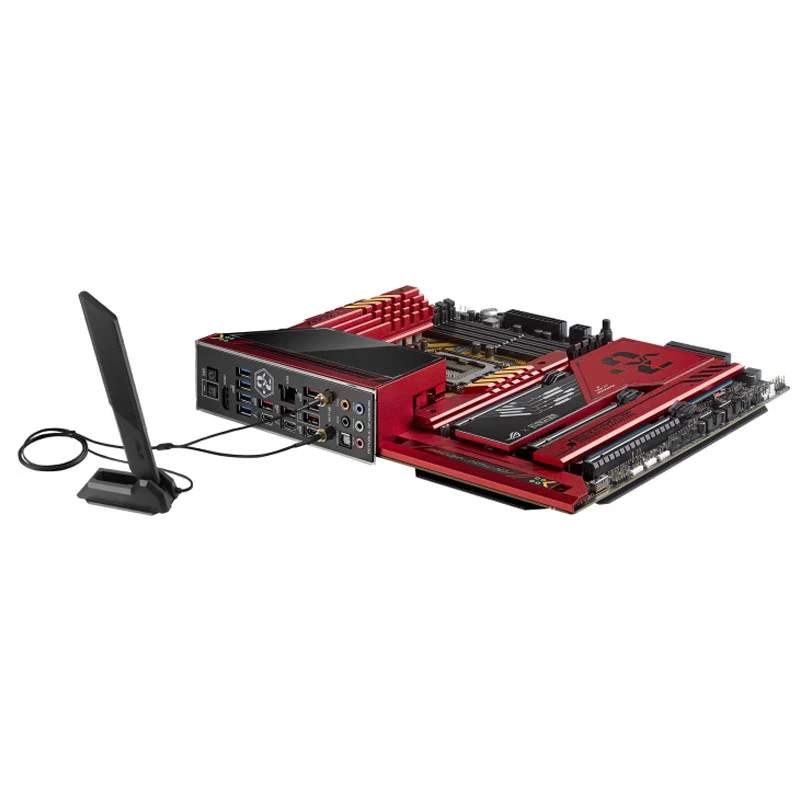

Back Panel I/O Ports

2 x Thunderbolt™ 4 USB Type-C® ports. - 6 x USB 10G ports (5 x Type-A + 1 x USB Type-C®). - 4 x USB 5G ports (4 x Type-A). - 1 x HDMI® port. - 1 x Wi-Fi Module. - 1 x Intel® 2.5Gb Ethernet port. - 5 x Gold-plated audio jacks. - 1 x Optical S/PDIF out port. - 1 x BIOS FlashBack™ button. - 1 x Clear CMOS button.

Internal I/O Connectors

Fan and Cooling related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, 1 x W_PUMP+ header, 1 x 2-pin Water In header, 1 x 2-pin Water Out header, 1 x 3-pin Water Flow header. - Power related: 1 x 24-pin Main Power connector, 2 x 8-pin +12V Power connector, 1 x 6-pin PCIe Power connector. - Storage related: 3 x M.2 slots (Key M), 6 x SATA 6Gb/s ports. - USB: 1 x USB 20G connector (supports USB Type-C®), 2 x USB 5G headers support additional 4 USB 5G ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports.

Miscellaneous

3 x Addressable Gen 2 headers. - 1 x AURA RGB header. - 1 x FlexKey button. - 1 x Front Panel Audio header (AAFP). - 1 x Start button. - 1 x ReTry button. - 1 x 10-1 pin System Panel header. - 1 x Thermal Sensor header. - 1 x CPU Over Voltage jumper. - 1 x Alternative PCIe Mode switch.

Special Features

Extreme OC Kit: - FlexKey button. - ReTry button. - Start button. - Extreme Engine Digi+: - 10K Black Metallic Capacitors. - MicroFine Alloy Choke. - ASUS Q-Design: - M.2 Q-Latch. - PCIe Slot Q-Release. - Q-Code. - Q-Connector. - Q-DIMM. - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]). - Q-Slot. - ASUS Thermal Solution: - M.2 heatsink backplate. - M.2 heatsink. - Metal backplate. - VRM heatsink design. - ASUS EZ DIY: - BIOS FlashBack™ button. - Clear CMOS button. - CPU Socket lever protector. - ProCool II. - Pre-mounted I/O shield. - SafeSlot. - SafeDIMM. - AURA Sync: - AURA RGB header(s). - Addressable Gen 2 header(s). - Front Panel USB 20G with Quick Charge 4+ Support: - Support: up to 60W charging*. - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A. - Compatible with PD3.0 and PPS. *To support 60W, please install the power cable to 6-pin PCIe power connector or can only support 27W.

Software Features

ROG Exclusive Software: - ROG CPU-Z. - GameFirst VI. - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion. - Sonic Radar III. - DTS® Sound Unbound. - Internet Security (1-year full version). - ASUS Exclusive Software: - Armoury Crate. - AIDA64 Extreme (1 year full version). - AURA Creator. - AURA Sync. - Fan Xpert 4 (with AI Cooling II). - Two-Way AI Noise Cancellation. - Power Saving. - AI Suite 3: - Easy Optimization with AI Overclocking. - TPU. - DIGI+ Power Control. - Turbo app. - PC Cleaner. - MyAsus: - WinRAR.

UEFI BIOS

256 Mb Flash ROM, UEFI AMI BIOS.

Manageability

WOL by PME, PXE.

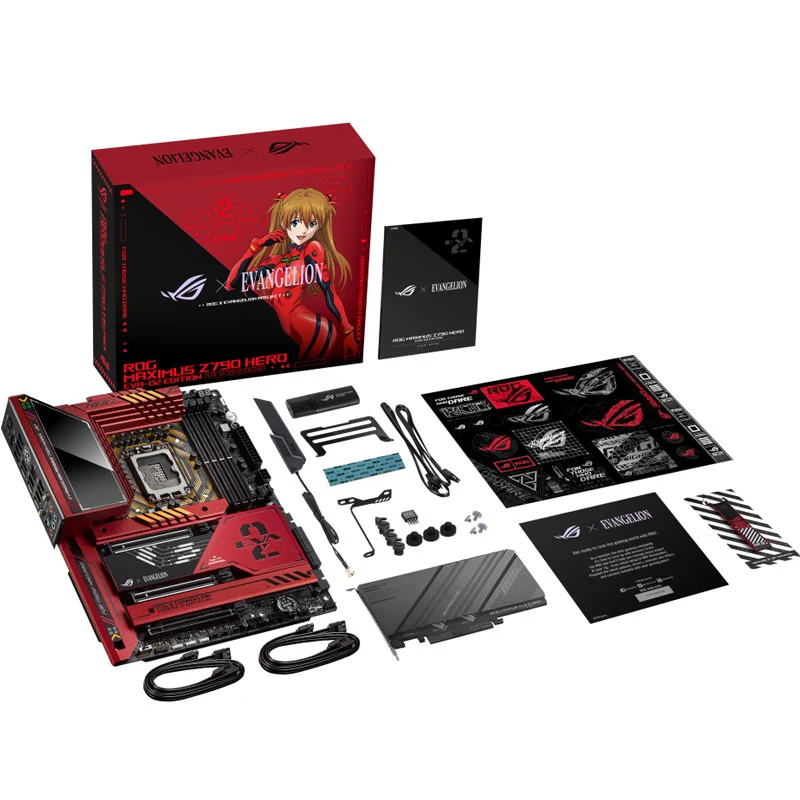

Accessories

Cables: 1 x ARGB RGB extension cable, 4 x SATA 6Gb/s cables. - ROG Hyper M.2 Card: 1 x ROG Hyper M.2 Card with heatsink, 2 x M.2 screw packages for ROG Hyper M.2 Card. - Additional Cooling Kit: 1 x Thermal pad for M.2, 1 x DDR5 Fan holder, 1 x VRM Fan holder. - Miscellaneous: 1 x ASUS Wi-Fi moving antennas, 3 x M.2 backplate Q-Latch package, 3 x M.2 backplate Rubber Packages, 1 x Q-connector, 1 x ROG stickers, 1 x ROG key chain, 1 x ROG thank you card. - Installation Media: 1 x USB drive with utilities and drivers. - Documentation: 1 x User Guide.

Operating System

Windows® 11, Windows® 10 64-bit.

Form Factor

ATX Form Factor. 12 inch x 9.6 inch (30.5 cm x 24.4 cm).
$274.02

Original: $782.91

-65%
Asus ROG MAXIMUS Z790 HERO EVA-02 EDITION ATX Gaming Motherboard—

$782.91

$274.02
