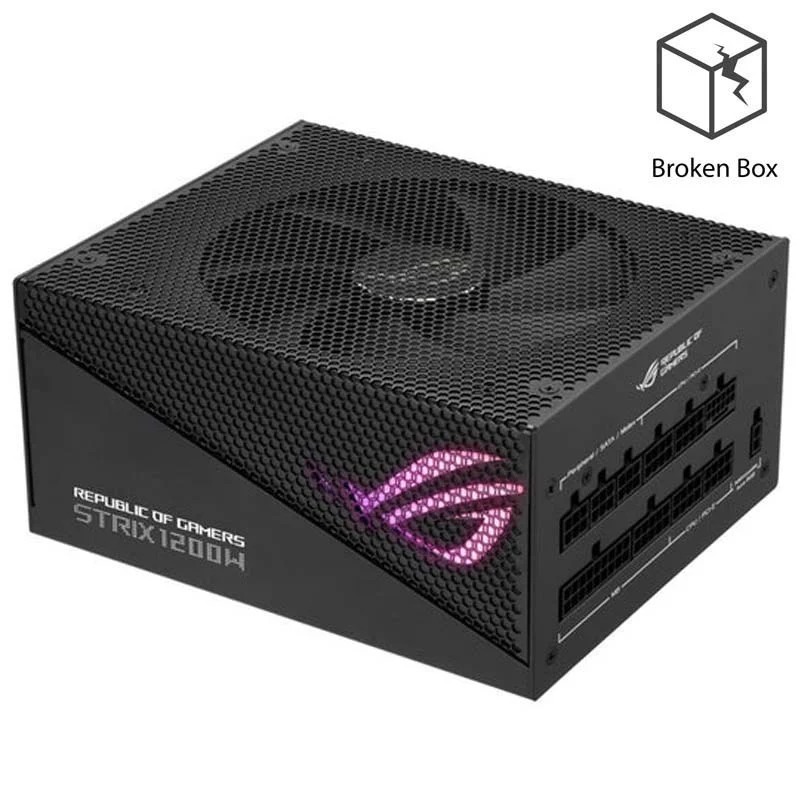

Asus ROG STRIX 1200 Watts 80 Plus Gold Aura Edition ATX Fully Modular Gaming Power Supply - Black Open Box

Asus ROG STRIX 1200 Watts 80 Plus Gold Aura Edition ATX Fully Modular Gaming Power Supply - Black Open Box

Efficient Cooling and Extended Lifespan

The Asus ROG Strix 1200 Watts 80 Plus Gold Aura Edition power supply features advanced heatsinks designed to maintain lower temperatures during operation.

This efficient cooling mechanism not only helps in prolonging the lifespan of internal components but also ensures reliable performance even under heavy loads.

The integration of these heatsinks contributes to maintaining optimal temperature levels, which can enhance the overall stability and longevity of your gaming system.

Superior Axial-Tech Fan Design

This power supply incorporates an enhanced 135mm Axial-Tech fan, which is engineered with a smaller fan hub to accommodate longer blades and a barrier ring.

This design improvement increases downward air pressure, providing superior cooling efficiency while operating at lower RPMs.

As a result, the PSU delivers effective cooling with minimal noise, ensuring that your system remains cool and quiet during intense gaming sessions or demanding workloads.

Durable Dual Ball Fan Bearings

The ROG Strix 1200 Watts PSU utilizes dual ball fan bearings, which are known for their longevity and durability compared to traditional sleeve bearings.

The dual ball bearing design significantly extends the lifespan of the fan, with up to twice the durability of standard bearing setups.

This feature contributes to the overall reliability of the power supply, reducing the need for frequent maintenance or replacements.

Intelligent 0dB Technology for Quiet Operation

Equipped with 0dB technology, this power supply employs a PWM-controlled fan that automatically shuts off when the load is at or below 50%.

This feature minimizes noise output by preventing the fan from spinning unnecessarily during lower power usage, thereby maintaining a quiet operating environment.

The 0dB technology ensures that the PSU remains virtually silent during periods of low demand, enhancing the overall acoustic comfort of your gaming setup.

Advanced ATX 3.0 Compliance and 80 Plus Gold Certification

The ROG Strix 1200 Watts power supply is fully compliant with the latest ATX 3.0 specifications, which include tighter voltage and current regulation guidelines necessary for next-gen hardware.

It also comes with a 16-pin PCIe cable capable of delivering up to 600 Watts to PCIe Gen 5.0 graphics cards, ensuring readiness for future technological advancements.

Additionally, the PSU holds an 80 Plus Gold certification, indicating high efficiency with reduced heat generation and lower noise levels, thanks to its top-quality Japanese capacitors and advanced engineering.

This certification underscores the power supply’s ability to operate efficiently while delivering reliable power to demanding systems.

Intel Form Factor

ATX12V

ATX 3.0

Yes

Dimensions

180 x 150 x 86 mm

Efficiency

80Plus Gold

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

22A, 22A, 100A, 0.3A, 3A

Combined Load

120 W, 120 W, 1200 W, 3.6 W, 15 W

Total Output

1200 Watts

Cable Connectors

MB 24/20-pin x 1

CPU 4+4-pin x 2

PCI-E 16-pin x 1 (both PSU & component side)

PCI-E 8-pin x 4

SATA x 5

PERIPHERAL x 4

Package Contents

Power Cord x 1

Motherboard Power Cable x 1 (600mm)

CPU Cable x 2 (650mm)

PCI-E Gen 5 16-pin Cable x 1  (700mm)

PCI-E 1-to-1 Cable x 2 (700mm)

PCI-E 1-to-2 Cable x 1 (700mm)

SATA 1-to-2 Cable x 1  (400+120mm)

SATA 1-to-3 Cable x 1  (400+120+120mm)

Peripheral 1-to-4 Cable x 1  (400+150+150+150mm)

Addressable RGB Cable x 1 (800mm)

User Manual x 1

Weight

3.23 kg (single PSU)

AURA SYNC

ARGB

0dB Fan Button

Yes

Cybenetics Noise Level Certification

A+
