CPU
|
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
|
Chipset
|
AMD B850
|
Memory
|
4 x DIMM slots, max. 256GB, DDR5
|
|
Supports up to 8000+(OC)/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 Non-ECC, Un-buffered memory
|
|
Dual Channel Memory Architecture
|
|
Supports AMD Extended Profiles for Overclocking (EXPO™)
|
|
ASUS Enhanced Memory Profile (AEMP II)
|
Graphics
|
1 x DisplayPort**
|
|
1 x HDMI® port***
|
|
1 x USB4® (40Gbps) port supports USB Type-C® display outputs****
|
|
**Graphics specifications may vary between CPU types.
|
|
**Supports max. 8K@60Hz as specified in DisplayPort 1.4
|
|
***Supports 4K@60Hz as specified in HDMI 2.1
|
|
****Supports max. 4K@60Hz as specified in DisplayPort 1.4a
|
Expansion Slots
|
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
|
|
1 x PCIe 5.0 x16 slot with Q-Release Slim (supports x16 or x8 mode)<br>AMD Ryzen™ 8000 Series Desktop Processors<br>1 x PCIe 5.0 x16 slot with Q-Release Slim (supports PCIe 4.0 x8 or x4 mode)<br>AMD B850 Chipset<br>1 x PCIe 4.0 x16 slot (supports x4 mode)***
|
|
*Please check the PCIe bifurcation table on the support site.
|
|
**When either M.2_2 or M.2_3 is enabled, PCIEX16(G5) will run x8.
|
|
***Specifications vary by CPU types.
|
|
****M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.
|
Multi-GPU Support
|
N/A
|
Storage
|
Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
|
|
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
|
|
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
|
|
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)<br>M.2_3 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
|
|
AMD Ryzen™ 8000 Series Desktop Processors
|
|
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
|
|
M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supported)<br>M.2_3 slot (Key M), type 2280 (Not supported)<br>AMD B850 Chipset<br>M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**
|
|
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
|
|
4 x SATA 6Gb/s ports
|
|
*When either M.2_2 or M.2_3 slot is operating, PCIEX16_1 will run x8.
|
|
**M.2_2 and M.2_3 slots will be disabled while using AMD Ryzen™ 8000 Series Desktop Processors.
|
|
***M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.
|
RAID
|
Supports RAID 0/1/5/10 for NVMe storage devices
|
|
RAID 5 support for Ryzen™ 9000 Series only
|
Ethernet
|
1 x Realtek 5Gb Ethernet
|
|
ASUS LANGuard
|
Wireless & Bluetooth
|
Wi-Fi 7
|
|
2x2 Wi-Fi 7 (802.11be)
|
|
Supports 2.4/5/6GHz frequency band*
|
|
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
|
|
Bluetooth® v5.4**
|
|
*Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
|
|
**Bluetooth® version may vary, please refer to Wi-Fi module manufacturer’s website.
|
USB Ports (Rear)
|
1 x USB4® (40Gbps) port (USB Type-C®)
|
|
1 x USB 20Gbps port (USB Type-C® with up to 30W PD/PPS Fast-charge)
|
|
6 x USB 10Gbps ports (Type-A)
|
|
4 x USB 2.0 ports (Type-A)
|
USB Ports (Front)
|
1 x USB 10Gbps connector (USB Type-C®)
|
|
1 x USB 5Gbps header (supports 2 x USB 5Gbps ports)
|
|
2 x USB 2.0 headers (support 4 x USB 2.0 ports)
|
Audio
|
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
|
|
- Impedance sense
|
|
- Supports Jack-detection, Multi-streaming, MIC Jack-retasking
|
|
- 120 dB SNR stereo playback output and 110 dB SNR recording input
|
|
- Supports up to 32-Bit/384 kHz playback
|
|
Premium Audio Features
|
|
- Savitech SV3H712 AMP
|
|
- Gold-plated audio jacks
|
|
- Optical S/PDIF out
|
|
- Premium audio capacitors
|
|
- Audio cover
|

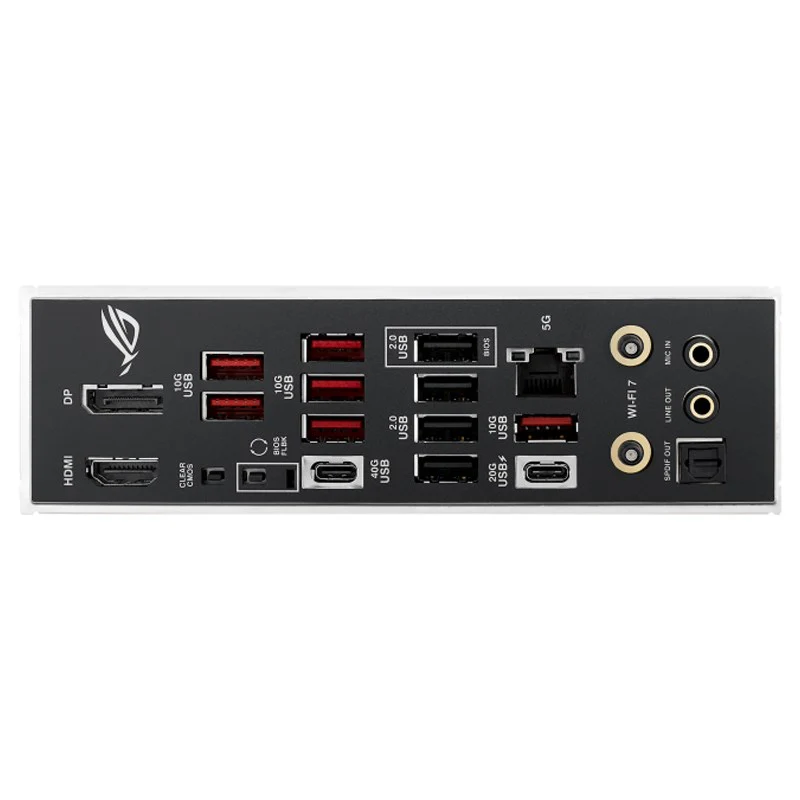

Back Panel I/O Ports
|
1 x USB4® (40Gbps)(Type-C®)
|
|
1 x USB 20Gbps (Type-C® with PD/PPS)
|
|
6 x USB 10Gbps (Type-A)
|
|
4 x USB 2.0 (Type-A)
|
|
1 x DisplayPort
|
|
1 x HDMI™ port
|
|
1 x Wi-Fi Module
|
|
1 x Realtek 5Gb Ethernet
|
|
2 x Audio jacks
|
|
1 x Optical S/PDIF out
|
|
1 x BIOS FlashBack™ button
|
|
1 x Clear CMOS button
|
Internal I/O Connectors
|
1 x 24-pin Main Power
|
|
2 x 8-pin +12V CPU Power
|
|
1 x 4-pin CPU Fan
|
|
1 x 4-pin CPU OPT Fan
|
|
1 x 4-pin AIO Pump
|
|
5 x 4-pin Chassis Fan
|
|
3 x Addressable Gen 2 headers
|
|
1 x CPU Over voltage jumper
|
|
1 x Front Panel Audio header
|
|
1 x Power button
|
|
1 x 10-1 pin Front Panel header
|
|
1 x Thermal Sensor header
|
Software
|
- ROG CPU-Z
|
|
- Armoury Crate
|
|
- AIDA64 Extreme (60-day trial)
|
|
- Aura Creator
|
|
- Aura Sync
|
|
- GameFirst
|
|
- Fan Xpert 4
|
|
- HWiNFO
|
|
- Power Saving
|
|
- ASUS DriverHub
|
|
- ASUS GlideX
|
|
- USB Wattage Watcher
|
|
- TurboV Core
|
BIOS
|
256 Mb Flash ROM, UEFI AMI BIOS
|
Operating System
|
Windows 11
|
Form Factor
|
ATX Form Factor (30.5 cm x 24.4 cm)
|
