Asus ROG STRIX B850-I GAMING WIFI DDR5 Mini-ITX Gaming Motherboard

Asus ROG STRIX B850-I GAMING WIFI AM5 DDR5 Mini-ITX Gaming Motherboard

ROG STRIX B850-I Gaming Wi-Fi

The ROG Strix B850-I Gaming WiFi integrates cutting-edge technology into a sleek mini-ITX form factor. It features PCIe 5.0 slots for graphics and storage, dual-channel DDR5 slots and robust power delivery for top-tier gaming and heavy workloads. Meanwhile, advanced cooling solutions maintain peak performance, and WiFi 7 ensures ultra-fast connectivity. This platform delivers the power and connectivity that advanced AI PC applications demand.

ASUS AI INTELLIGENCE

ASUS AI ADVISOR

Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

AI OVERCLOCKING

ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.

AI NETWORKING II

AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.

Performance OVERCLOCKING

Dynamic OC Switcher

Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Core Flex

Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.

PBO ENHANCEMENT

AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

CPU

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

Chipset

AMD B850 Chipset

Memory

2 x DIMM slots, max. 128 GB, DDR5

Supports up to 8400+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors

ECC and Non-ECC, Un-buffered DIMM

Dual channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO™)

ASUS Enhanced Memory Profile (AEMP)

Expansion Slots

AMD Ryzen 9000 & 7000 Series Desktop Processors

1 x PCIe 5.0 x16 slot with Q-Release Slim

AMD Ryzen 8000 Series Desktop Processors

1 x PCIe 4.0 x16 slot with Q-Rlease Slim

Ethernet

1 x Intel 2.5GB Ethernet

ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band

Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth v5.4

USB

Rear USB (Total 8 ports)

1 x USB 20Gbps port(s) (1 x USB Type-C)

5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C)

2 x USB 2.0 port(s) (2 x Type-A)

Front USB (Total 5 ports)

1 x USB 10Gbps

1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports

1 x USB 2.0 header(s) support(s) 2 additional USB 2.0 ports

USB Type-C power delivery output: max. 5V/3A

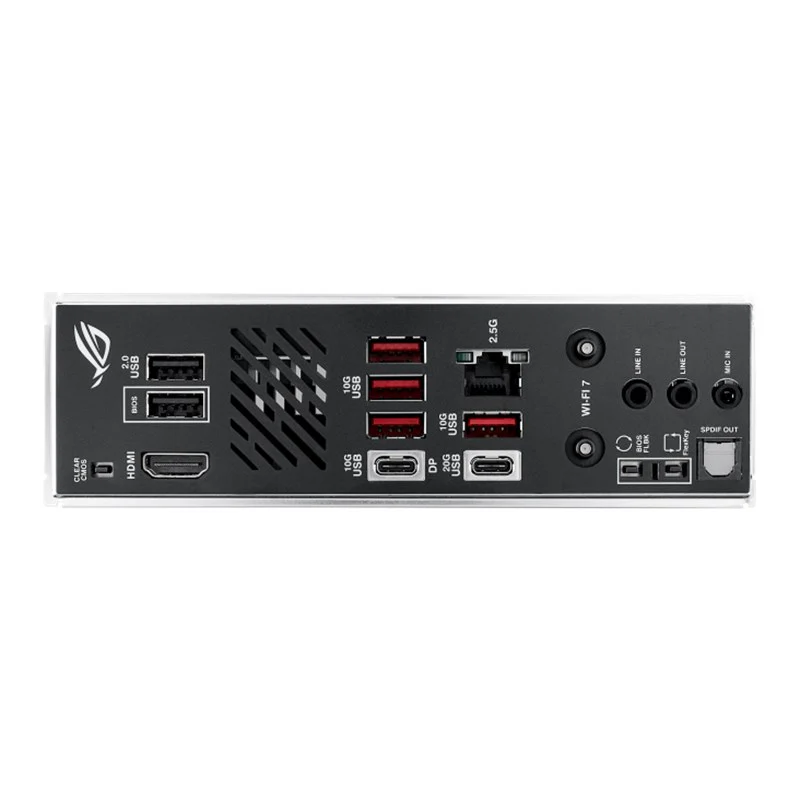

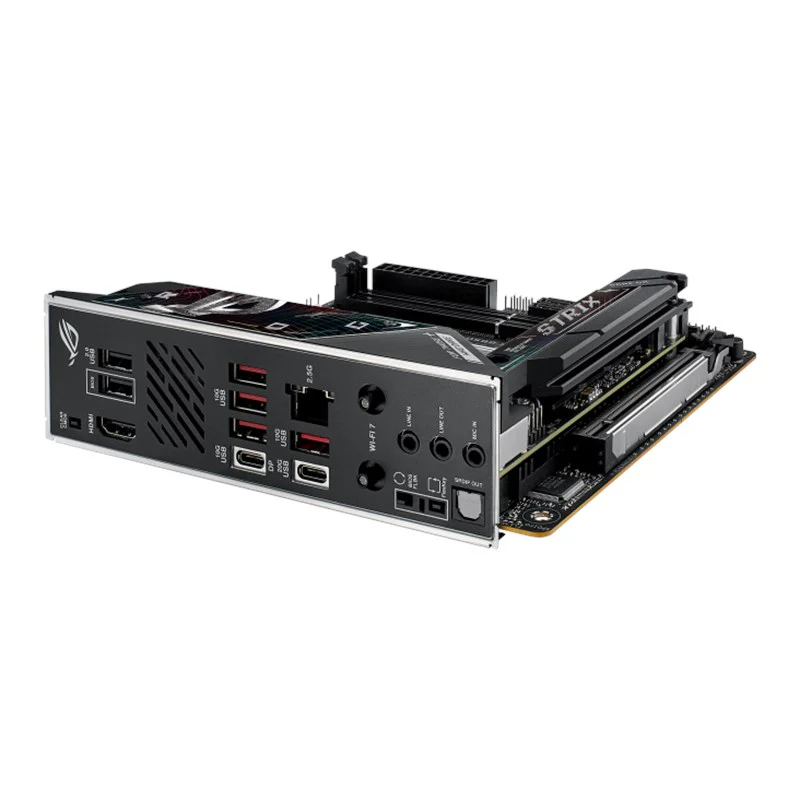

Back Panel I/O Ports

1 x USB 20Gbps port(s)

5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C with DP Alt mode)

2 x USB 2.0 port(s) (2 x Type-A)

1 x HDMI port

1 x Wi-Fi module

1 x Intel 2.5Gb Ethernet port

3 x Audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack button

1 x Clear CMOS button

1 x FlexKey button

Internal I/O Connectors

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin Extra Flow Fan header

1 x 4-pin AIO Pump header

1 x 4-pin Chassis Fan headers

Power Related

1 x 24-pin Main Power connector

1 x 8-pin +12V CPU Power connector

Storage Related

2 x M.2 slots (Key M)

2 x SATA 6Gb/s ports

USB

1 x USB 10Gbps connector (supports USB Type-C)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

1 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

2 x Addressable Gen 2 headers

1 x CPU Over voltage jumper

1 x Front Panel Audio header (F_AUDIO)

1 x 10-1 pin Front System Panel header

1 x Thermal Sensor header

BIOS

256 MB Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Operating System

Windows 11
