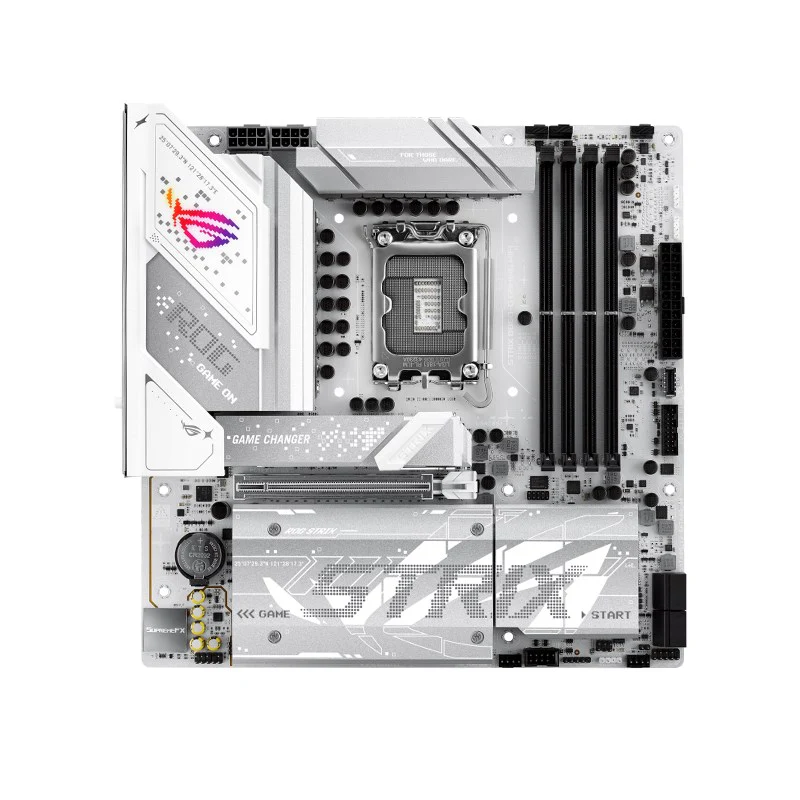

Asus ROG STRIX B860-G GAMING Wi-Fi M-ATX Gaming Motherboard

Asus ROG STRIX B860-G GAMING Wi-Fi M-ATX Gaming Motherboard

Outshine the Competition

ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories.

Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.

Undeniably Rog Strix

The ROG Strix B860-G boasts a sleek white finish, offering a modern and stylish look that seamlessly integrates into a wide range of builds.

Metallic heatsinks enhance its clean aesthetic, while discreet Aura Sync lighting on the I/O shroud lets you customize the vibe, whether you prefer a subtle, minimalist style or a bold, dynamic display.

Dimm Fit / Dimm Fit Pro

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues; whereas advanced option that provides more extensive customizability for memory

AEMP III

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.

DDR5 Domination

Enhanced signal routing can push enthusiast-grade kits well beyond the 9 GT/s threshold on the Strix B860-G.

NPU Boost

The integrated NPU in Intel Core Ultra Processors (Series 2) efficiently accelerates AI workflows and NPU Boost lets you do more with it.

This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

Asynchronous Clock

For next-level frequency flexibility, the ROG Strix B860-G features a built-in clock generator that isolates CPU base clock from memory, NPU, D2D and NGU.

Drive memory, NPU and others performance to their absolute brink while maintaining the stability of CPU clock domains.
Separate CPU BCLK from other domains for unfettered overclocking.

CPU Support

Intel Core Ultra Processors (Series 2)

Chipset

Intel B860

Memory

4 x DIMM, up to 256 GB DDR5


Graphics Outputs

1 x DisplayPort, 1 x HDMI, 1 x Thunderbolt 4 (DisplayPort video)

Expansion Slot

1 x PCIe 5.0 x16

Storage

4 x M.2 (PCIe 5.0/4.0 x4), 4 x SATA 6 Gb/s

Networking

Intel 2.5 Gb Ethernet (ASUS LANGuard)

Wi-Fi 7, Bluetooth v5.4

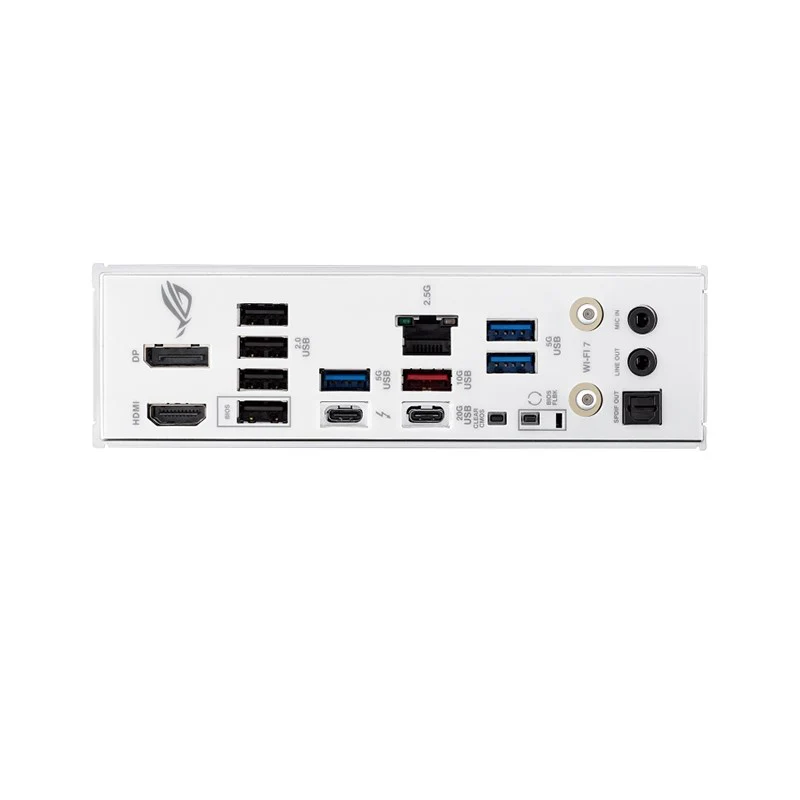

Rear USB Ports

1 x Thunderbolt 4 (Type-C)

1 x USB 20 Gbps (Type-C)

1 x USB 10 Gbps (Type-A)

3 x USB 5 Gbps (Type-A)

4 x USB 2.0 (Type-A)

Audio

Realtek ALC1220P, 7.1 Surround
SupremeFX, Savitech AMP, Optical S/PDIF

Internal Features

Multiple fan/power connectors, USB headers, Gen2 RGB, Thermal sensor

Special Features

Q-Design, Q-Latch, Q-Release, SafeSlot, Aura Sync

Software

Armoury Crate, Aura Creator, Fan Xpert 4, GameFirst, ROG CPU-Z, Dolby Atmos

BIOS

256 Mb UEFI AMI, CrashFree BIOS 3, EZ Flash, AI Overclocking Guide

Form Factor

micro-ATX (9.6 x 9.6")

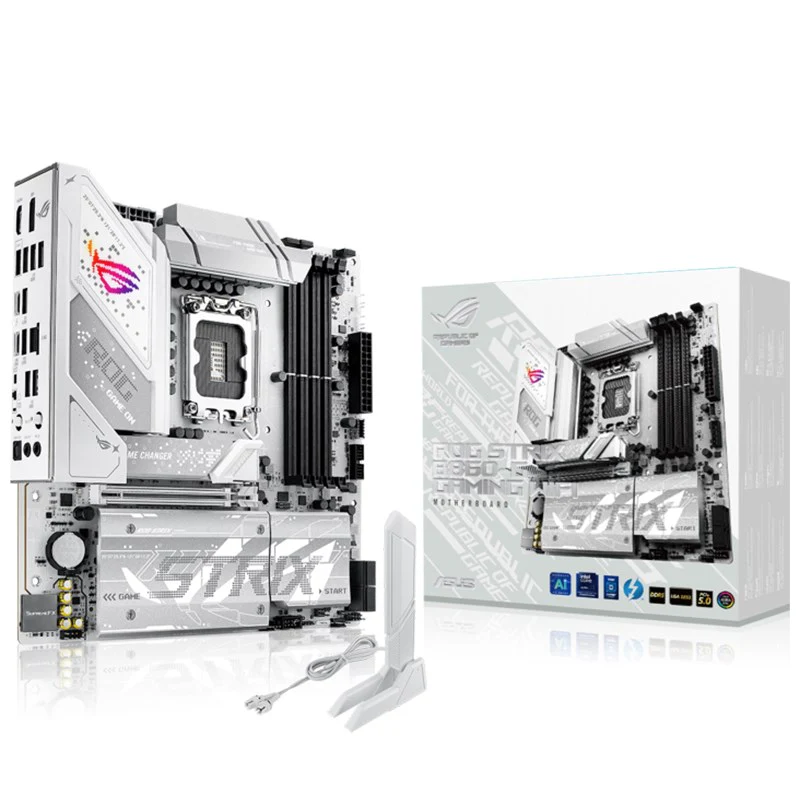

Accessories

2 x SATA cables, Wi-Fi antenna, Q-Latch, Q-Slide, Stickers, M.2 rubbers, Key chain
