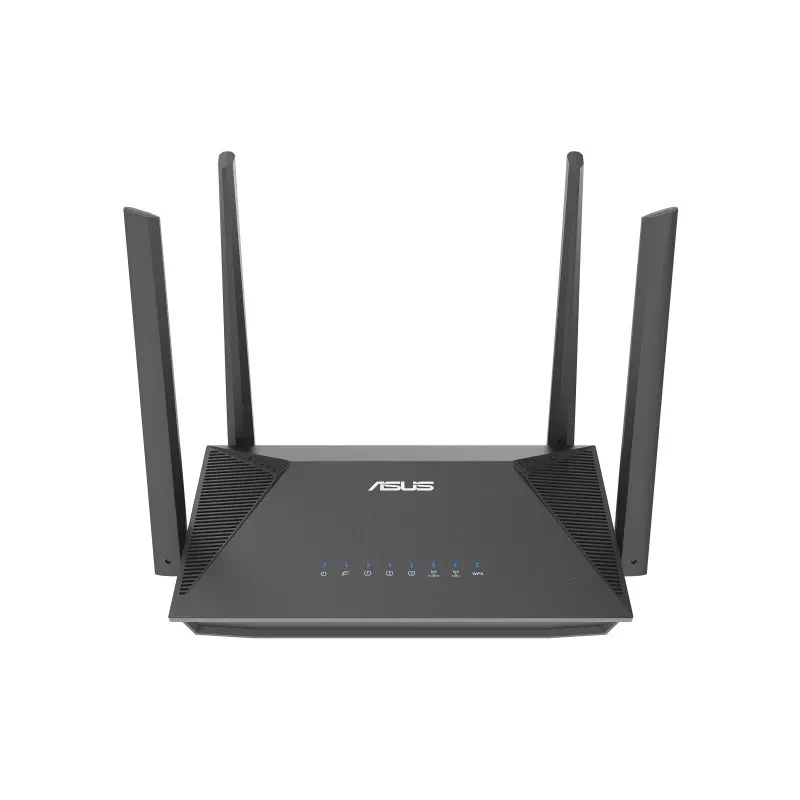

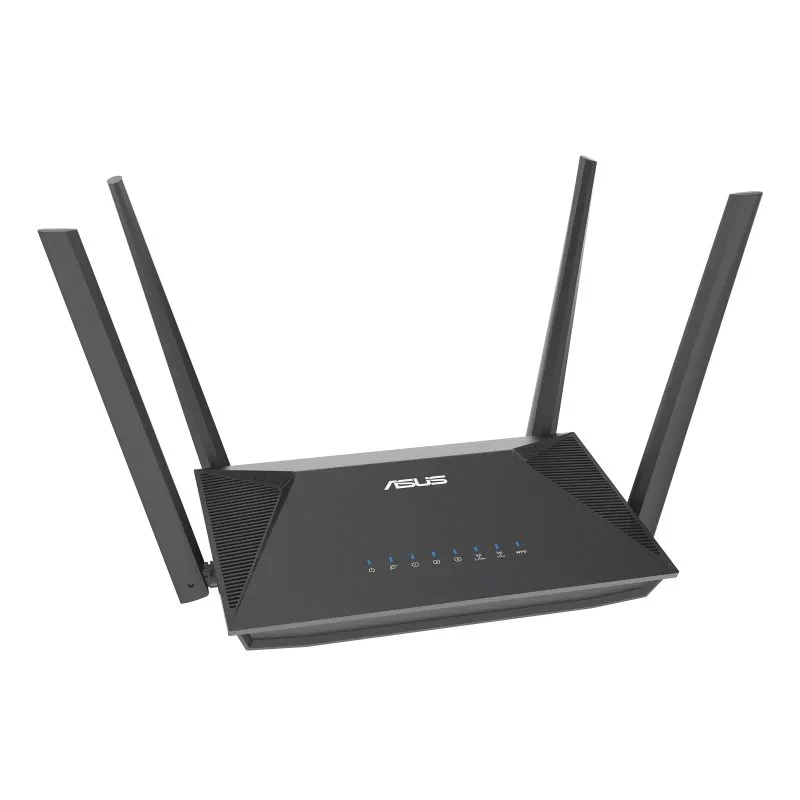

Asus RT-AX52 (AX1800) Dual Band Wi-Fi 6 Extendable Router - Black

Asus RT-AX52 (AX1800) Dual Band Wi-Fi 6 Extendable Router

New-Gen Wi-Fi Standard

Supporting 802.11ax Wi-Fi standard for better efficiency and throughput.

Ultra-fast Wi-Fi Speed

RT-AX52 supports 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800 Mbps — 574 Mbps on the 2.4GHz band and 1201 Mbps on the 5GHz band.

Increase Capacity and Efficiency

Supporting not only MU-MIMO but also OFDMA technique to efficiently allocate channels, communicating with multiple devices simultaneously

Easy Extendable Network

Enjoy seamless roaming with rich, advanced features by adding any AiMesh-compatible router.

Network Standard

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

Wi-Fi 4 (802.11n)

Wi-Fi 5 (802.11ac)

Wi-Fi 6 (802.11ax)

IPv4

IPv6

Product Segment

AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps

Wi-Fi Data Rate

802.11a : up to 54 Mbps

802.11b : up to 11 Mbps

802.11g : up to 54 Mbps

Wi-Fi 4 (802.11n) : up to 300 Mbps

Wi-Fi 5 (802.11ac) : up to 867 Mbps

Wi-Fi 6 (802.11ax) (2.4GHz) : up to 574 Mbps

Wi-Fi 6 (802.11ax) (5GHz) : up to 1201 Mbps

Antenna

External antenna x 4

Transmit / Receive

2.4GHz 2x2

5GHz 2x2

Processor

1.3GHz dual-core processor

Memory

128 MB Flash 256 MB RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80 MHz bandwidth

Operating Frequency

2.4GHz / 5GHz

Operating Mode

Access Point, AiMesh Node, Repeater, Router

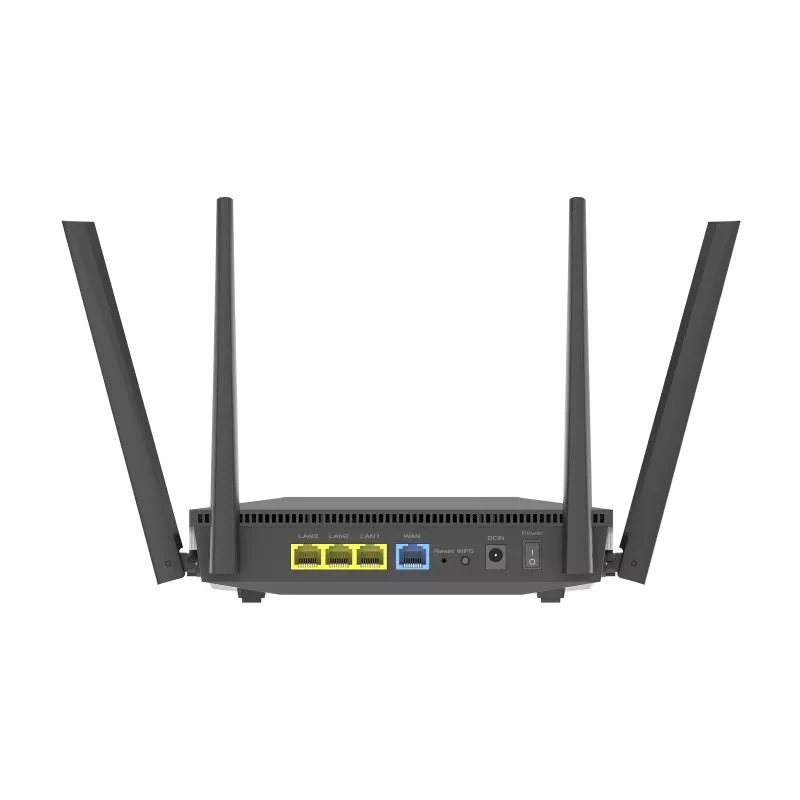

I/O Ports

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3

Buttons

WPS Button, Reset Button, Power Switch

LED Indicator

Power x 1 WAN x 1 LAN x 3 2.4G x 1 5G x 1 WPS x 1

Power Supply

AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 1 A current

Product Weight

298 g

Product Dimensions

192 x 126.3 x 47.5mm (WxDxH)

AiMesh

AiMesh

Primary AiMesh Router

AiMesh Node

Parental Control

Allow you to block access to unwanted websites and apps

Customized Internet Schedule

Guest Network

The Guest Network provides Internet connection for guests but restricts access to your local network

Security

Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise

WPS

SSH

Firewall

VPN

Instant Guard

VPN Client L2TP

VPN Client Open VPN

VPN Client PPTP

VPN Server IPSec

VPN Server Open VPN

VPN Server PPTP

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP

Dual WAN

Port triggering

DMZ

DDNS

LAN

DHCP Server

IGMP Snooping

IPTV

Manually Assign IP Address

Wake on LAN (WOL)

Wireless

UTF-8 SSID

Wi-Fi MAC Address Filter

Wireless Scheduler

Airtime Fairness

RADIUS Client

Universal Beamforming

Explicit Beamforming

Administration

Configuration Backup and Restore

Diagnosis tools

Feedback System

System Log
