Model
|

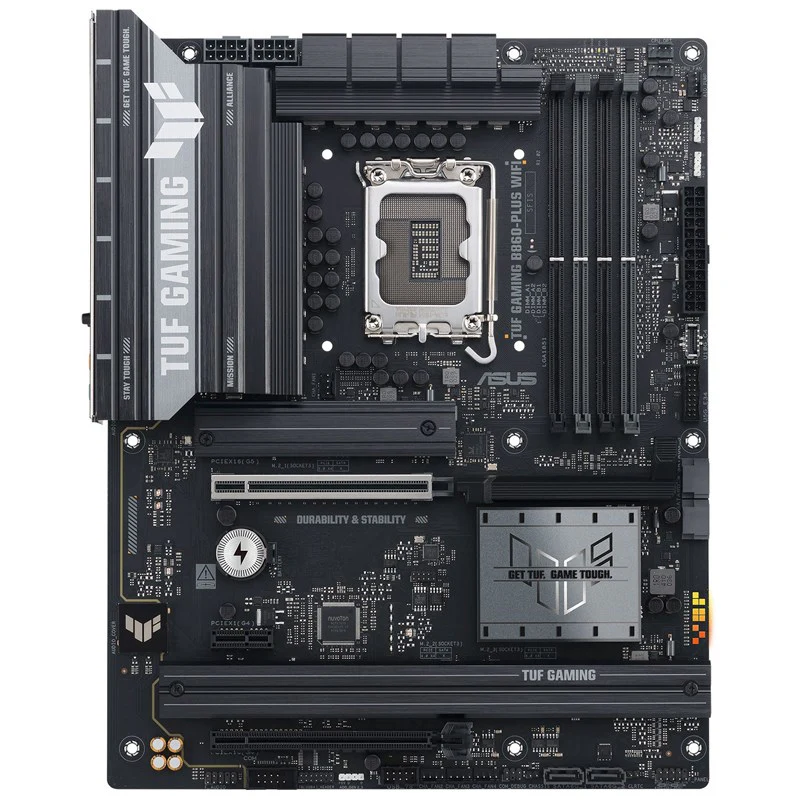

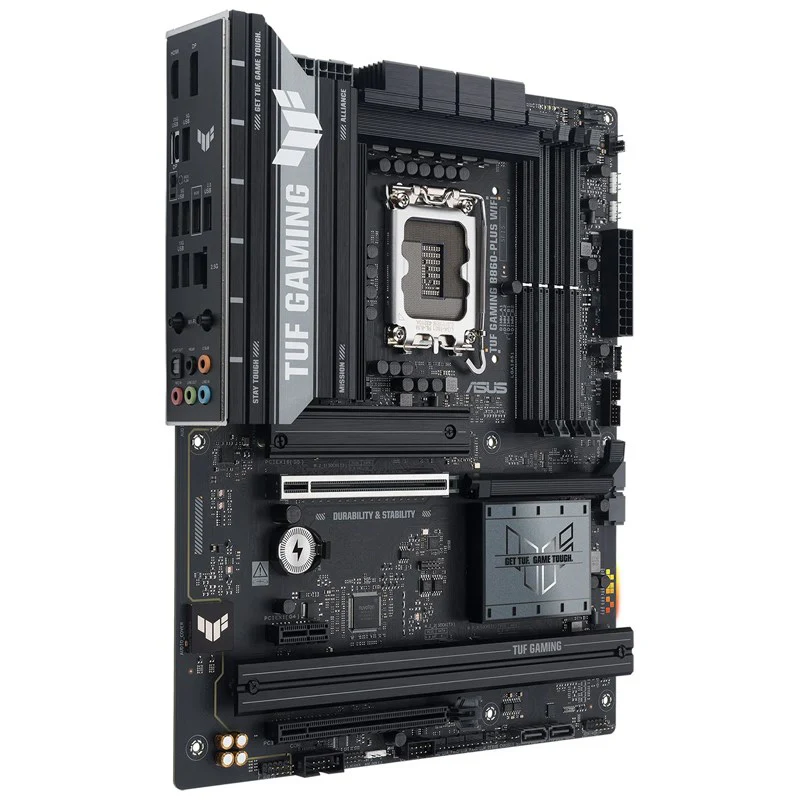

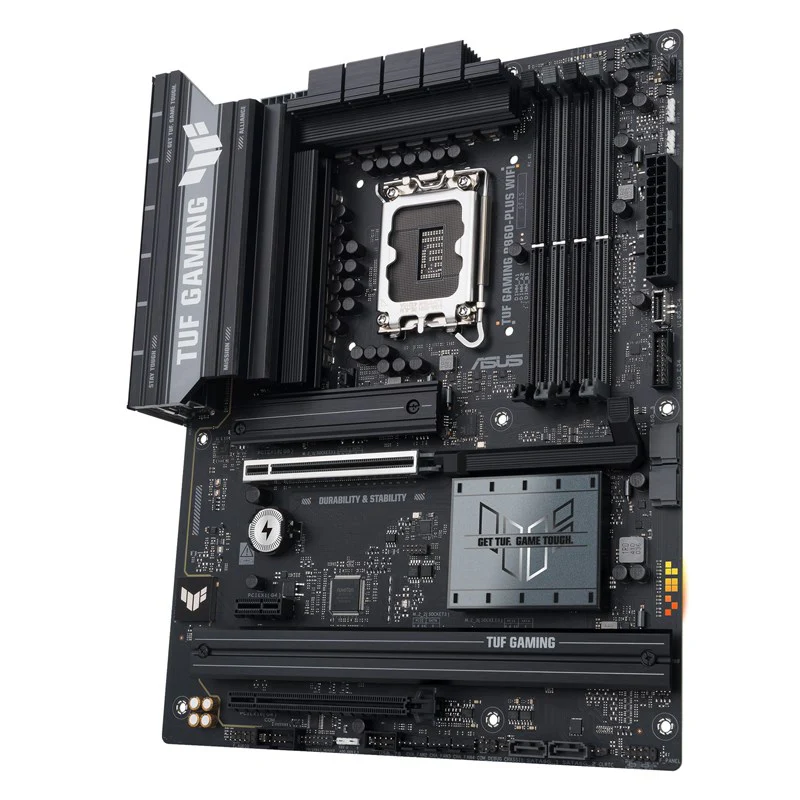

TUF GAMING B860-PLUS WIFI
|
CPU
|
Support Intel® Core™ Ultra Processors(Series 2) , LGA1851*
|
|
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
|
|
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
|
Chipset
|
Intel® B860 Chipset
|
Memory
|
4 x DIMM slots, max. 256GB, DDR5
|
|
Support up to 8666+ MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*"
|
|
Dual channel memory architecture
|
|
Supports Intel® Extreme Memory Profile (XMP) memory module
|
|
ASUS Enhanced Memory Profile III(AEMPIII)
|
|
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
|
|
**Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
|
Graphics
|
1 x DisplayPort**
|
|
1 x HDMI™ port***
|
|
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output****
|
|
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
|
|
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
|
|
*** Supports 4K@60Hz as specified in HDMI 2.1.
|
|
****Supports max. 4K@60Hz as specified in DisplayPort 1.4.
|
|
***** VGA resolution support depends on processors' or graphic cards' resolution.
|
|
******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
|
Expansion Slots
|
Intel® Core™ Ultra Processors(Series 2)
|
|
1 x PCIe 5.0 x16 slot
|
|
Intel® B860 Chipset
|
|
1 x PCIe 4.0 x16 slot (supports x4 mode)*
|
|
1 x PCIe 4.0 x1 slot*
|
|
* PCIEX16(G4) shares bandwidth with PCIEX1(G4). When PCIEX1(G4) runs at PCIe x1 mode, PCIEX16(G4) will only run at PCIe x2 mode.
|
Storage
|
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
|
|
Intel® Core™ Ultra Processors(Series 2)*
|
|
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
|
|
Intel® B860 Chipset
|
|
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
|
|
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
|
|
4 x SATA 6Gb/s ports
|
|
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
|
Ethernet
|
1 x Realtek 2.5Gb Ethernet
|
|
TUF LANGuard
|
Wireless & Bluetooth
|
Wi-Fi 7*
|
|
2x2 Wi-Fi 7 (802.11be)
|
|
Supports 2.4/5/6GHz frequency band**
|
|
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
|
|
Bluetooth® v5.4***
|
|
*Wi-Fi features may vary depending on the operating system
|
|
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
|
|
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
|
|
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
|
|
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
|
USB
|
Rear USB (Total 8 ports)
|
|
1 x USB 20Gbps port (1 x USB Type-C®)
|
|
2 x USB 10Gbps ports (2 x Type-A)
|
|
3 x USB 5Gbps ports (3 x Type-A)
|
|
2 x USB 2.0 ports (2 x Type-A)
|
|
Front USB (Total 5 ports)
|
|
1 x USB USB 10Gbps connector (supports USB Type-C®)
|
|
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
|
|
1 x USB 2.0 header supports 2 additional USB 2.0 ports
|
|
USB Type-C® power delivery output: max. 5V/3A
|
Audio
|
Realtek 7.1 Surround Sound High Definition Audio CODEC*
|
|
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
|
|
- Supports up to 24-Bit/192 kHz playback"
|
Audio Features
|
- Audio Shielding
|
|
- Rear optical S/PDIF out port
|
|
- Premium audio capacitors
|
|
- Dedicated audio PCB layers
|
|
- Audio cover
|
|
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
|

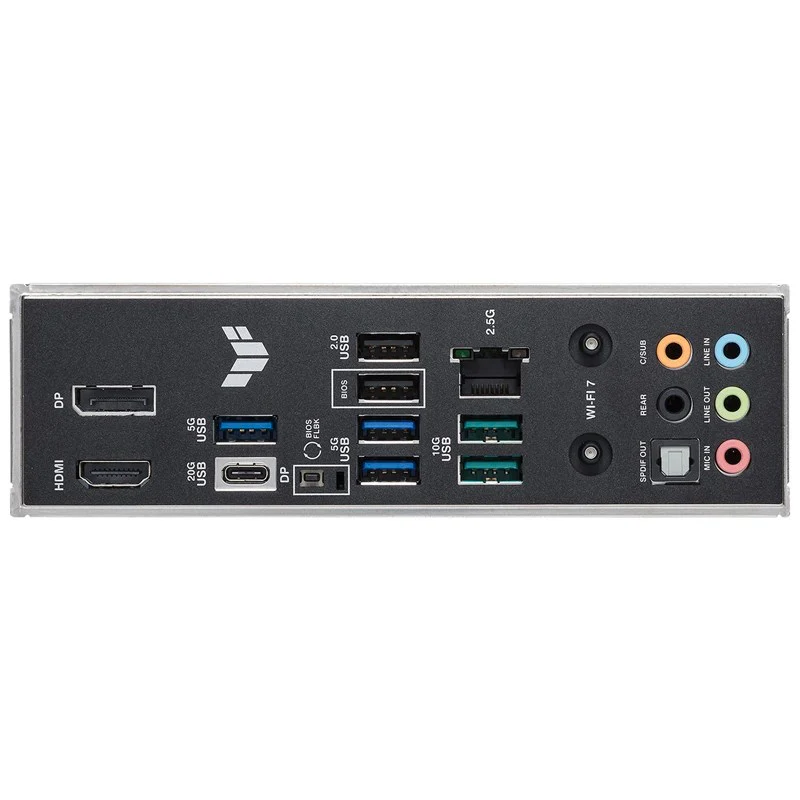

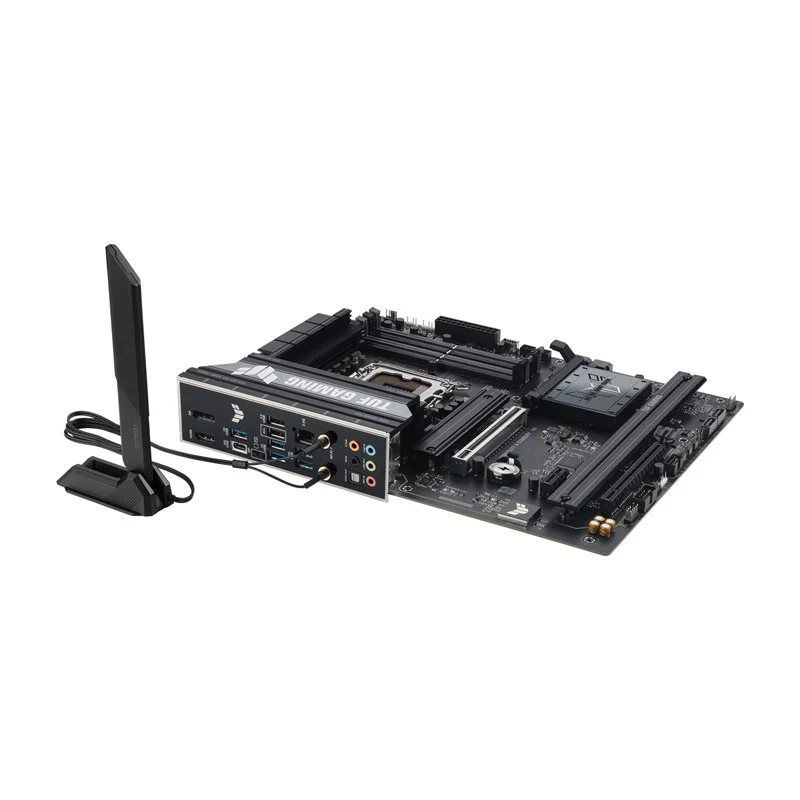

Back Panel I/O Ports
|
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
|
|
2 x USB 10Gbps ports (2 x USB Type-A)
|
|
3 x USB 5Gbps ports (3 x Type-A)
|
|
2 x USB 2.0 ports (2 x Type-A)
|
|
1 x DisplayPort
|
|
1 x HDMI™ port
|
|
1 x Wi-Fi module
|
|
1 x Realtek 2.5Gb Ethernet port
|
|
5 x Audio jacks
|
|
1 x Optical S/PDIF out port
|
|
1 x BIOS FlashBack™ button
|
|
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
|
|
2 x USB 10Gbps ports (2 x USB Type-A)
|
|
3 x USB 5Gbps ports (3 x Type-A)
|
|
2 x USB 2.0 ports (2 x Type-A)
|
|
1 x DisplayPort
|
|
1 x HDMI™ port
|
|
1 x Wi-Fi module
|
|
1 x Realtek 2.5Gb Ethernet port
|
|
5 x Audio jacks
|
|
1 x Optical S/PDIF out port
|
|
1 x BIOS FlashBack™ button
|
Internal I/O Connectors
|
Fan and Cooling Related
|
|
1 x 4-pin CPU Fan header
|
|
1 x 4-pin CPU OPT Fan header
|
|
1 x 4-pin AIO Pump header
|
|
4 x 4-pin Chassis Fan headers
|
|
Power Related
|
|
1 x 24-pin Main Power connector
|
|
2 x 8-pin +12V CPU Power connectors
|
|
Storage Related
|
|
3 x M.2 slots (Key M)
|
|
4 x SATA 6Gb/s ports
|
|
USB
|
|
1 x USB 10Gbps connector (supports USB Type-C® )
|
|
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
|
|
1 x USB 2.0 header supports 2 additional USB 2.0 ports
|
|
Miscellaneous
|
|
3 x Addressable Gen 2 headers
|
|
1 x Clear CMOS header
|
|
1 x Chassis Intrusion header
|
|
1 x COM Port header
|
|
1 x Front Panel Audio header (F_AUDIO)
|
|
1 x 10-1 pin Front System Panel header
|
|
1 x Thunderbolt™ (USB4®) header
|
Special Features
|
ASUS TUF PROTECTION
|
|
- DIGI+ VRM (- Digital power design with DrMOS)
|
|
- ESD Guards
|
|
- TUF LANGuard
|
|
- Overvoltage protection
|
|
- SafeSlot
|
|
- Stainless-steel back I/O
|
|
ASUS Q-Design
|
|
- M.2 Q-Latch
|
|
- PCIe Slot Q-Release
|
|
- Q-Antenna
|
|
- Q-Dashboard
|
|
- Q-DIMM
|
|
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
|
|
- Q-Slot
|
|
ASUS Thermal Solution
|
|
- M.2 heatsink
|
|
- VRM heatsink design
|
|
ASUS EZ DIY
|
|
- BIOS FlashBack™ button
|
|
- BIOS FlashBack™ LED
|
|
- CPU Socket lever protector
|
|
- ProCool
|
|
- Pre-mounted I/O shield
|
|
- SafeDIMM
|
|
Aura Sync
|
|
- Addressable Gen 2 headers
|
Software Features
|
ASUS Exclusive Software
|
|
Armoury Crate
|
|
- Aura Creator
|
|
- Aura Sync
|
|
- Fan Xpert 4
|
|
- Power Saving
|
|
ASUS DriverHub
|
|
ASUS GlideX
|
|
TUF GAMING CPU-Z
|
|
DTS Audio Processing
|
|
UEFI BIOS
|
|
ASUS EZ DIY
|
|
- ASUS CrashFree BIOS 3
|
|
- ASUS EZ Flash
|
|
- ASUS UEFI BIOS EZ Mode
|
|
- ASUS MyHotkey
|
BIOS
|
2 x 128 Mb Flash ROM, UEFI AMI BIOS
|
Manageability
|
WOL by PME, PXE
|

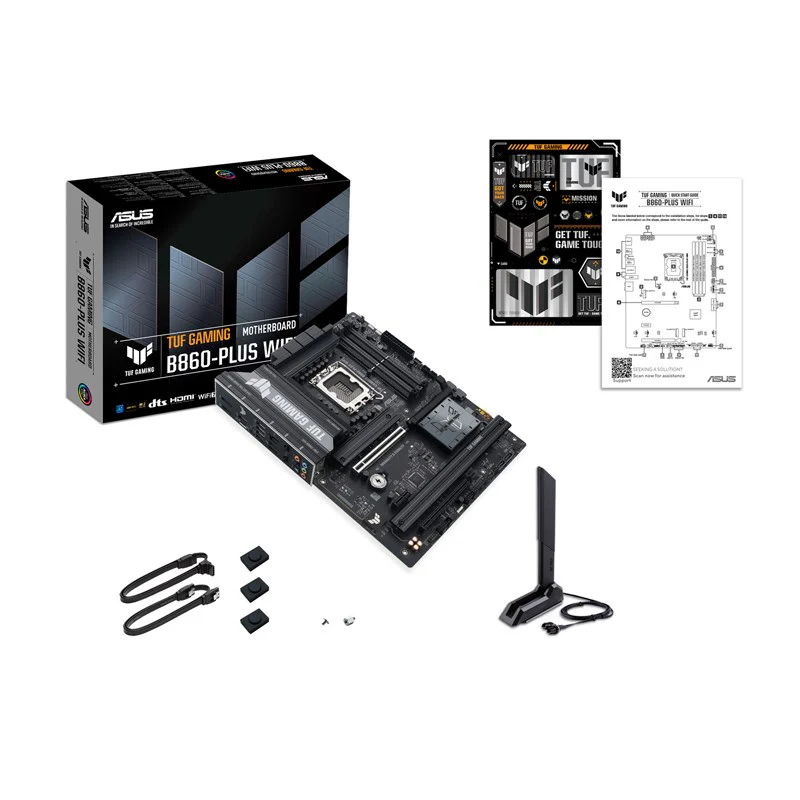

Accessories
|
|
Cables
|
2 x SATA 6Gb/s cables
|
Miscellaneous
|
1 x ASUS WiFi Q-Antenna
|
|
2 x M.2 rubber packages
|
|
1 x Screw package for M.2 SSD
|
|
1 x TUF GAMING sticker
|
Documentation
|
1 x Quick start guide
|
Operating System
|
Windows 11 (22H2 & later)
|
Form Factor
|
ATX Form Factor
|
|
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|
