Asus TUF Gaming AX6000 Dual Band WiFi 6 Gaming Router with Dedicated Gaming Port, Dual 2.5G Port, 3 Steps Port Forwarding, AiMesh for mesh WiFi, Ai Protection Pro Network Security and AURA RGB lighting

Asus UF Gaming AX6000 Dual Band WiFi 6 Gaming Router with Dedicated Gaming Port, Dual 2.5G Port, 3 Steps Port Forwarding, AiMesh for mesh WiFi, Ai Protection Pro Network Security and AURA RGB lighting

TUF Gaming AX6000

TUF Gaming AX6000 is designed to give you stable and fast wireless and wired connections in device-dense environments.

It's a router that benefits all your devices, from laptops, smartphones, and game consoles right down to all the IoT devices in your home.

X Capacity. 2X Faster.

WiFi 6 provides faster wireless speeds with OFDMA, BSS coloring and MU-MIMO technologies, and it also boosts network efficiency, so all your devices get their fair share of WiFi bandwidth. It's perfect for busy networks with lots of different WiFi devices, such as laptops, smartphones and smart home devices.

True Multi-Gigabit Wired Speeds

For true multi-gigabit performance, you need both WAN and LAN connections that support these speeds. TUF Gaming AX6000 features both WAN and LAN aggregation, so you can enjoy 5 Gbps wired speeds from your modem all the way to your PC and NAS.

WiFi that Goes Further

We've designed TUF Gaming AX6000 to give you the widest possible WiFi coverage. It uses OFDMA, a new technology in WiFi 6 that allows signals to travel further than they can in WiFi 5.

With a 4x4 MIMO configuration and separate 2.4 GHz and 5GHz antennas to reduce interference, along with other enhancements like beamforming, which focuses the signal towards each device, TUF Gaming AX6000 reaches every corner.

Flexible and Scalable Wireless Mesh Networking

If you need more coverage or new functions, you can simply add another compatible router to your AiMesh network at any time!

Stable and Durable

TUF Gaming AX6000 is engineered to deliver maximum WiFi performance. The vent location and double heatsink design improve cooling for increased stability, and the fixed antennas and metal port protectors increase physical durability.

Simultaneous Gaming and VPN

VPN Fusion lets you run both a VPN and an ordinary internet connection - simultaneously! So even if other network users need to use a VPN, you can still enjoy maximum gaming speeds.

Commercial-Grade Security for Your Home

Home network security is crucial when you have multiple connected devices, and even more so when there are devices without anti-virus capabilities such as IoT devices.

TUF Gaming AX6000 includes lifetime free AiProtection Pro, including the latest WPA3 security protocol and advanced Parental Controls. Every device is protected with TUF Gaming AX6000, and you can keep an eye on everything that's happening on your network via the handy mobile app.

More Privacy, Anywhere

Instant Guard gives you one-click secure internet access via TUF Gaming AX6000 from anywhere in the world, thanks to its encrypted data-tunneling VPN technology.

With TUF Gaming AX6000, you can take your home network with you wherever you go — and say goodbye to web-based third-party VPNs!

Model

TUF Gaming AX6000 (TUF-AX6000)

Network Standard

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

WiFi 4 (802.11n)

WiFi 5 (802.11ac)

WiFi 6 (802.11ax)

IPv4

IPv6

Product Segment

AX6000 ultimate AX performance : 1148+4804 Mbps

AX technology

Yes

Data Rate

802.11a : up to 54 Mbps

802.11b : up to 11 Mbps

802.11g : up to 54 Mbps

WiFi 6 (802.11ax) (2.4GHz) : up to 1148 Mbps

WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps

Antenna

External antenna x 6

Transmit/Receive

2.4GHz 4x4

5GHz 4x4

Processor

2.0 GHz quad-core processor

Memory

Memory

256 MB Flash

512 MB RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal

1024-QAM high data rate

20/40/80/160 MHz bandwidth

Operating Frequency

2.4GHz / 5GHz

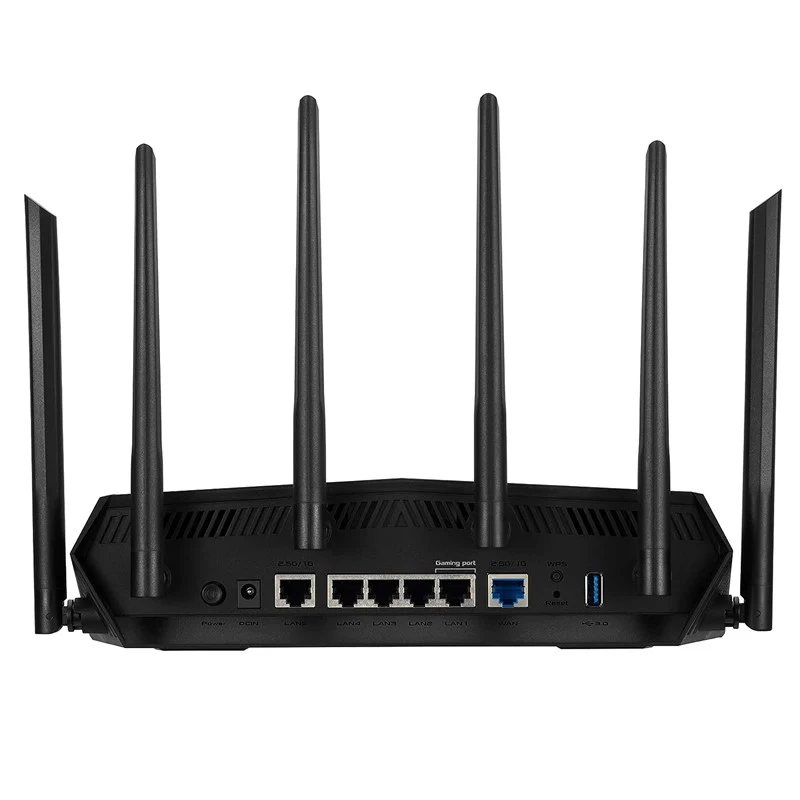

Ports

RJ45 for 2.5 Gigabits BaseT for WAN x 1,

RJ45 for 2.5 Gigabits BaseT for LAN x 1,

RJ45 for Gigabits BaseT for LAN x 4,

USB 3.2 Gen 1 x 1,

LED Indicator

Power x 1

WiFi x 1

1G LAN x 4

2.5G WAN x 1

2.5G LAN x 1

Router APP

ASUS Router APP

Traffic Control

Adaptive QoS

Bandwidth Monitor

Bandwidth limiter

Maximum Bandwidth limiter rule : 32

Traditional QoS

Maximum Traditional QoS rule : 32

Traffic Monitor

Real-time traffic monitor

Wired Traffic Monitor

Wireless Traffic Monitor

Traffic Analyzer

Traffic analysis period : Daily, Weekly, Monthly

Website history

WAN

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP

WAN Aggregation

3G/4G LTE dongle

Android tethering

Port forwarding

Maximum port forwarding rule : 64

Port triggering

Maximum port triggering rule : 32

DMZ

DDNS

NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay

Let's Encrypt

Safe browsing
