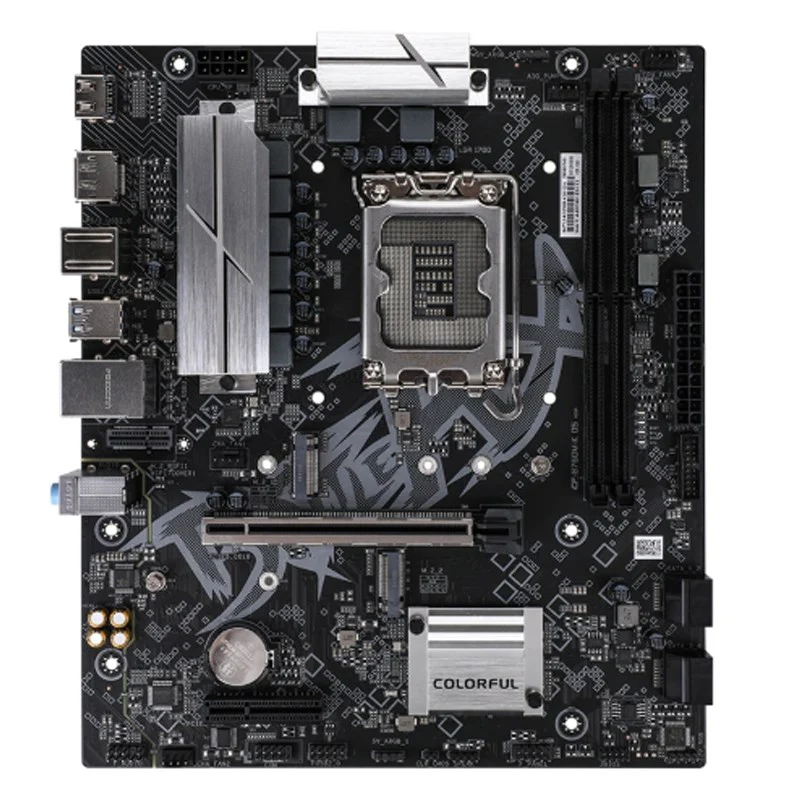

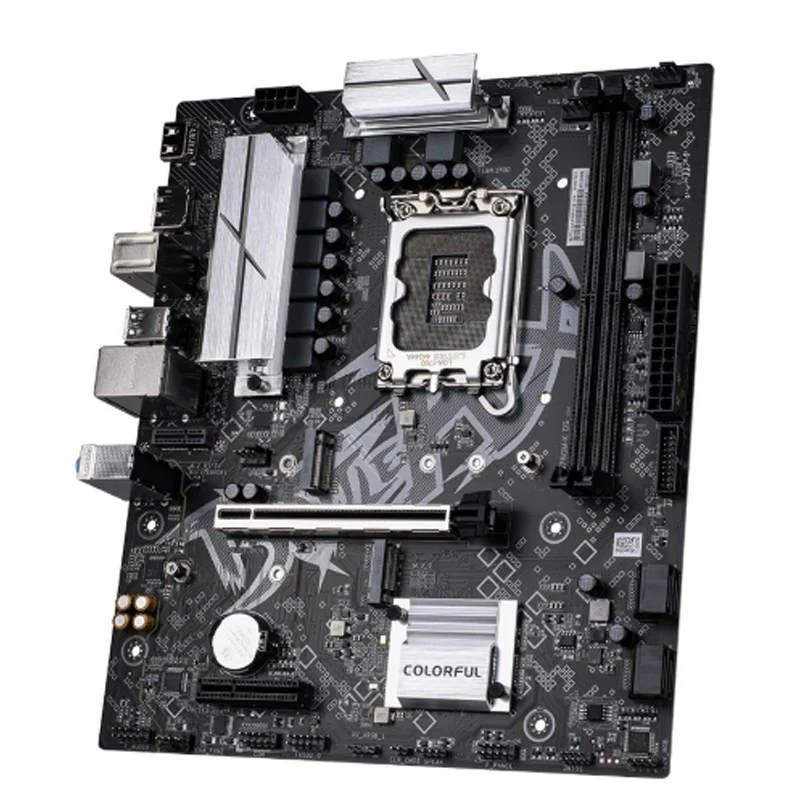

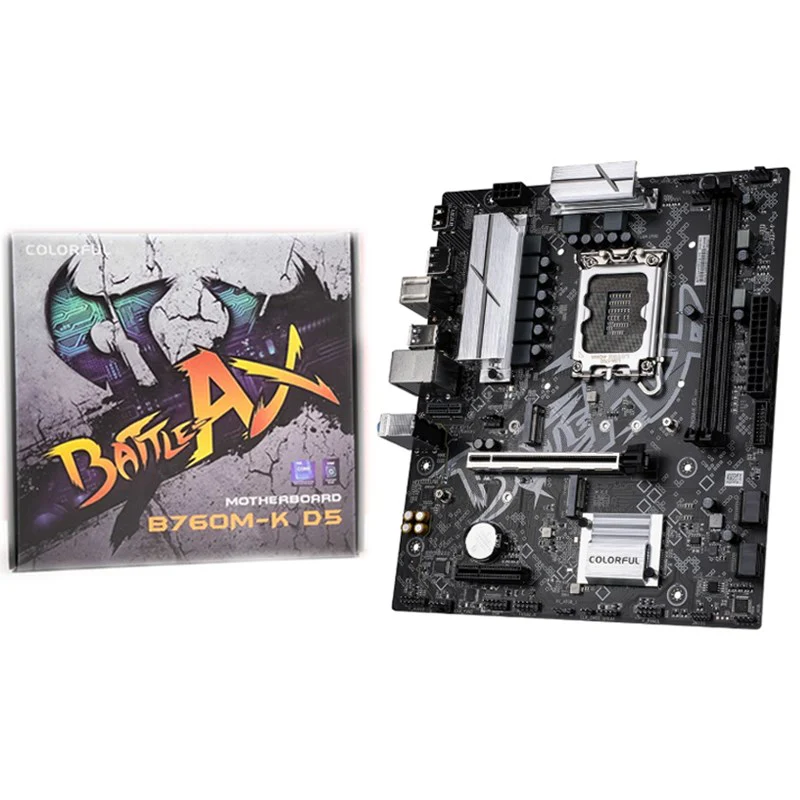

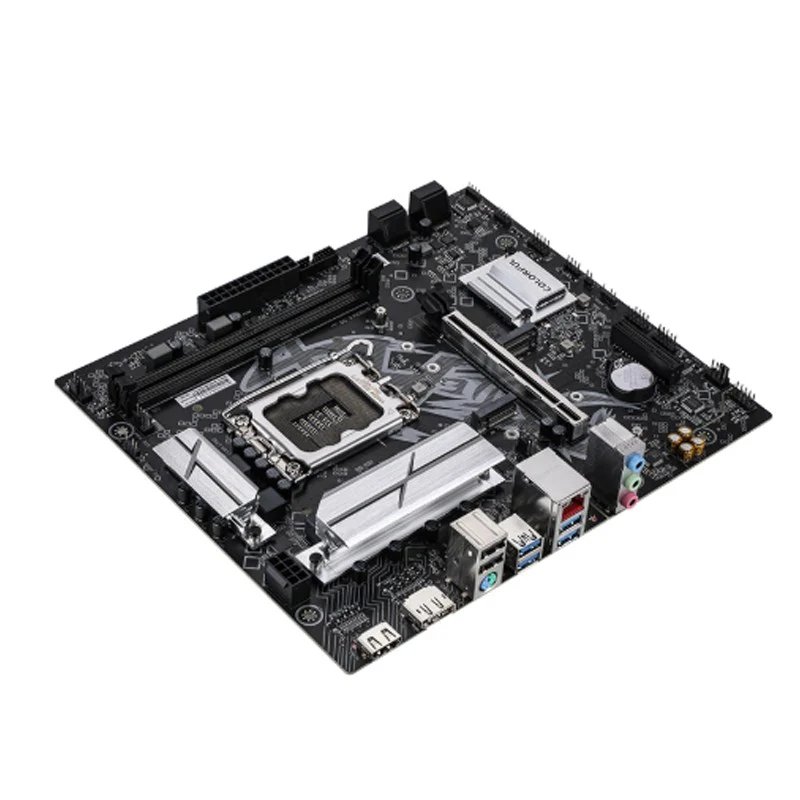

Colorful BATTLE-AX B760M-K D5 V21A DDR5 M-ATX Gaming Motherboard

Colorful BATTLE-AX B760M-K D5 V21A DDR5 M-ATX Gaming Motherboard

Colorful BATTLE-AX B760M-K D5 V21A DDR5

Equipped with Realtek 2.5G high-speed wired network card

Equipped with CNVI WiFi/BT slot, supports expansion of WiFi module

Provides 4 USB 3.2 Gen 1 Type-A high-speed interfaces

Provides 2 USB 2.0 interfaces

Provides 2 PCIe 4.0 x4 M.2 SSD slots

Provides 2 5V 3-pin ARGB pins, 1 12V 4-pin RGB pin

Provides HDMI+DP display interface

Supports iGame Center lighting control software, which can adjust the lighting effects of radiator, cooling fan and memory synchronously

Six major protection technologies, more stable product operation

200 process strict testing, quality guaranteed

PCB atomization process fully upgraded

What are the benefits of Colorful BATTLE-AX B760M-K D5 V21A DDR5 M-ATX Gaming Motherboard ?

High-speed 2.5G wired network for faster connectivity

Expandable WiFi and Bluetooth support via CNVI slot

Multiple high-speed USB 3.2 and USB 2.0 ports

Dual PCIe 4.0 M.2 slots for fast SSD storage

ARGB and RGB headers for customizable lighting

HDMI and DisplayPort for display connectivity

Lighting control with iGame Center software for synchronized effects

Enhanced stability with six protection technologies

Reliable quality with strict testing process

Improved PCB design for better performance and durability

BATTLE-AX B760M-K D5 V21A

BATTLE-AX series

Intel B760

Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium And Cylon processor

2 DDR5 memory slots, supporting up to 96 GB memory (single slot supports up to 48 GB capacity)
Supports DDR5-7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800MHz memory
Supports Intel Extreme Memory Profile (XMP) memory technology
Supports dual-channel memory technology

2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces in total, supports creating RAID 0, RAID 1, RAID 5, RAID 10 disk arrays with SATA hard disk devices
M.2_1 slot: supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel)
M.2_2 slot: supports 2242/2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel)

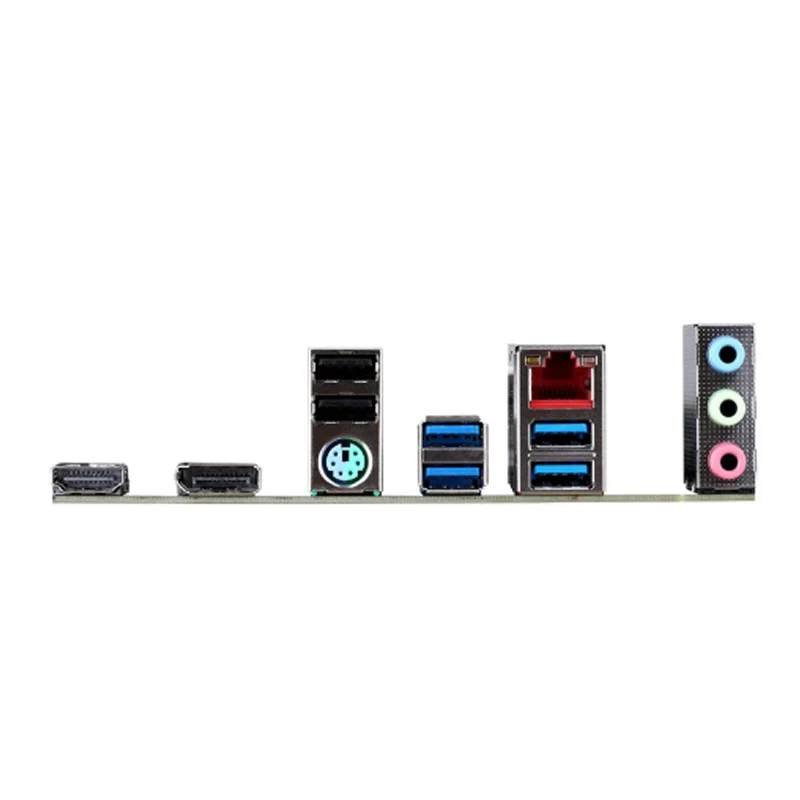

Rear I/O interface:
-2 USB 2.0 interfaces
-4 USB 3.2 Gen 1 Type-A interfaces
-1 DP 1.2 interface, supports up to 4K 60Hz resolution
-1 HDMI 2.0 interface, supports up to 4K 60Hz resolution
-1 PS/2 interface
-1 2.5G network interface
-3 audio interfaces (audio input/audio output/microphone)
On board:
-1 CPU fan pin
-2 system fan pins
-1 water cooling pump pin
-1 USB 2.0 pin can be expanded to 2 USB 2.0 Type-A interfaces
-1 USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A interfaces
-2 5V 3-pin ARGB pins
-1 12V 4-pin RGB pin
- 1 front audio pin
- 1 front panel pin
- 1 speaker pin
- 1 serial port pin
- 1 clear CMOS jumper
- 1 BIOS burner pin

1 PCIe 5.0 x16 slot
1 PCIe 3.0 x4 slot

128M UEFI, support multiple languages

Support S3, S4, network S5 wake-up, support scheduled startup, call startup

CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring

RTL8125BG 2.5Gbit network card

Realtek ALC897 high-fidelity decoding chip, supports 7.1 channels

M-ATX
245mm x 210mm
