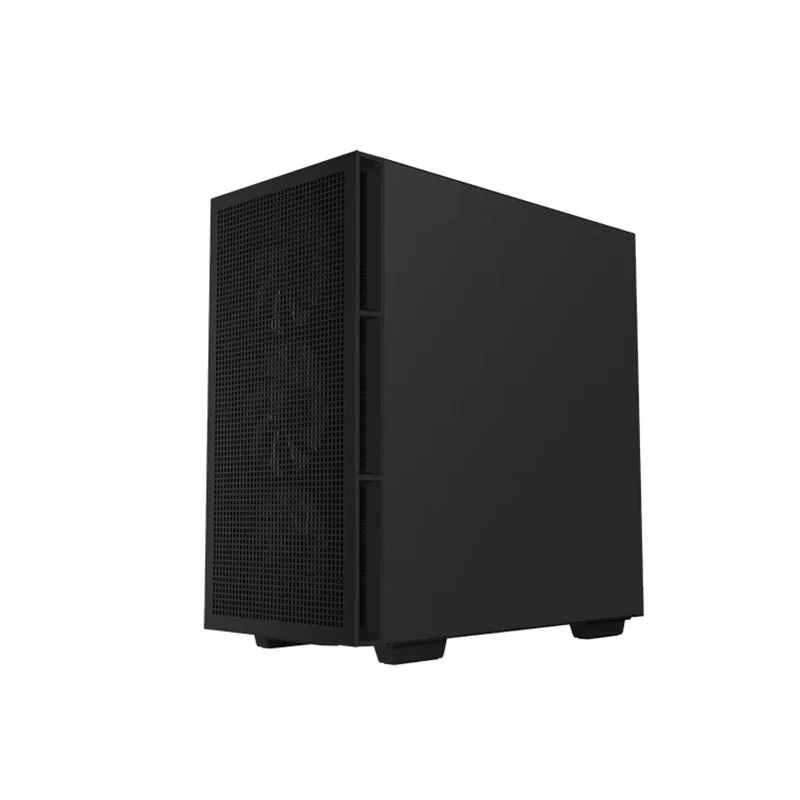

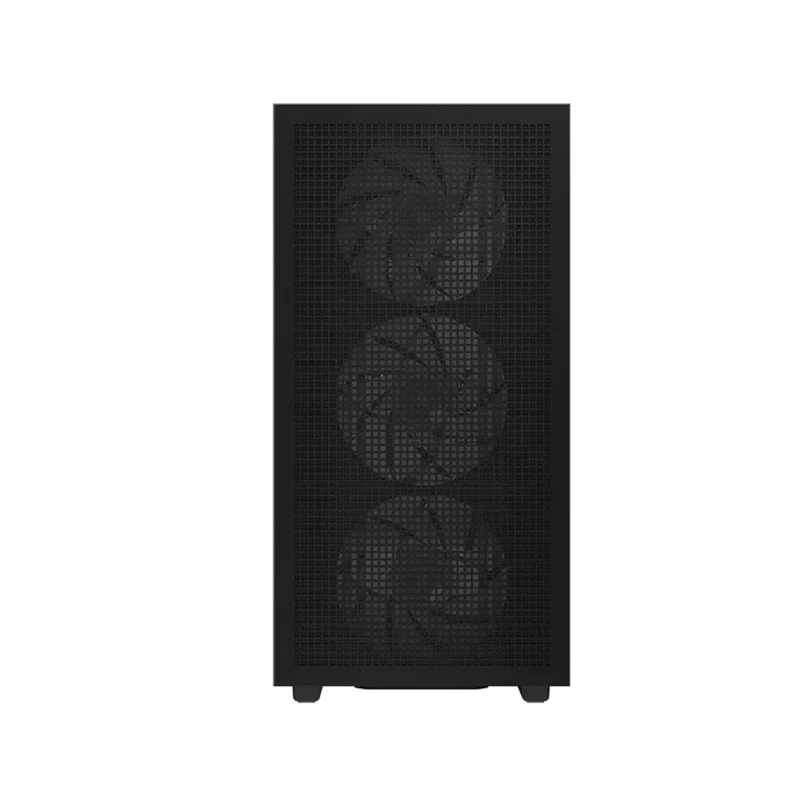

DeepCool CH560 DIGITAL E-ATX Mid Tower Gaming Case - Black

DeepCool CH560 DIGITAL E-ATX Mid Tower Gaming Case

A BREATH OF FRESH AIR

The CH560 DIGITAL provides exceptional airflow from all sides of the case, from the high airflow front to the hybrid tempered glass side panel, cool air is always available for the modern power-hungry components.

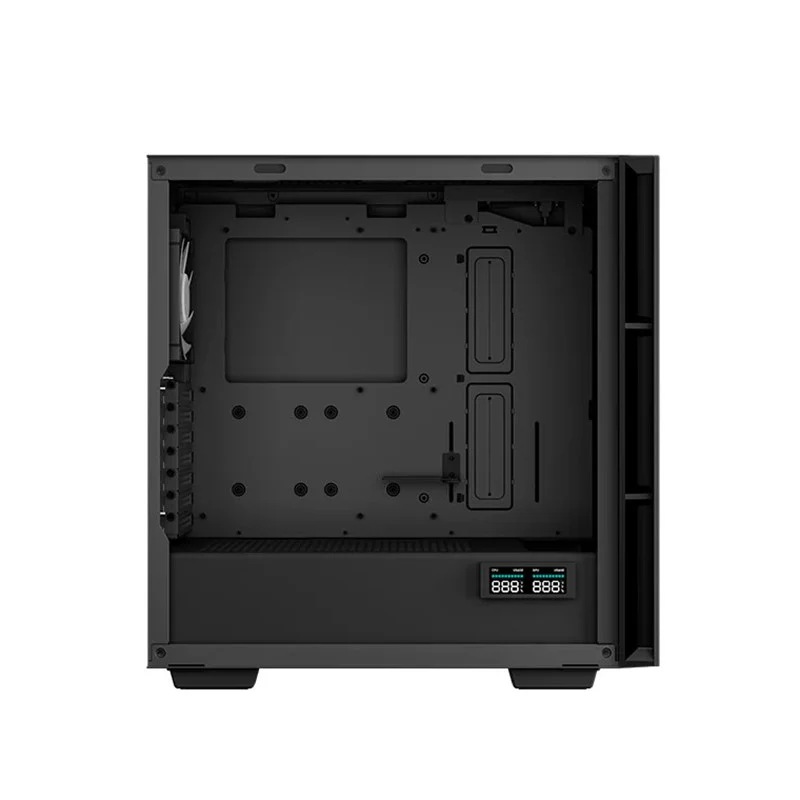

HYBRID AIRFLOW GLASS SIDE PANEL

A unique tempered glass and mesh hybrid side panel provides a crystal-clear view into the heart of your system while also supplying modern GPUs with additional ventilation: a functional yet elegant design.

REAL-TIME DUAL-STATUS DIGITAL DISPLAY

Monitor vital CPU and GPU information from the cockpit of your gaming station with the integrated double-status digital screen. Choose between CPU and GPU temperatures, utilization, or both (switches between temperature and utilization in 5-second intervals). A simple to use application will give you control of the display statuses.

YES, IT FITS!

With the ability to support up to E-ATX motherboards, 175mm tall CPU coolers, 380mm GPUs, and 170mm PSUs, the CH560 DIGITAL can be configured with a wide range of modern components.

What are the benefits of DeepCool Gaming Case ?

• Exceptional airflow design for better cooling from all sides of the case

• Hybrid tempered glass + mesh side panel for clear visibility and improved GPU ventilation

• Integrated dual-status digital display to monitor CPU/GPU temperature and usage in real time

• User-controlled display settings via a simple companion application

• Wide hardware compatibility supports E-ATX motherboards, large GPUs, tall CPU coolers, and long PSUs

• Ideal for high-performance builds with power-hungry modern components

Product Dimensions

458×230×471mm(L×W×H)

Net Weight

7.5 kg

Materials

ABS+SPCC+Tempered Glass

Motherboard Support

Mini-ITX / Micro-ATX / ATX / E-ATX

Front I/O Ports

USB3.0×1、Audio×1、TYPE-C×1

3.5" Drive Bays

2

2.5" Drive Bays

2+1

Expansion Slots

7 Slots

Pre-Installed Fans

Front: 3×140mm ARGB

Rear: 1×120mm ARGB

Fan Support

Front: 3×120 / 3×140mm

Top: 3×120 / 2×140mm

Rear: 1×120 / 1×140mm (Only supports up to 120mm fan at the rear when using a 360mm radiator on top.)

PSU Shrouded: 2×120mm

Radiator Support

Front: 120/140/240/280/360mm

Top: 120/140/240/280/360mm

Rear: 120/140mm

CPU Cooler Height Limit

175mm

GPU Length Limit

380mm

Power Supply Type

ATX PS2（maximum length: 170mm）
