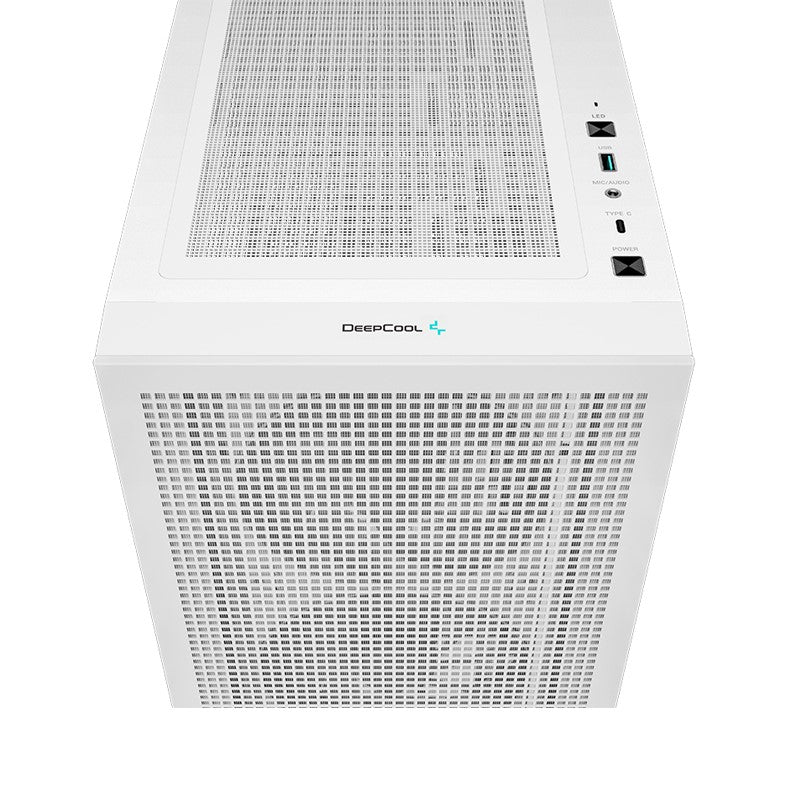

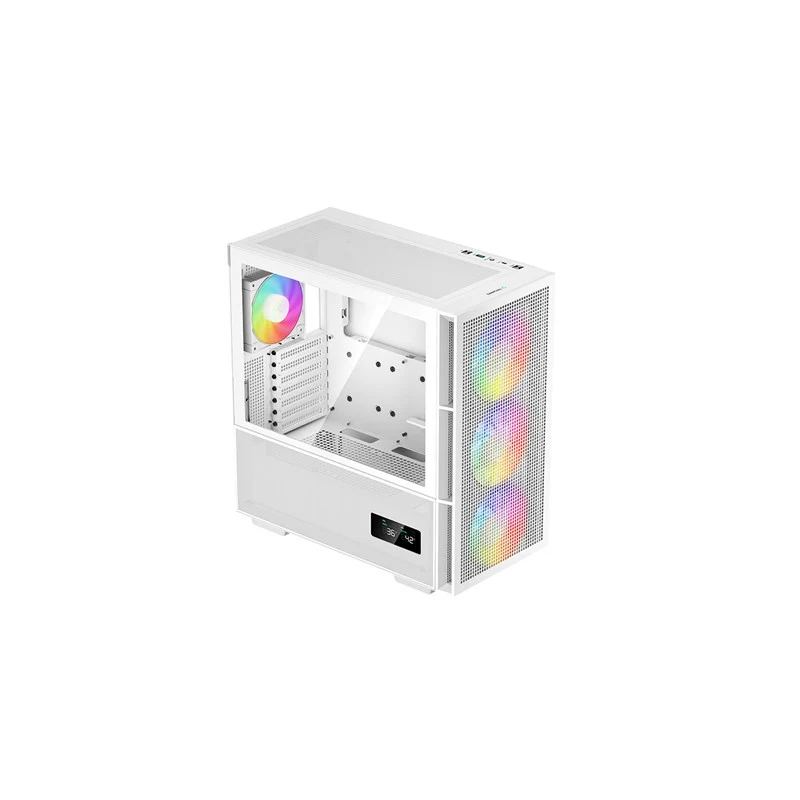

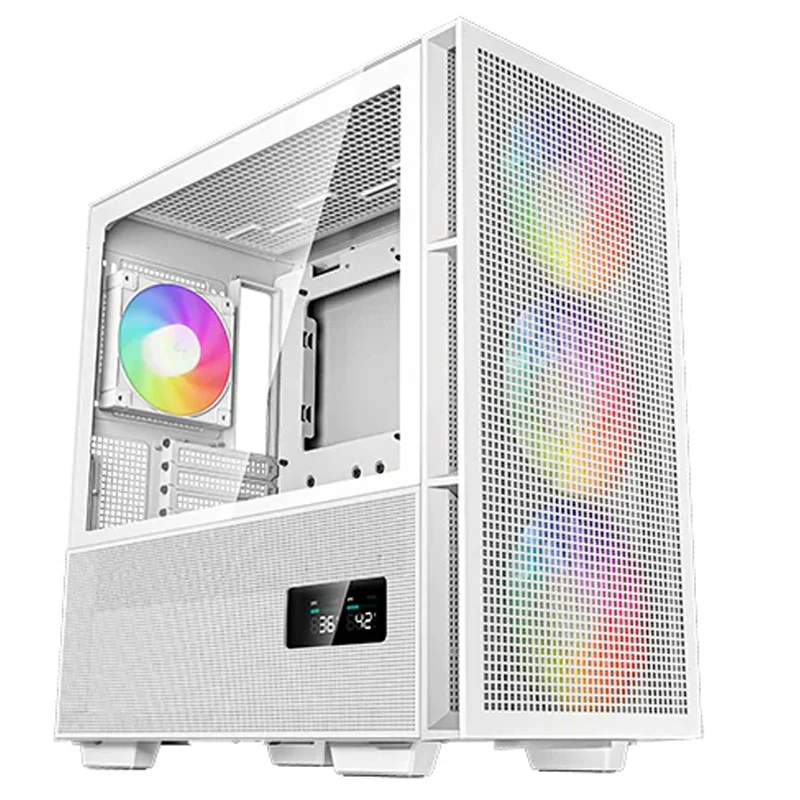

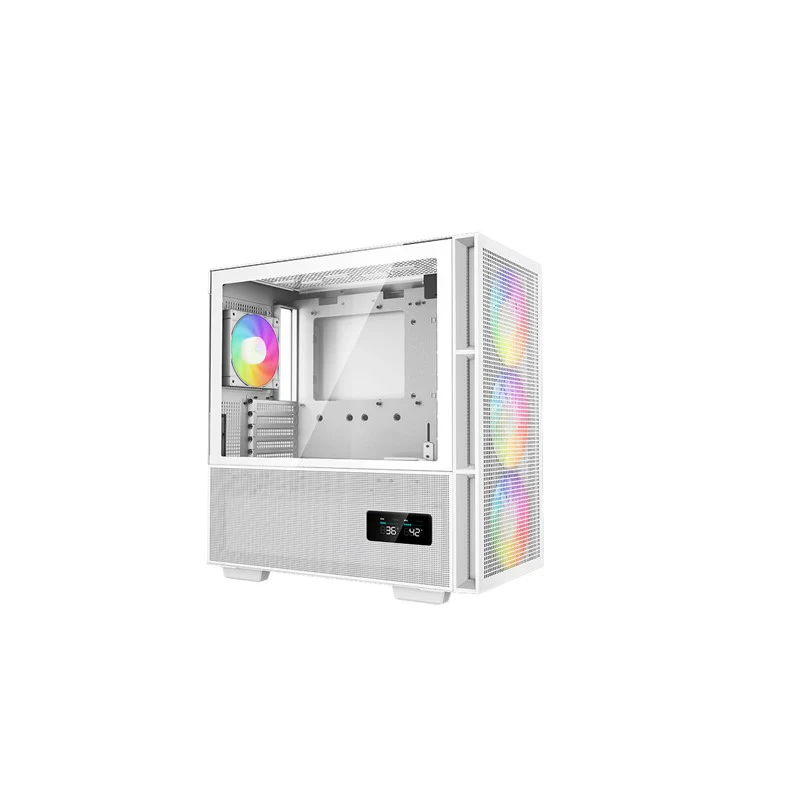

DeepCool CH560 DIGITAL E-ATX Mid Tower Gaming Case - White

DeepCool CH560 DIGITAL E-ATX Mid Tower Gaming Case

A BREATH OF FRESH AIR

The CH560 DIGITAL WH provides exceptional airflow from all sides of the case, from the high airflow front to the hybrid tempered glass side panel, cool air is always available for the modern power-hungry components.

REAL-TIME DUAL-STATUS DIGITAL DISPLAY

Monitor vital CPU and GPU information from the cockpit of your gaming station with the integrated double-status digital screen. Choose between CPU and GPU temperatures, utilization, or both (switches between temperature and utilization in 5-second intervals). A simple to use application will give you control of the display statuses.

YES, IT FITS!

With the ability to support up to E-ATX motherboards, 175mm tall CPU coolers, 380mm GPUs, and 170mm PSUs, the CH560 DIGITAL WH can be configured with a wide range of modern components.

BIGGER, BRIGHTER, BETTER

Three luminous PWM enabled 140mm ARGB fans come pre-installed on the front of the CH560 DIGITAL WH and introduce an abundant amount of fresh air into the chassis, these fans are mounted outside of the main compartment to provide maximum clearance for the largest of GPUs while maintaining a smaller footprint. The rear 120mm ARGB fan is also PWM enabled and will exhaust the warm air out of the chassis.

What are the benefits of DeepCool Gaming Case ?

• Exceptional all-around airflow keeps high-performance components cool

• Hybrid front and side ventilation design improves cooling efficiency for modern GPUs

• Integrated dual-status digital display for real-time CPU/GPU temperature and usage monitoring

• Easy display control via a simple companion application

• Wide compatibility supports E-ATX motherboards, 380mm GPUs, 175mm CPU coolers, and 170mm PSUs

• Four pre-installed ARGB PWM fans (3×140mm front, 1×120mm rear) for strong cooling and vibrant lighting

• Optimized fan placement allows better airflow and extra space for large graphics cards

Product Dimensions

458×230×471mm(L×W×H)

Net Weight

7.5 kg

Materials

ABS+SPCC+Tempered Glass

Motherboard Support

Mini-ITX / Micro-ATX / ATX / E-ATX

Front I/O Ports

USB3.0×1、Audio×1、TYPE-C×1

3.5" Drive Bays

2

2.5" Drive Bays

2+1

Expansion Slots

7 Slots

Pre-Installed Fans

Front: 3×140mm ARGB

Rear: 1×120mm ARGB

Fan Support

Front: 3×120 / 3×140mm

Top: 3×120 / 2×140mm

Rear: 1×120 / 1×140mm (Only supports up to 120mm fan at the rear when using a 360mm radiator on top.)

PSU Shrouded: 2×120mm

Radiator Support

Front: 120/140/240/280/360mm

Top: 120/140/240/280/360mm

Rear: 120/140mm

CPU Cooler Height Limit

175mm

GPU Length Limit

380mm

Power Supply Type

ATX PS2 （maximum length: 170mm）
