Gigabyte B650 EAGLE AX DDR5 AMD AM5 ATX Gaming Motherboard - Black

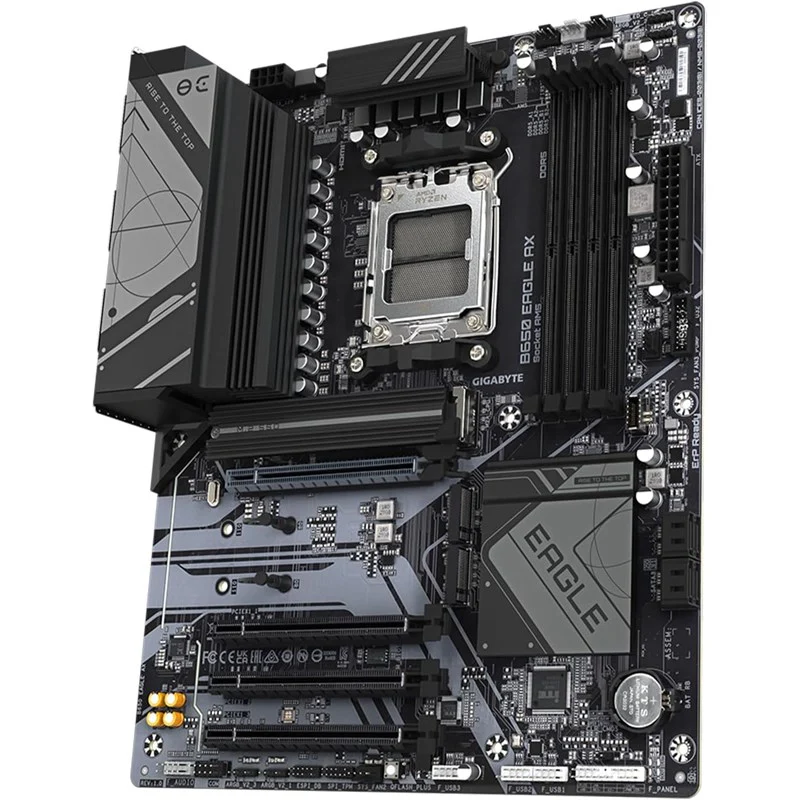

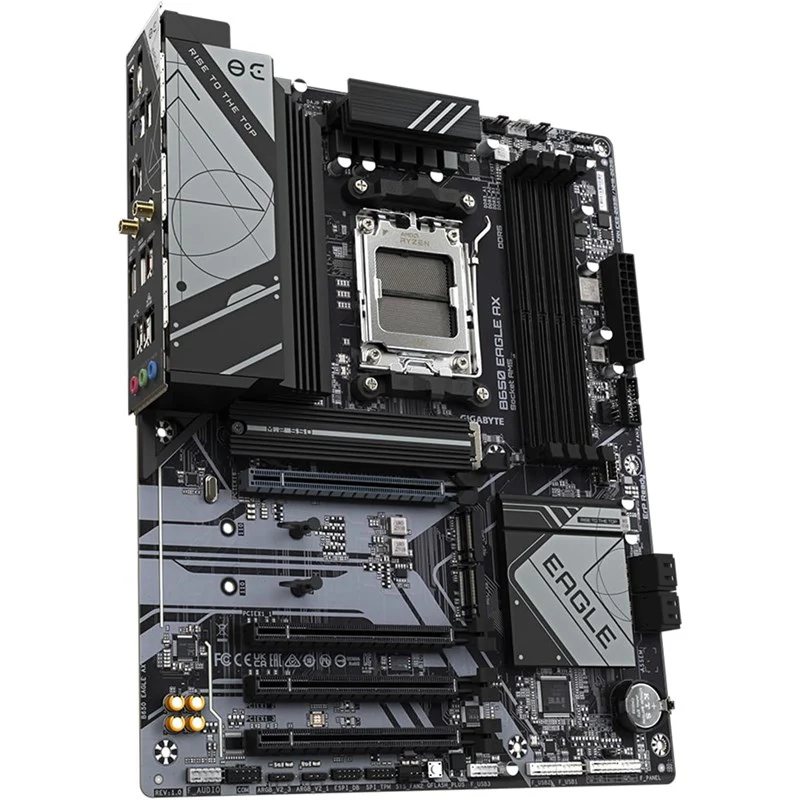

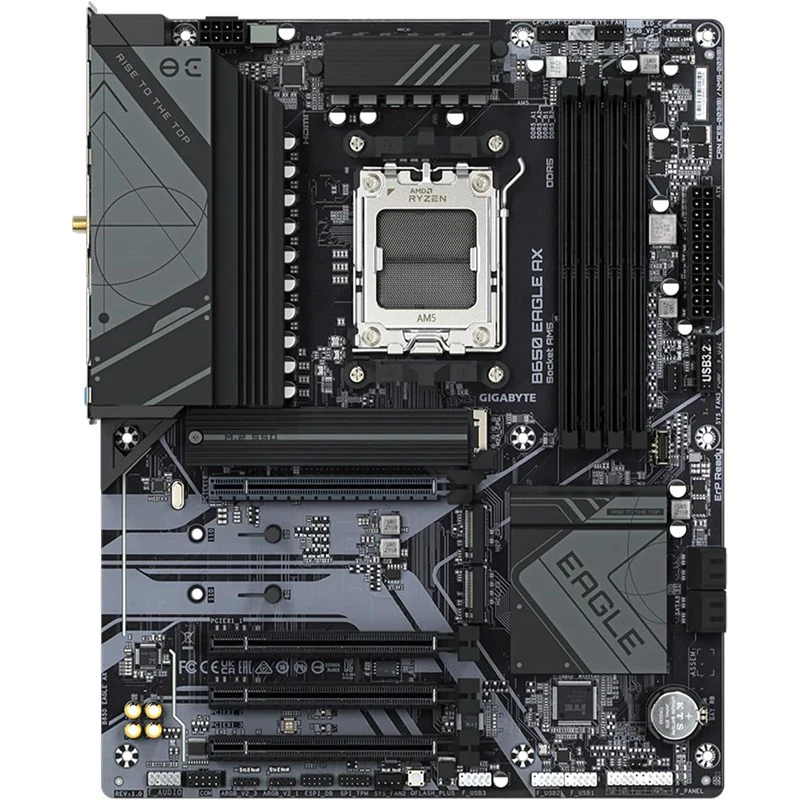

Gigabyte B650 EAGLE AX DDR5 AMD AM5 ATX Gaming Motherboard

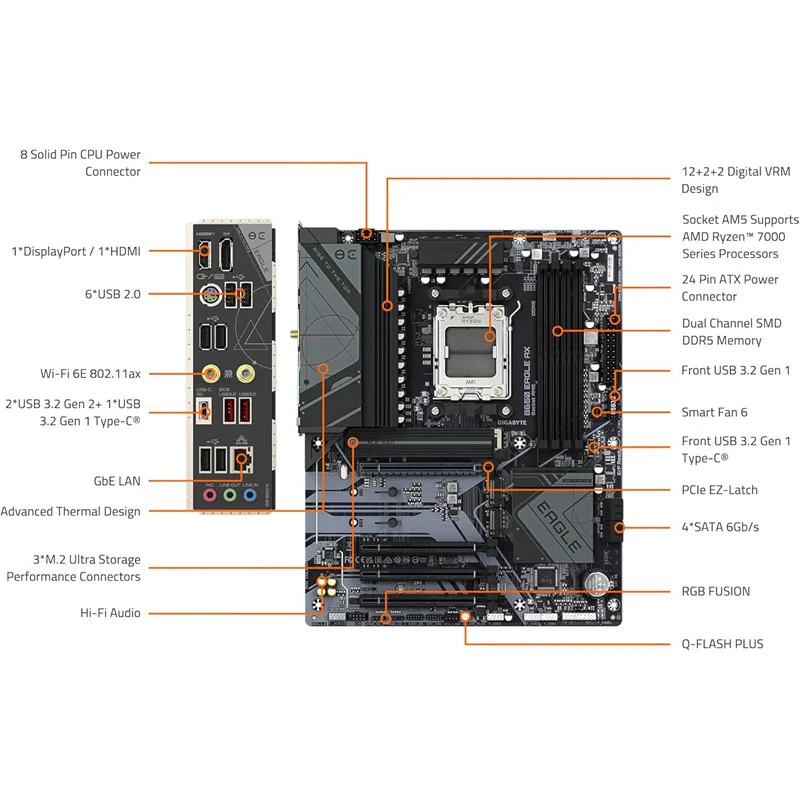

AMD Socket AM5

Supports AMD Ryzen 7000/ Ryzen 8000 Series Processors

Unparalleled Performance

12+2+2 Phases Digital VRM Solution

Dual Channel DDR5

4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support

SuperSpeed Storage

1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors

Advanced Thermal Design & M.2 Thermal Guard

To Ensure VRM Power Stability & 25110 M.2 SSD Performance

EZ-Latch

PCIe x16 Slot with Quick Release Design

Fast Networks

Wi-Fi 6E 802.11ax & GbE LAN

Extended Connectivity

DP, HDMI, Rear USB 10Gb/s

Smart Fan 6

Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

Q-Flash Plus

Update BIOS Without Installing the CPU, Memory and Graphics Card

What are the benefits of Gigabyte B650 EAGLE AX Gaming Motherboard ?

• Supports AMD Ryzen 7000 and 8000 series processors (AM5 socket)

• Strong performance with 12+2+2 phase digital VRM design

• Dual channel DDR5 memory support with EXPO and XMP compatibility

• High-speed storage with PCIe 5.0 and PCIe 4.0 M.2 slots

• Advanced thermal design with M.2 thermal guard for stable performance

• EZ-Latch PCIe slot for quick and easy GPU installation/removal

• Fast connectivity with Wi-Fi 6E and Gigabit LAN

• Multiple display and high-speed USB connectivity options

• Smart Fan 6 for efficient cooling control with multiple sensors

• Q-Flash Plus for easy BIOS updates without installing components

• Durable design for long-lasting performance

• Future-ready connectivity options

• User-friendly features for easy setup and use

Part No

B650 EAGLE AX

Chipset

AMD B650 Chipset

Form Factor

ATX Form Factor; 30.5 cm x 24.4 cm

Socket Compatibility

AMD Socket AM5, support for:
AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors

LAN

Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Wireless Communication module

Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
Intel Wi-Fi 6E AX210 (PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

Memroy

Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

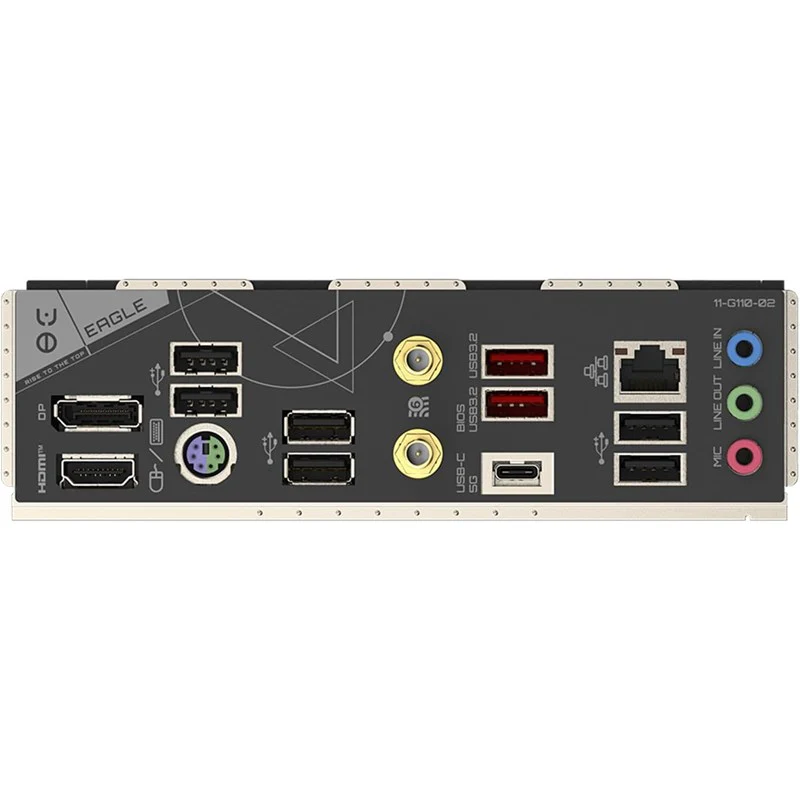

Back Panel I/O Ports

1 x DisplayPort
1 x HDMI port
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x USB Type-C port, with USB 3.2 Gen 1 support
2 x USB 3.2 Gen 2 Type-A ports (red)
6 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

USB Ports

CPU:
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
CPU+USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers

Audio

Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
2 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x serial port header j
1 x Clear CMOS jumper

I/O Controller

iTE I/O Controller Chip

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
