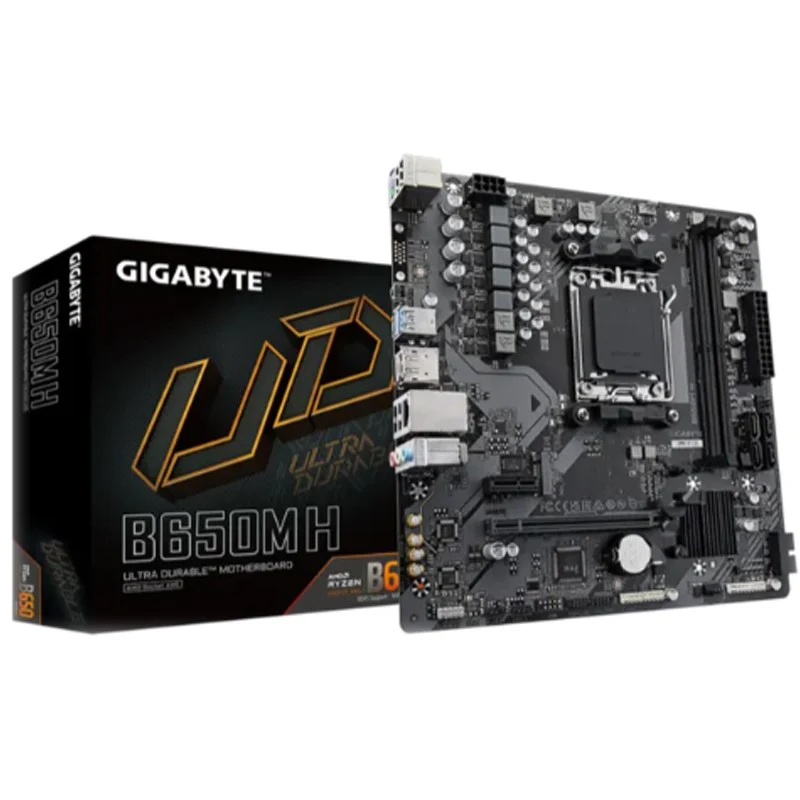

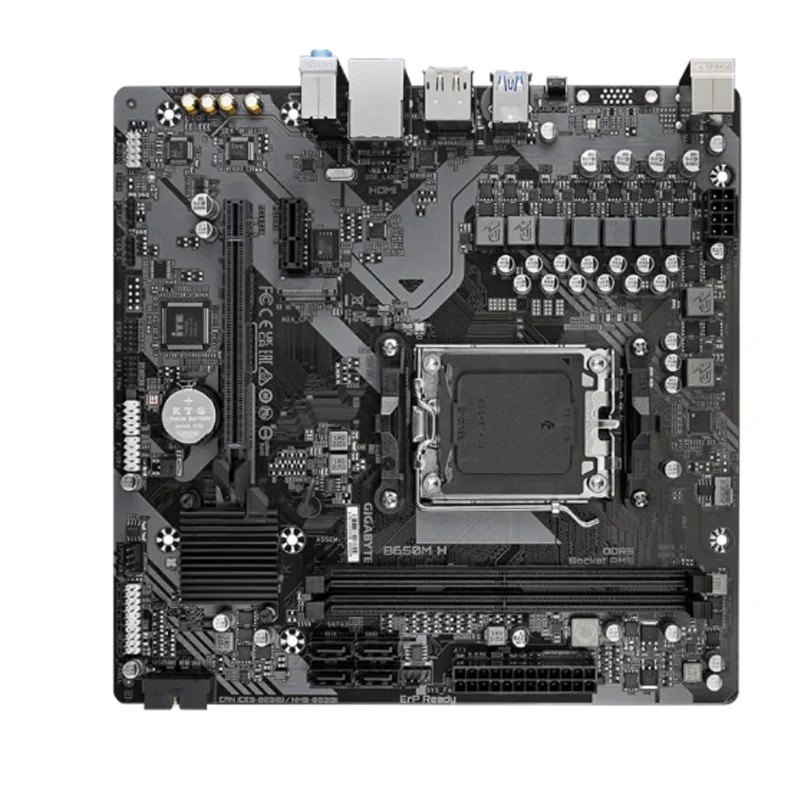

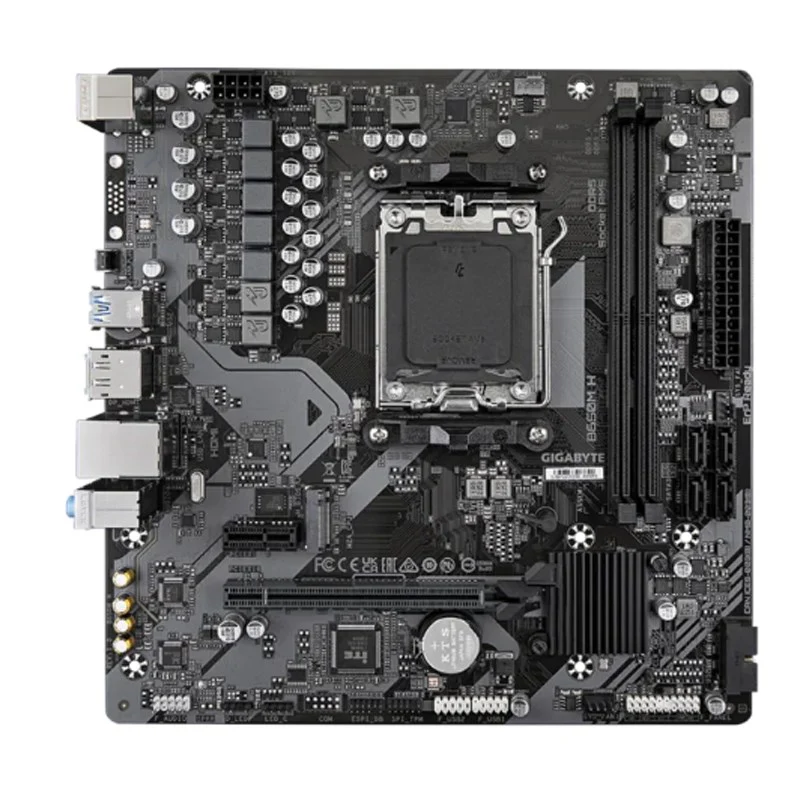

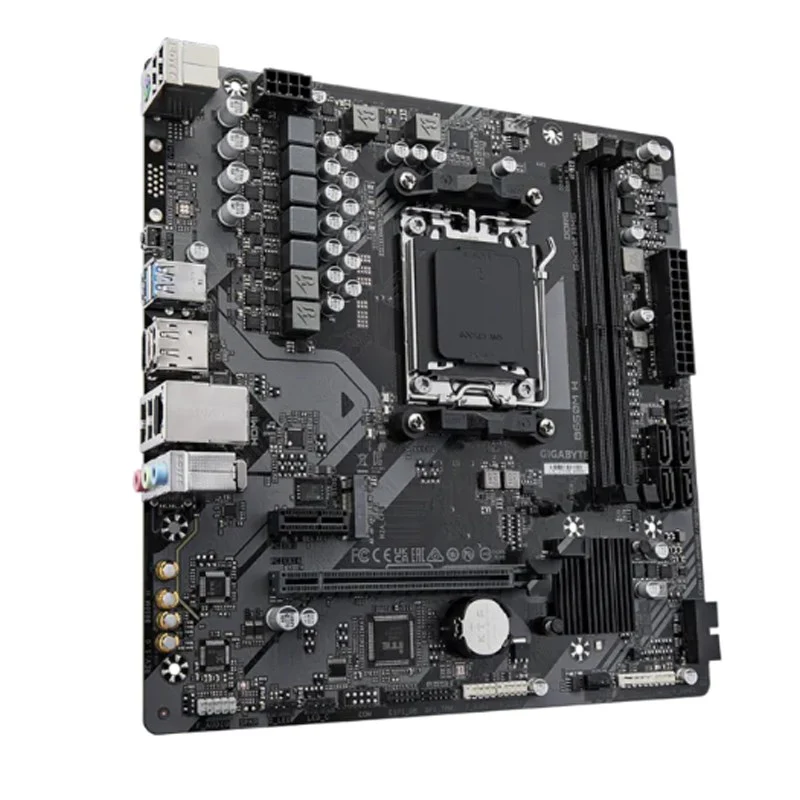

Gigabyte B650M-H AMD AM5 DDR5 Micro-ATX Gaming Motherboard - Black

Gigabyte B650M-H AMD AM5 DDR5 Micro-ATX Gaming Motherboard

Durable Performance

GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

What are the benefits of Gigabyte B650M-H Gaming Motherboard  ?

• Durable build ensures long-lasting and reliable performance

• High-quality components deliver stable and consistent operation

• Fast next-gen connectivity for quick data transfer and storage

• User-friendly BIOS and software for easy setup and customization

• Optimized design for both performance and everyday usability

CPU

AMD Socket AM5, support for:

AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors

Chipset

AMD B650

Audio

Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

LAN

Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)

1 x Clear CMOS jumper

Back Panel Connectors

4 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

1 x Q-Flash Plus button

2 x USB 3.2 Gen 1 ports

1 x DisplayPort

1 x HDMI port

1 x RJ-45 port

3 x audio jacks

I/O Controller

iTE I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 23.0 cm x 22.5 cm
