CPU
|
1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
|
|
2. L3 cache varies with CPU
|
Chipset
|
1. Intel® B760 Express Chipset
|
Memory
|
1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
|
|
2. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
|
|
3. Dual channel memory architecture
|
|
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
|
|
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
|
|
6. Support for Extreme Memory Profile (XMP) memory modules
|
|
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules)
|
Onboard Graphics
|
Integrated Graphics Processor-Intel® HD Graphics support:
|
|
1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
|
|
* Support for HDMI 2.1 version and HDCP 2.3.
|
|
** Support native HDMI 2.1 TMDS compatible ports.
|
|
2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
|
|
* Support for DisplayPort 1.2 version and HDCP 2.3
|
|
(Graphics specifications may vary depending on CPU support.)
|
Audio
|
1. Realtek® Audio CODEC
|
|
2. High Definition Audio
|
|
3. 2/4/5.1/7.1-channel
|
|
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
|
|
4. Support for S/PDIF Out
|
LAN
|
1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)
|
Expansion Slots
|
CPU:
|
|
1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
|
|
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
|
|
Chipset:
|
|
1. 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
|
|
(PCIEX1_1, PCIEX1_3~PCIEX1_5)
|
Storage Interface
|
CPU:
|
|
1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
|
|
Chipset:
|
|
1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
|
|
2. 4 x SATA 6Gb/s connectors
|
|
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
|
USB
|
Chipset:
|
|
1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
|
|
2. 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
|
|
3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
|
|
4. 2 x USB 3.2 Gen 1 ports available through the internal USB header
|
|
5. 4 x USB 2.0/1.1 ports on the back panel
|
|
Chipset+2 USB 2.0 Hubs:
|
|
1. 4 x USB 2.0/1.1 ports available through the internal USB headers
|
Internal I/O Connectors
|
1. 1 x 24-pin ATX main power connector
|
|
2. 1 x 8-pin ATX 12V power connector
|
|
3. 1 x CPU fan header
|
|
4. 1 x CPU fan/water cooling pump header
|
|
5. 3 x system fan headers
|
|
6. 1 x system fan/water cooling pump header
|
|
7. 2 x addressable LED strip headers
|
|
8. 2 x RGB LED strip headers
|
|
9. 2 x M.2 Socket 3 connectors
|
|
10. 4 x SATA 6Gb/s connectors
|
|
11. 1 x front panel header
|
|
12. 1 x front panel audio header
|
|
13. 1 x S/PDIF Out header
|
|
14. 1 x USB Type-C® header, with USB 3.2 Gen 1 support
|
|
15. 1 x USB 3.2 Gen 1 header
|
|
16. 2 x USB 2.0/1.1 headers
|
|
17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
|
|
18. 1 x serial port header
|
|
19. 1 x Q-Flash Plus button
|
|
20. 1 x reset button
|
|
21. 1 x reset jumper
|
|
22. 1 x Clear CMOS jumper
|

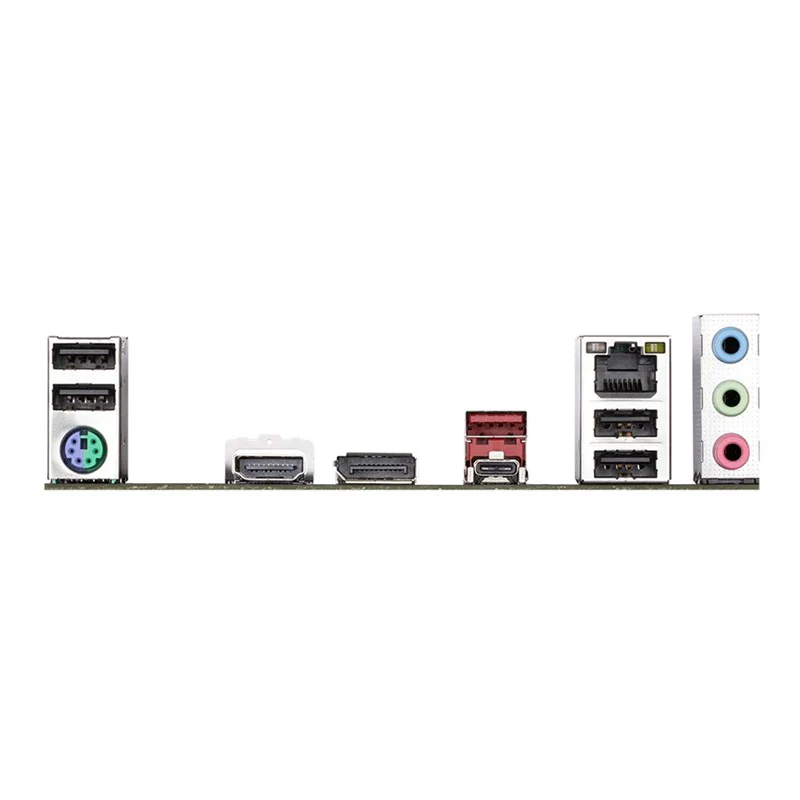

Back Panel Connectors
|
1. 1 x PS/2 keyboard/mouse port
|
|
2. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
|
|
3. 1 x USB 3.2 Gen 2 Type-A port (red)
|
|
4. 4 x USB 2.0/1.1 ports
|
|
5. 1 x HDMI port
|
|
6. 1 x DisplayPort
|
|
7. 1 x RJ-45 port
|
|
8. 3 x audio jacks
|
I/O Controller
|
1. iTE® I/O Controller Chip
|
H/W Monitoring
|
1. Voltage detection
|
|
2. Temperature detection
|
|
3. Fan speed detection
|
|
4. Water cooling flow rate detection
|
|
5. Fan fail warning
|
|
6. Fan speed control
|
|
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
|
BIOS
|
1. 1 x 128 Mbit flash
|
|
2. Use of licensed AMI UEFI BIOS
|
|
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
Unique Features
|
1. Support for GIGABYTE Control Center (GCC)
|
|
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
|
|
2. Support for Q-Flash
|
|
3. Support for Q-Flash Plus
|
Operating System
|
1. Support for Windows 11 64-bit
|
|
2. Support for Windows 10 64-bit
|
Form Factor
|
1. ATX Form Factor; 30.5cm x 24.4cm
|
