LIAN LI LANCOOL 207 Micro ATX Gaming PC Case - Black

Lian Li LANCOOL 207 Micro ATX Gaming Case

LANCOOL 207

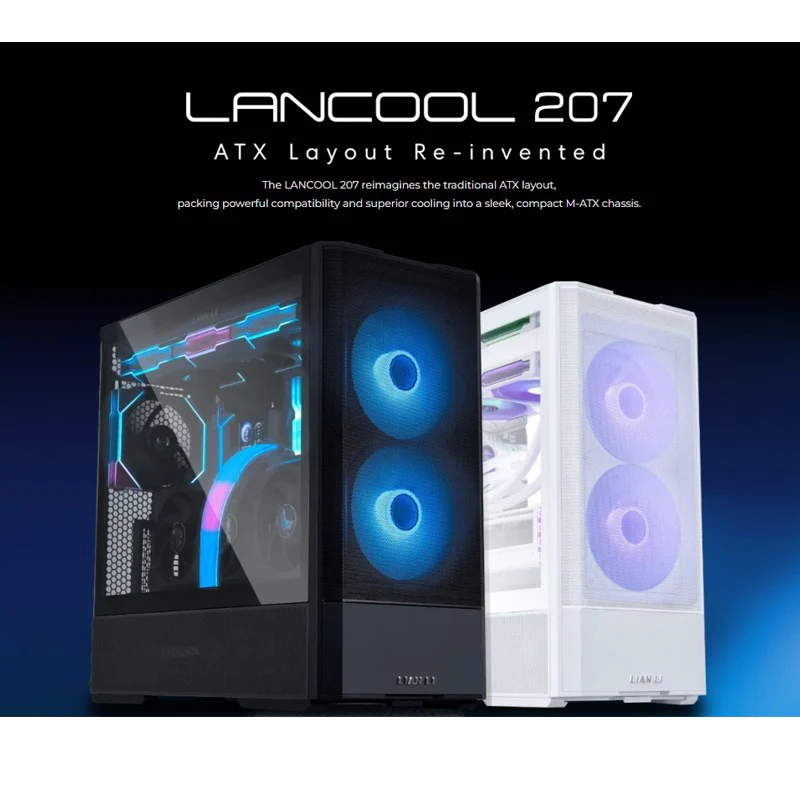

The LANCOOL 207 reimagines the traditional ATX layout, packing powerful compatibility and superior cooling into a sleek, compact M-ATX chassis.

COMPACT POWERHOUSE

Though compact in size, the LANCOOL 207 offers remarkable compatibility, supporting ATX motherboard, a 360mm radiator, ATX PSU, and GPU up to 375mm, all within the sleek 45.5L chassis.

SPACE-SAVING INNOVATIVE LAYOUT

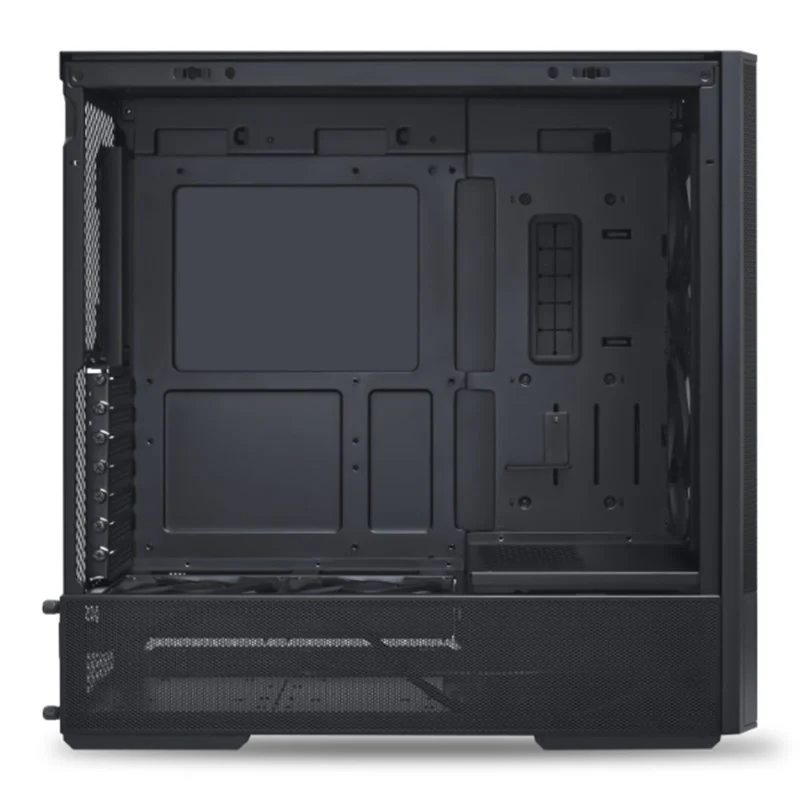

The LANCOOL 207’s unique offset motherboard tray provides a space-efficient solution while improving compatibility and airflow.

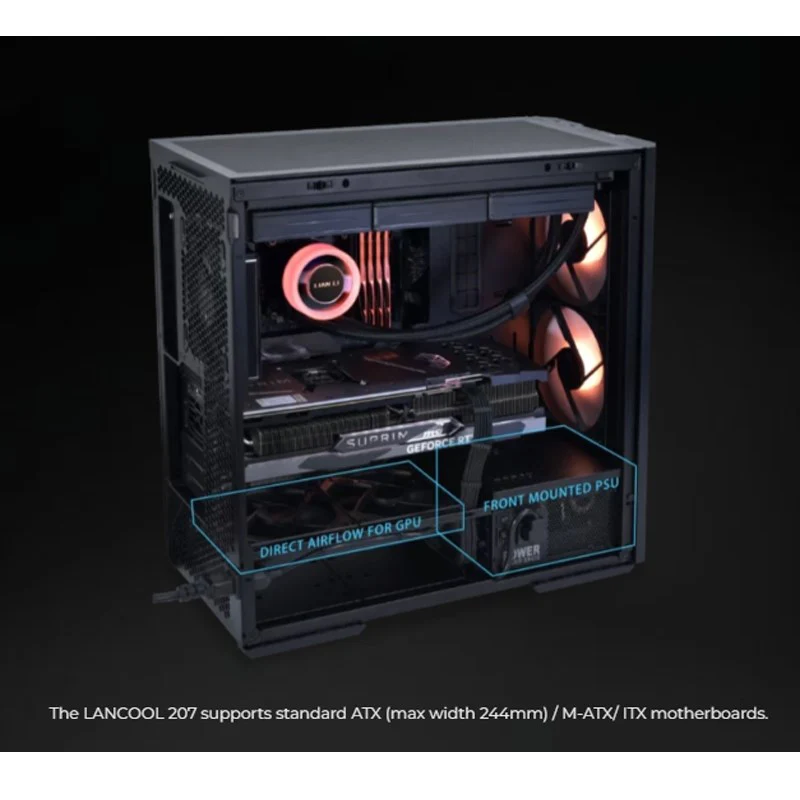

EASY ACCESS FRONT-MOUNTED PSU

The PSU is strategically placed at the front, with connector ports facing outward for convenient cable connection. Additionally, a PSU power adaptor extension cable is provided for rear power access.

SUPERIOR COOLING PERFORMANCE

Besides being designed with comprehensive mesh panels on the top, front, and side bottom, the LANCOOL 207 comes pre-installed with four high-performance fans for superior out-of-box cooling.

360mm RADIATOR COMPATIBILITY

The top of the case supports a 360mm push-pull radiator configuration thanks to the offset motherboard tray design.

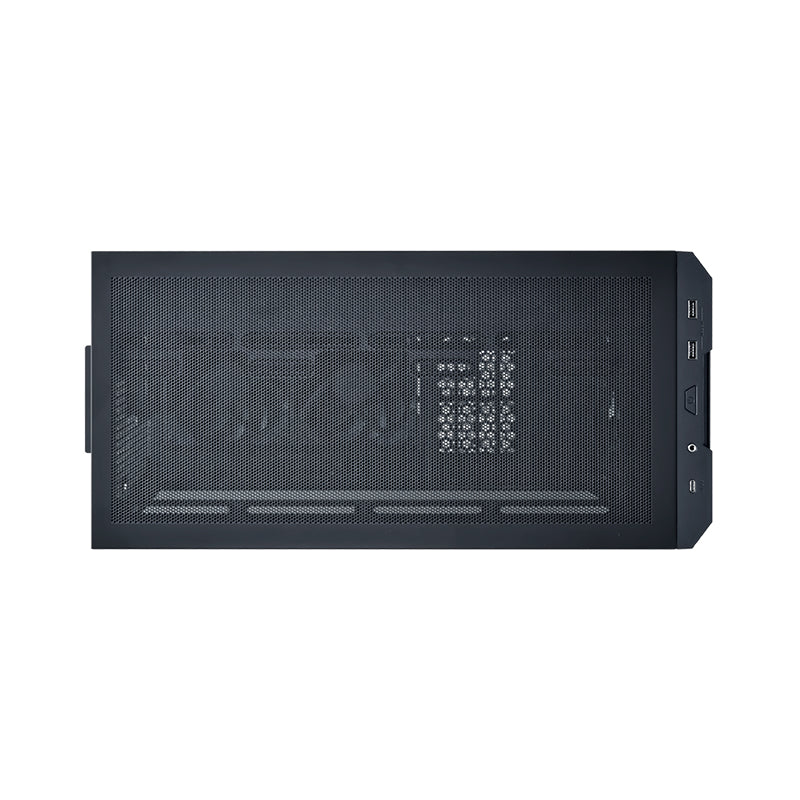

SEAMLESS CONNECTIVITY

The LANCOOL 207’s top-mounted I/O panel offers easy access to essential ports.

EFFICIENT CABLE MANAGEMENT

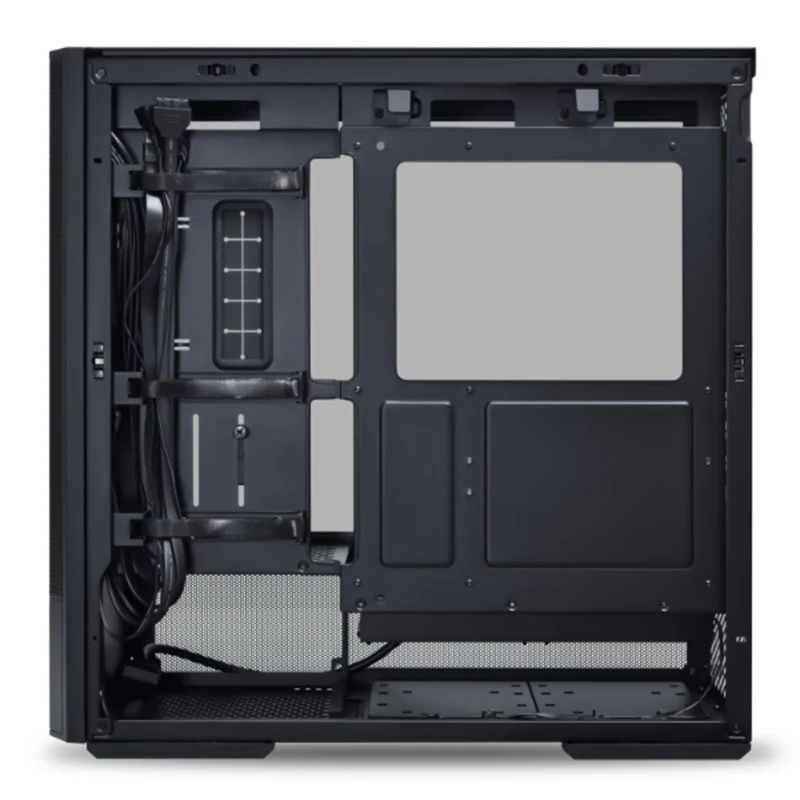

With the innovative layout, the well-organized cable management system is mostly at the front of the 2nd chamber.

MODEL NAME

LANCOOL 207

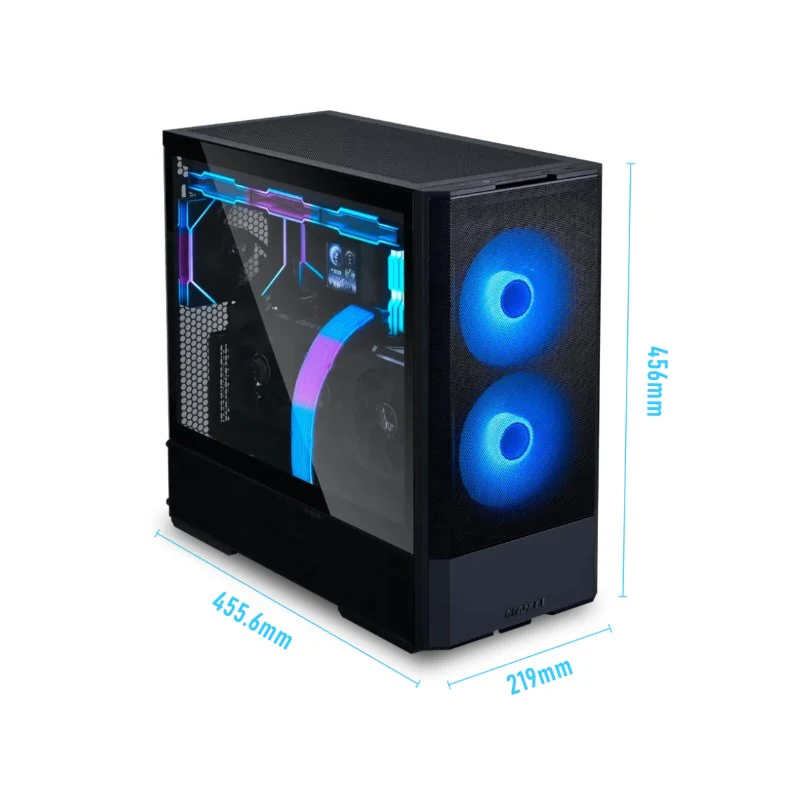

DIMENSION

(D) 455.6mm x (W) 219mm x (H) 456mm

MATERIAL

Steel

4.0mm Tempered Glass

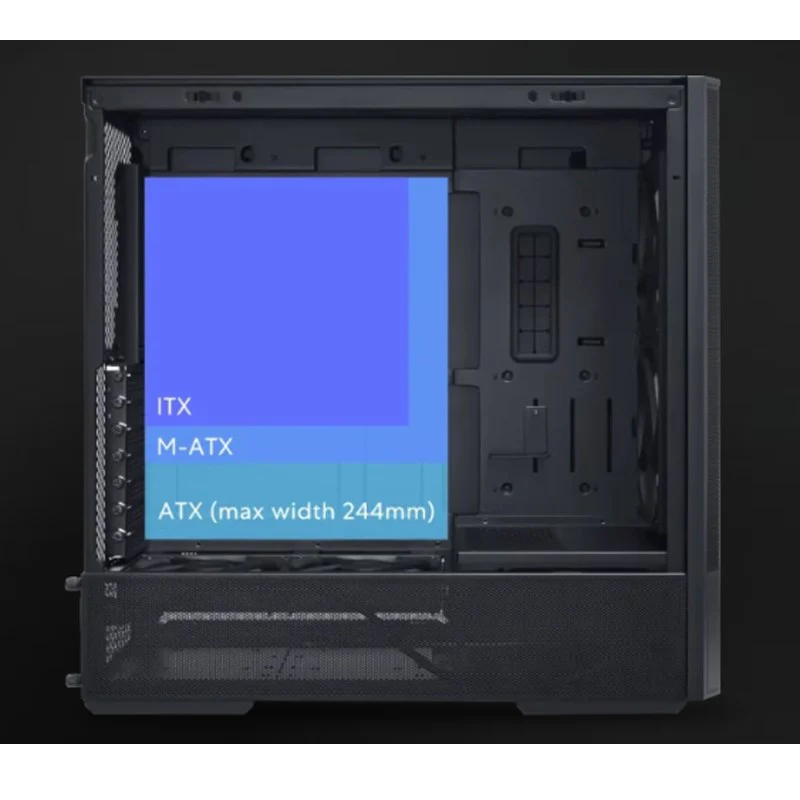

MOTHERBOARD SUPPORT

Standard ATX ( Width Max 244mm ) /Micro-ATX/Mini-ITX

PSU SUPPORT

ATX (Under 160mm)

INCLUDED FAN

Front: 2 x 140mm ARGB fan (450~1900 RPM / DC 12V, 0.4A / LED 5V, 0.7A / 109.3 CMF / 3.3 mm-H2O / 34.86 dB-A)

Above PSU Shroud : 2 x 120mm PWM fan (500~1950 RPM / DC 12V, 0.28A / 71.1 CMF / 1.99 mm-H2O / 30.81 dB-A)

FAN SUPPORT

Front: 140mm x 2

Top: 120mm x 3 or 140mm x 2

Above PSU Shroud: 120mm x 2

Rear: 120mm x 1

RADIATOR SUPPORT

Top: 360/280/240mm

DRIVE SUPPORT

2 × 3.5″ HDD or 2.5″ SSD

GPU LENGTH CLEARANCE

375mm (Max.)

CPU HEIGHT CLEARANCE

180mm (Max.)

EXPANSION SLOTS

7

I/O PORTS

USB 3.0 × 2

USB 3.1 TYPE-C × 1

Audio × 1

Power Button × 1

DUST FILTER

1 x Bottom
