LIAN LI O11 DYNAMIC EVO Tempered Glass E-ATX Gaming PC Case

O11 DYNAMIC EVO

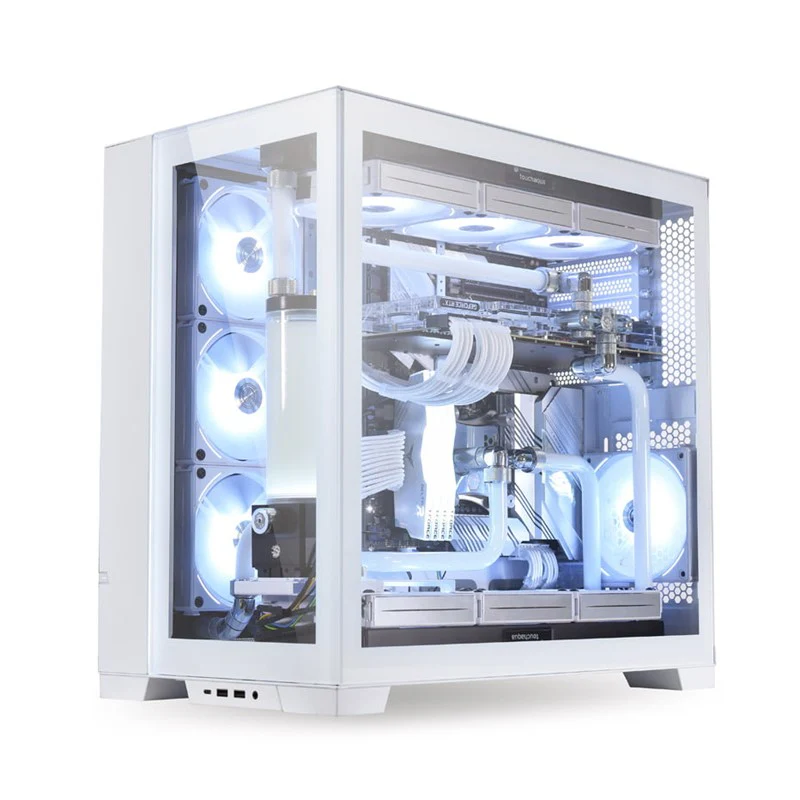

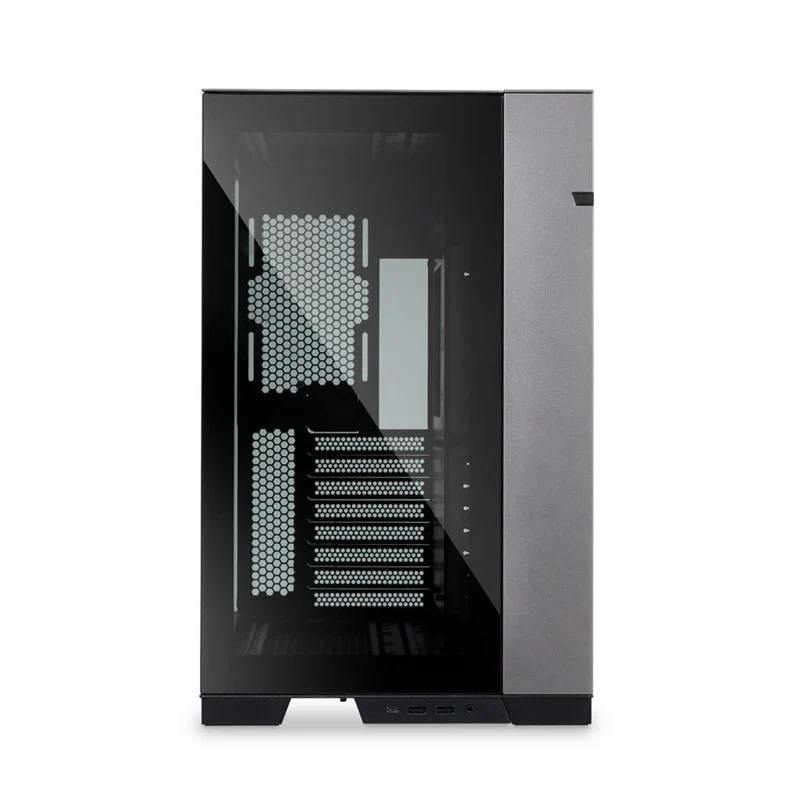

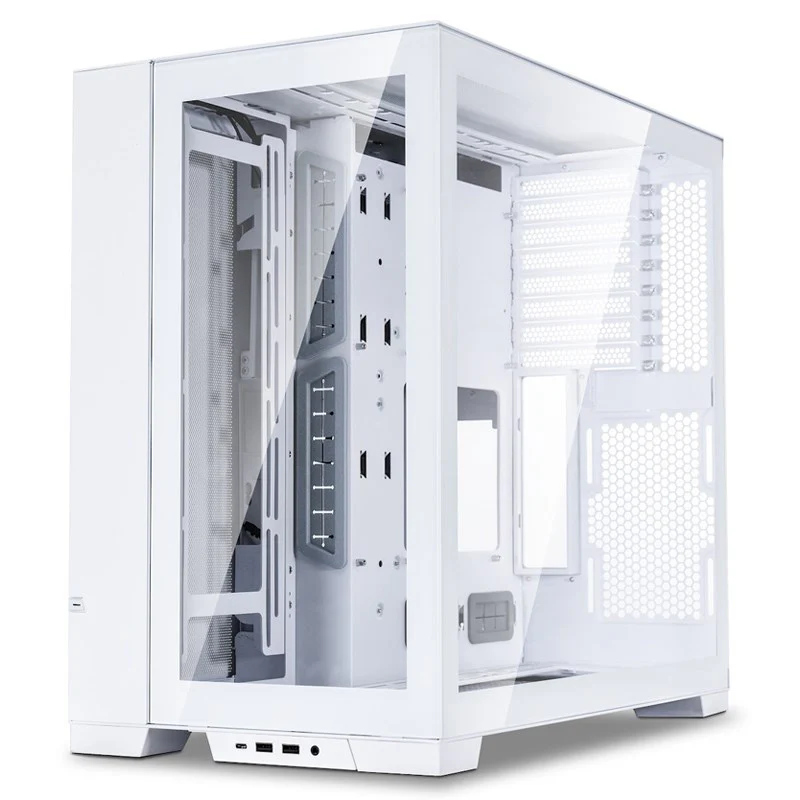

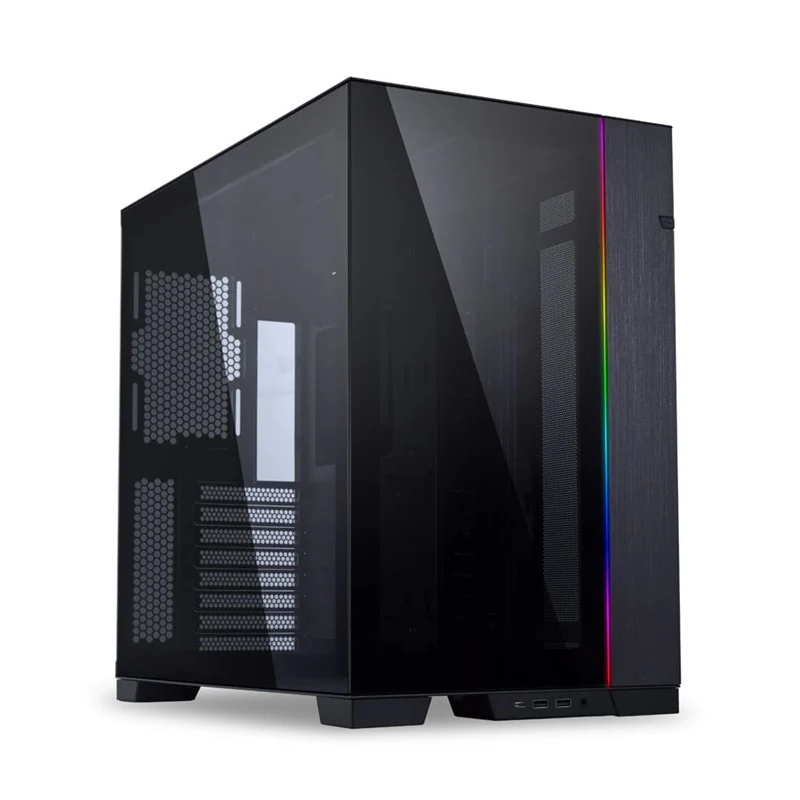

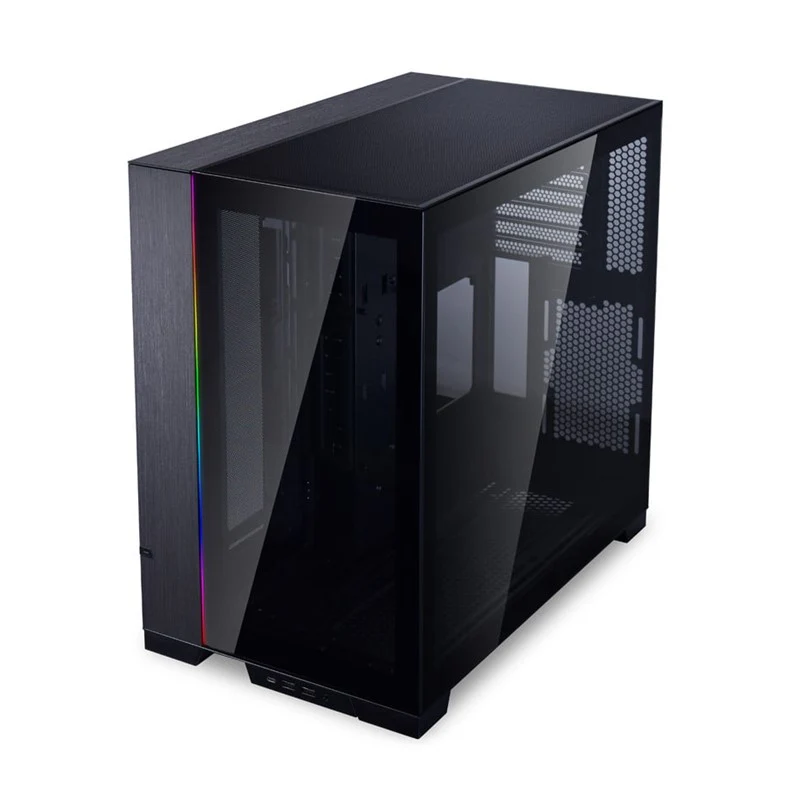

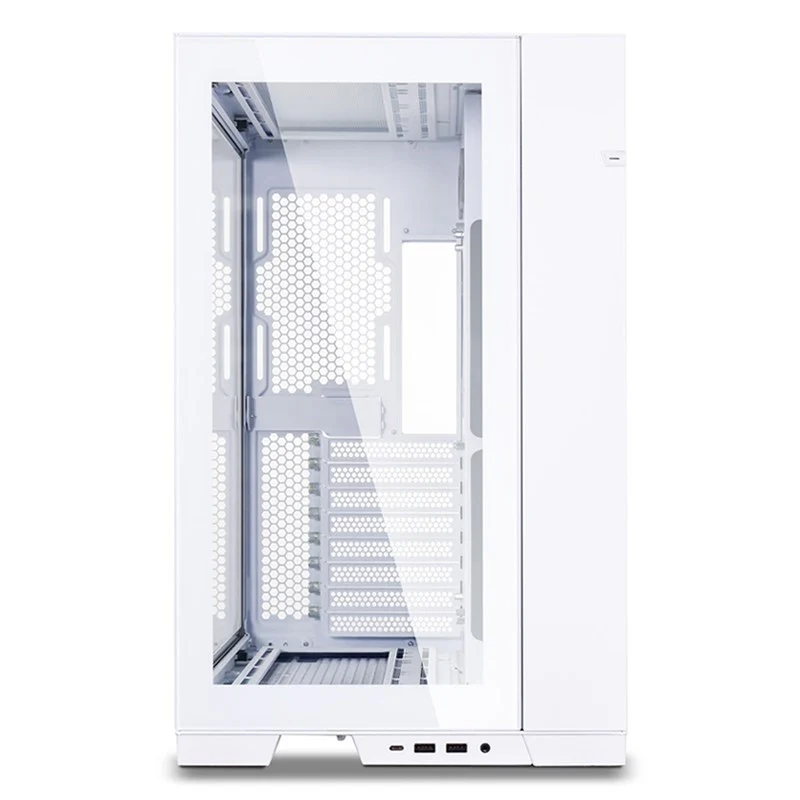

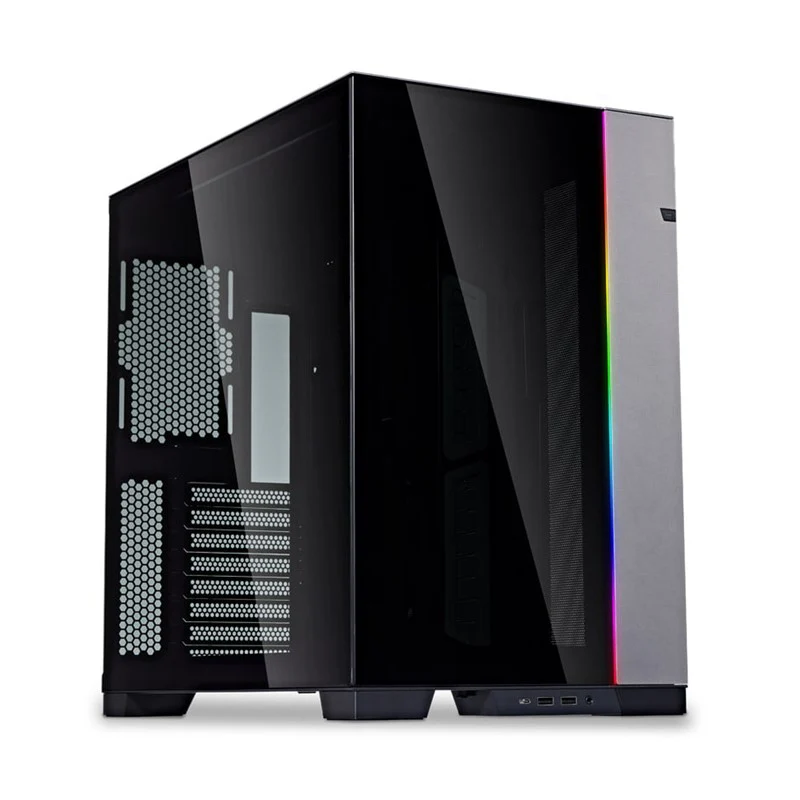

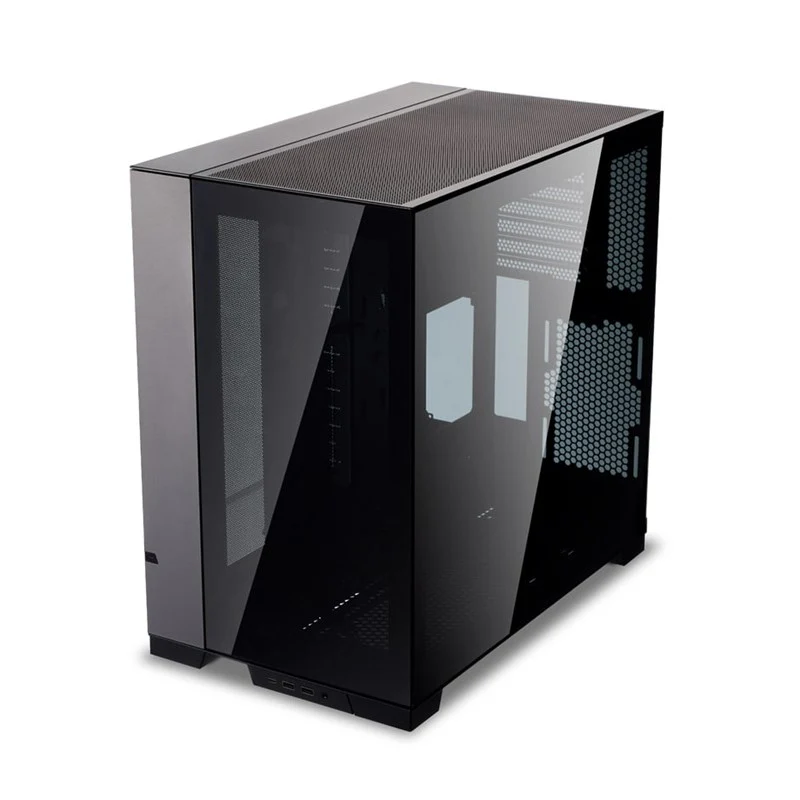

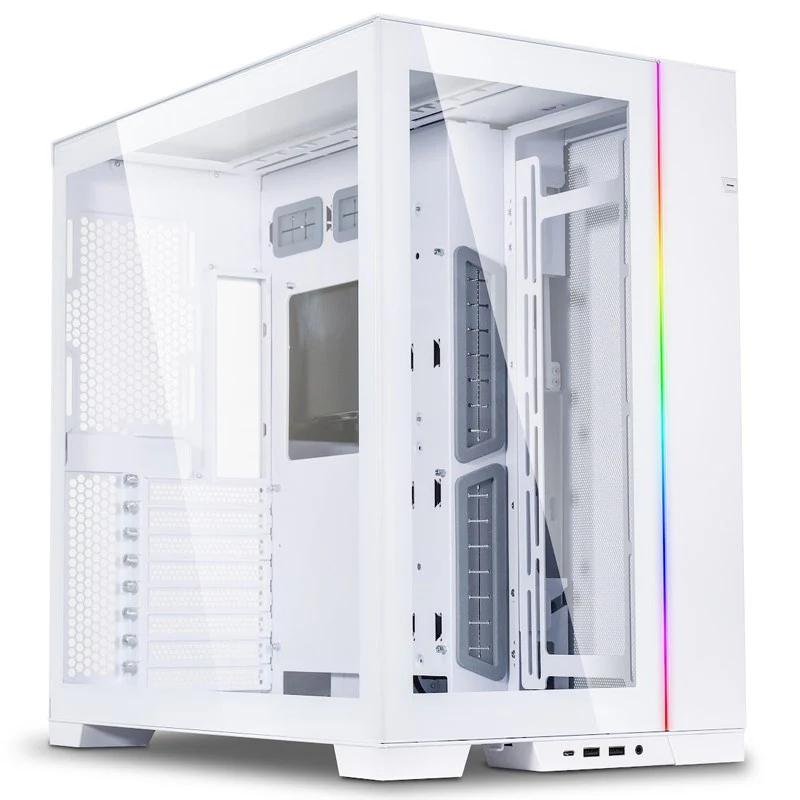

With only a few steps, the Lian Li O11 Dynamic EVO White can be flipped in reverse mode to experience a seamless front and side tempered glass showroom view on the right side of the chassis

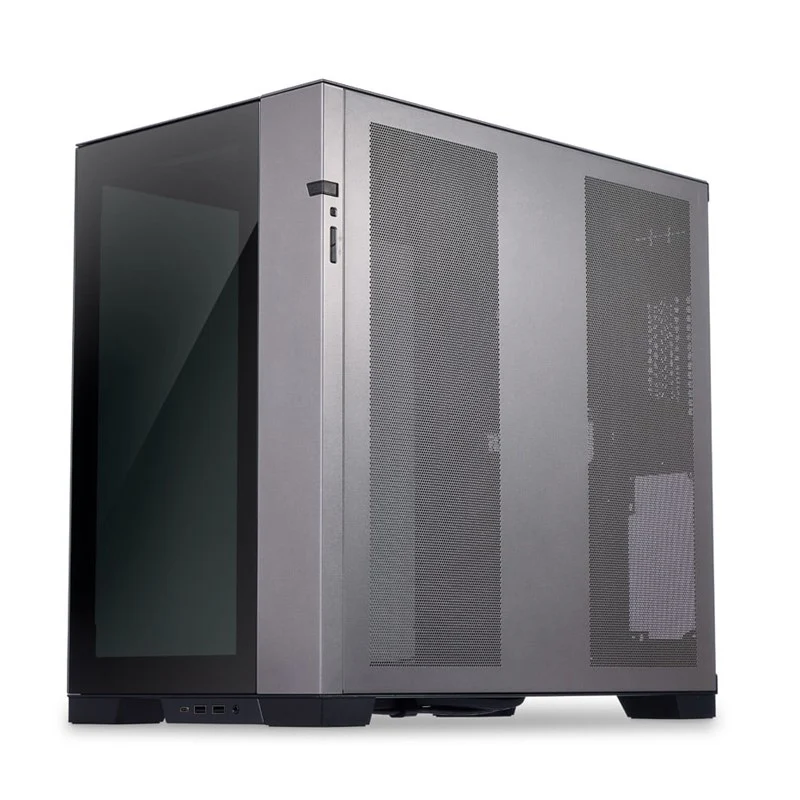

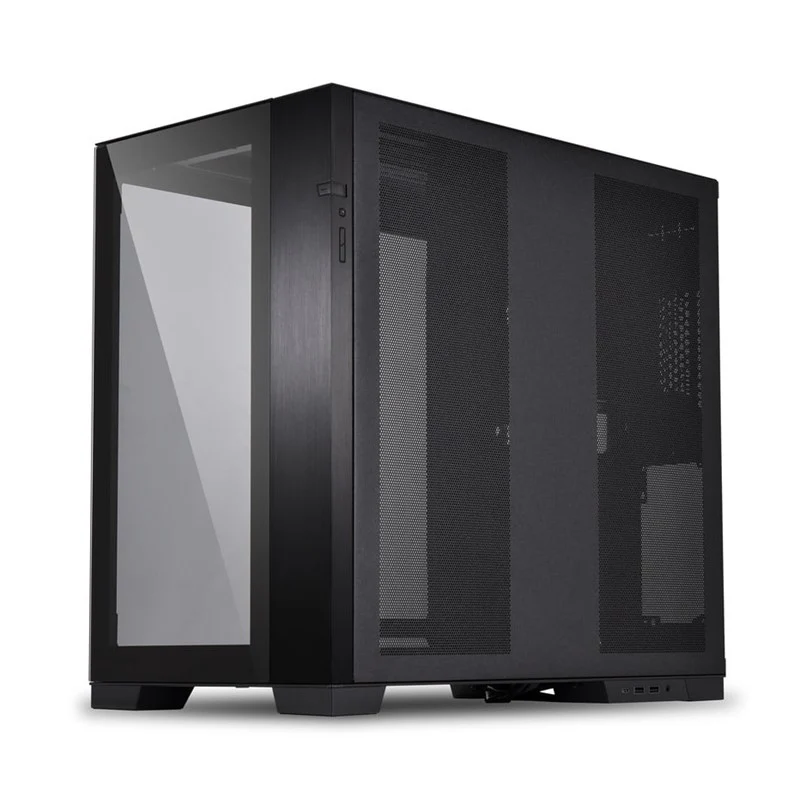

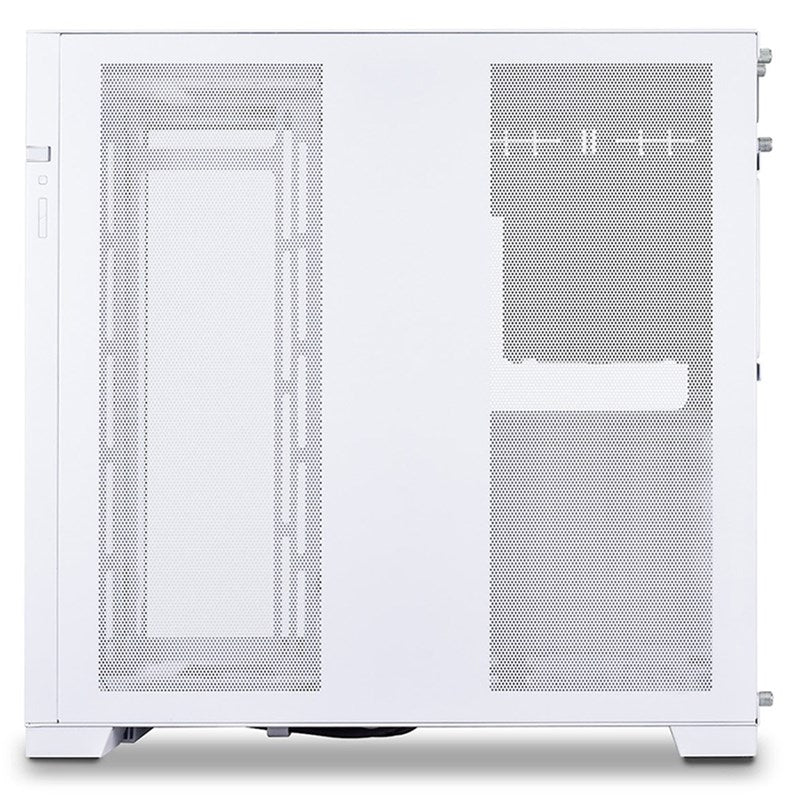

Following the style of the O11 Dynamic series, the aluminum panels feature an updated fine mesh which provides an optimal ratio of airflow and dust filtering.

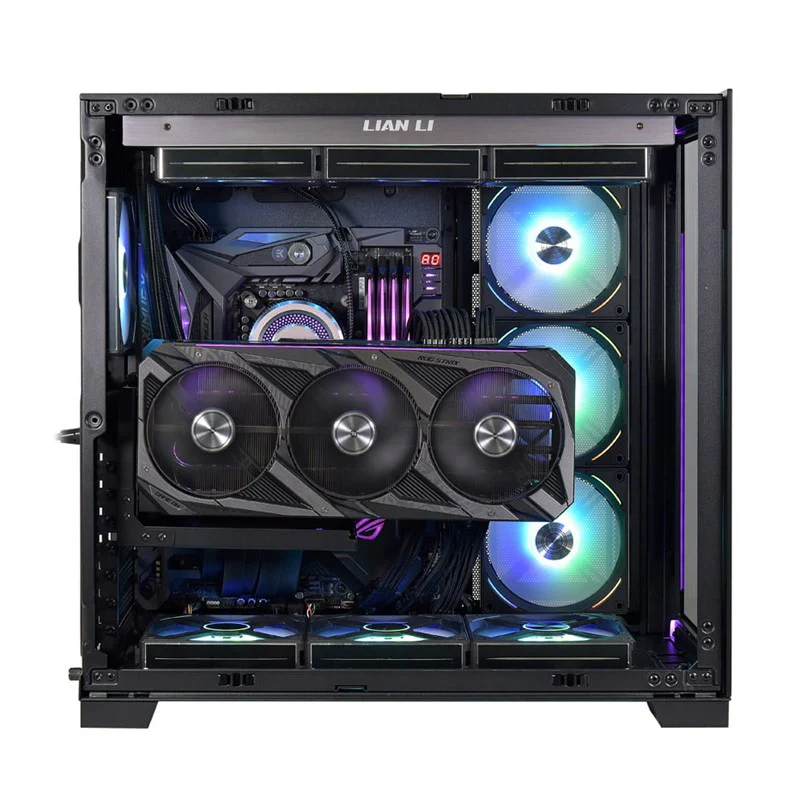

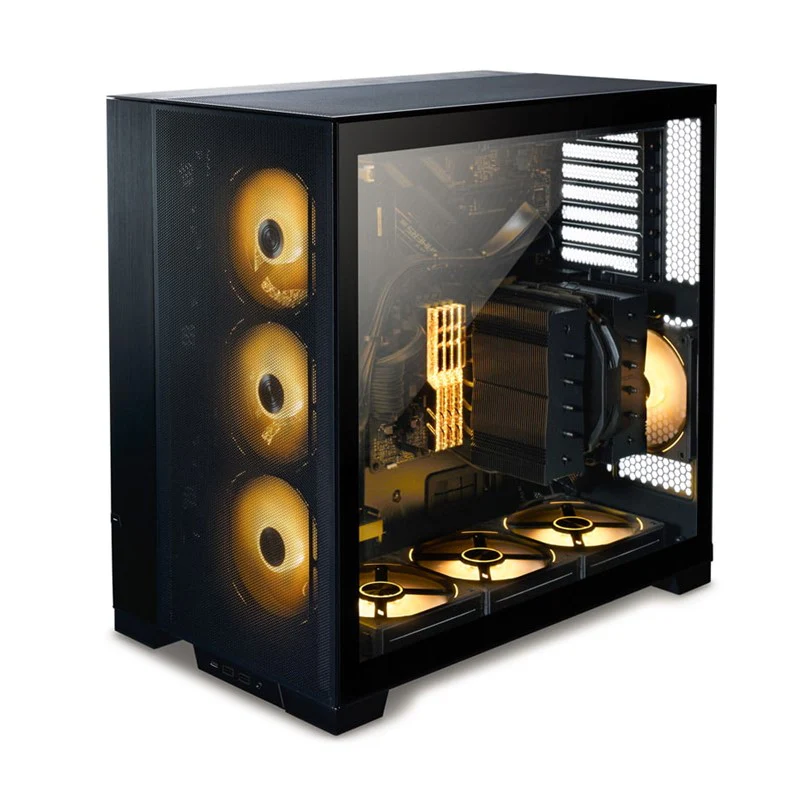

The Lian Li O11 Dynamic EVO White features sufficient space to accommodate 3x 360mm radiators, and up to 10 fans.

Multiple easily accessible storage mounting points are provided to support up to 9x SSDs or 6x HDDs + 3x SSDs.

The Lian Li O11 Dynamic EVO White keeps the front panel as clean as possible with a multi-directional power button that can be pressed from both the front and the side of the chassis.

The front panel LED strip features 7 built-in lighting effects which can be controlled via the M button.

An 8th mode is available to enable motherboard software synchronization or L-Connect control.

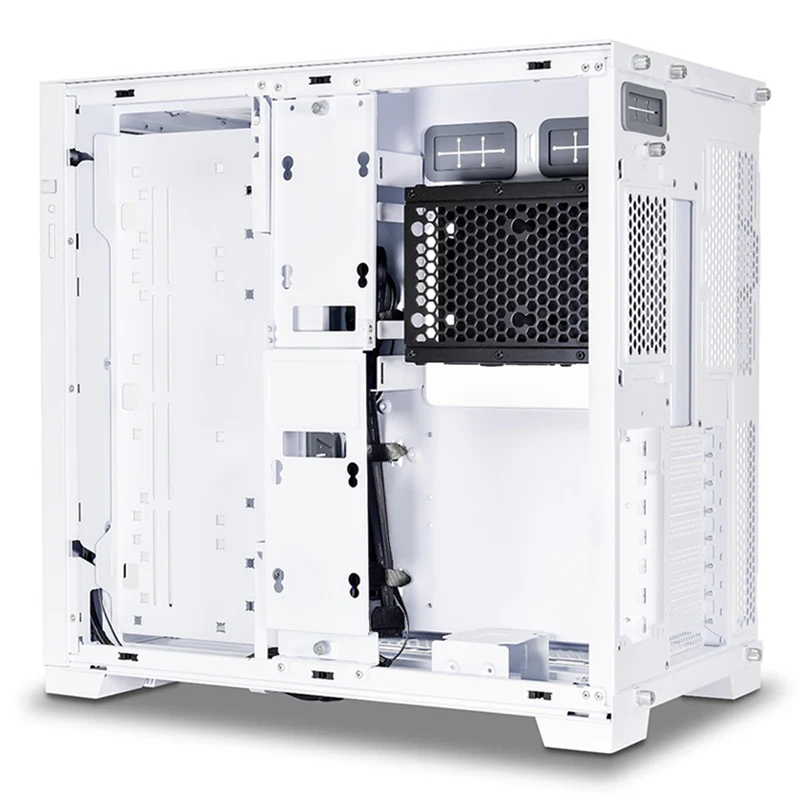

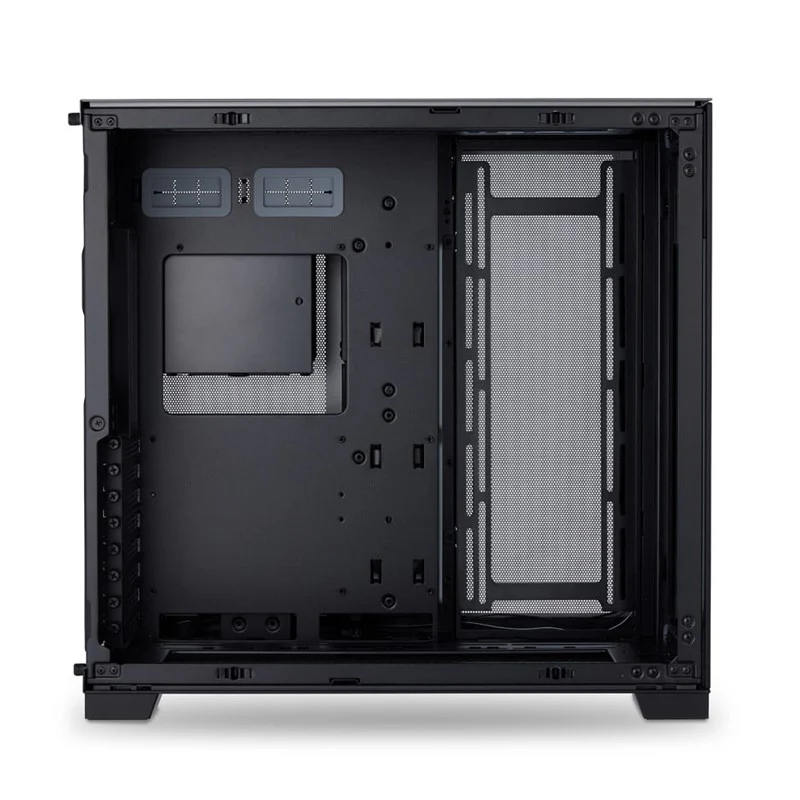

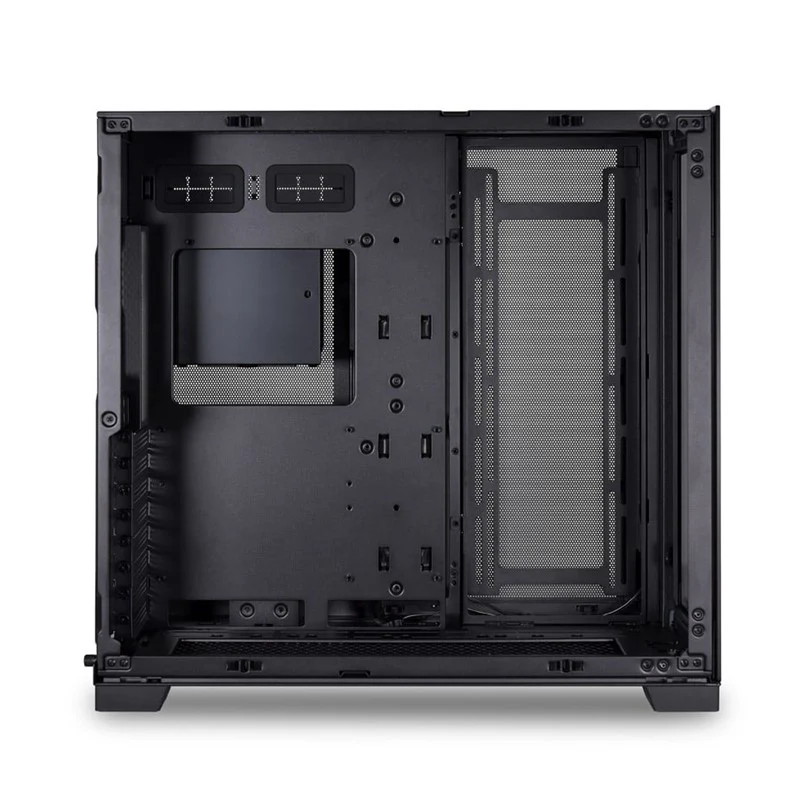

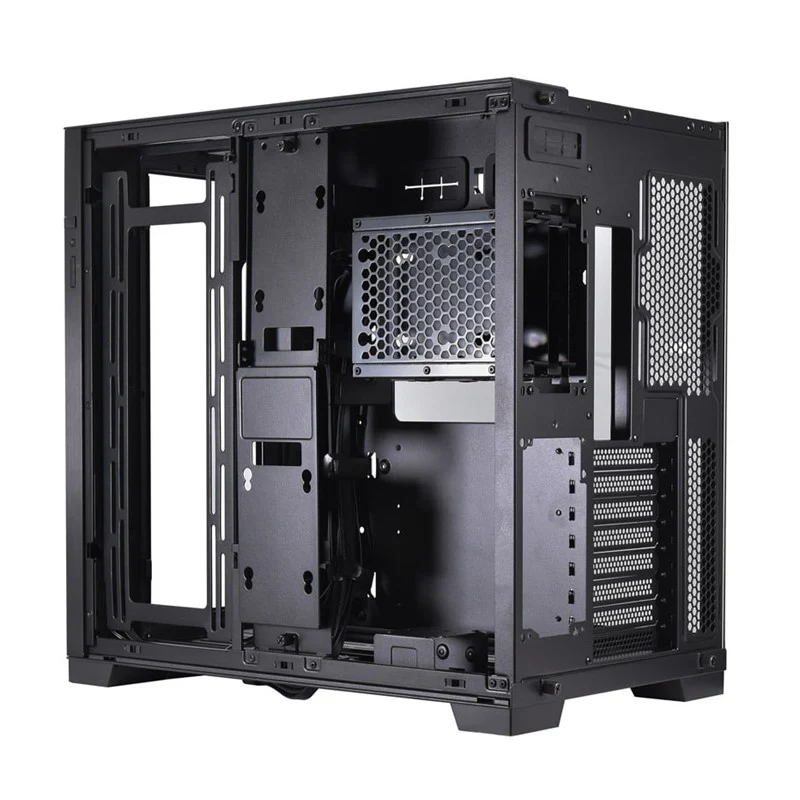

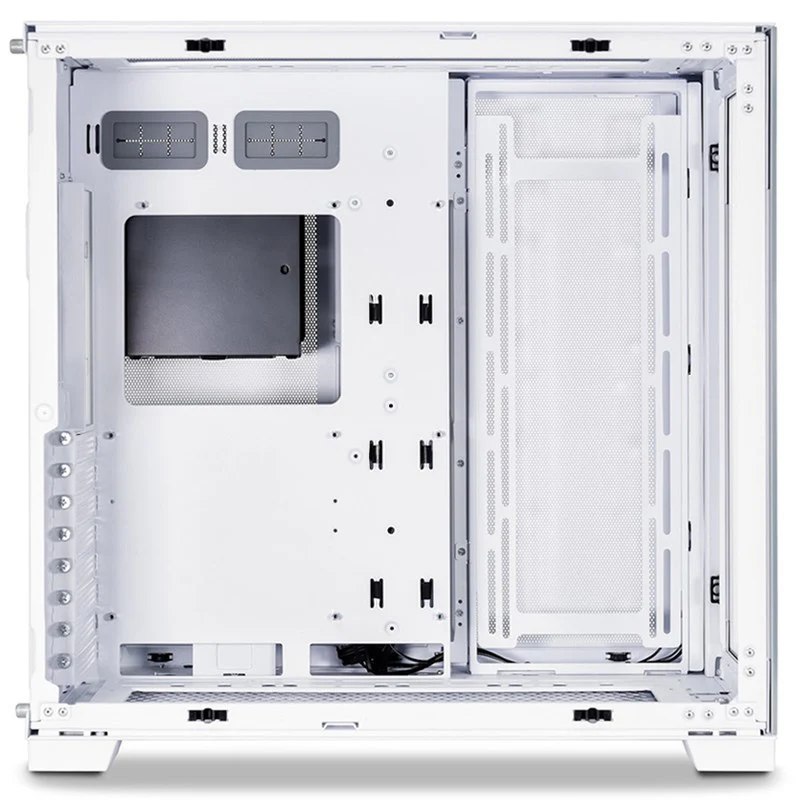

The Lian Li O11 Dynamic EVO White optimizes the user’s ability to cable manage their system with a dual-chamber design and a removable bracket.

The GPU anti-sag bracket is included for displaying hardware through the seamless front and side tempered glass panels.

Brand

Lian Li

Color

Silver

Material

Steel (interior), aluminum, tempered glass

Fans possible in total

Top: 3x 120 / 2x 140 mm

Side: 3x 120 / 2x 140 mm

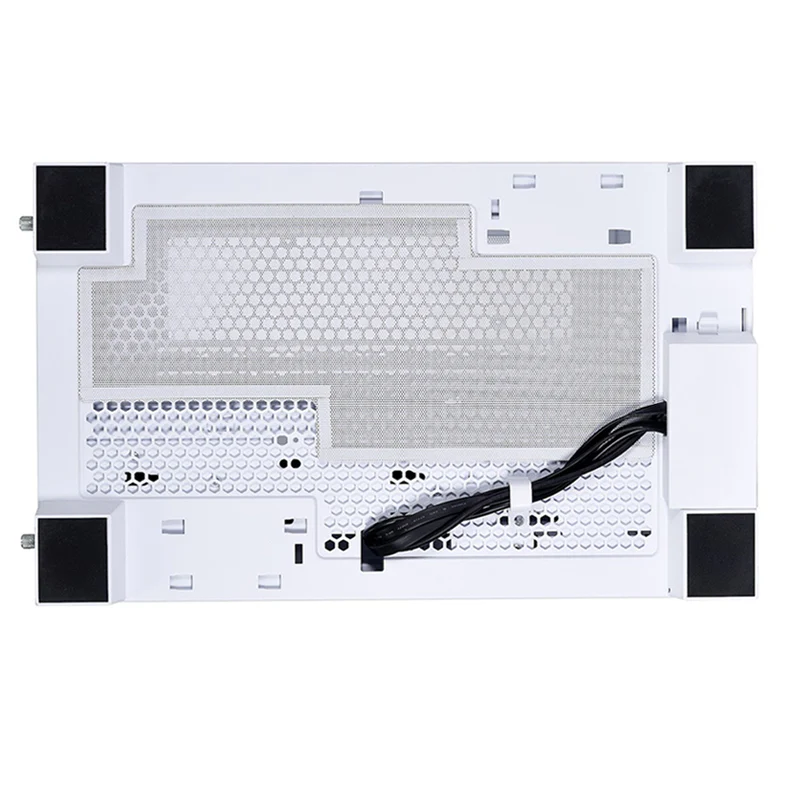

Bottom: 3x 120 / 2x 140 mm

Rear: 1x 120 mm

HDD-Cage: 1x 60 mm

Form factor

E-ATX, ATX, Micro-ATX, Mini-ITX

Dimensions

285 x 459 x 465 mm (W x H x D)

Weight

12.7 kg

Drive bays

Bottom: 4x 2.5" or 2x 3.5"

Side: 4x 2.5" or 2x 3.5"

HDD-Cage: 2x 2.5"/3.5" + 1x 2.5"

Cable management tray: 2x 2.5"

Power supply

2x ATX (optional)

I/O-Panel

1x USB 3.1 Typ C (internal connection)

2x USB 3.0 Typ-A (internal connection)

1x 3.5 mm jack (4-pole, TRRS)

1x LED button (colour)

1x LED button (effect)

1x Reset button

On / Off switch

Maximum graphics card length

422 mm

Maximum CPU cooler height

167 mm

Maximum radiator thickness (top)

83.5 mm

Maximum radiator thickness (side)

120-mm-fans: 83 mm (Push-Pull)

140-mm-fans: 63 mm (Push-Pull)

RGB control

Connector for Lian Li UNI HUB incl. adapter to 3-pin ARGB (5V)
