MSI PRO B650M-B AM5 DDR5 mATX Gaming Motherboard

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

MSI PRO B650M-B AM5 DDR5 mATX Gaming Motherboard

MSI PRO B650M-B AM5 DDR5 mATX Gaming Motherboard

Chipset Heatsink

The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

LIGHTNING GEN 4 PCI-E

MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64 GB/s that has doubled compared to its previous generation.

REINFORCED, HEAVY SOLDERED CONNECTIONS

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Specifications

Chipset

AMD B650

CPU

Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors



Socket AM5

Memory

2x DDR5, Maximum Memory Capacity 128GB



Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz



Max. overclocking frequency:



 1DPC 1R Max speed up to 6800+ MHz



1DPC 2R Max speed up to 6000+ MHz



Supports Dual-Channel mode



Supports non-ECC, un-buffered memory



Supports AMD EXPO

Onboard Graphics

1x HDMI



Support HDMITM 2.1, maximum resolution of 4K 60Hz



1x VGA



Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz



Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

1x PCI-E x16 slot



Supports x16 (For Ryzen 9000/ 7000 Series processors)



Supports x8 (For Ryzen 8700/ 8600/ 8400 Series processors)



Supports x4 (For Ryzen 8500/ 8300 Series processors)



1x PCI-E x1 slot



PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)



PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Audio

Realtek ALC897 Codec



7.1-Channel High Definition Audio

Storage

1x M.2



M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices



4x SATA 6G

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

USB

2x USB 2.0 (Rear)



4x USB 2.0 (Front)



4x USB 5Gbps Type A (Rear)



2x USB 5Gbps Type A (Front)

LAN

Realtek RTL8125BG 2.5G LAN

Internal IO

1x Power Connector(ATX_PWR)



1x Power Connector(CPU_PWR)



1x CPU Fan



2x System Fan



2x Front Panel (JFP)



1x Chassis Intrusion (JCI)



1x Front Audio (JAUD)



1x Com Port (JCOM)



1x Addressable V2 RGB LED connector (JARGB_V2)



1x RGB LED connector(JRGB)



1x TPM pin header(Support TPM 2.0)



4x USB 2.0 ports



2x USB 5Gbps Type A ports

LED FEATURE

4x EZ Debug LED

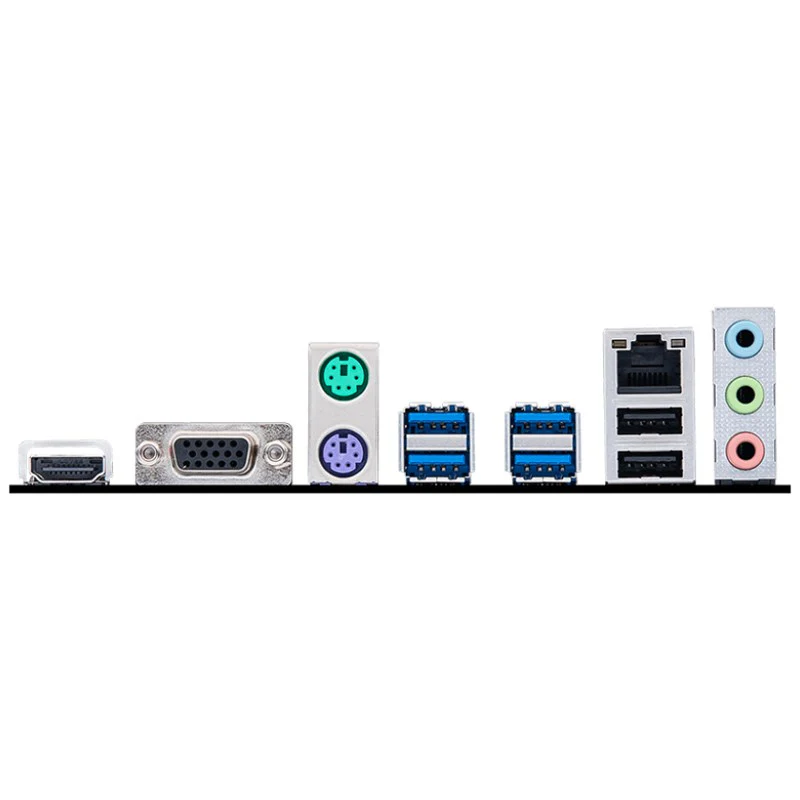

BACK PANEL PORTS

HDMI



VGA



Keyboard/Mouse



USB 3.2 Gen 1 5Gbps (Type-A)



LAN port



Audio connectors



USB 2.0

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit

PCB Info

mATX



215mmx243.84mm
$119.70
MSI PRO B650M-B AM5 DDR5 mATX Gaming Motherboard—
$119.70
