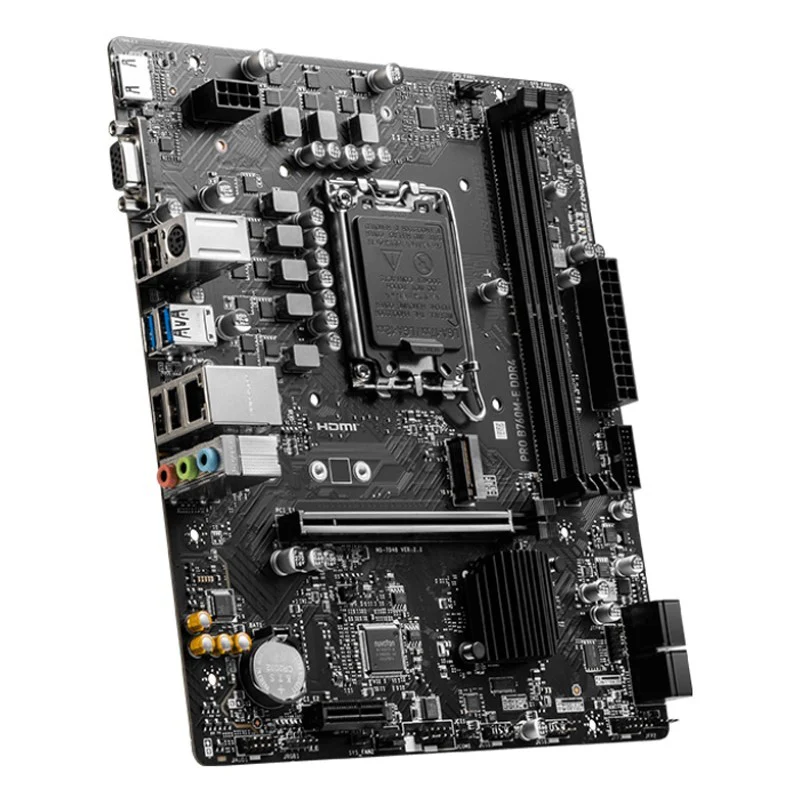

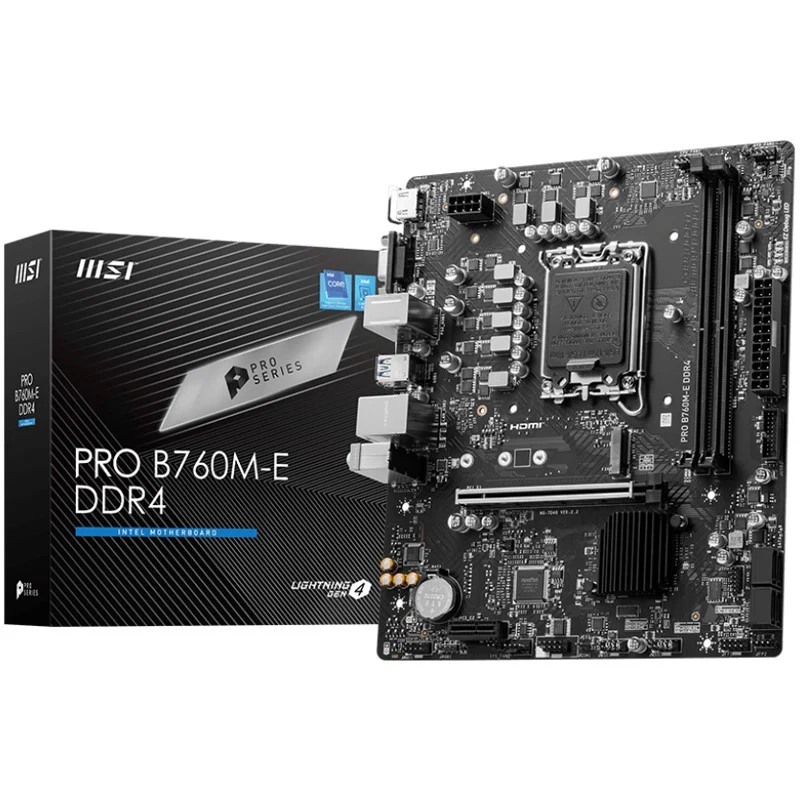

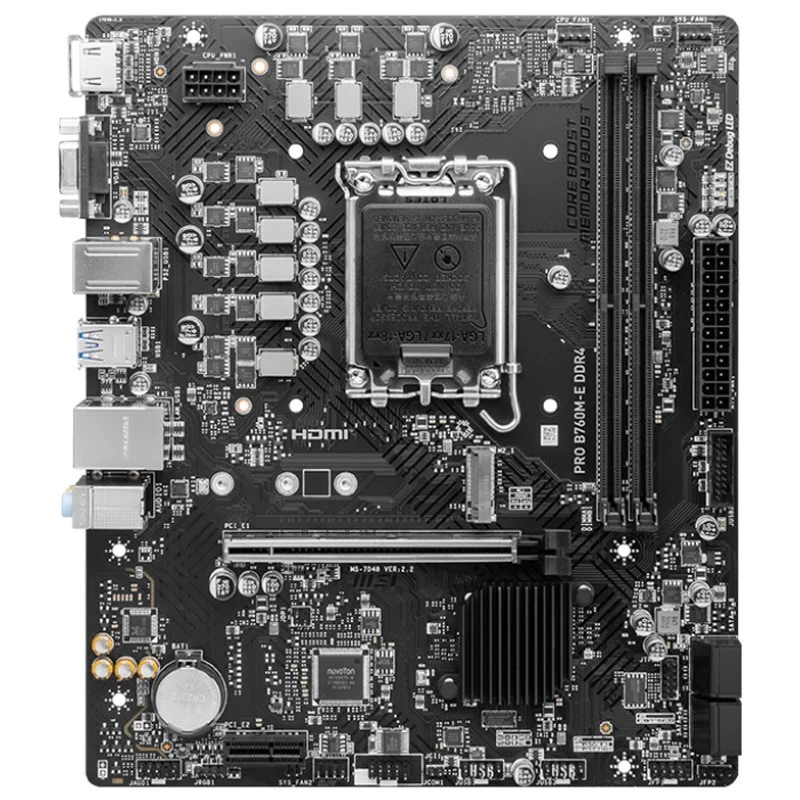

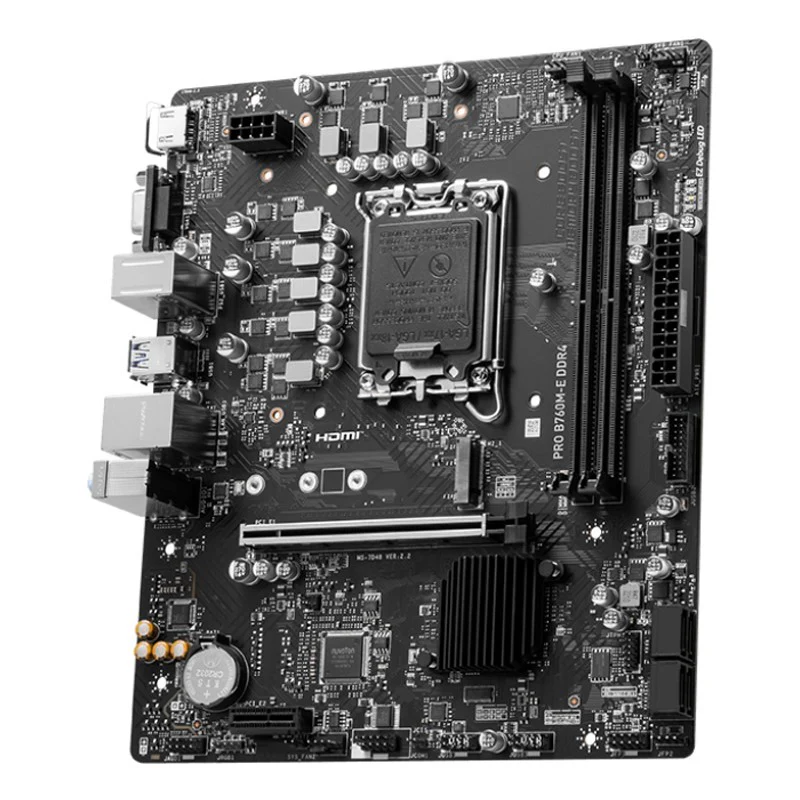

MSI PRO B760M-E DDR4 M-ATX Gaming Motherboard

MSI PRO B760M-E DDR4 M-ATX Gaming Motherboard

Name: MSI PRO B760M-E DDR4 M-ATX Gaming Motherboard
Brand: Blink
SKU: msi-pro-b760m-e-ddr4-m-atx-gaming-mother-board
Availability: InStock

The mATX Motherboard provides stable and reliable performance for professional use. It features the Intel B760 chipset and supports 12th/13th Gen Intel Core processors. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

With Core Boost technology, this motherboard ensures stable and efficient power delivery to your CPU. It provides an optimised power design ensuring your CPU gets the power it needs to perform at its best. Additionally, the Steel Armor protects VGA cards against bending and EMI for better performance, stability and strength.

The Frozr AI Cooling detects CPU & GPU temperatures and automatically adjusts fan duty of system fans to a proper value by adopting MSI AI Engine. With a simplified graphical interface, it also lets you manage speeds and temperatures for all your system and CPU fans in BIOS and software.

This motherboard features a Mystic Light Extension pin header that intuitively controls additional RGB strips and other RGB peripherals added to a system without needing a separate RGB controller. It creates an immersive working environment by syncing with other compatible devices.

Specifications:

Chipset	INTEL B760
CPU Support	Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
	LGA 1700
Memory	2x DDR4, Maximum Memory Capacity 64GB
	Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
	Max. overclocking frequency:
	• 1DPC 1R Max speed up to 4800+ MHz
	• 1DPC 2R Max speed up to 4600+ MHz
	Supports Dual-Channel mode
	Supports non-ECC, un-buffered memory
	Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics	1x HDMI™
	Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
	1x VGA
	Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slot	1x PCI-E x16 slot
	1x PCI-E x1 slot
	PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
	PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
Storage	1x M.2
	M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
	4x SATA 6G
	* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
Raid	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	4x USB 2.0 (Rear)
	4x USB 2.0 (Front)
	2x USB 3.2 Gen1 Type A (Rear)
	2x USB 3.2 Gen1 Type A (Front)
LAN	Realtek® RTL8111H Gigabit LAN
Audio	Realtek® ALC897 Codec
	7.1-Channel High Definition Audio
Internal I/O	1x Power Connector(ATX_PWR)
	1x Power Connector(CPU_PWR)
	1x CPU Fan
	2x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Com Port (JCOM)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	2x USB 2.0 ports
	1x USB 3.2 Gen1 Type A ports
LED Feature	4x EZ Debug LED

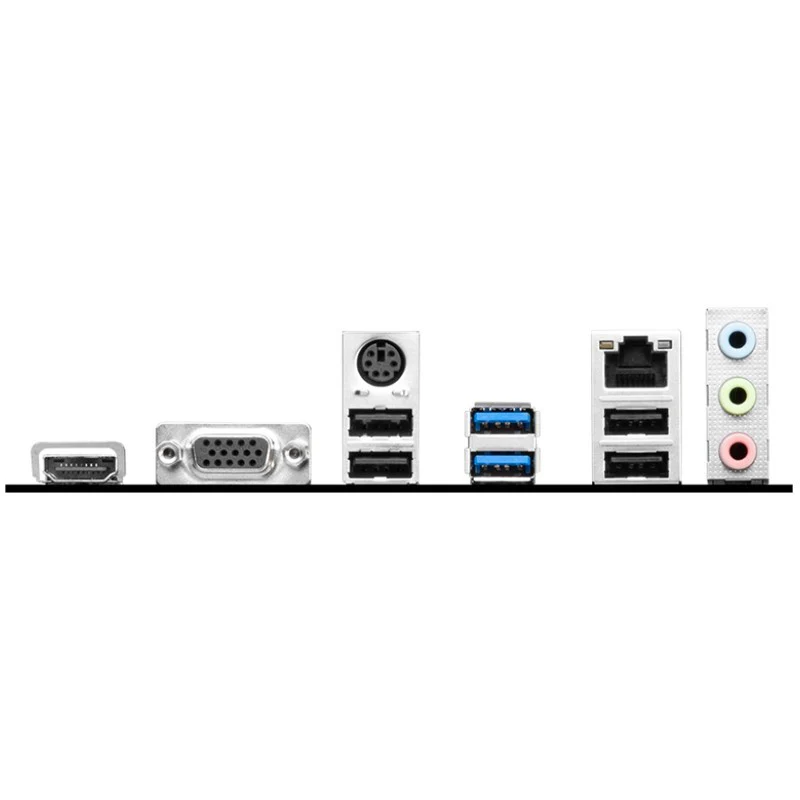

Back Panel Ports	HDMI™
	VGA
	Keyboard / Mouse
	USB 3.2 Gen 1 5Gbps (Type-A)
	LAN port
	Audio Connectors
	USB 2.0
	USB 2.0
Operating System	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension	mATX
	200mmx236.16mm
