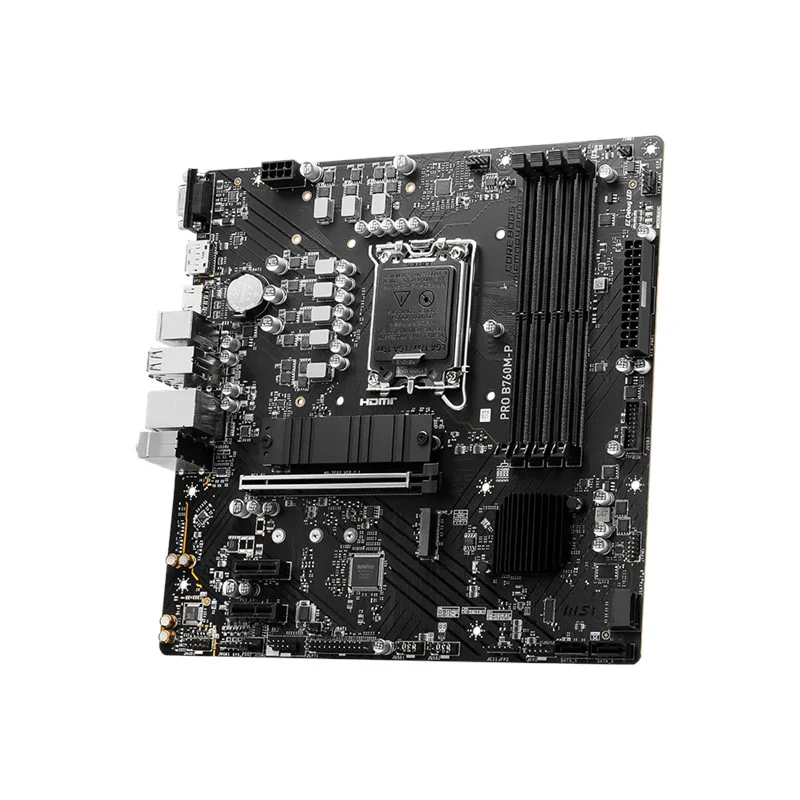

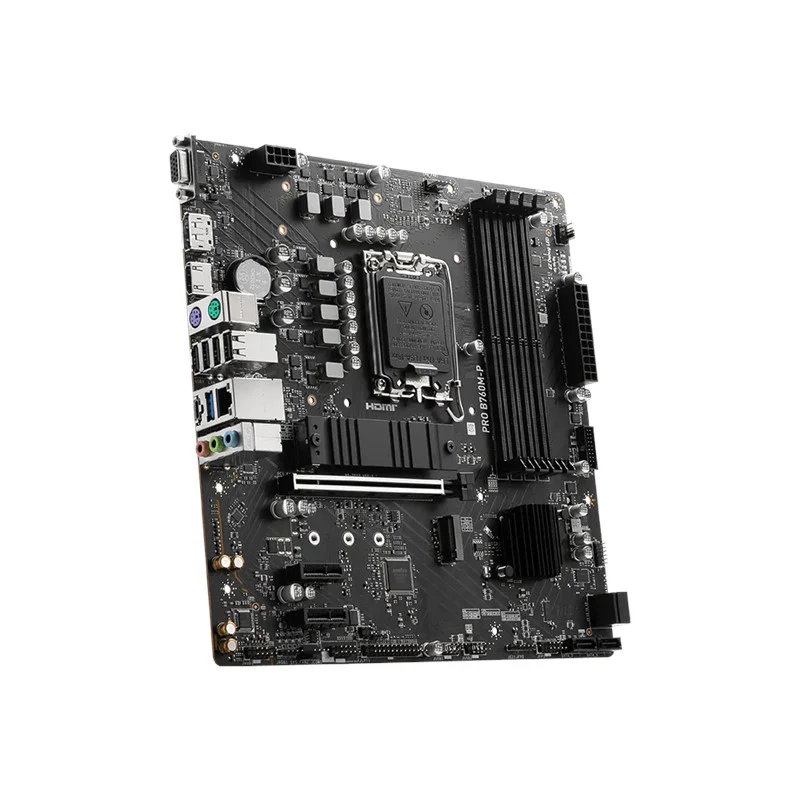

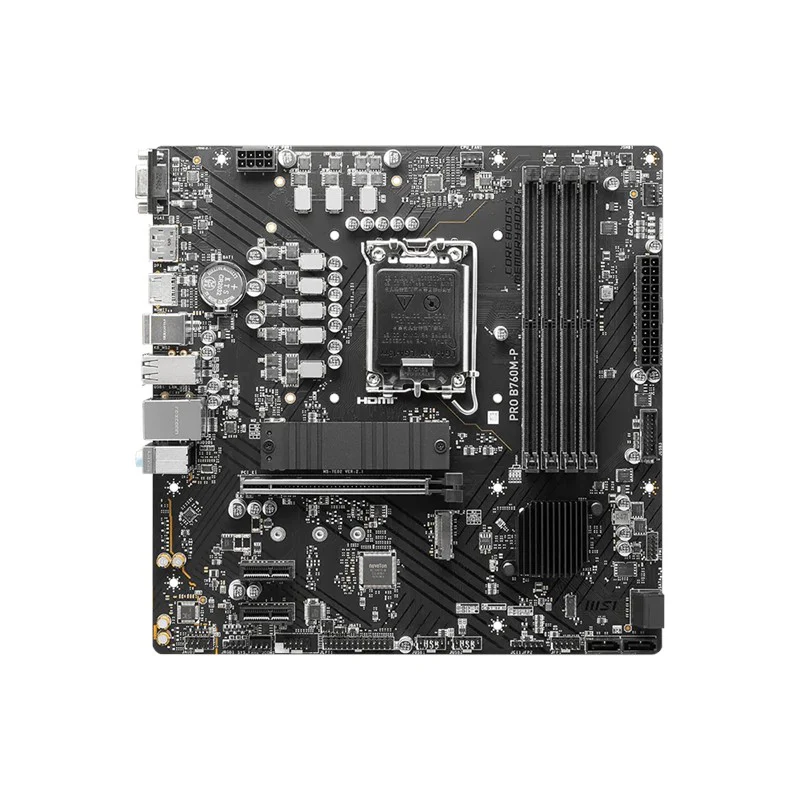

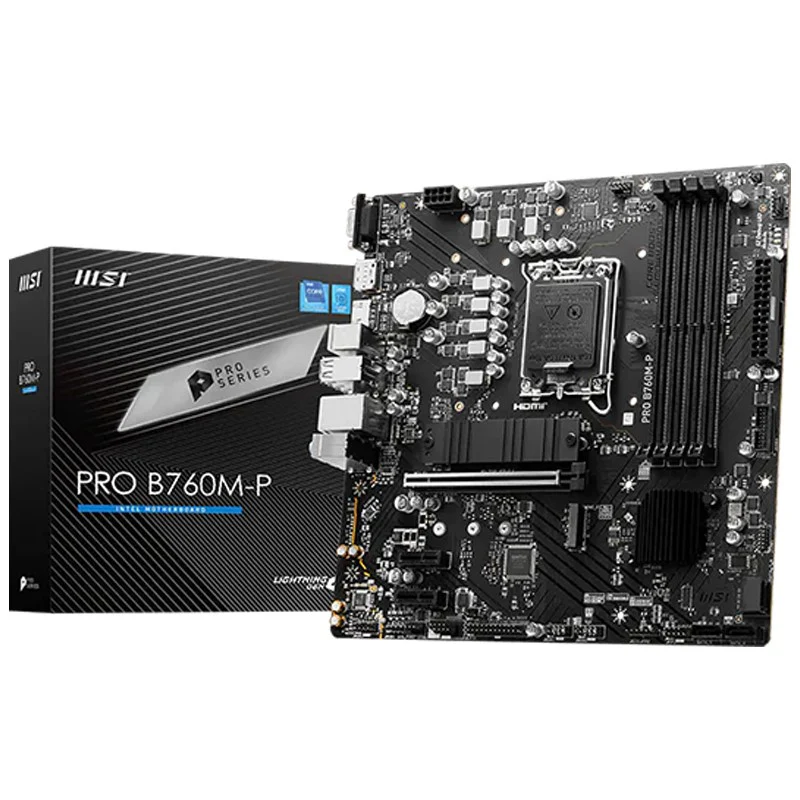

MSI PRO B760M-P DDR5 M-ATX Gaming Motherboard

MSI PRO B760M-P DDR5 M-ATX  Gaming Motherboard

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket

Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)

Core Boost : With premium layout and digital power design to support more cores and provide better performance

Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr

AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

What are the benefits of MSI Gaming Motherboard ?

• Supports Intel Core 14th, 13th, 12th Gen, Pentium Gold, and Celeron CPUs (LGA 1700)

• DDR5 dual-channel memory support up to 6800+ MHz (OC)

• Core Boost power design for better CPU performance and stability

• Memory Boost for improved signal quality, compatibility, and reliability

• PCIe 4.0 and Lightning Gen4 x4 M.2 for ultra-fast storage and data speeds

• M.2 Shield Frozr for enhanced SSD cooling and performance

• Audio Boost for immersive, studio-grade sound quality

• Steel Armor reinforcement to protect GPU from bending and interference

Chipset

INTEL B760

CPU

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors

LGA 1700

Onboard Graphics

1x HDMI

Support HDMI 1.4, maximum resolution of 4K 30Hz

1x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz

1x VGA

Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

Slot

1x PCI-E x16 slot

2x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)

Audio

Realtek ALC897 Codec

7.1-Channel High Definition Audio

Storage

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

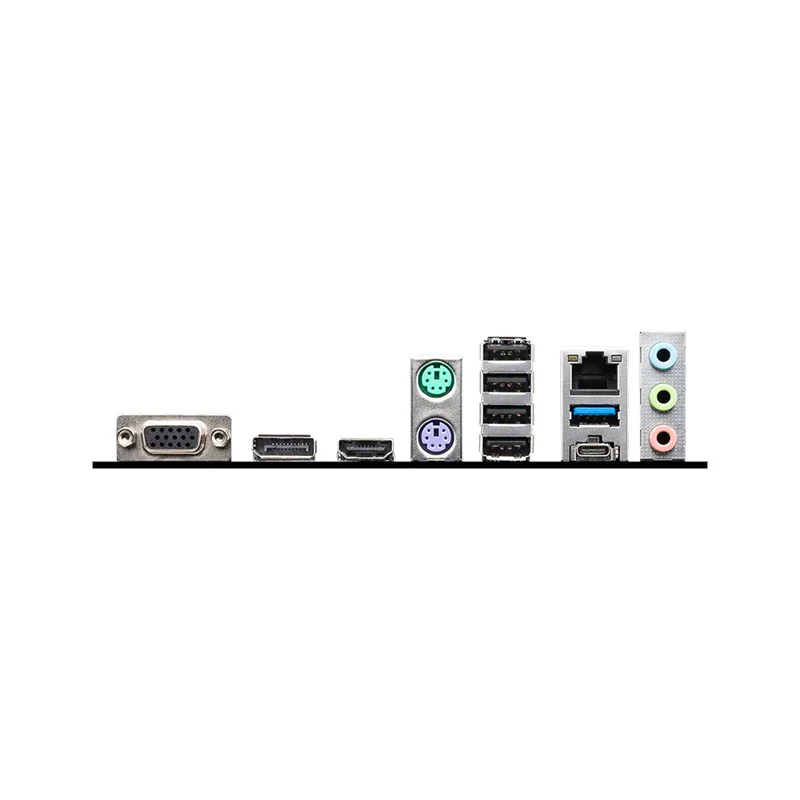

USB

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

1x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

1x USB 10Gbps Type C (Rear)

LAN

Realtek RTL8111H Gigabit LAN

Internal IO

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Printer Port (JLPT)

1x Com Port (JCOM)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

Operating System

Support for Windows 11 64-bit, Windows 10 64-bit

PCB Info

mATX

243.84mmx243.84mm
