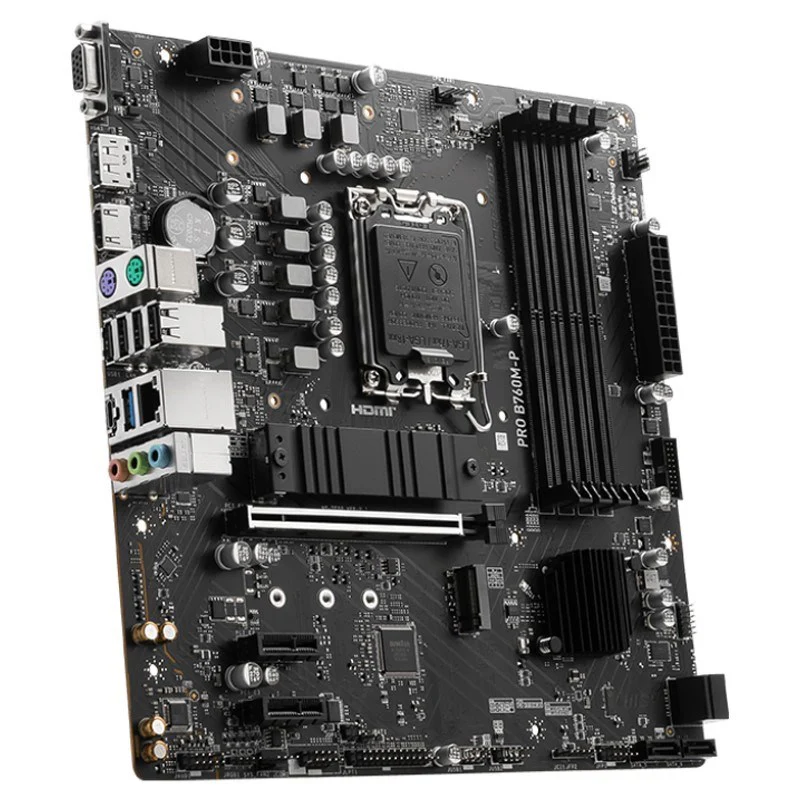

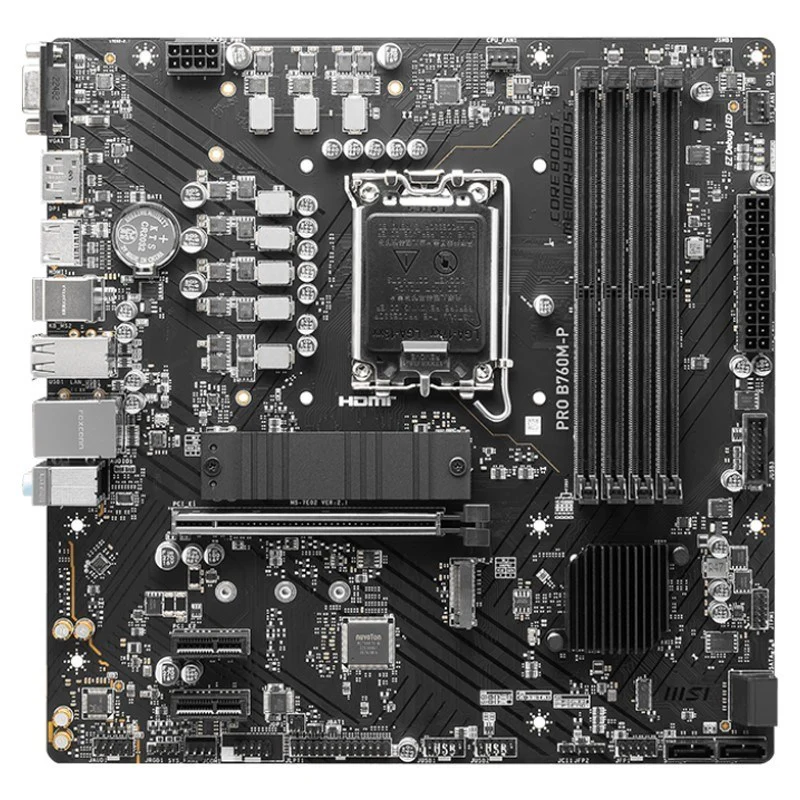

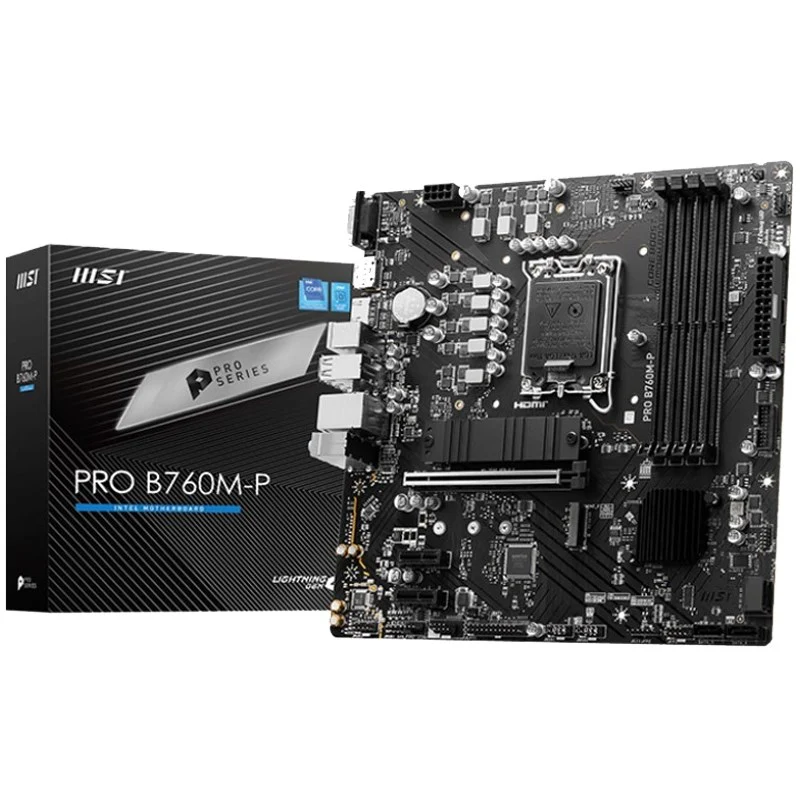

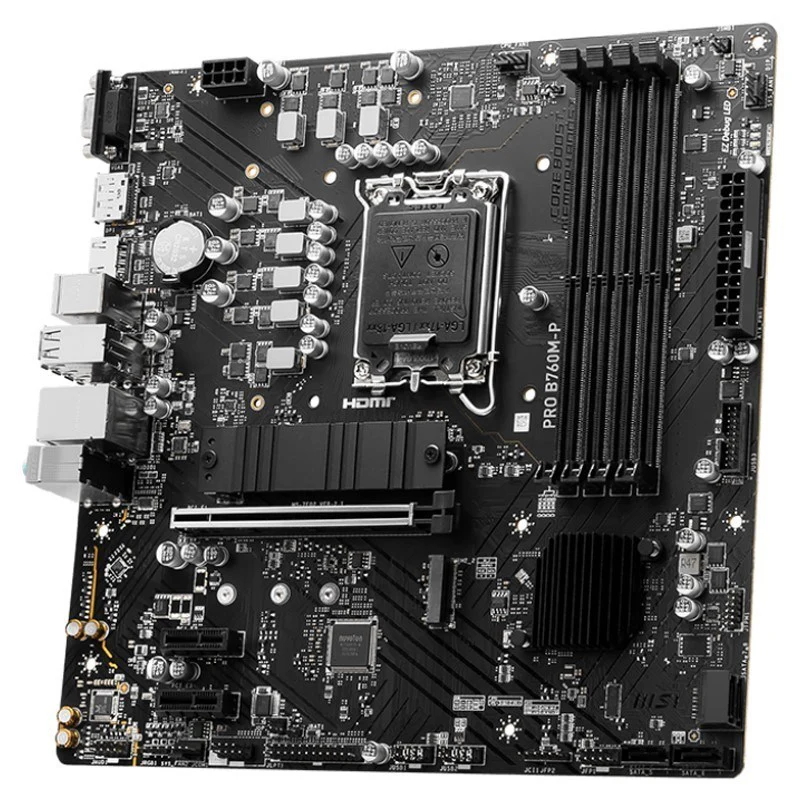

MSI PRO B760M-P mATX Gaming Motherboard

MSI PRO B760M-P mATX Gaming Motherboard

Name: MSI PRO B760M-P mATX Gaming Motherboard
Brand: Blink
SKU: msi-pro-b760m-p-matx-gaming-motherboard
Availability: InStock

MSI PRO B760M-P DDR5 M-ATX Gaming Mother Board

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket. Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC). With premium layout and digital power design to support more cores and provide better performance.

Advanced technology to deliver pure data signals for the best performance, stability and compatibility. PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr. Reward your ears with studio grade sound quality for the most immersive gaming experience, Protecting VGA cards against bending and EMI for better performance, stability and strength.

Specifications:

Chipset	INTEL B760
CPU Support	Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
	LGA 1700
Memory	4x DDR5, Maximum Memory Capacity 192GB
	Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
	Max. overclocking frequency:
	• 1DPC 1R Max speed up to 6800+ MHz
	• 1DPC 2R Max speed up to 6400+ MHz
	• 2DPC 1R Max speed up to 6000+ MHz
	• 2DPC 2R Max speed up to 5600+ MHz
	Supports Intel® XMP 3.0 OC
	Supports Dual-Controller Dual-Channel mode
	Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI™
	Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
	1x DisplayPort
	Support DP 1.4, maximum resolution of 4K 60Hz*
	1x VGA
	Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slot	1x PCI-E x16 slot
	2x PCI-E x1 slot
	PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
	PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Storage	2x M.2
	M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
	M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
	4x SATA 6G
	* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
Raid	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	4x USB 2.0 (Rear)
	4x USB 2.0 (Front)
	1x USB 3.2 Gen1 Type A (Rear)
	2x USB 3.2 Gen1 Type A (Front)
	1x USB 3.2 Gen2 Type C (Rear)
	Realtek® RTL8111H Gigabit LAN
Audio	Realtek® ALC897 Codec
	7.1-Channel High Definition Audio
Internal I/O	1x Power Connector(ATX_PWR)
	1x Power Connector(CPU_PWR)
	1x CPU Fan
	2x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Printer Port (JLPT)
	1x Com Port (JCOM)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	2x USB 3.2 Gen1 Type A ports
LED Feature	4x EZ Debug LED

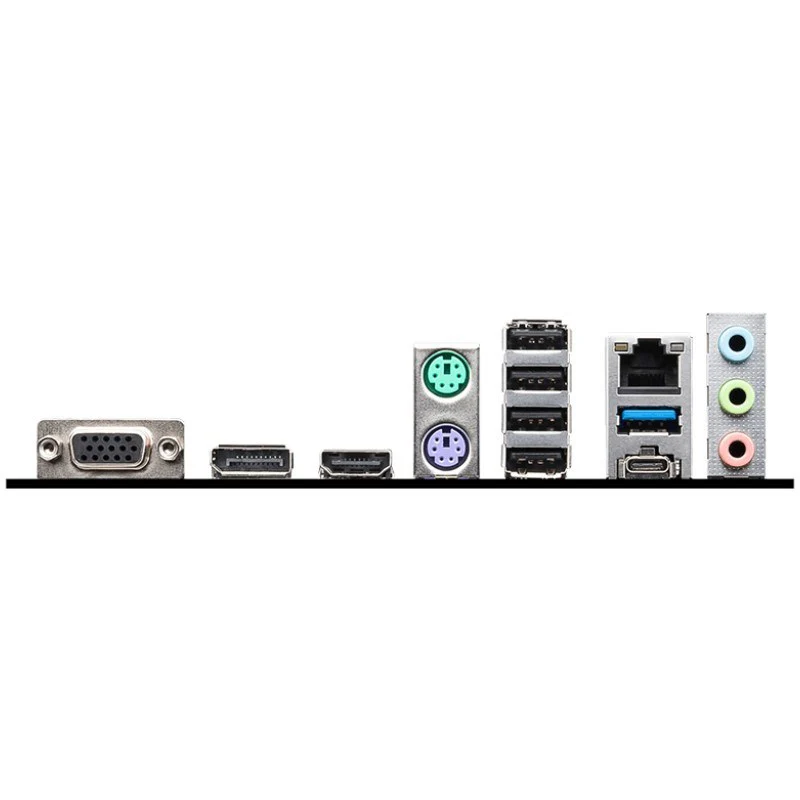

Back Panel Ports	VGA
	DisplayPort
	HDMI™
	Keyboard / Mouse
	USB 2.0
	LAN port
	Audio Connectors
	USB 3.2 Gen 1 5Gbps (Type-A)
	USB 3.2 Gen 2 10Gbps (Type-C)
Operating System	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension (W × L)	mATX
	243.84mmx243.84mm

$44.16

Original: $126.17

-65%

MSI PRO B760M-P mATX Gaming Motherboard—

$126.17

$44.16

Original: $126.17

-65%

MSI PRO B760M-P mATX Gaming Motherboard—

$126.17

$44.16

Product Information

Shipping & Returns

Description

MSI PRO B760M-P DDR5 M-ATX Gaming Mother Board

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket. Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC). With premium layout and digital power design to support more cores and provide better performance.

Advanced technology to deliver pure data signals for the best performance, stability and compatibility. PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr. Reward your ears with studio grade sound quality for the most immersive gaming experience, Protecting VGA cards against bending and EMI for better performance, stability and strength.

Specifications:

Chipset	INTEL B760
CPU Support	Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
	LGA 1700
Memory	4x DDR5, Maximum Memory Capacity 192GB
	Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
	Max. overclocking frequency:
	• 1DPC 1R Max speed up to 6800+ MHz
	• 1DPC 2R Max speed up to 6400+ MHz
	• 2DPC 1R Max speed up to 6000+ MHz
	• 2DPC 2R Max speed up to 5600+ MHz
	Supports Intel® XMP 3.0 OC
	Supports Dual-Controller Dual-Channel mode
	Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI™
	Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
	1x DisplayPort
	Support DP 1.4, maximum resolution of 4K 60Hz*
	1x VGA
	Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slot	1x PCI-E x16 slot
	2x PCI-E x1 slot
	PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
	PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Storage	2x M.2
	M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
	M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
	4x SATA 6G
	* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
Raid	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	4x USB 2.0 (Rear)
	4x USB 2.0 (Front)
	1x USB 3.2 Gen1 Type A (Rear)
	2x USB 3.2 Gen1 Type A (Front)
	1x USB 3.2 Gen2 Type C (Rear)
	Realtek® RTL8111H Gigabit LAN
Audio	Realtek® ALC897 Codec
	7.1-Channel High Definition Audio
Internal I/O	1x Power Connector(ATX_PWR)
	1x Power Connector(CPU_PWR)
	1x CPU Fan
	2x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Printer Port (JLPT)
	1x Com Port (JCOM)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	2x USB 3.2 Gen1 Type A ports
LED Feature	4x EZ Debug LED
Back Panel Ports	VGA
	DisplayPort
	HDMI™
	Keyboard / Mouse
	USB 2.0
	LAN port
	Audio Connectors
	USB 3.2 Gen 1 5Gbps (Type-A)
	USB 3.2 Gen 2 10Gbps (Type-C)
Operating System	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension (W × L)	mATX
	243.84mmx243.84mm
