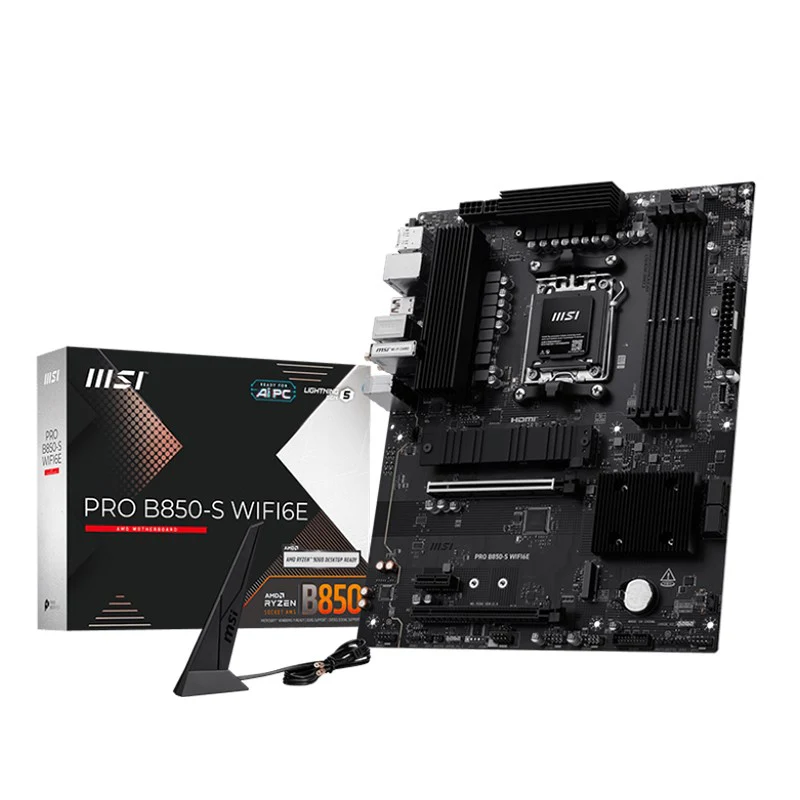

MSI PRO B850-S WIFI6E AMD AM5 ATX DDR5 Gaming Motherboard

MSI PRO B850-S WIFI6E AMD AM5 ATX DDR5 Gaming Motherboard

PRO B850-S

PRO B850-S WIFI6E offers a simple design with a harmonious color scheme that perfectly matches black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 6E with EZ Antenna, 2.5G LAN, and PCIe 5.0 M.2 with M.2 Shield Frozr, ready for the AMD Ryzen 9000 series processors.

BUSINESS ELEGANCE

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Ready for AI PC

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

12+2+1 DRPS POWER DESIGN

Unleash and sustain the maximum performance with a flagship VRM design built with a total of 12+2+1 digital power phases. With dual power connectors, PRO B850-S WIFI6E is ready for the challenge of high-end processors.

What are the benefits of MSI PRO B850-S Gaming Motherboard ?

Clean, professional design that matches black PC builds

Wi-Fi 6E with EZ Antenna for fast and reliable wireless connectivity

2.5G LAN for high-speed wired networking

PCIe 5.0 M.2 support with M.2 Shield Frozr for fast and well-cooled storage

Ready for AMD Ryzen 9000 series processors on the AM5 platform

High-quality performance tailored for productivity, multitasking, and efficiency

AI-ready hardware and software support for gaming and AI workloads

Simplified system control with AI features in MSI Center and BIOS

Chipset

AMD B850

CPU

Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

Socket AM5

Onboard Graphics

1x HDMI

Support HDMI 2.1, maximum resolution of 4K 60Hz

1x DisplayPort

Support DisplayPort 1.4, maximum resolution of 4K 60Hz

Slot

2x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 slot

Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors)

Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)

Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)

Audio

Realtek ALC897

7.1-Channel High Definition Audio

RAID

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

4x USB 2.0 (Front)

4x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

3x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Rear)

1x USB 10Gbps Type C (Front)

LAN

Realtek 8125 2.5G LAN

Internal IO

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Combo Fan (Pump_Sys Fan)

4x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x Tuning Controller connector(JDASH)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

1x USB 10Gbps Type C ports

LED FEATURE

4x EZ Debug LED

1x EZ Memory Detection LED

OPERATING SYSTEM

Support for Windows 11 64-bit

PCB Info

ATX

243.84mmx304.8mm
