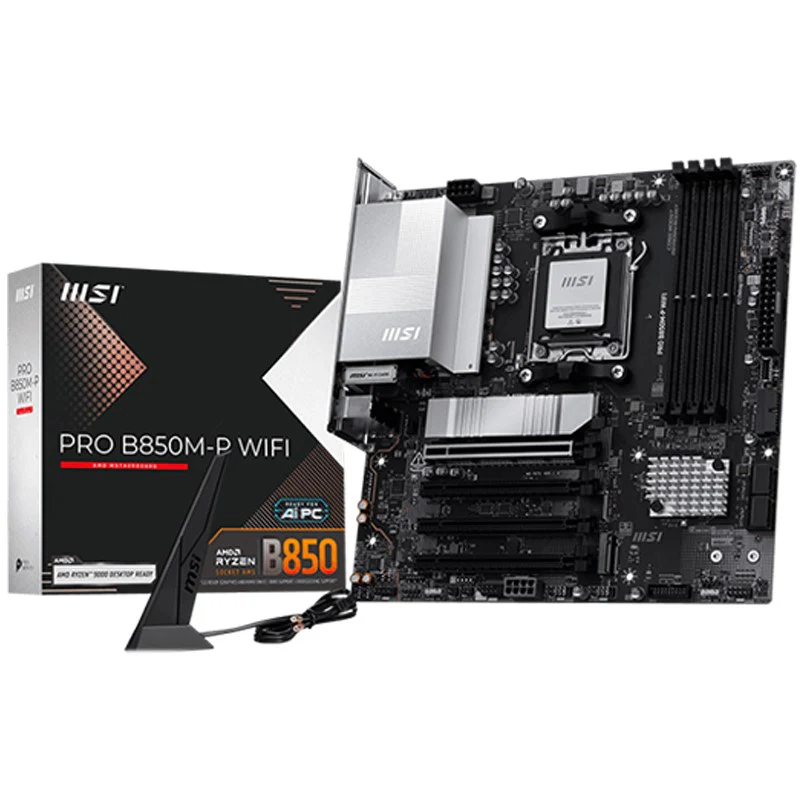

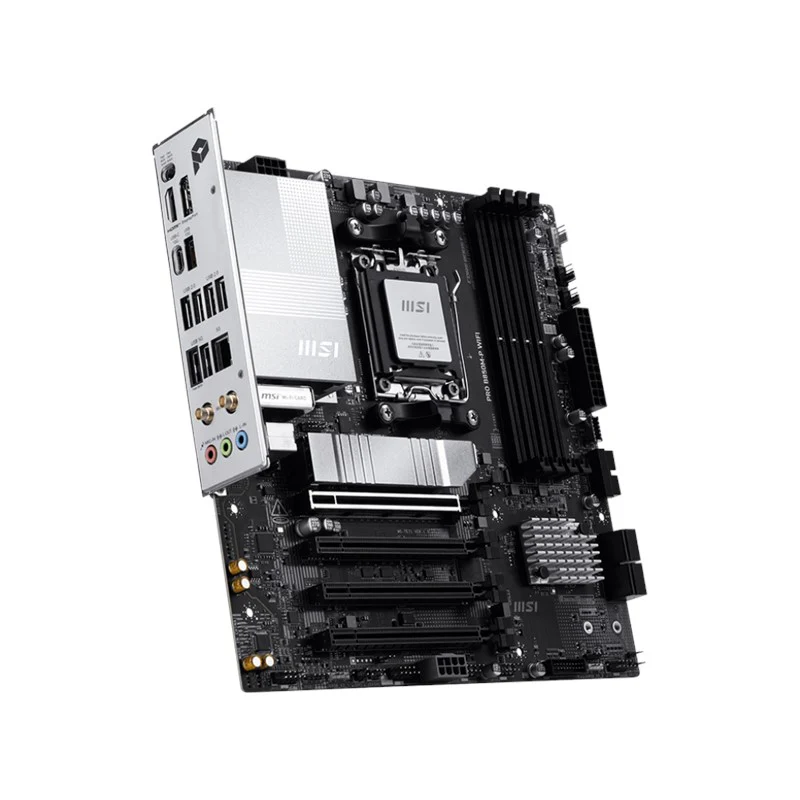

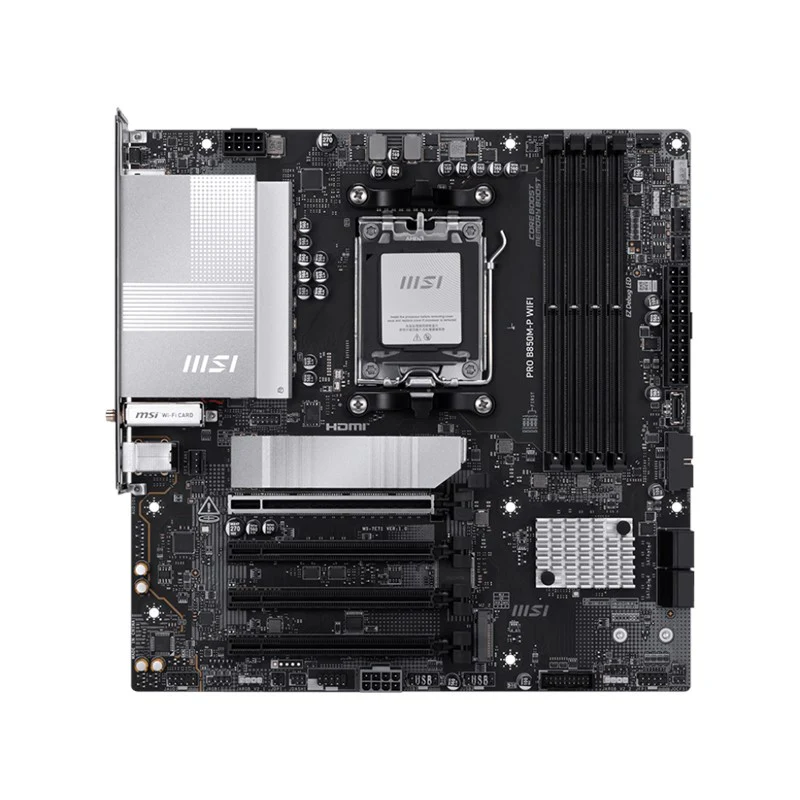

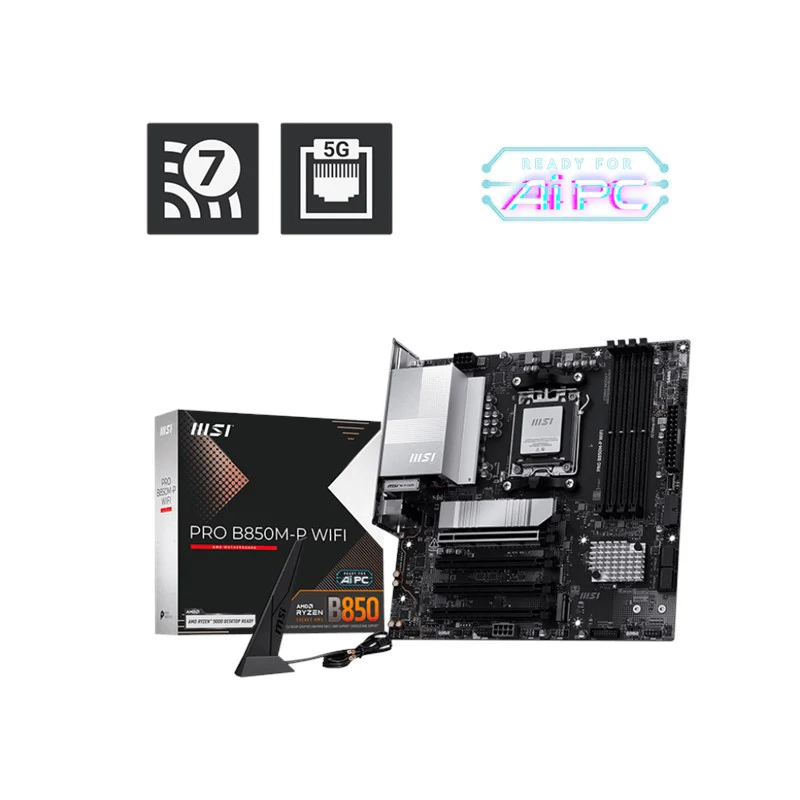

MSI PRO B850M-P WIFI DDR5 Micro ATX Gaming Motherboard - Black

MSI PRO B850M-P WIFI DDR5 Micro ATX Gaming Motherboard

AI

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

DIRECT 7+2+1 POWER DESIGN

Unleash and sustain the maximum performance with a VRM design built with a total of 7+2+1 digital power phases. With an 8-pin power connector, PRO B850M-P WIFI is ready for the challenge of heavy-loading tasks.

OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr

Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

What are the benefits of MSI PRO B850M-P Gaming Motherboard ?

• AI-optimized performance with advanced hardware support for gaming and AI workloads

• Simplified system control through AI features in MSI Center and BIOS

• Stable power delivery with a Direct 7+2+1 digital power phase design for heavy tasks

• Optimized PCB design for higher bandwidth and faster data transfer

• Improved thermal performance with an extended heatsink for sustained performance under load

• Enhanced SSD cooling using M.2 Shield Frozr to keep storage running at peak performance

Chipset

AMD B850

CPU

Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

Socket AM5

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Ryzen 9000 Series Processors max. overclocking frequency:

1DPC 1R Max speed up to 8200+ MT/s

1DPC 2R Max speed up to 6400+ MT/s

2DPC 1R Max speed up to 6400+ MT/s

2DPC 2R Max speed up to 6000+ MT/s

Slot

4x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E1 slot

Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)

Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)

Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)

Audio

Realtek ALC897

7.1-Channel High Definition Audio

RAID

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices

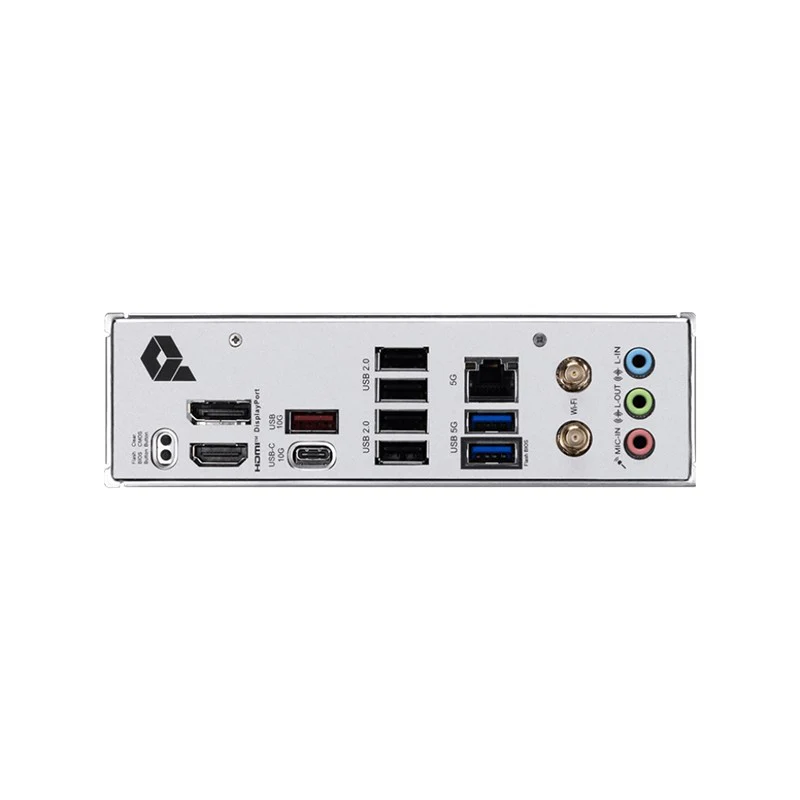

USB

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

4x USB 5Gbps Type A (Front)

1x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Rear)

1x USB 10Gbps Type C (Front)

LAN

Realtek 8126VB 5G LAN

Internal IO

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x Power Connector(PCIE_PWR 8pin)

1x CPU Fan

1x Combo Fan (Pump_Sys Fan)

3x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x Tuning Controller connector(JDASH)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

4x USB 5Gbps Type A ports

1x USB 10Gbps Type C ports

LED FEATURE

4x EZ Debug LED

1x EZ Memory Detection LED

OPERATING SYSTEM

Support for Windows 11 64-bit

PCB INFO

mATX

243.84mmx243.84mm
