NZXT H510 ATX Mid-Tower Gaming Case

NZXT H510 Mid-Tower Case

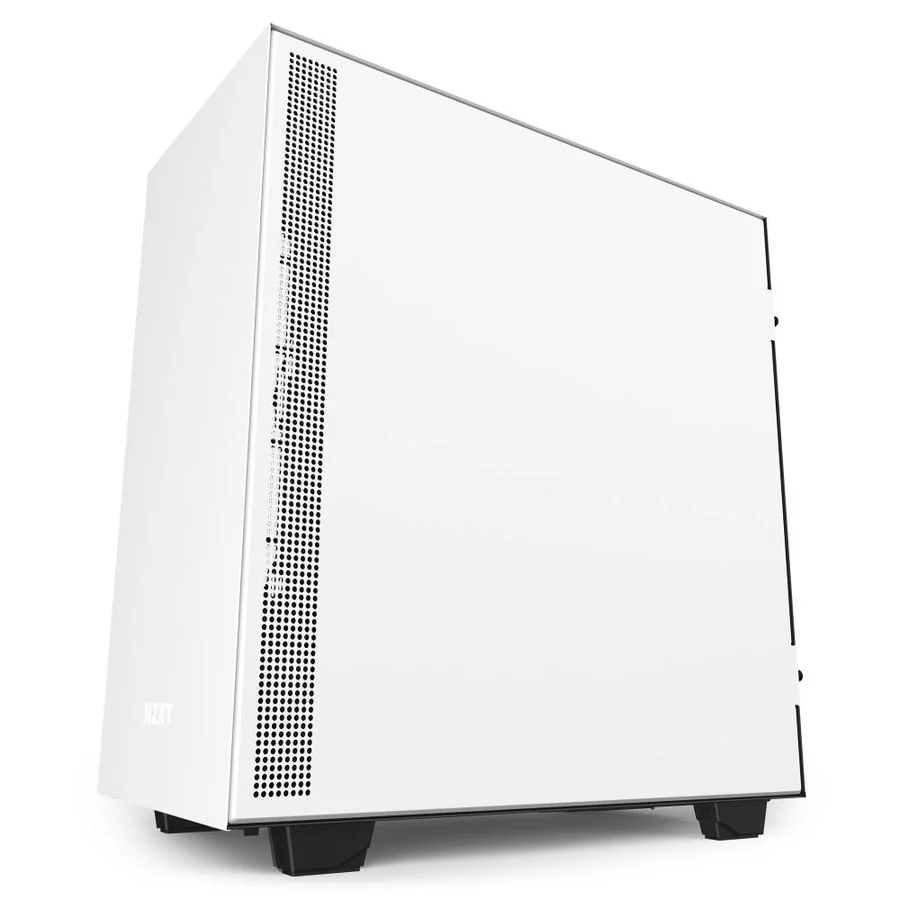

The NZXT H510 Mid-Tower Case features a sleek and minimalistic design with plenty of helpful additions for a clean and easy build.

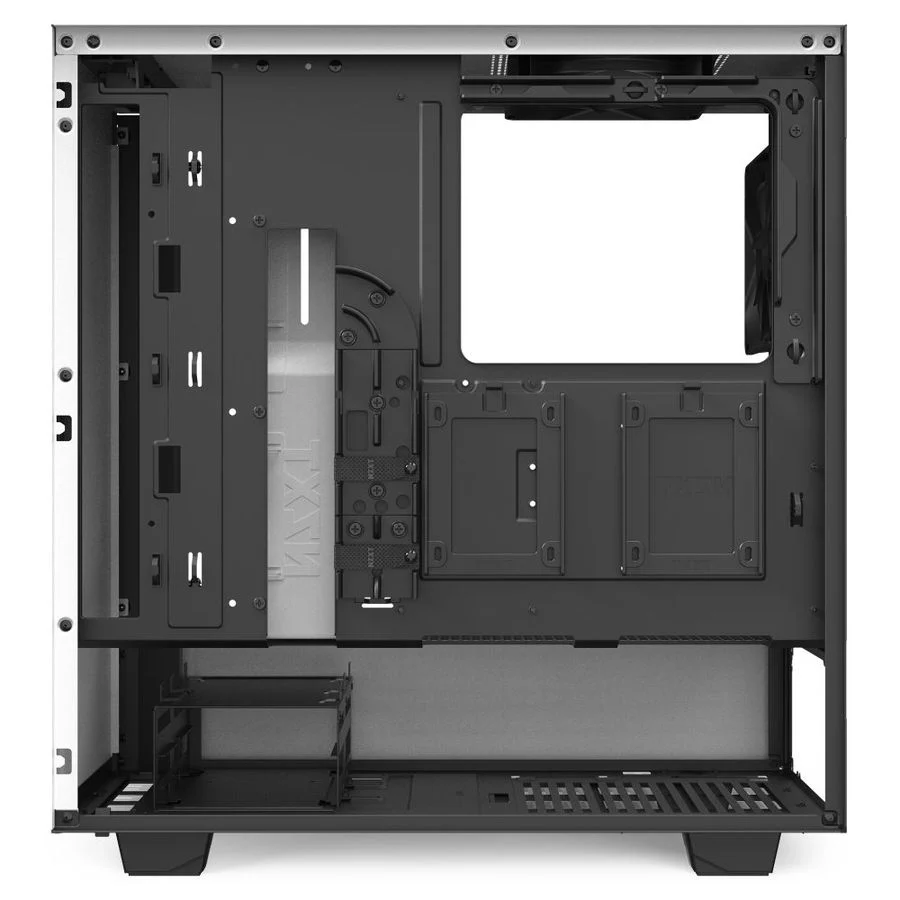

Aside from its signature cable management bar, it also has a PSU shroud and a built-in cable management system at the back.

Smarter Design

It supports up to an ATX motherboard, three 2.5" or 3.5" drives, and three dual-slot graphics cards. Whether you choose to liquid cool or not, the H510 supports up to two 120/140 mm fans at the front, a 120/140 mm fan at the rear, and another 120/140 mm fan at the top.

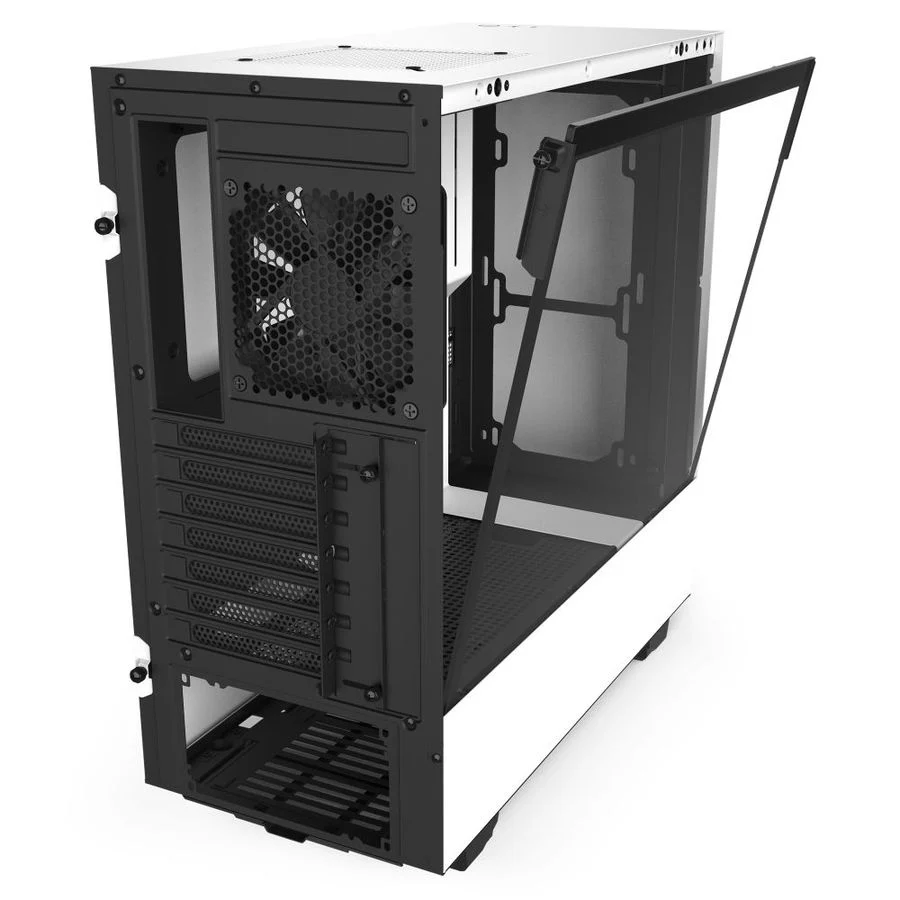

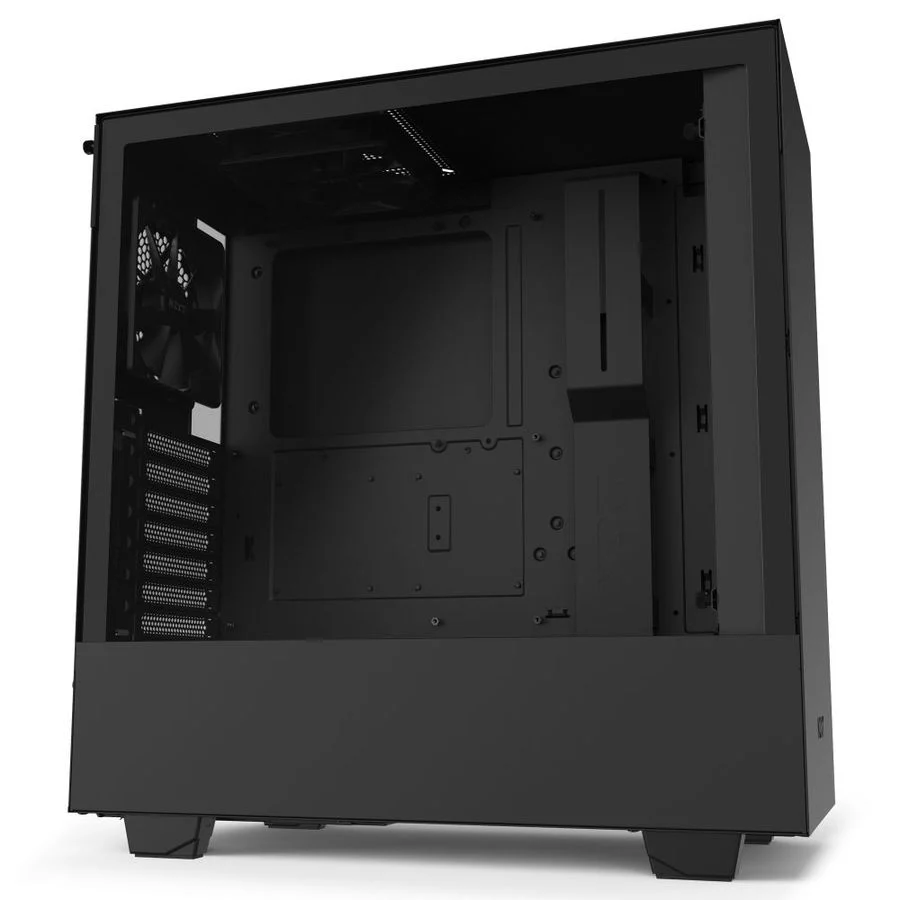

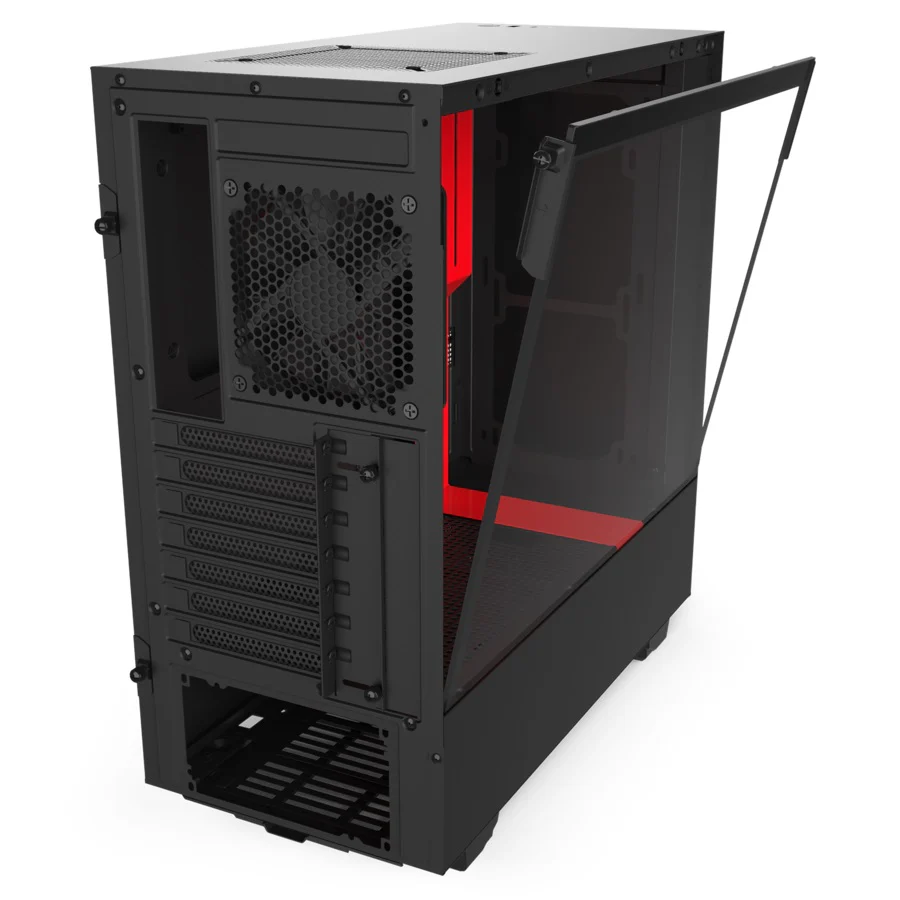

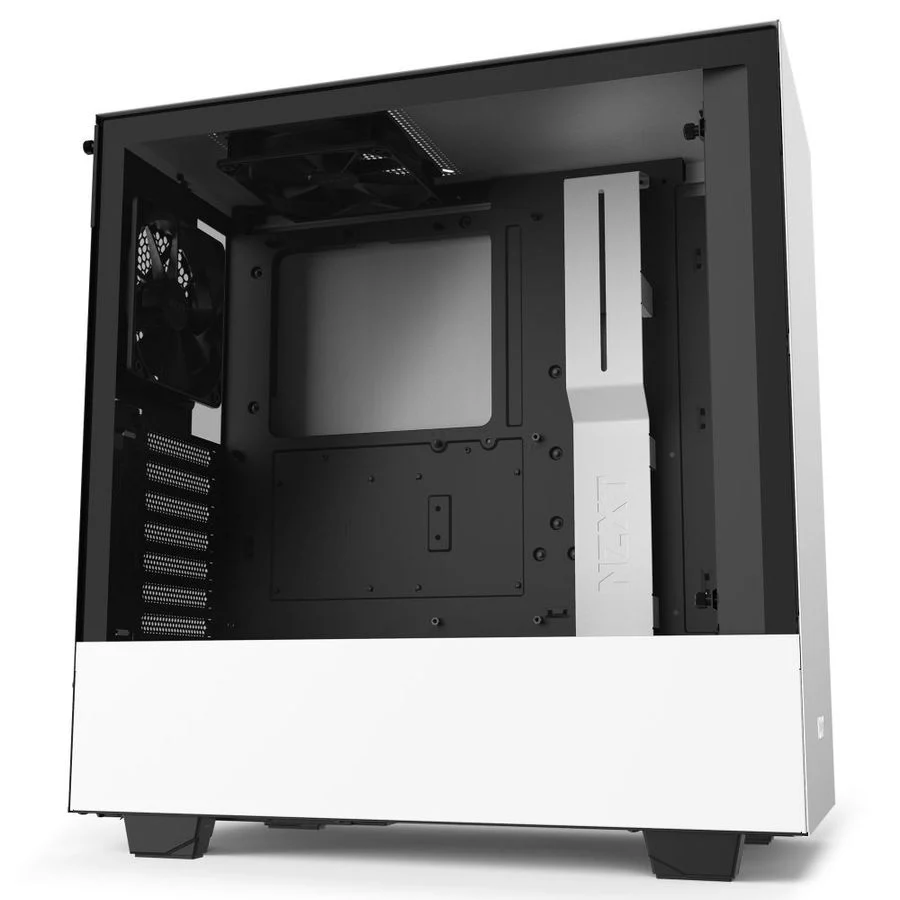

Thanks to its tempered-glass side panel, you can show off your hardware along with any custom LED lighting.

More Modern

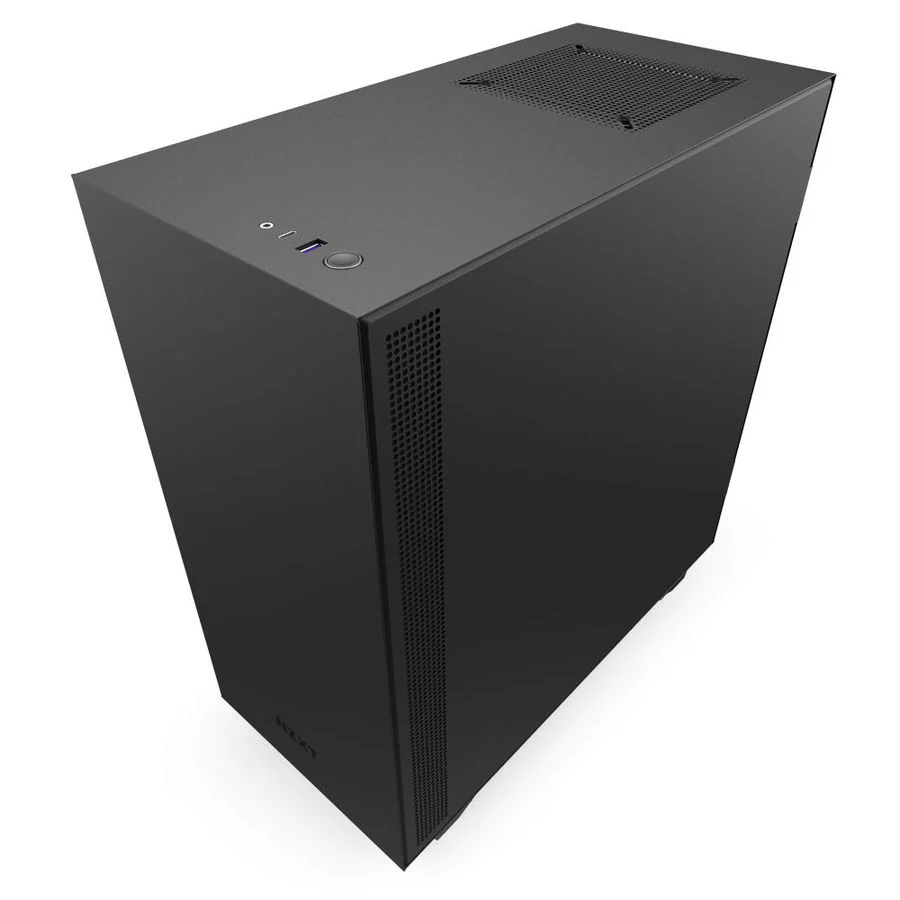

With a USB 3.1 Gen2-compatible USB-C connector on the front panel, it’s easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PC.

Eye Catching

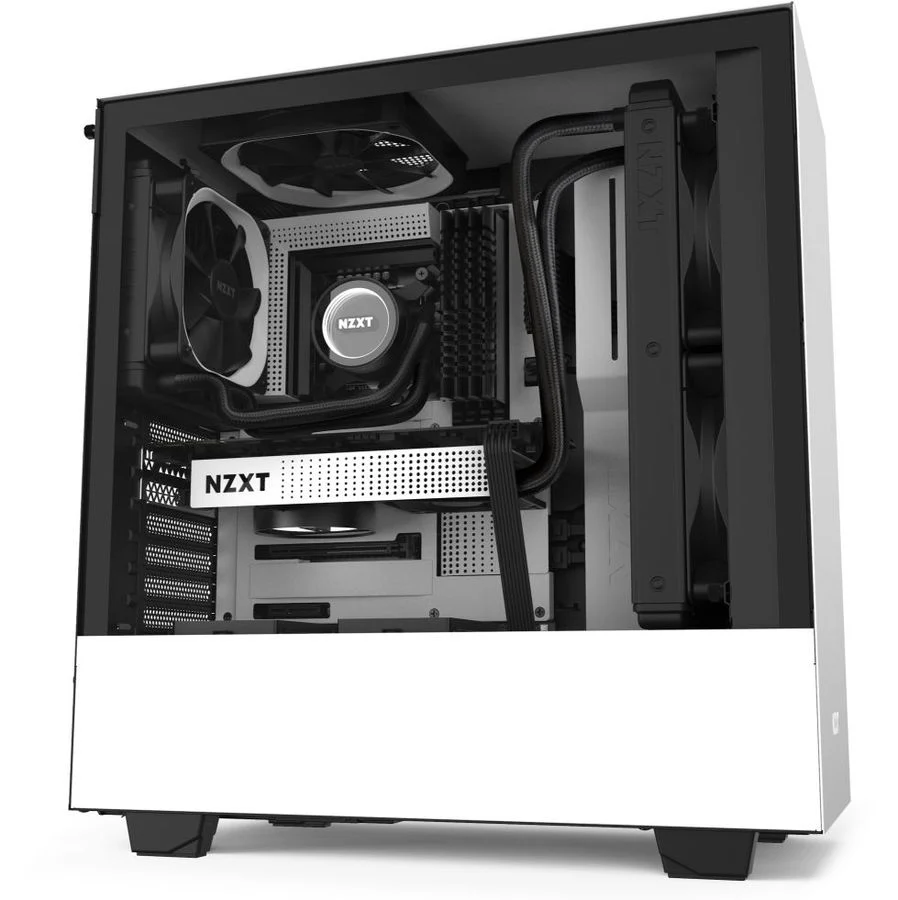

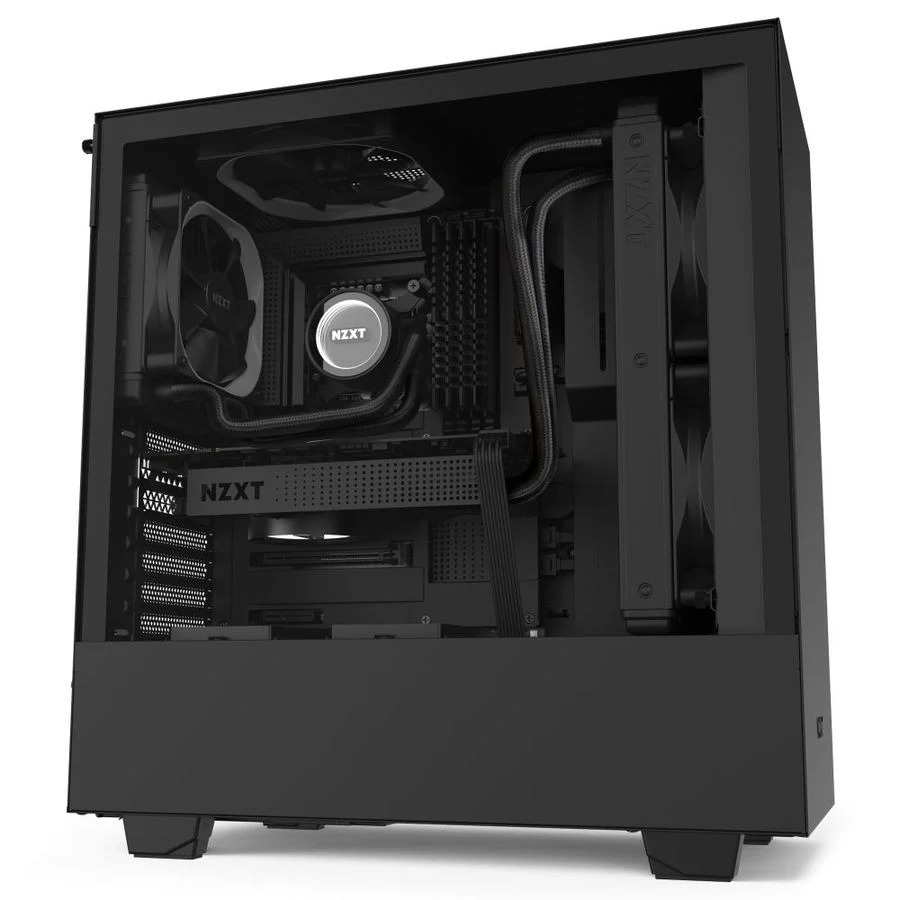

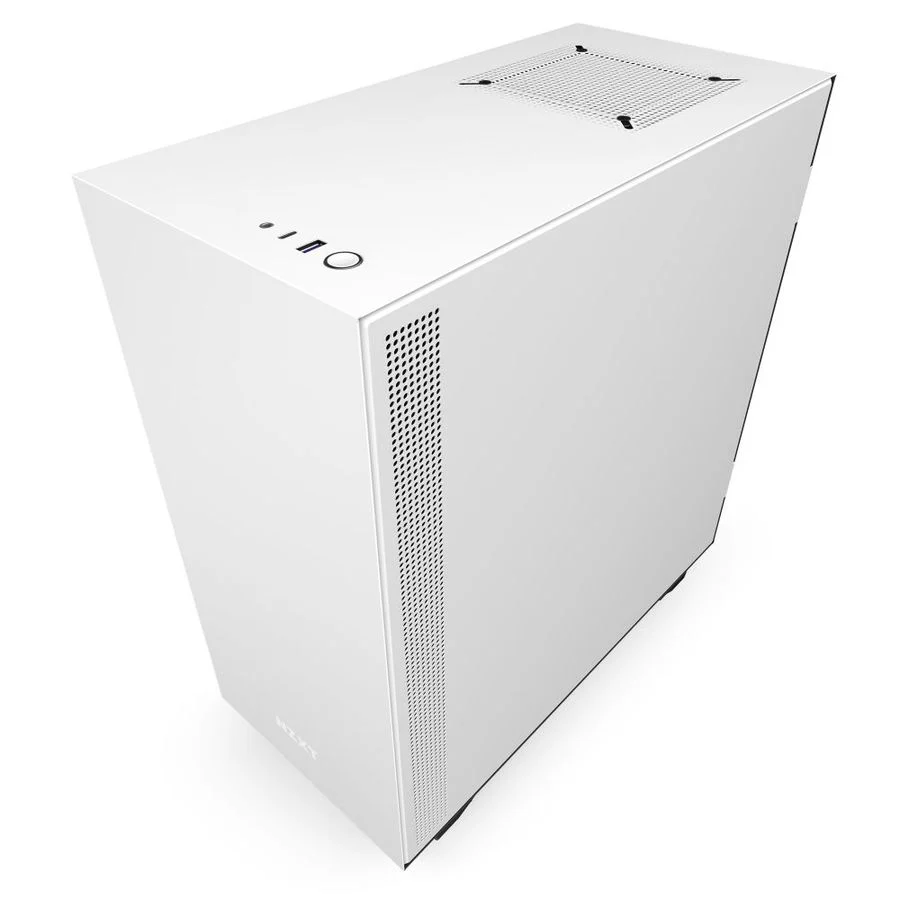

The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.

Enjoyable Builds For All

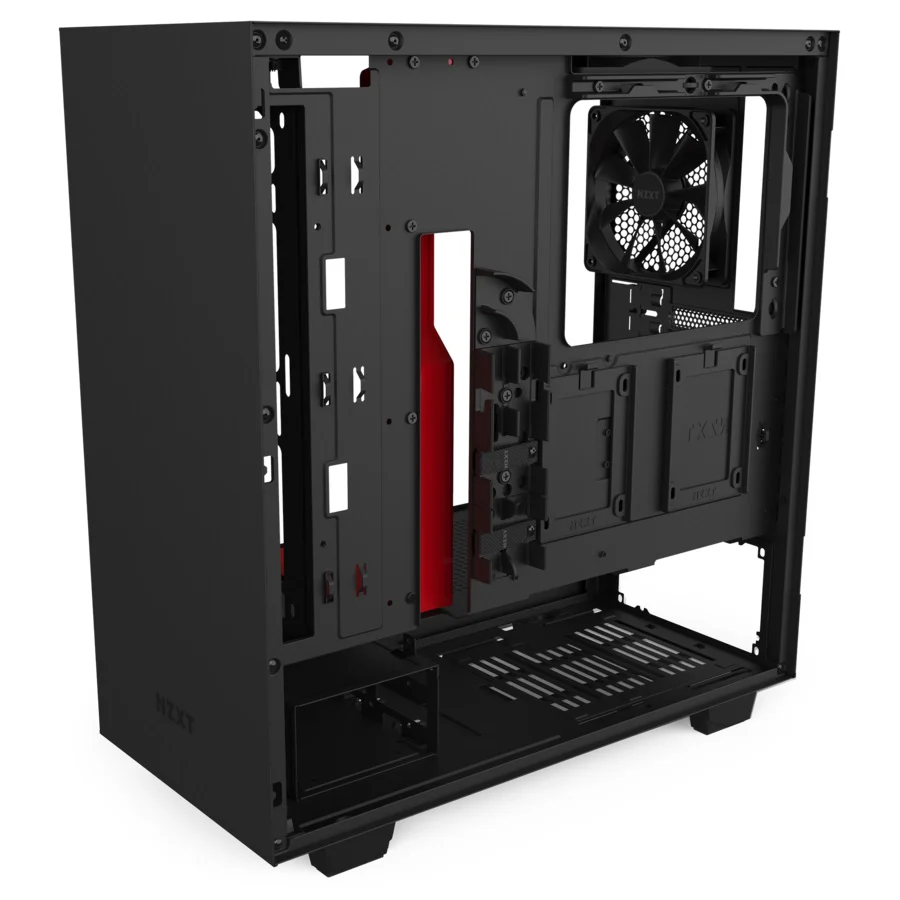

Cable management can often take more time than assembly. We designed a cable routing kit with pre-installed channels and straps, for intuitive and easy wiring

Dimensions

W: 210mm H: 435mm D: 428mm (without feet) /W: 210mm H: 460mm D: 428mm (with feet)

Material(s)

SGCC Steel, Tempered Glass

Weight

6.6 kg

Motherboard Support

Mini-ITX, MicroATX, and ATX

Front I/O Ports

H510: /1x USB 3.1 Gen 2 Type-C /1x USB 3.1 Gen 1 Type-A / 1x Headset audio Jack / 2x USB 3.1 Gen 1 Type-A /1x Headset audio Jack

Front I/O internal header

1x USB 3.1 Gen 2 Internal Header / 1x USB 3.1 Gen 1 Internal Header / 1x HD Audio Header

Filters

All Air Intakes

Included Accessories

Installation screws / 10x Cable ties / 1x Headset Audio Jack splitter (4 pole to 3 pole)

Drive Bays

2.5”: 2+1 / 3.5”: 2+1

Expansion Slots

7

Radiator Support

Front: 2x 140 or 2x 120mm with Pull / Rear: 1x 120mm

Fan Support

Front: 2 x 120/ 2 x 140mm / Top: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included) / Rear: 1x 120mm (1 Aer F120 Case Version included)

Fan Specs

Aer F120 (Case Version) / Speed: 1200 ± 200 RPM / Airflow: 50.42 CFM / Noise: 28 dBA / Bearing: Rifle Bearing /

Clearance

Cable Management: 19-23mm / GPU Clearance: Up to 381mm w/o front watercooler installed, up to 325mm with front watercooler installed /CPU Cooler: Up to 165mm / Front Radiator: 60mm/ Rear Radiator: 60mm / Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel) /

Radiator Support

Front: 2x 140 or 3x 120mm with Push/Pull / Top: 2x 140 or 3x 120 /Rear: 1x 120

Fan Support

Front: 3x 120/ 2x 140mm (3 Aer F120 Case Version included) / Top: 3x 120/2x 140mm / Rear: 1x 120/1x 140mm (1 Aer F140 Case Version included)

Fan Specs

Aer F120 (Case Version) / Speed: 1200 ± 200 RPM / Airflow: 50.42 / CFM Noise: 28 dBA / Bearing: Rifle Bearing / Aer F140 (Case Version) / Speed: 1,000 ± 200 RPM / Airflow: 68.95 CFM / Noise: 29 dBA / Bearing: Rifle Bearing

Clearance

Cable Management: 18-22mm / GPU Clearance: Up to 413mm / Vertical GPU Mount Clearance: 50.8mm /CPU Cooler: Up to 185mm / Front Radiator: 60mm / Top Radiator: 30mm / Reservoir & Pump: Up to 224mm (Along cable bar)
