TP-link EAP110 N300 Wireless N Outdoor Access Point, Built for Outdoor Wi-Fi Applications
TP-Link EAP110 N300 Wireless N Outdoor Access Point, Built for Outdoor Wi-Fi Applications
 |

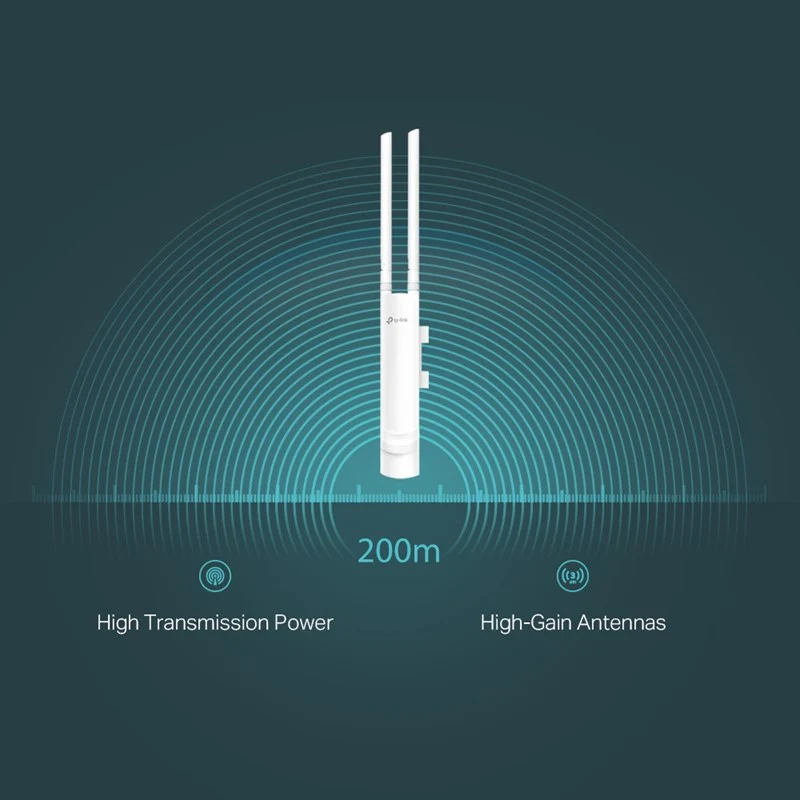

Wi-Fi That Goes the Distance With high transmission power and two high-gain omnidirectional antennas, EAP110-Outdoor provides stable wireless coverage at a range of up to 200 meters in outdoor settings. |
 |
Efficient Centralized Network Management With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It’s network management as it should be - efficient and intuitive. |
 |
Excellent Hardware Designs With special design of its antenna, appearance, power options and installation methods, EAP110-Outdoor can perfectly fit for different scenarios both indoors and outdoors. |
 |

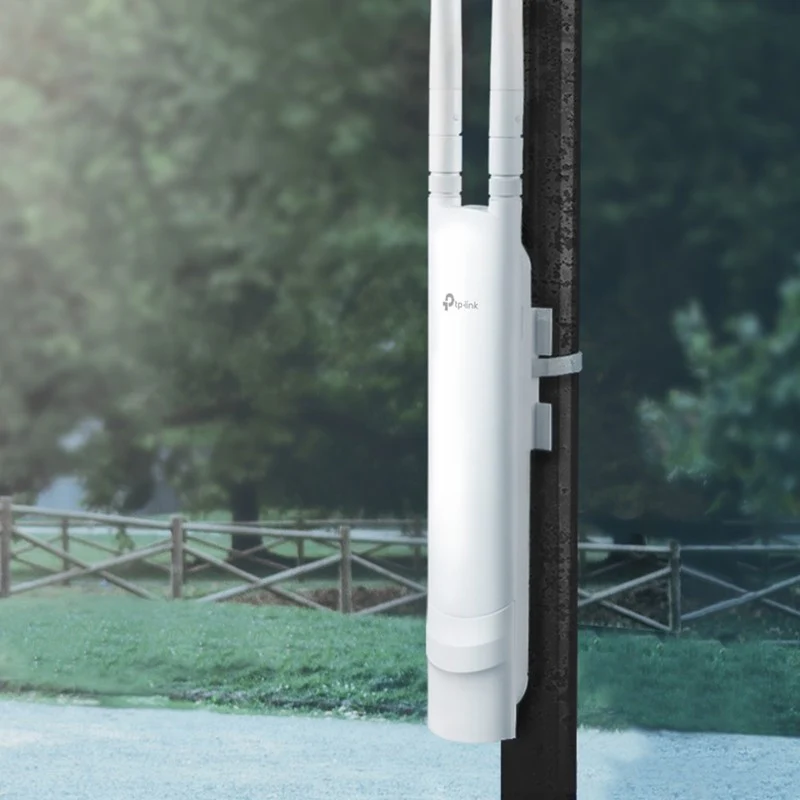

Outdoor Environment Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition. |
Specifications:
|
Interface |

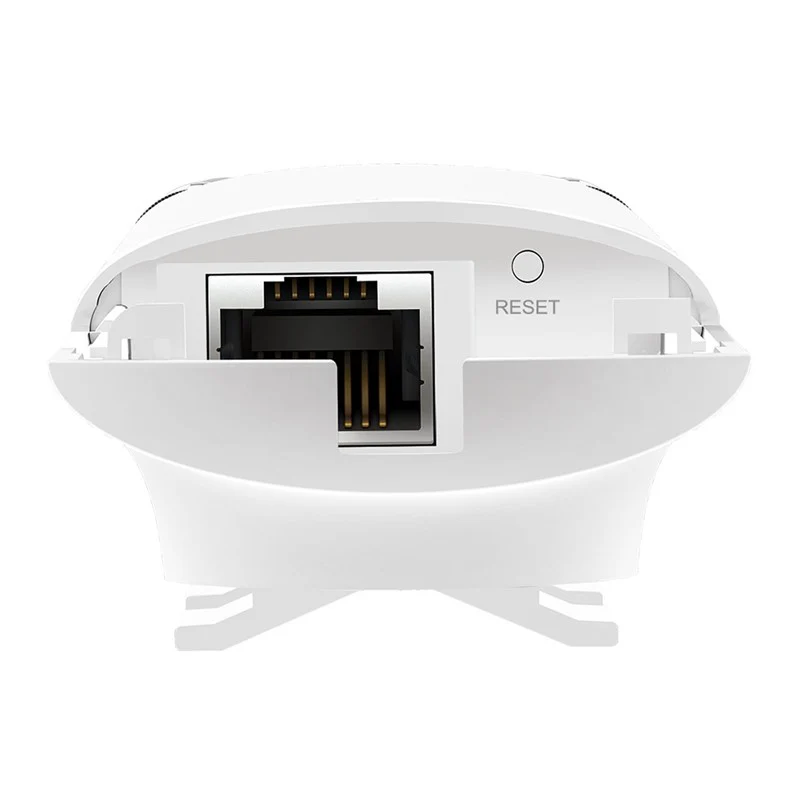

1 × Fast Ethernet (RJ-45) Port |
|
|
(Support Passive PoE) |
|
Button |
Reset |
|
Power Supply |
24V Passive PoE |
|
|
(+4,5pins; -7,8pins. PoE Adapter Included) |
|
Power Consumption |
3.1 W |
|

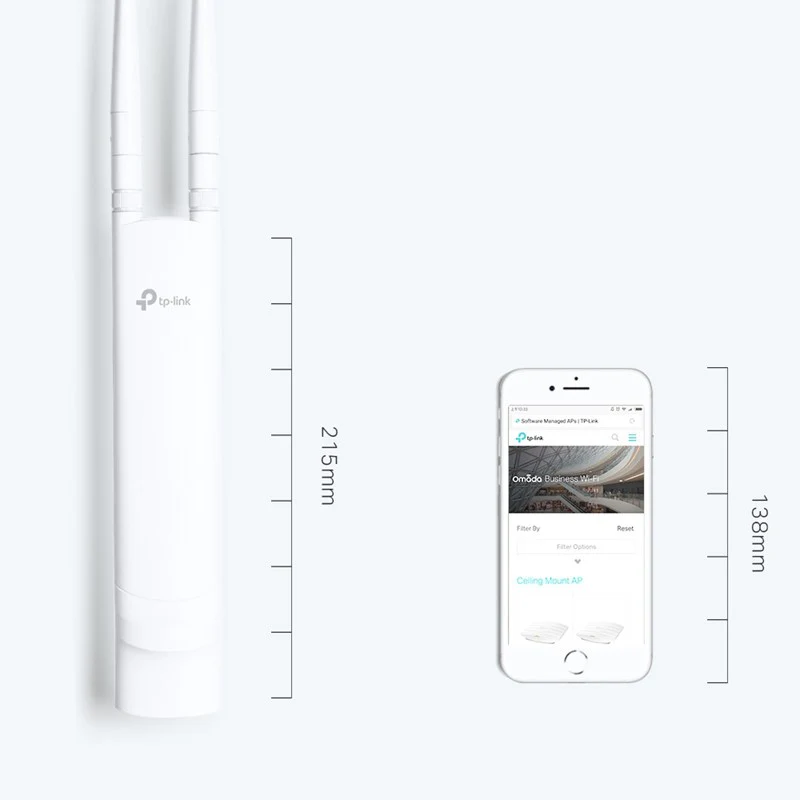

Dimensions ( W x D x H ) |
8.2 × 3.7 × 1.7 in. |
|
|
(209 × 95 × 42.6 mm) |
|
Antenna Type |
2 × 3dBi External Omni waterproof |
|
Weatherproof Enclosure |
IP65 |
|
Mounting |
Pole or wall mounting (mounting kit included) |
|
WIRELESS FEATURES |
|
|
Wireless Standards |
IEEE 802.11n/g/b |
|
Frequency |
2.4GHz |
|
Signal Rate |
11n: Up to 300Mbps |
|
|
11g: Up to 54Mbps |
|
|
11b: Up to 11Mbps |
|
Transmit Power |
< 27dBm |
|
Wireless Functions |
Multiple SSIDs (Up to 8 SSIDs) |
|
|
Enable/Disable Wireless Radio |
|
|
Automatic Channel Assignment |
|
|
Transmit Power Control (adjustable on 1 dBm step) |
|
|
QoS (WMM) |
|
|
Load Balance |
|
|
Rate Limit |
|
|
Reboot Schedule |
|
|
Wireless Schedule |
|
|
Wireless Statistics based on SSID, AP, and Client |
|
Wireless Security |
Captive Portal Authentication |
|
|
Access Control |
|
|
Wireless Mac Address Filtering |
|
|
Wireless Isolation Between Clients |
|
|
SSID to VLAN Mapping |
|
|
Rogue AP Detection |
|
|
802.1X Support |
|
|
64/128/152-bit WEP / WPA / WPA2-Enterprise, |
|
|
WPA-PSK / WPA2-PSK |
|
MANAGEMENT |
|
|
Omada App |
Yes |
|
Centralized Management |
• Omada Cloud-Based Controller |
|
|
• Omada Hardware Controller (OC300) |
|
|
• Omada Hardware Controller (OC200) |
|
|
• Omada Software Controller |
|
Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
|
Email Alerts |
Yes |
|
LED ON/OFF Control |
Yes |
|
Management MAC Access Control |
Yes |
|
SNMP |
v1, v2c |
|
System Logging Local/Remote Syslog |
Local and Remote Syslog |
|
SSH |
Yes |
|
Web-based Management |
HTTP/HTTPS |
|
L3 Management |
Yes |
|
Multi-site Management |
Yes |
