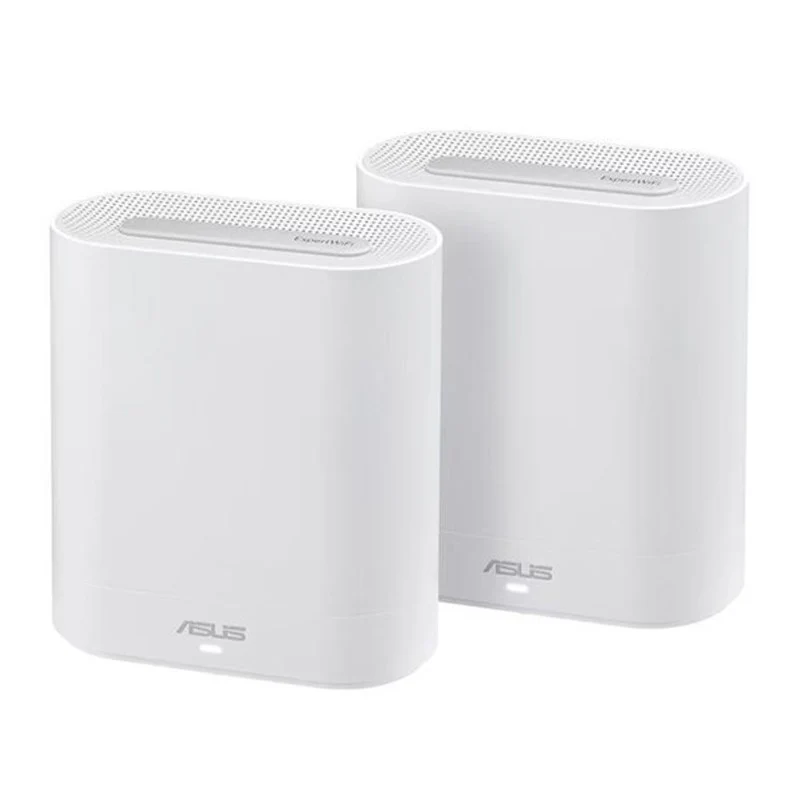

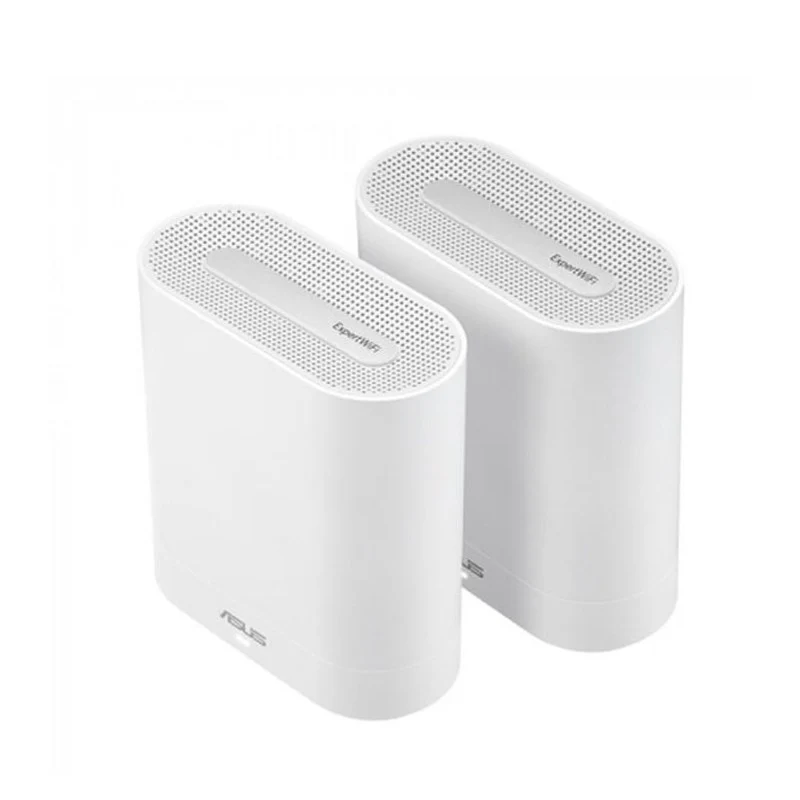

ASUS EXPERTWIFI EBM68 AX7800 Tri-Band Wi-Fi 6 Mesh WiFi System 2 Pack - White

ASUS EXPERTWIFI EBM68 AX7800 Tri-Band Wi-Fi 6 Mesh Wi-Fi System 2 Pack - White

High-Efficiency Wi-Fi 6 Performance

The ASUS ExpertWiFi EBM68 AX7800 system uses Wi-Fi 6 tri-band technology to offer ultrafast speeds up to 7800 Mbps.

With 160 MHz channels, it improves efficiency and throughput, providing a stable and fast connection for multiple devices in business environments, ideal for high-demand tasks like video conferencing, large file transfers, and simultaneous device use.

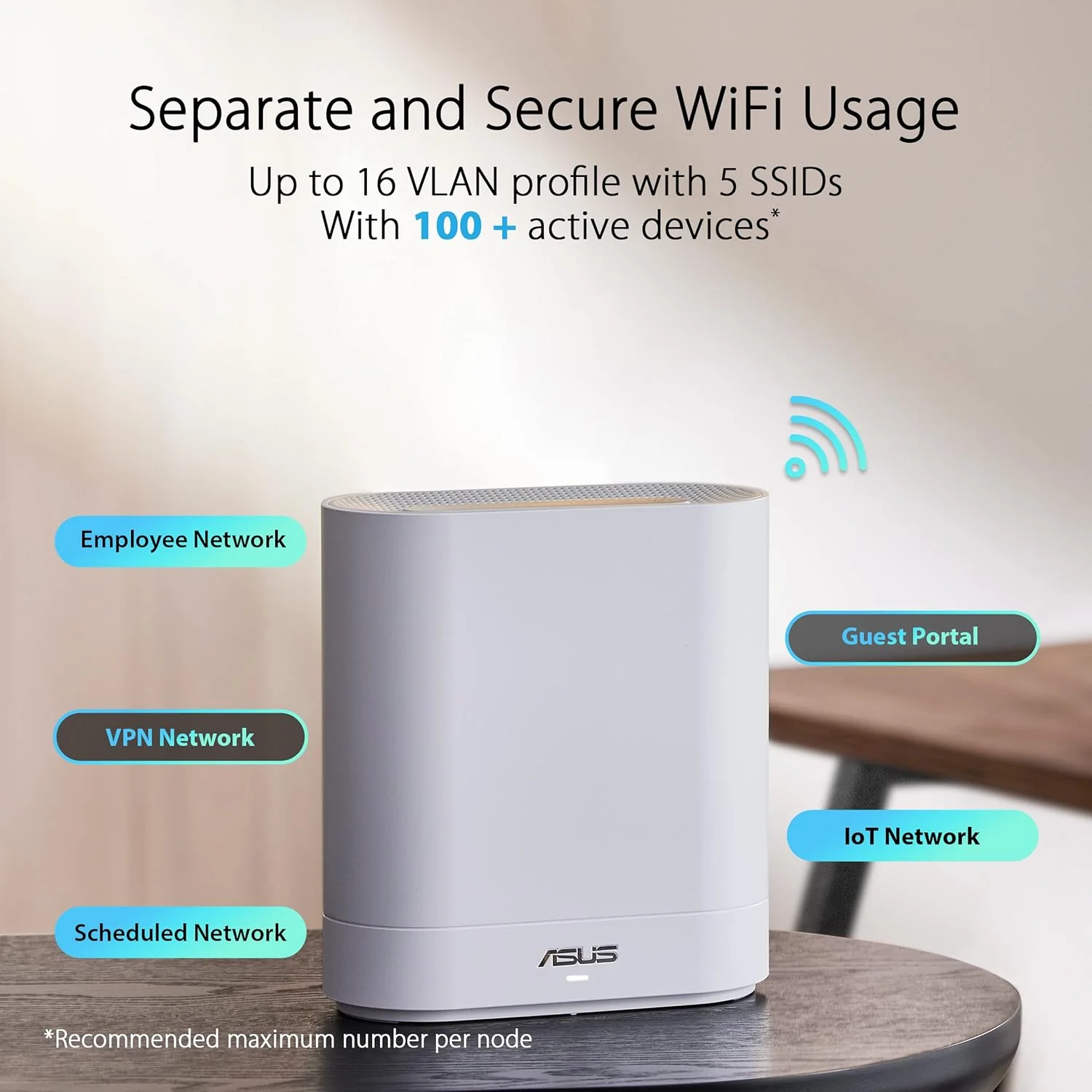

Separate and Secure Device Usage

The system supports up to five SSIDs, enabling businesses to segregate and prioritize devices based on different business needs.

This feature helps ensure that critical business devices receive the necessary bandwidth, while guest or non-essential devices do not interfere with network performance, enhancing both security and efficiency.

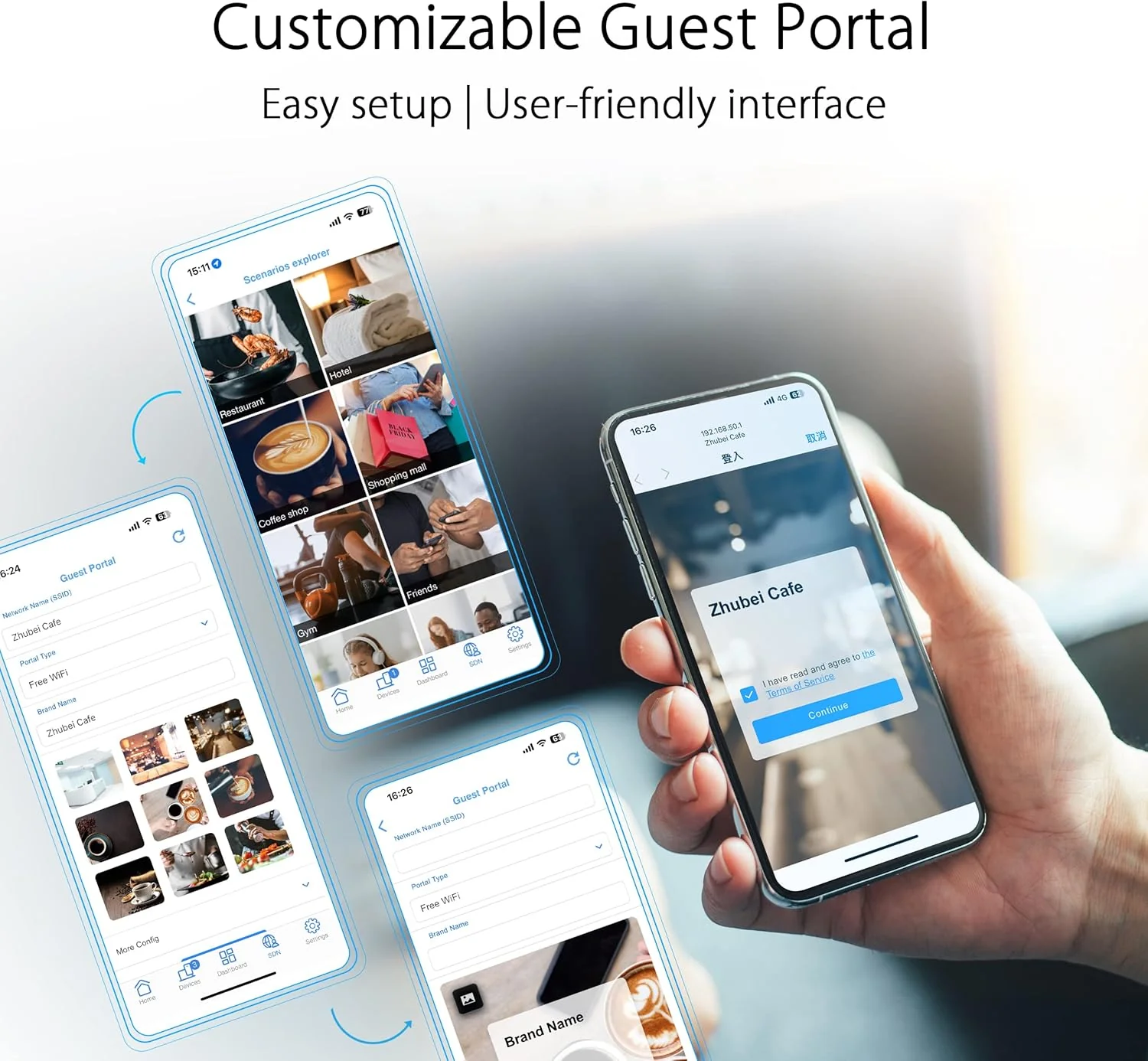

Customizable Guest Portal for Business Needs

The ExpertWiFi EBM68 allows businesses to create a fully customizable guest portal.

This feature includes options for custom portal types, branding, and visual templates, allowing businesses to tailor the guest network experience to match their company’s style and requirements, which can be an important element for customer-facing networks.

Extendable Wi-Fi Coverage with AiMesh

Equipped with AiMesh technology, the ExpertWiFi system supports up to 12 mesh node connections to expand coverage.

This enables businesses to create a robust and seamless Wi-Fi network that can cover larger office spaces or multiple floors, ensuring consistent connectivity throughout the premises.

Enterprise-Grade Security with AiProtection Pro

The ExpertWiFi EBM68 comes with ASUS AiProtection Pro, offering enterprise-grade security to protect your business network from online threats.

This includes safe browsing features and advanced network security protocols, ensuring the safety of sensitive business data and minimizing the risk of cyberattacks.

Model

EBM68

Product Segment

AX7800 Ultimate AX Performance (574 + 2402 + 4804 Mbps)

Transmit/Receive

2.4 GHz: 2x2, 5 GHz-1: 2x2, 5 GHz-2: 4x4

Processor

1.7 GHz Quad-Core Processor

Memory

256 MB Flash, 1 GB RAM

Operating Frequency Bands

2.4 GHz, 5 GHz-1, 5 GHz-2

Operating Modes

Wireless Router Mode, AiMesh Node Mode, Access Point Mode

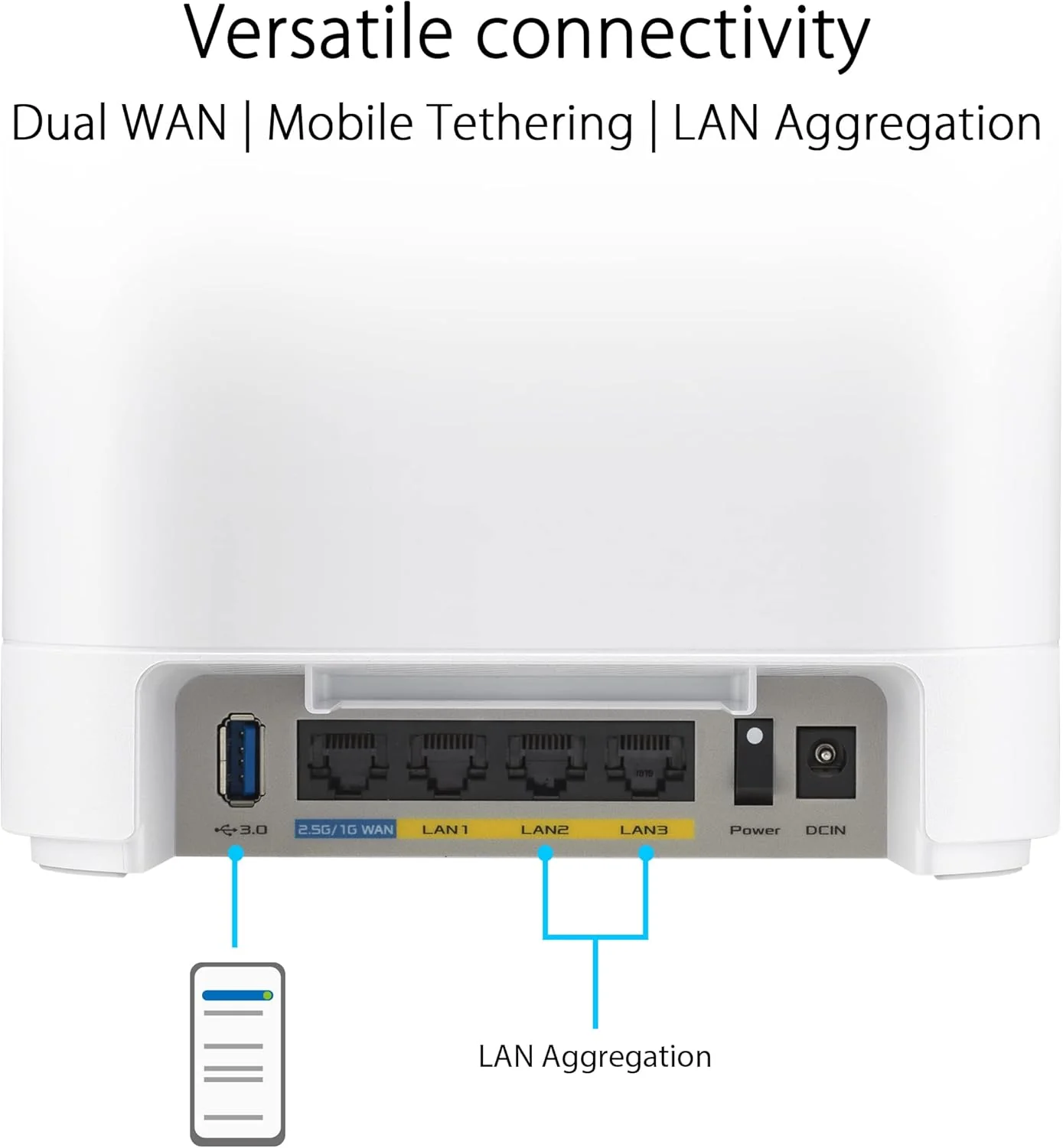

I/O Ports

1 x RJ45 for 2.5G BaseT WAN, 3 x RJ45 for Gigabit BaseT LAN, 1 x USB 3.2 Gen 1

Buttons

WPS Button, Reset Button, Power Switch

LED Indicators

Power (1)

Power Supply

AC Input: 110V240V (5060 Hz), DC Output: 12V with max. 3A current

Package Content

ExpertWiFi EBM68, RJ-45 Cable, Power Adapter, Warranty Card, Quick Start Guide, Wall-Mount Kit

Dimensions

167 x 77 x 186 mm

Parental Controls

Web & Apps Filters, Time Scheduling, Safe Browsing, Device Access Control (Max 12 profiles)

Guest Network

Yes

Security Features

AiProtection, VPN, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS, Let's Encrypt, DNS-over-TLS, SSH, Firewall

VPN Support

VPN Client (L2TP, OpenVPN, PPTP, WireGuard), VPN Server (IPSec, OpenVPN, PPTP, WireGuard), VPN Fusion

WAN Features

PPPoE, PPTP, L2TP, Automatic IP, Static IP, IPSec, Dual WAN, 3G/4G LTE Dongle, 4G/5G Auto Mobile Tethering, Port Forwarding, Port Triggering, DMZ, DDNS, NAT Passthrough

LAN Features

DHCP Server, IGMP Snooping, IPTV, LAN Link Aggregation, VLAN

Wireless Features

UTF-8 SSID, Wi-Fi MAC Address Filter (Max 64), Wireless Scheduler

USB Applications

4G/5G Auto Mobile Tethering, Media Server, Samba Server, FTP Server, Shared Folder Privileges

User Interface

ASUSWRT Web Interface, ASUS ExpertWiFi App

Management

Multiple Site Management

Administration

Backup/Restore, Diagnosis Tools, System Log, Connection Diagnosis, Auto Firmware Update
