ASUS ZenWiFi XD5 (W-1-PK) Dual-band (2.4 GHz / 5 GHz) Wi-Fi 6 1 pack system - White

ASUS ZenWiFi XD5 (W-1-PK) Dual-band (2.4 GHz / 5 GHz) Wi-Fi 6 1 pack system - White

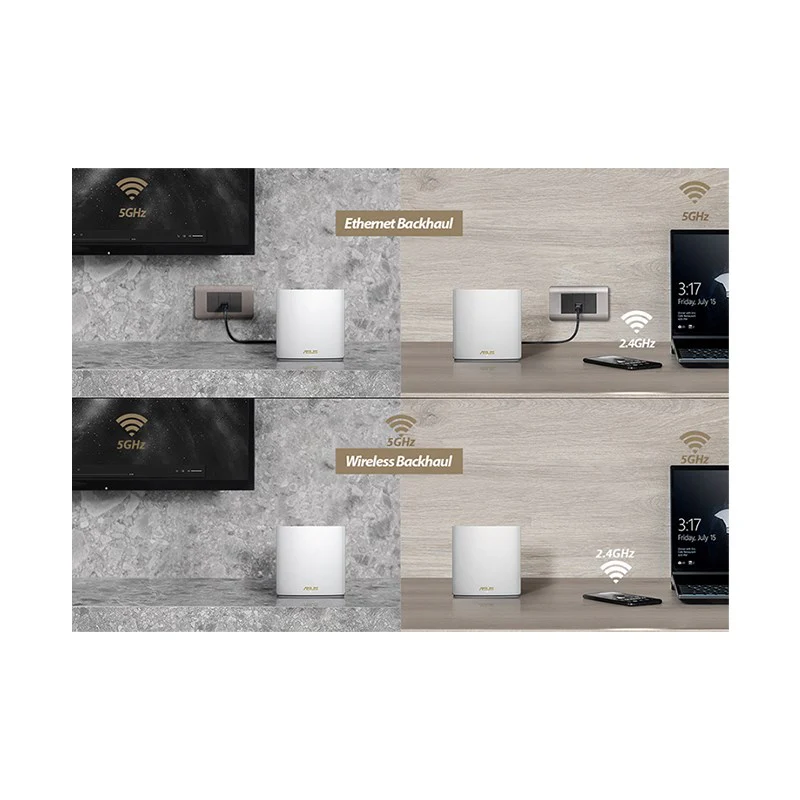

Whole-Home Coverage with Wi-Fi 6 Technology

The ASUS ZenWiFi XD5 is designed to provide comprehensive whole-home coverage, consisting of three powerful AX3000 Wi-Fi 6 routers.

These routers ensure that you experience fast, reliable, and secure Wi-Fi throughout your home, even in areas that may have previously experienced weak or spotty connections.

Wi-Fi 6 True 8K Streaming

Thanks to Wi-Fi 6 technology, the ZenWiFi XD5 system supports smooth, high-definition 8K streaming.

By comparing the speed of 2x2 11ax on 5GHz 160MHz bandwidth with 1024QAM modulation to 2x2 11ac on 5GHz 80MHz with 256QAM modulation, the system ensures faster and more reliable data transmission, making it perfect for ultra-high-definition content.

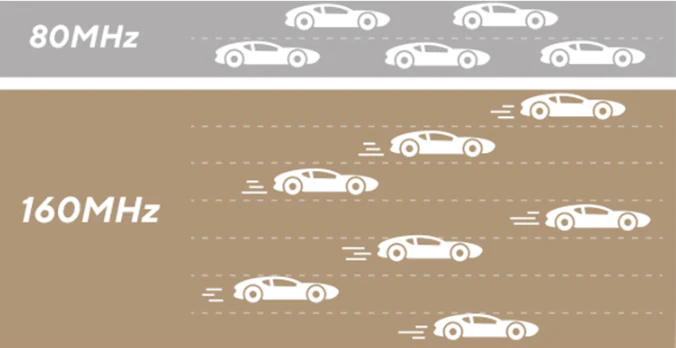

Ultimate Wi-Fi 6 Performance

The ZenWiFi XD5 is built to maximize the performance of Wi-Fi 6. It supports high-speed 160MHz bandwidth, significantly improving network capacity while reducing congestion.

This means faster speeds and more stable connections for every Wi-Fi 6 device, ideal for homes with multiple connected devices.

Fast and Reliable Connectivity for Every Device

With Wi-Fi 6 technology, the ZenWiFi XD5 delivers enhanced connectivity for a wide range of devices.

Whether you're streaming 4K or 8K video, playing online games, or simply browsing the web, this system ensures that all your devices get the speed and reliability they need without interference or slowdowns.

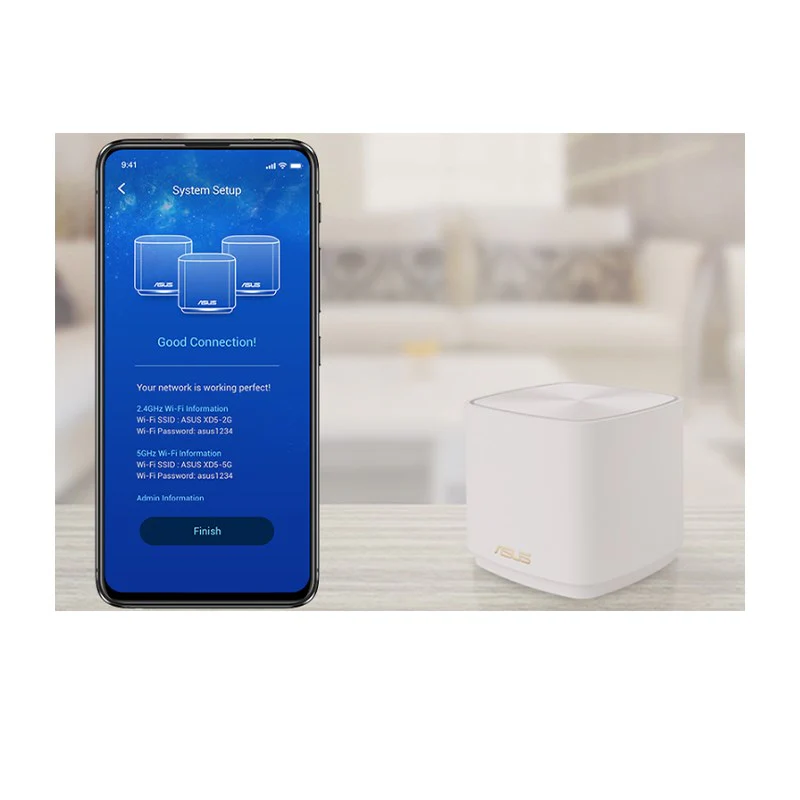

Secure and Flexible Network Management

The ZenWiFi XD5 provides robust security features to protect your home network and connected devices.

It includes easy-to-use network management tools for monitoring and controlling your Wi-Fi network, ensuring that your devices are safe from online threats while providing the flexibility to customize your home network setup.

Wi-Fi Data Rate

574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)

Product Segment

AX3000 ultimate AX performance

Transmit/Receive

2.4 GHz 2x2, 5 GHz 2x2

Processor

1.7 GHz quad-core processor

Memory

128 MB Flash, 512 MB RAM

Operating Frequency Bands

2.4 GHz, 5 GHz

Operating Modes

Wireless Router Mode, AiMesh Node Mode, Access Point Mode

I/O Ports

1 x RJ45 for Gigabit BaseT WAN/LAN, 1 x RJ45 for Gigabit LAN

Buttons

WPS Button, Reset Button

LED Indicators

Power x 1

Power Supply

AC Input: 110V240V (5060Hz), DC Output: 12V with max. 1.5A

Package Content

ZenWiFi XD5, RJ45 Ethernet cable, Power adapter, Quick start guide, Warranty Card, Screw Pack

Dimensions

90 x 90 x 85 mm

Parental Controls

Block unwanted websites and apps, Time Scheduling, Safe Browsing

Router APP

ASUS Router APP

Guest Network

Support Guest Network, Max 6 Rules (3 for 2.4 GHz, 3 for 5 GHz), Time Limit

Security Features

WPA3-Personal, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS, Let's Encrypt, DNS-over-TLS, SSH, Firewall (64 keyword filters)

AiProtection

AiProtection Classic (Malicious Site Blocking, Infected Device Prevention and Blocking)

VPN Support

Instant Guard, VPN Client L2TP, OpenVPN, PPTP, WireGuard, VPN Server IPSec, OpenVPN, PPTP, WireGuard

Traffic Control

Bandwidth Limiter (Max 32 rules), Traditional QoS, Traffic Monitor

WAN Features

PPPoE, PPTP, L2TP, Automatic IP, Static IP, Port Forwarding (Max 64 rules), DMZ, DDNS

LAN Features

DHCP Server, IGMP Snooping, IPTV, Wake on LAN (WOL), Manually Assign IP (Max 64 rules)

Wireless Features

UTF-8 SSID, MAC Address Filter (Max 64 rules), Wireless Scheduler, Airtime Fairness, Universal Beamforming, Explicit Beamforming

Administration

Configuration Backup/Restore, Diagnosis Tools, Feedback System, System Log, New Device Connect Notification, Auto Firmware Update
