ASUS ZenWiFi XD6 - AX5400 Whole-Home Dual-Band Mesh Wi-Fi 6 System 2 Pack - White

ASUS ZenWiFi XD6 - AX5400 Whole-Home Dual-Band Mesh Wi-Fi 6 System 2 Pack - White

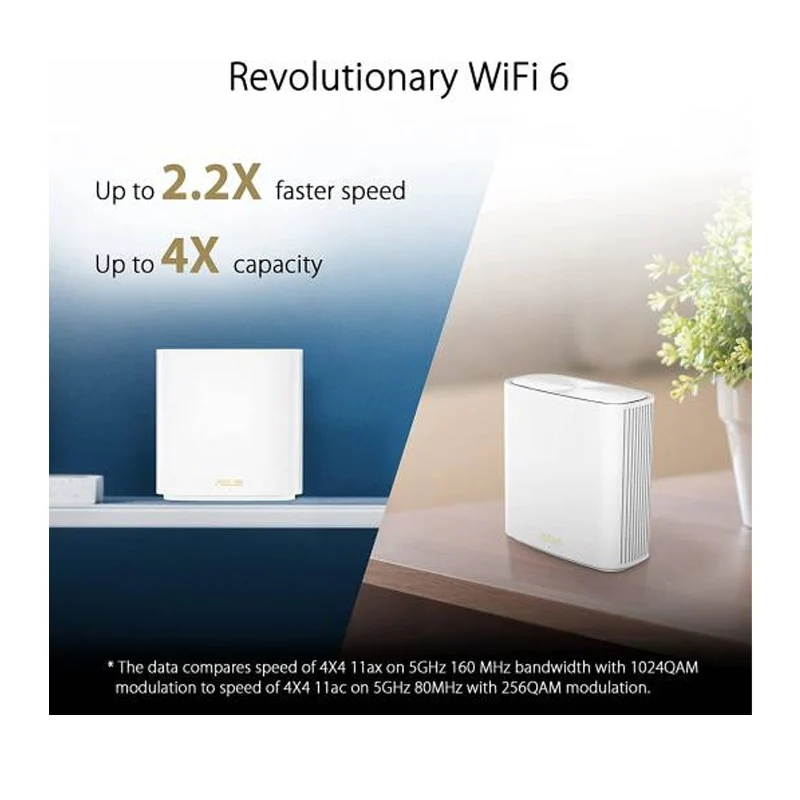

High-Speed AX5400 Wi-Fi 6 Performance

The ASUS ZenWiFi XD6 delivers maximum performance with speeds of up to 5400Mbps, leveraging Wi-Fi 6 (802.11ax) technology and 160MHz channels.

This ensures fast, stable, and efficient connections across your home, supporting multiple devices and high-bandwidth activities like streaming and gaming.

Simple Setup with Mobile App Control

Setting up the ZenWiFi XD6 is quick and easy.

The intuitive mobile app allows you to set up the system in just three simple steps.

The user-friendly interface lets you easily adjust and manage your network from anywhere, making it accessible for both beginners and advanced users.

Instant Guard for Secure Connections

ZenWiFi XD6 features Instant Guard, a one-touch solution that enables you to set up a secure, encrypted connection instantly.

This free service helps protect your privacy, especially when connecting to public Wi-Fi, by creating a secure tunnel for your data to pass through.

ASUS AiMesh Compatibility for Seamless Networking

This system is compatible with other AiMesh routers, allowing you to expand your network and create a versatile, seamless mesh network throughout your home.

AiMesh technology ensures smooth roaming and unified Wi-Fi coverage, perfect for larger homes or spaces requiring extended coverage.

Advanced Network Security with Free Lifetime AiProtection Pro

With AiProtection Pro powered by Trend Micro, ZenWiFi XD6 offers professional-grade security to protect your home network from online threats.

The system includes WPA3 encryption and advanced parental controls, which come free for life, ensuring your network is secure and your family is protected from harmful content.

Model Name

XD6 (W-2-PK), XD6 (W-1-PK)

Network Standard

IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), IPv4, IPv6

Antenna

Internal antenna x 6

Transmit / Receive

2.4GHz 2x2, 5GHz 4x4

Processor

1.5 GHz tri-core processor

Memory

XD6: 256 MB Flash, 512 MB RAM; XD6S: 128 MB Flash, 512 MB RAM

Boosts Speed

OFDMA, 1024-QAM high data rate, 20/40/80/160 MHz bandwidth

Operating Frequency

2.4 GHz / 5 GHz

Operating Mode

Wireless Router Mode, Range Extender Mode, Access Point Mode, Media Bridge Mode

I/O Ports

XD6: 1x RJ45 Gigabit WAN, 3x RJ45 Gigabit LAN; XD6S: 1x RJ45 Gigabit WAN, 1x RJ45 Gigabit LAN

Buttons

WPS Button, Reset Button

LED Indicator

Power x 1

Power Supply

AC Input: 110V240V (5060Hz), DC Output: 12V with max. 2A current

Package Content

ZenWiFi XD6: RJ-45 cable, Power adapter, Warranty card, Quick start guide; ZenWiFi XD6S: RJ-45 cable, Power adapter, Wall mount kit, Warranty card, Quick start guide (Wall mount kit may not be available in all regions)

Product Weight (g)

XD6: 435g, XD6S: 425g

Product Dimensions

126.4 x 59.05 x 129.7 mm

Remark

Content may vary in different regions and packages.

AiMesh

AiMesh: Primary AiMesh Router, AiMesh Node

Parental Control

Block access to unwanted websites/apps, Customized Internet Schedule

Router App

ASUS Router App

Guest Network

Support Guest Network, Max. 9 Guest Network Rules, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise

Security

WPS, Let's Encrypt, SSH, Firewall (Max. 64 Keyword Filters, Max. 32 Network Service Filters, Max. 64 URL Filters)

AiProtection

AiProtection Pro (Router Security Assessment, Malicious Site Blocking, Two-Way IPS, Infected Device Prevention and Blocking)

VPN

VPN Client: L2TP, OpenVPN, PPTP; VPN Server: IPSec, OpenVPN, PPTP

Traffic Control

Adaptive QoS (Bandwidth Monitor, Bandwidth Limiter: Max. 32 Rules), Traditional QoS (Max. 32 Rules), Traffic Monitor (Real-time, Wired, Wireless), Traffic Analyzer (Website History)

WAN

Internet Connection Types: PPPoE, PPTP, L2TP, Automatic IP, Static IP; Dual WAN, Port Forwarding (Max. 64 Rules), Port Triggering, DMZ, DDNS

LAN

DHCP Server, IGMP Snooping, IPTV, Manually Assign IP Address (Max. 64 Rules), Wake on LAN (WOL)

Wireless

UTF-8 SSID, WiFi MAC Address Filter (Max. 64 MAC Filters), Wireless Scheduler, Airtime Fairness, Universal Beamforming, Explicit Beamforming

Administration

Configuration Backup/Restore, Diagnosis Tools, Feedback System, System Log
